90mm LMAF/Cobra MAF sensor transfer function
I spent several hours searching the internet for the transfer function for my Lightning MAF 90mm sensor (PN 1L3F-12B579-AB, AFH90-02). It's used on 2001-2003 F-150 Lightnings and 2003-2004 Cobras. To save others from spending time searching I'm posting what I found here.
*** 2001 Lightning *********** 2001-2003 (Flow Stand Results)
Volts **** Kg/h ** Lb/m ******* Volts **** Counts * Lb-mass /tic ****** Kg/h ***** Lb/m
5.000 * 1834.80 * 67.42 **** 5.000000000 * 1023.0 * .0000041315 * 1686.639469 ** 61.973
4.841 * 1671.45 * 61.42 **** 4.839655172 ** 990.2 * .0000036394 * 1485.72262 *** 54.591
4.683 * 1515.15 * 55.67 **** 4.679310345 ** 957.4 * .0000032881 * 1342.2872 **** 49.321
4.524 * 1370.53 * 50.36 **** 4.518965517 ** 924.6 * .0000029887 * 1220.067775 ** 44.830
4.366 * 1236.78 * 45.44 **** 4.358620690 ** 891.8 * .0000027063 * 1104.820064 ** 40.595
4.207 * 1113.13 * 40.90 **** 4.198275862 ** 859.0 * .0000024337 ** 993.5021552 * 36.505
4.048 ** 998.88 * 36.70 **** 4.037931034 ** 826.2 * .0000021742 ** 887.5830898 * 32.613
3.890 ** 893.37 * 32.83 **** 3.877586207 ** 793.4 * .0000019335 ** 789.3208589 * 29.003
3.731 ** 796.01 * 29.25 **** 3.717241379 ** 760.5 * .0000017149 ** 700.0664081 * 25.723
3.572 ** 706.25 * 25.95 **** 3.556896552 ** 727.7 * .0000015183 ** 619.844954 ** 22.775
3.414 ** 623.56 * 22.91 **** 3.396551724 ** 694.9 * .0000013415 ** 547.6407115 * 20.122
3.255 ** 547.46 * 20.12 **** 3.236206897 ** 662.1 * .0000011806 ** 481.9660317 * 17.709
3.097 ** 477.54 * 17.55 **** 3.075862069 ** 629.3 * .0000010323 ** 421.430964 ** 15.485
2.938 ** 413.40 * 15.19 **** 2.915517241 ** 596.5 * .0000008945 ** 365.1443708 * 13.417
2.779 ** 354.71 * 13.03 **** 2.755172414 ** 563.7 * .0000007664 ** 312.8729458 * 11.496
2.621 ** 301.17 * 11.07 **** 2.594827586 ** 530.9 * .0000006491 ** 264.959817 *** 9.736
2.462 ** 252.94 ** 9.29 **** 2.434482759 ** 498.1 * .0000005439 ** 222.0598492 ** 8.159
2.303 ** 211.40 ** 7.77 **** 2.274137931 ** 465.3 * .0000004527 ** 184.7843028 ** 6.790
2.145 ** 176.26 ** 6.48 **** 2.113793103 ** 432.5 * .0000003757 ** 153.3631543 ** 5.635
1.986 ** 145.92 ** 5.36 **** 1.953448276 ** 399.7 * .0000003121 ** 127.4291347 ** 4.682
1.828 ** 119.78 ** 4.40 **** 1.793103448 ** 366.9 * .0000002600 ** 106.0034059 ** 3.895
1.669 *** 97.33 ** 3.58 **** 1.632758621 ** 334.1 * .0000002149 *** 87.71875752 * 3.223
1.510 *** 78.00 ** 2.87 **** 1.472413793 ** 301.3 * .0000001745 *** 71.25228266 * 2.618
1.352 *** 61.34 ** 2.25 **** 1.312068966 ** 268.4 * .0000001368 *** 55.85566569 * 2.052
1.193 *** 47.03 ** 1.73 **** 1.151724138 ** 235.6 * .0000001023 *** 41.76750381 * 1.535
1.034 *** 34.82 ** 1.28 **** 0.991379310 ** 202.8 * .0000000739 *** 30.16847253 * 1.109
0.876 *** 24.49 ** 0.90 **** 0.831034483 ** 170.0 * .0000000544 *** 22.1966435 ** 0.816
0.717 *** 15.95 ** 0.59 **** 0.670689655 ** 137.2 * .0000000401 *** 16.37686643 * 0.602
0.559 *** 11.02 ** 0.405 *** 0.643600000 ** 131.7 * .0000000340 *** 13.88 ******* 0.510
0.400 **** 6.82 ** 0.25 **** 0.561600000 ** 114.9 * .0000000255 *** 10.4 ******** 0.382
I performed the conversions from Volts to MAF counts, and Kg/h to Lb-mass/tic and Lb/m. The different voltage measurements make comparison of the two transfer functions difficult but there is an 8% difference in the airmass flow for 5 volts. I input the Volts and Lb/m into a plot utility to compare the transfer functions.

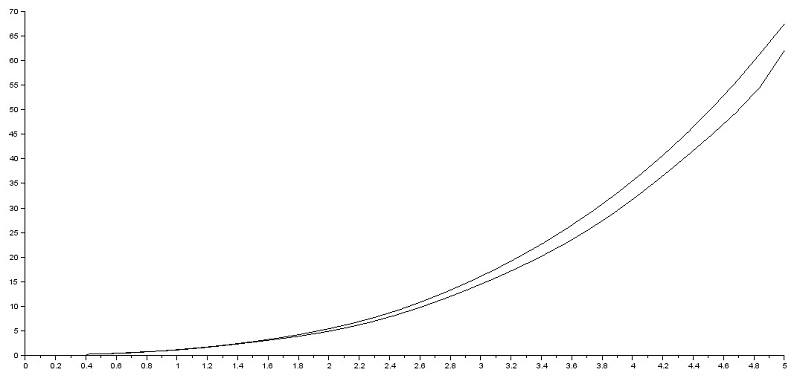

The upper curve is for the left set of data.
