RPM & Speedometer Arrows Offset

Marlon65

Member
Joined
September 9, 2007
Messages
11
Reaction score
0
City, State
Philippines
Year, Model & Trim Level
2004

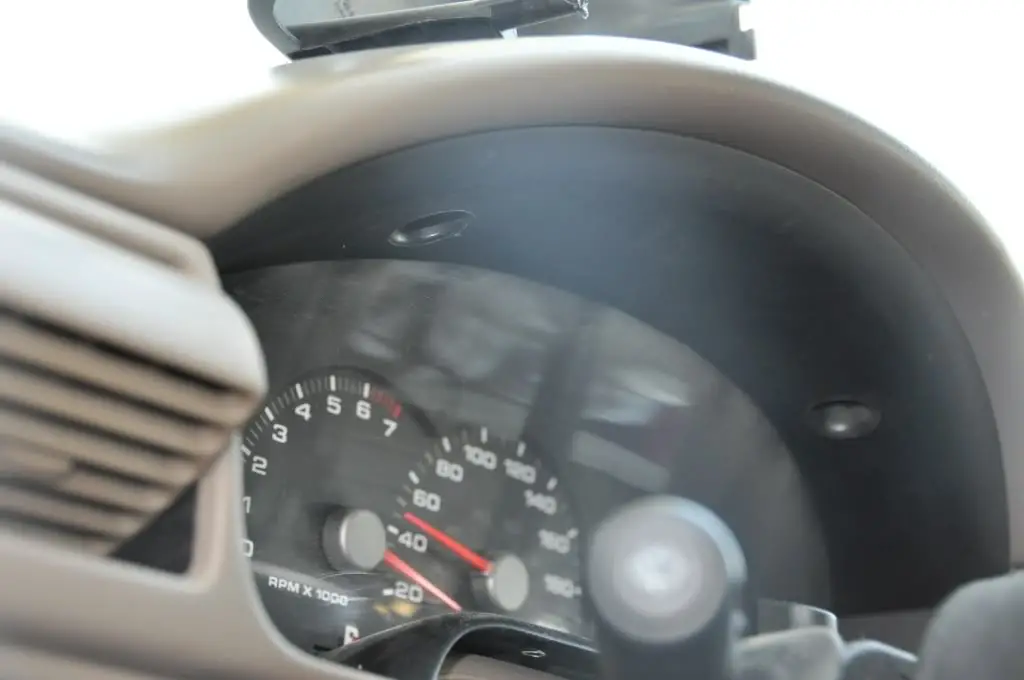

Hi to all, my Explorer 2004 at 106,500 KM has a problem with both RPM & speedometer arrows at the wrong starting points, see image below:


Anyway, this problem started only four days ago. When I was about to start the engine that early morning, it didn't crank. I realized the two-year old Motorcraft battery was totally dead. I checked my record, this battery was purchased in August 2009. But after installing a brandnew battery, everthing seems to be ok except for the RPM and speedometer arrows starting points. Both are working fine since both moves clockwise as before when it is up and running. My Explorer (here in Kuwait) normally has an warning beep alarm when it exceeds speeds at 120 KPH, but this time the beep comes at 145 KPH. Same case with the RPM arrow, it starts at 4:00 clock position but moves clockwise to 5:00 clock position at idle speed.

I'm thinking of dismantling the panel this weekend to move the arrows to the correct starting positions just like how you would fix a wall clock when it's not in the correct position. Any help will be much appreciated.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Joe Dirt

Explorer Addict
Joined
October 4, 2007
Messages
13,342
Reaction score
22
Year, Model & Trim Level
07 Camry
You have to host your pictures on a site like photobucket, linking to your desktop doesn't work...

<



Marlon65

Member
Joined
September 9, 2007
Messages
11
Reaction score
0
City, State
Philippines
Year, Model & Trim Level
2004
Thanks Joe, it worked! I'm now a member of photobucket.com.

<



Joe Dirt

Explorer Addict
Joined
October 4, 2007
Messages
13,342
Reaction score
22
Year, Model & Trim Level
07 Camry
Looks like the tach needle is just flipped over the gauge. If you pop it open, you should be able to flip it back counter clockwise and it'll be fine. The speedo? Weird. I wonder if someone pulled it off, and couldn't get it back in the right location? If you have a GPS, you could pop the needle off, and try to re-attach when you're going a speed you're sure of and see if it zeroes out when stopped.

<



Marlon65

Member
Joined
September 9, 2007
Messages
11
Reaction score
0
City, State
Philippines
Year, Model & Trim Level
2004

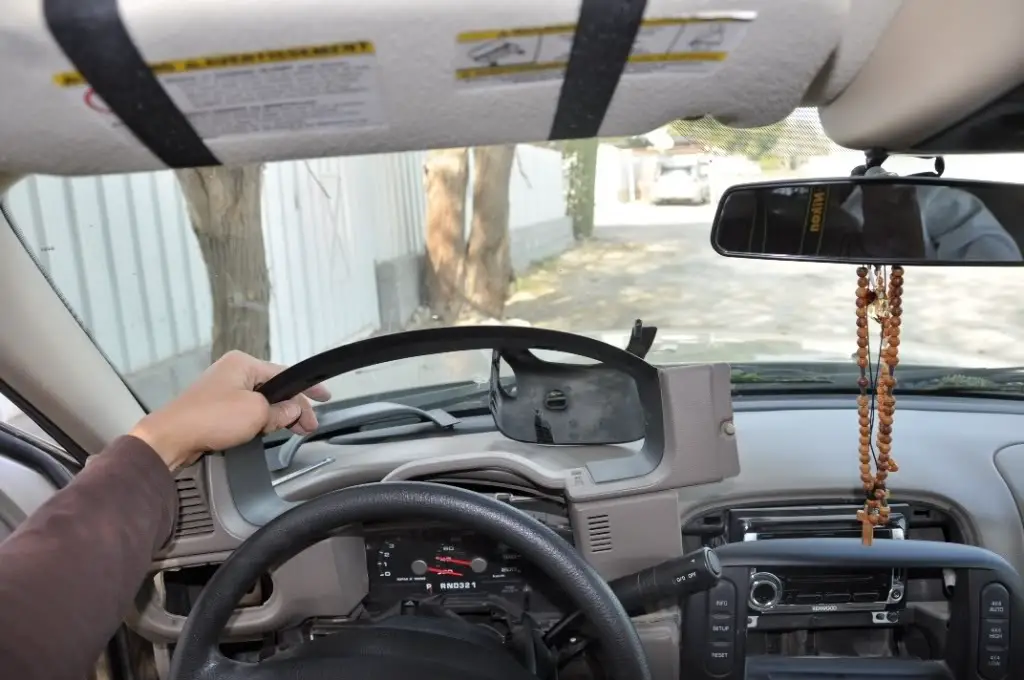

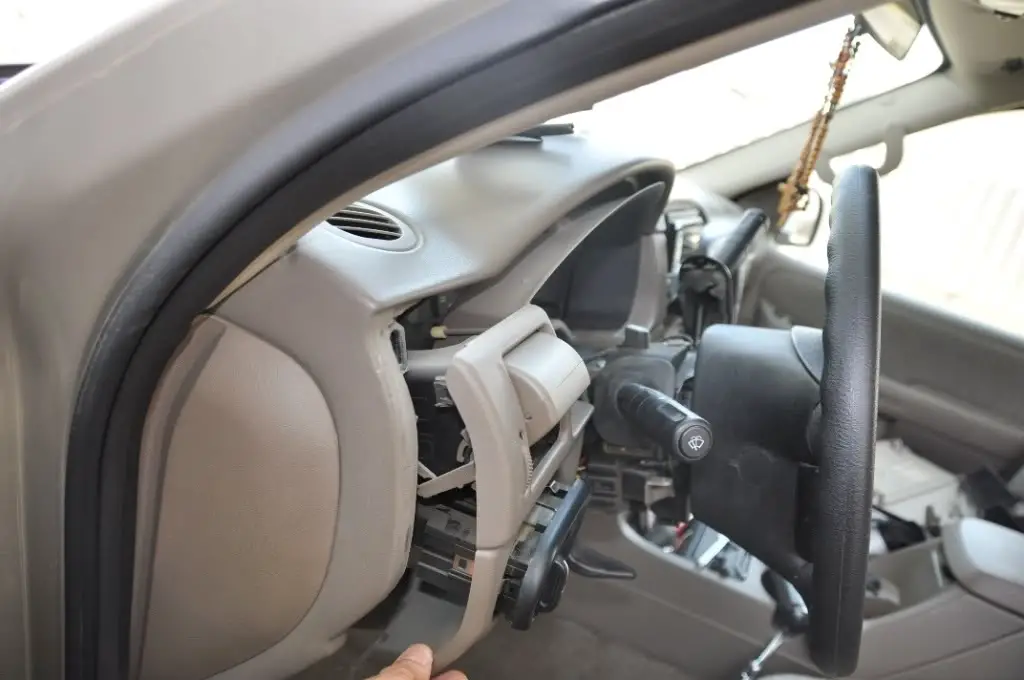

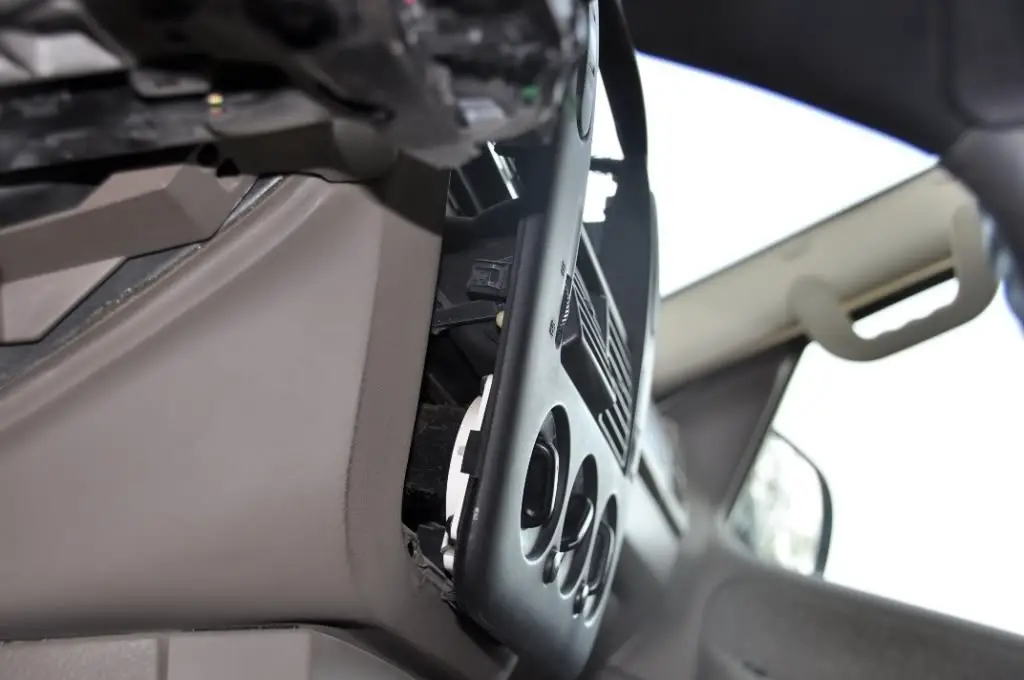

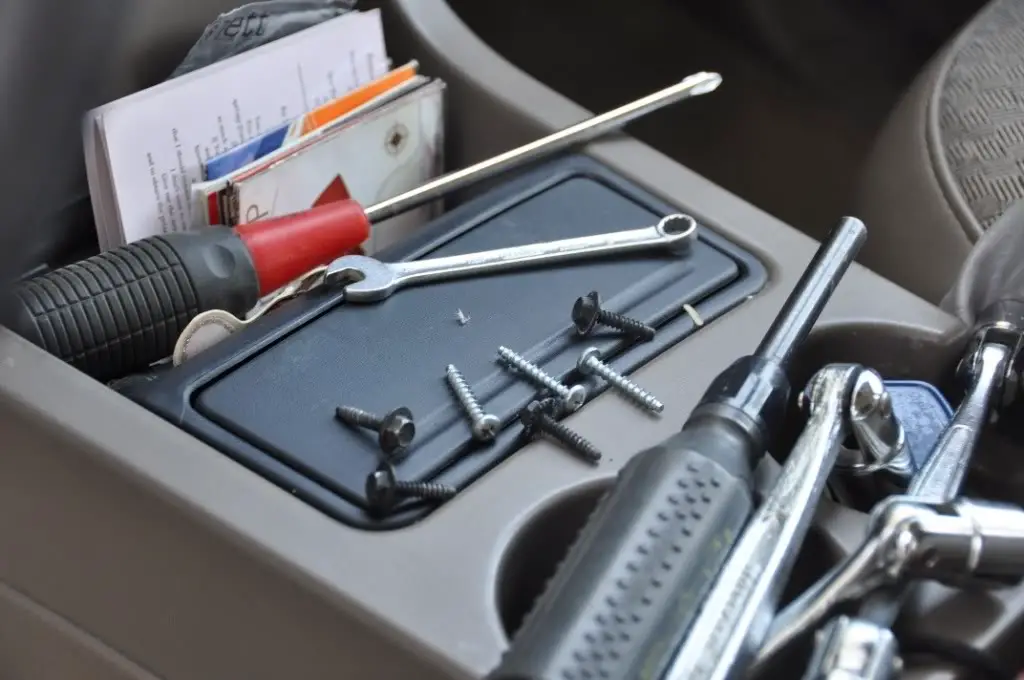

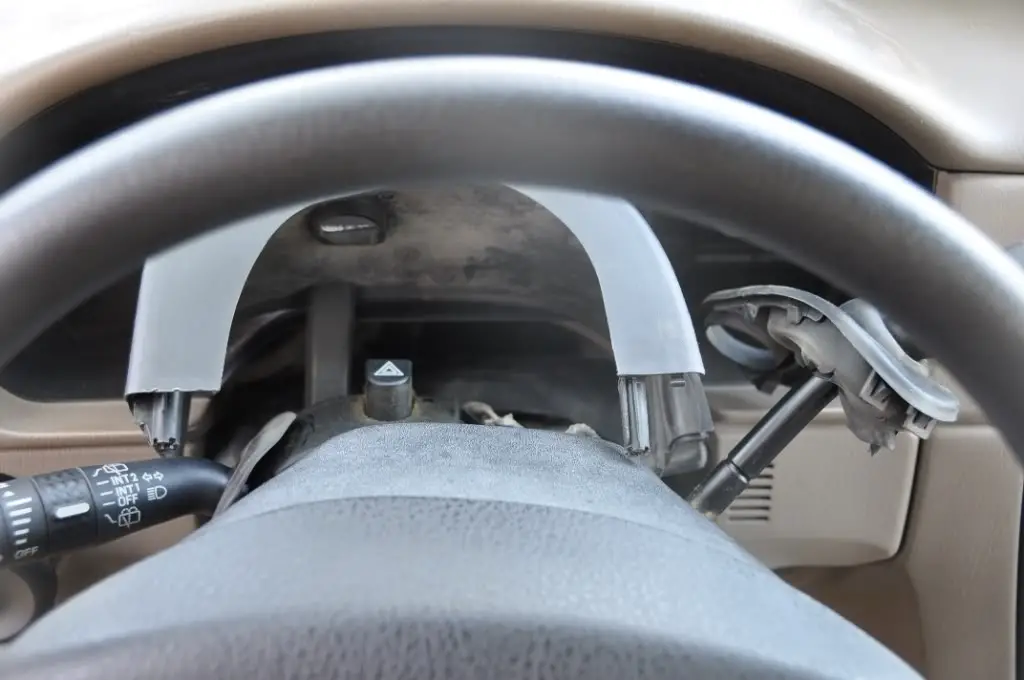

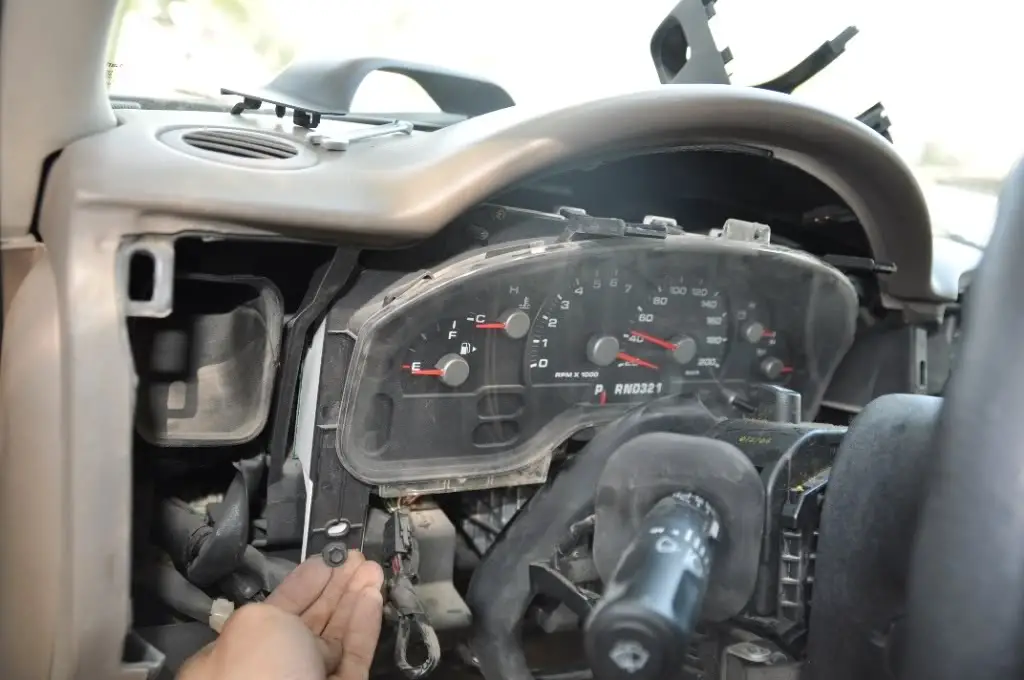

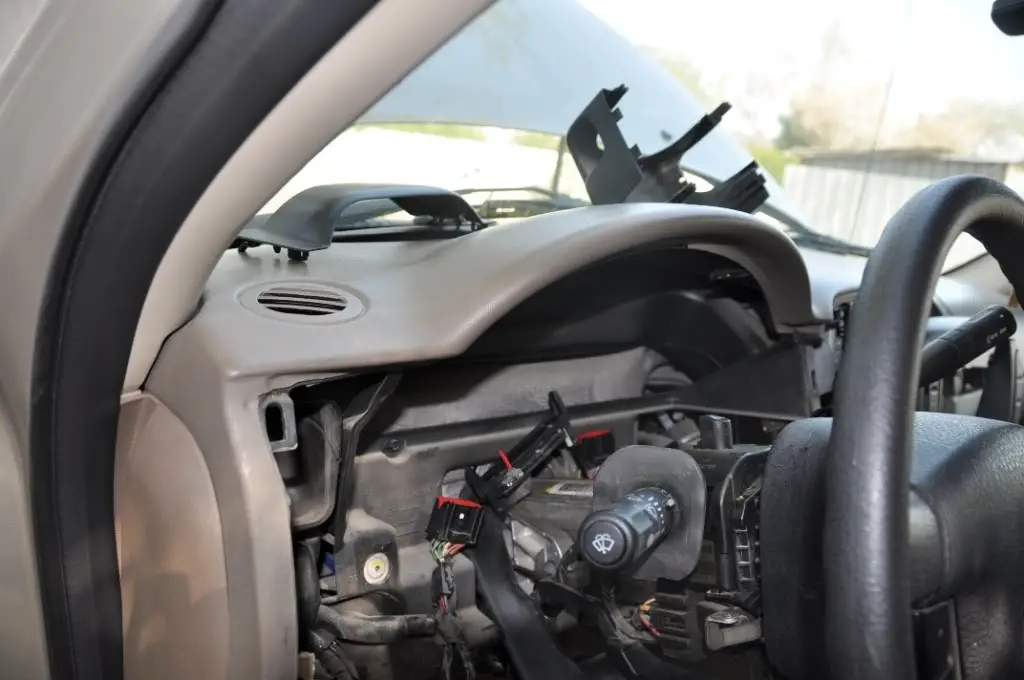

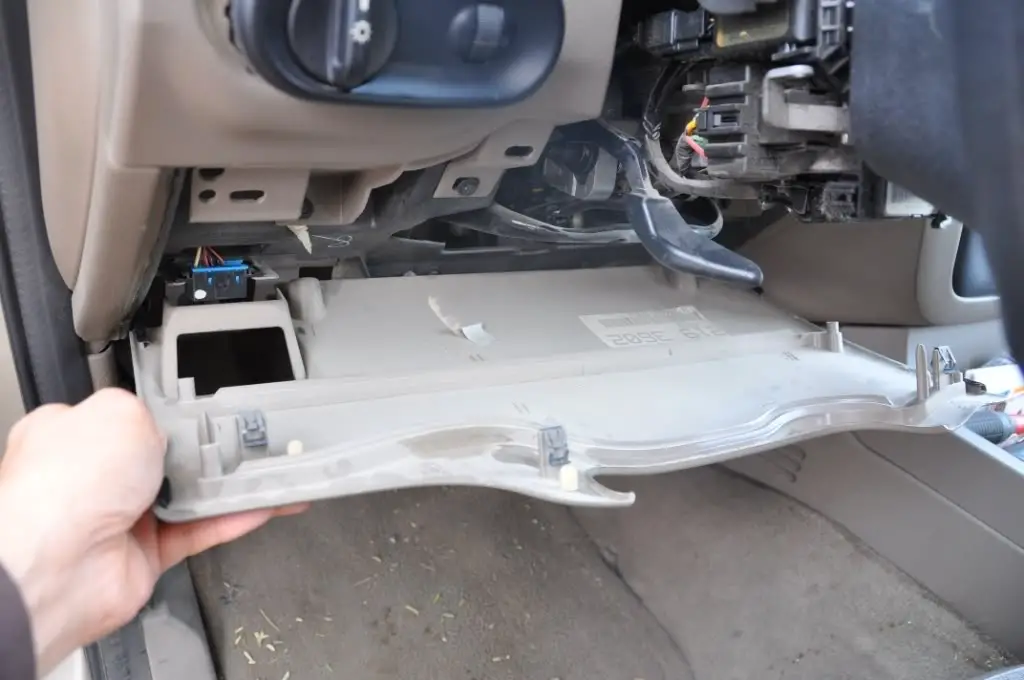

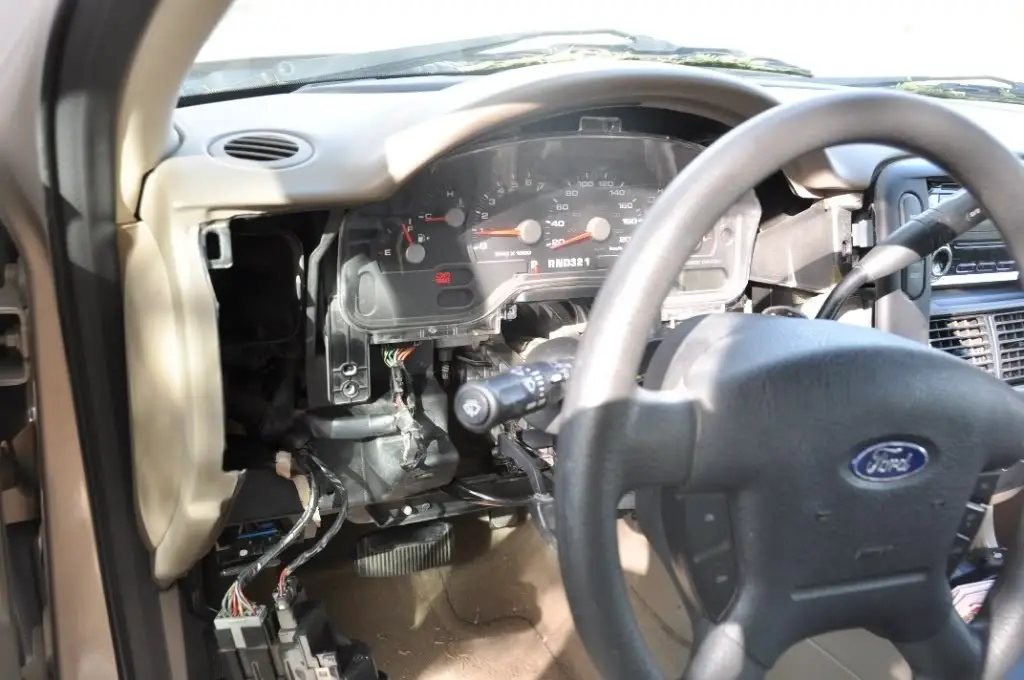

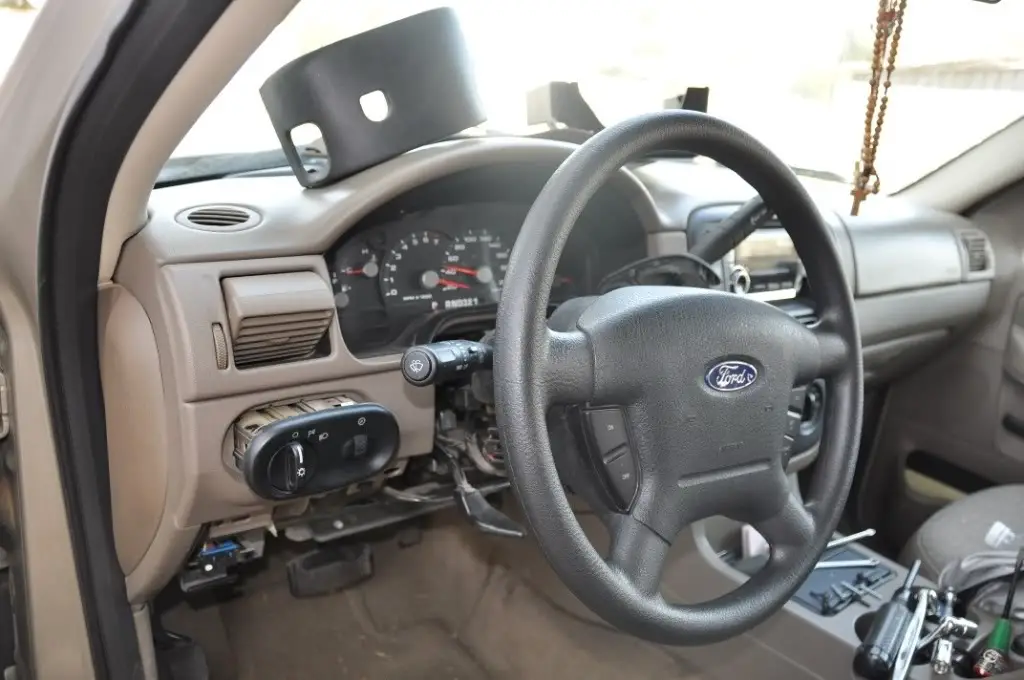

Thanks JoeDirt, i finally had the time to do it, see linked photos below for others to see:

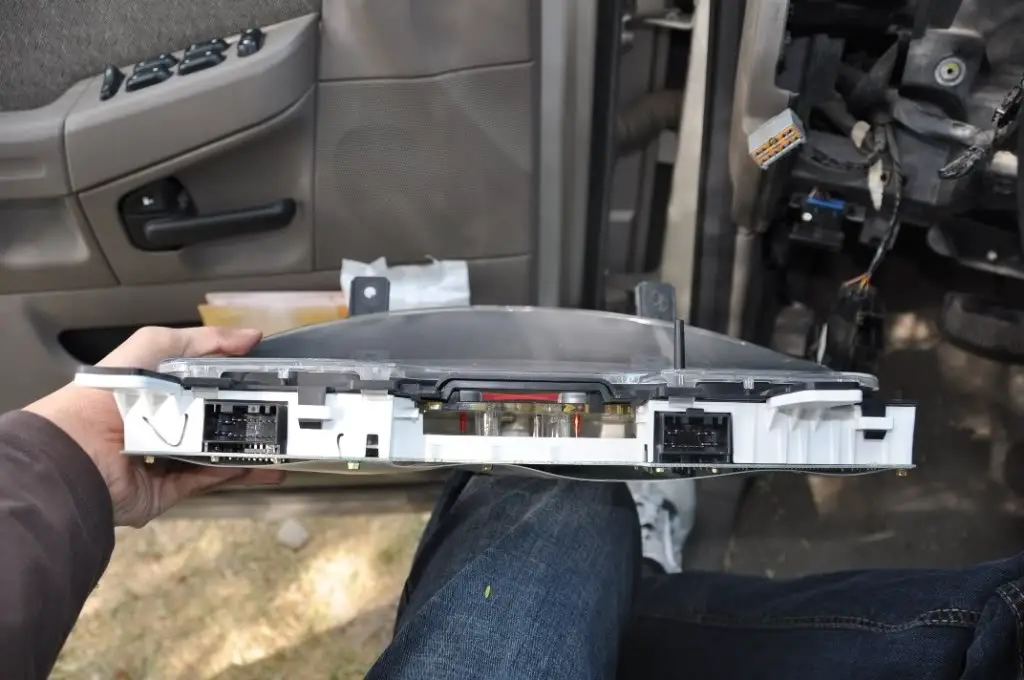

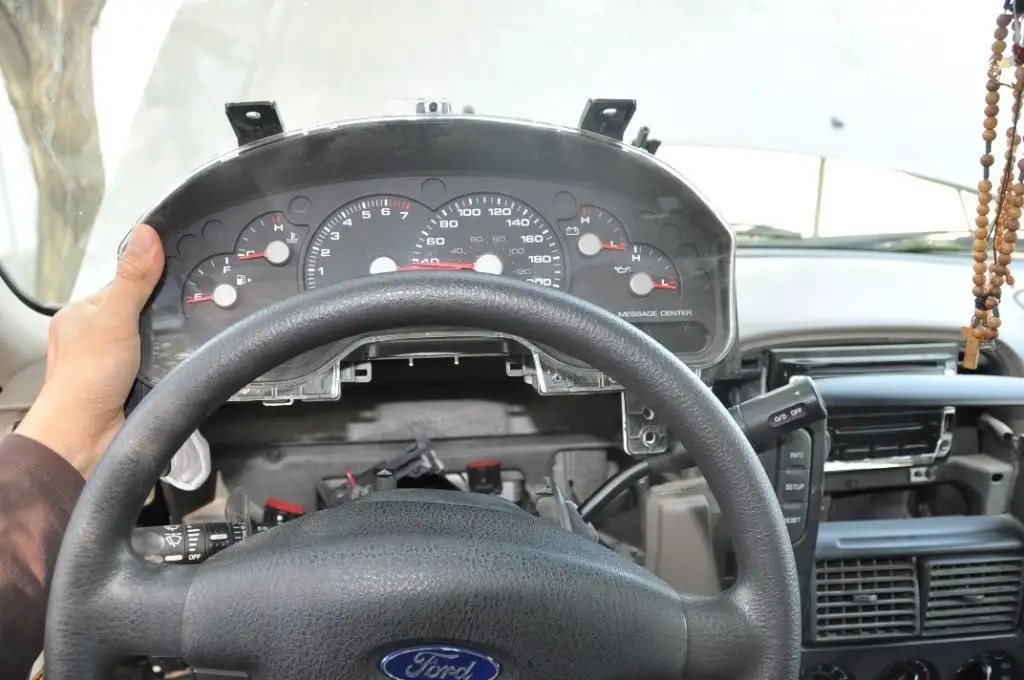

It took maybe two hours, but free of charge. I'm sure i can do it again for half the time. Once the panel is out, you can easily turn the dials counter clockwise to the zero position using one of your fingers.

<
