How to: U-joint removal and replace-how to with pics

Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Here is my first how to thread--hope it helps someone.

Now, let's replace some u joints!

Tools needed--

12mm 12 point wrench
Pliers--I used some needle nose
a flat screwdriver
a 7/8" deep well impact socket
(optional, a length of 3/4" pipe)
A mini sledge, or BFH
blocks of wood --2x6 is good
penetrating lubricant
Safety glasses of course (thanks Dan for the reminder)

Mine must have been on my head




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Materials needed

u joints, and beverage.

330 for my yoke end

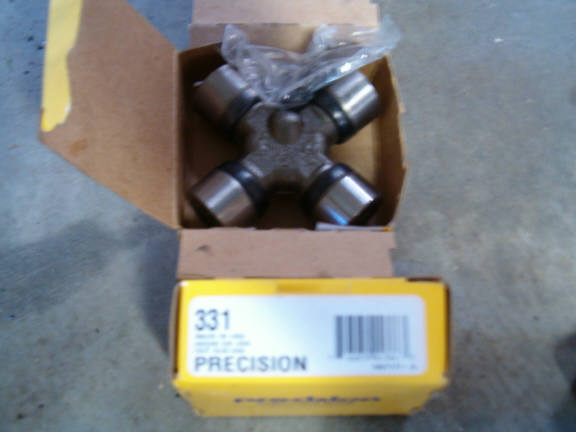

331 for my diffy end
I have a conversion driveshaft-it is from a 5.4l expedition.
Your u joints will probably be different part numbers--
These are the accurate rear u-joints for a 4406 transfer case swap--
front joint.jpg
Rear ujoint.jpg







Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Step 1

Raise and support rear of truck on stands.
chock front wheels, and shift gear selector into N

Using a 12mm wrench--remove the 4 driveshaft bolts.
Pull driveshaft toward rear of truck, and out.
be ready for a trickle of fluid from transmission-transfer case

Now is where the fun starts













Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Step 3

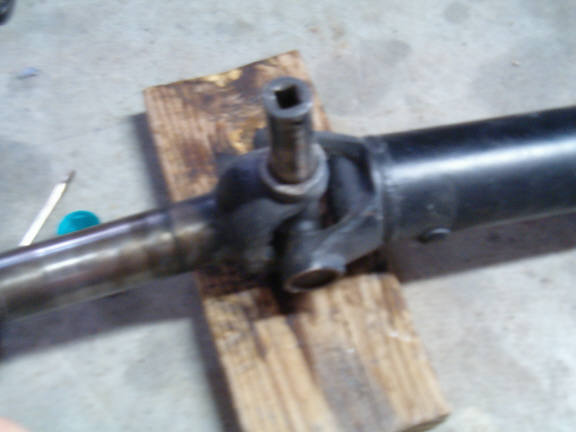

support the joint on a block of wood, as well as the other end of shaft to keep it even and managable

Using a socket sized close to the cap holes-
or a pipe

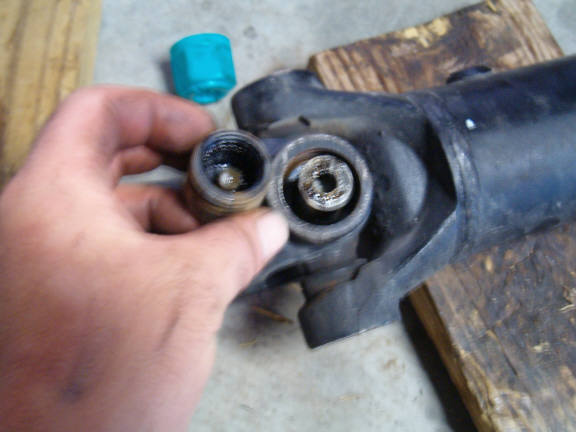

Take out all the aggression you can with your minisledge
support blocks.jpg













Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Step 4

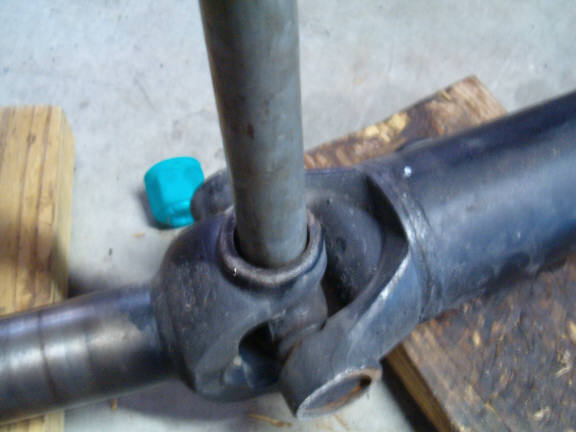

using the pipe, or socket-slid over the capless greasy stub, whack some more, until the cap pops out the other side
other cap pipe.jpg







Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
OK, that's about it--except you have to do it all over again for the other 2 caps.

And, guess what, there is another u joint waiting for you on the other end--

Re install in the reverse--be very carefull not to loose the pin bearings--







trucku

Explorer Addict
Joined
January 25, 2005
Messages
2,015
Reaction score
5
City, State
Queens, New York and living in Budd Lake, NJ now.
Year, Model & Trim Level
2002 Explorer XLS 4.0 4x4
Thanks been wanting to do this. :thumbsup: :thumbsup:


Could a big C-clamp be used to press caps out/in?







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






trucku

Explorer Addict
Joined
January 25, 2005
Messages
2,015
Reaction score
5
City, State
Queens, New York and living in Budd Lake, NJ now.
Year, Model & Trim Level
2002 Explorer XLS 4.0 4x4
Ok thanks BrooklynBay :salute:







Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Thanks been wanting to do this. :thumbsup: :thumbsup:


Could a big C-clamp be used to press caps out/in?

A heavy press style one can, however none of mine were strong enough







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






trucku

Explorer Addict
Joined
January 25, 2005
Messages
2,015
Reaction score
5
City, State
Queens, New York and living in Budd Lake, NJ now.
Year, Model & Trim Level
2002 Explorer XLS 4.0 4x4
WOW.....lol

OK then no normal C-clamp then (what I have) :salute:







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






Turdle

The Lowrider is a little higher
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,535
Reaction score
2,300
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty

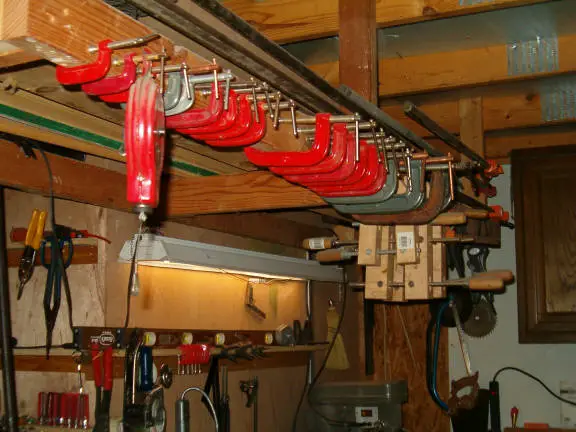

Wow, that's some clamp collection! Why did you buy so many of them?

You can never have enough:thumbsup:

I once made some cutting boards out of maple and walnut strips.
I used all the clamps you see hanging, plus some.Can you see the bar clamps?
Each cutting board is made of 1 strips of wood, I glued 9 foot strips together, and cut it into 2 foot sections.

That's why I have so many clamps--:D







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






Dan Whitaker

One fast putty tat
Elite Explorer
Joined
December 24, 2001
Messages
7,094
Reaction score
39
City, State
Raytown MO (Kansas City suburb)
Year, Model & Trim Level
No Mounty no more.
I just want to add to make sure to wear safety glasses for removing the snap rings from the u-joint.

A few years ago one of the guys at work was using the needle nose pliers like Jon when they slipped and poked him in the eye causing him to loose it. :(







trucku

Explorer Addict
Joined
January 25, 2005
Messages
2,015
Reaction score
5
City, State
Queens, New York and living in Budd Lake, NJ now.
Year, Model & Trim Level
2002 Explorer XLS 4.0 4x4



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Dan Whitaker

One fast putty tat
Elite Explorer
Joined
December 24, 2001
Messages
7,094
Reaction score
39
City, State
Raytown MO (Kansas City suburb)
Year, Model & Trim Level
No Mounty no more.
That's why I have so many clamps

And to think I just thought you were extra kinky :D
