Any interest in a big brake bracket?

I've recently acquired at Baer big brake kit for a 2nd gen awd/4wd explorer or mountaineer. It uses a 13" cobra rotor and some big 4 piston alcon built baer branded calipers. I need to call alcon on tuesday to see if the calipers are still available. Was just wondering if anyone wanted me to see what it would cost to have some brackets machined.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




techieman33

Explorer Addict
Joined
January 29, 2005
Messages
7,996
Reaction score
4
City, State
Topeka, KS
Year, Model & Trim Level
00 V8 Mountaineer
Ok so the brackets are aluminum, saleenjoe told me they were steel, but they are way to light weight to be steel, and a file cut right through them:( They have FITE 001 engraved in them if that means anything to anyone.

The pistons on the caliper are 44.5mm which doesn't seem to match the original xp8 setup, and the part numbers on my calipers don't even look close to the ones listed for the xp8 setup. So this looks to be maybe a weird setup that someone did custom? They still have the inside pads in them and they look to be in great shape, so maybe the rotors that came with it are totally wrong for the caliper since it's a solid mount. Maybe it was sitting to deep against the wheel hub and needs something like the corvette or cobra rotors? I guess I need to get a hold of a cobra rotor to start and use the 2 existing pads to make a pair and see how it fits?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




techieman33

Explorer Addict
Joined
January 29, 2005
Messages
7,996
Reaction score
4
City, State
Topeka, KS
Year, Model & Trim Level
00 V8 Mountaineer

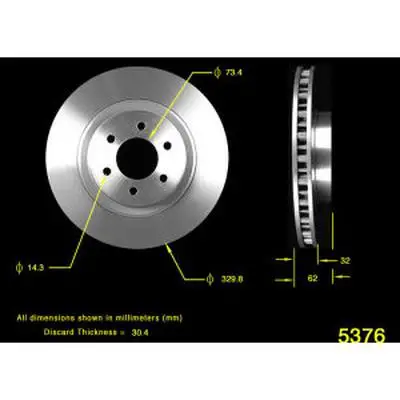

This viper rotor looks like it might be a good candidate
