Check your PTU fluid level!

Dre

Elite Explorer
Joined
May 30, 1999
Messages
4,884
Reaction score
12
City, State
Chicago
Year, Model & Trim Level
2013 Explorer Interceptor
We should do something like -->October is the "Low PTU oil level awareness month"<--

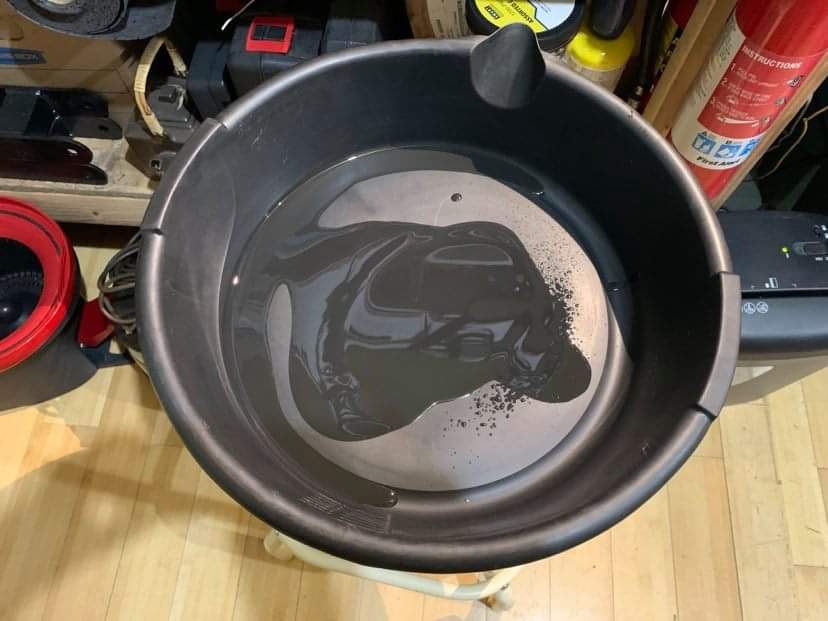

Just a reminder people - check PTU oil in your vehicle often! I procrastinated and kept driving even though I have noticed pick-up in vibrations from the driveline of my 2013 Utility - decided to do the oil change last night and guess what? PTU in my rig was bone dry! Vent tube was disconnected too! I did refill it with new oil but am not sure if the PTU didn't sustain permanent damage - vibrations have subsided a bit but still. I am replacing tranny fluid today and shall see - might have to prepare for PTU replacement. Look at how much fluid I was able to drain!




Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




omar302

Well-Known Member
Joined
October 23, 2013
Messages
268
Reaction score
24
City, State
Doha
Year, Model & Trim Level
2016 Ford Edge Sport
Go for a 2nd (maybe even a 3rd) drain & refill after a few hundred miles to allow the new fluid to mix well and remove any balance old fluid/gunk.









ecoboost_xsport

Mad Scientist
Elite Explorer
Joined
March 29, 2015
Messages
385
Reaction score
199
City, State
Orangevale, California
Year, Model & Trim Level
2015 Ford Explorer Sport
Yup, did mine at 25K and only pulled out 12oz. Supposed to be 18oz.

Double check that what used to be gear oil didn't just turn into black crisco by sticking a wire or something in there to see what comes out.

Your fluid looks pretty bad, keep in mind, the gear oil that goes in is virtually clear when its new. Go with something reputable. I used Amsoil Severe Gear Oil, but heard that Redline Shockproof is also the cats meow. I also concur with doing another change very soon to flush out more of the emulsified aluminum and metal particles that are likely floating around in there.

And do the vent fill mod if you can, makes future changes easier.

Write up I did on it:





Odrapnew

Well-Known Member
Joined
December 27, 2013
Messages
944
Reaction score
108
City, State
MN
Year, Model & Trim Level
2014 Explorer Sport
Yikes, not much fluid and it looks dark....although the pan could be making it look darker than it is.

I changed mine @ about 60k miles and it was in fairly good shape. Blackstone analysis didn't show anything of concern.
I don't remember how much fluid came out, but I think it was closer to 18oz.
I used Amsoil Severe Gear in mine just because it seemed to get good ratings.
I plan to do another change in the spring when it hits around 100k miles (along with rear diff).





Dre

Elite Explorer
Joined
May 30, 1999
Messages
4,884
Reaction score
12
City, State
Chicago
Year, Model & Trim Level
2013 Explorer Interceptor
I did the "vent tube mod" but it's pretty tedious filling this thing up through a quarter inch hole - will definitely change oil again, sometime soon... and possibly another time for good measure within a month - think that if those are not satisfactory I might even go with filling it up with diesel fuel and drive it around the block and then do two refills - sort of a good flush out of the PTU - just not sure if that would be safe for the seals. Oh well, Changed transmission fluid as well - it was not as bad as suspected but still.





ecoboost_xsport

Mad Scientist
Elite Explorer
Joined
March 29, 2015
Messages
385
Reaction score
199
City, State
Orangevale, California
Year, Model & Trim Level
2015 Ford Explorer Sport
I did the "vent tube mod" but it's pretty tedious filling this thing up through a quarter inch hole - will definitely change oil again, sometime soon... and possibly another time for good measure within a month - think that if those are not satisfactory I might even go with filling it up with diesel fuel and drive it around the block and then do two refills - sort of a good flush out of the PTU - just not sure if that would be safe for the seals. Oh well, Changed transmission fluid as well - it was not as bad as suspected but still.

I've entertained the diesel cleaning idea myself, but lean against it, as you'll never get all of it out and when you fill it with the gear oil, will end up cutting that gear oil. Not sure what ramifications that could have...maybe nothing. Same thing with kerosene...it's a great solvent and cleans well, but the residue may affect the oil that needs to be in there negatively. And since there is already so little of it (only 18oz), I personally felt it wasn't a risk worth taking.





Dre

Elite Explorer
Joined
May 30, 1999
Messages
4,884
Reaction score
12
City, State
Chicago
Year, Model & Trim Level
2013 Explorer Interceptor
We shall see - gotta drain it again sometime soon to see if any of the sludge inside dissolved...





Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
32,744
Reaction score
1,461
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
I've entertained the diesel cleaning idea myself, but lean against it, as you'll never get all of it out and when you fill it with the gear oil, will end up cutting that gear oil. Not sure what ramifications that could have...maybe nothing. Same thing with kerosene...it's a great solvent and cleans well, but the residue may affect the oil that needs to be in there negatively. And since there is already so little of it (only 18oz), I personally felt it wasn't a risk worth taking.

Have you ever had an oil analysis done on your PTU fluid to see what starts wearing first?
