Fat Cat's 99 SAS

Well, I finally pulled my head outta my SAS! Now that I have things just about right, I'll post a ton of pictures to show how everything went.;)

Thanks to everyone who helped me out with my questions and everyone who posted all the info about other SAS projects. This forum is a great place to search and find loads of info.:salute:




Engine:
4.0 SOHC

Cooling:
EBAY Transmission cooler
EBAY Power steering cooler
Trans pan tapped for Temp gauge.

Drivetrain:
Atlas 3.8 Transfer case
Custom Drive shafts

Front Axle:
‘75 Bronco Dana 44
Ected locker
Purple Cranium Half cover, diff guard
5.13 Yukon Ring & Pinion
Superior Chrome Molly inner and outer axles.
SuperJoint U-joints
Warn premium manual locking hubs
14" travel 2.0 SAW resi coilovers
Light Racing Hydro Bumpstops
Trail Gear Hydro Assist Ram
1st. gen steering box, tapped for hydro.
CAGE Arms

Rear Axle:
Explorer 8.8 31 spline
Superior Super 8.8 axles
Detroit Locker
5.13 Yukon Ring & Pinion
Stock rotors re-drilled to 5.5
Fox 2.0 resi shocks
Spring-over
McNeil Racing Anti-wrap bar
Mag High tech Diff Cover
Add a Leif.

Tires:
37x12.50 17 MT/R's

Rims:
17x8 Black Pro Comp 7089 Aluminum Rims

Body Mods:
Glass front fenders
EBAY black headlights
Harbor freight roof rack lkights
Pro Comp 130 driving lights
ABS plastic rear windows
Removable vinyl side windows


Body Armor:
Custom Built Bumpers by Renoso Racing Tijuana
Full roll cage By Renoso Racing Tijuana
Under body skid plate and transfer case guard by Renoso Racing Tijuana
Rock Sliders by McNeil Racing Tijuana

Miscellaneous modifications:
Currie Universal AntiRock
Headers
K&M intake
BamaChips tune
MileMarker 9,000 winch
2" wheel spacers


Here it is when we started cutting the IFS stuff off;







The new front axle getting re-worked;





Here is the steering work done by Willy's 4x4 shop in Tijuana. They reinforced the frame and tapped the steering box and mounted everything as well as making a funky custom High Steer arm using a pitman arm, cut, flipped and welded to the knuckle (so good so far);





Some more shots of the work done at Willys and the truck standing on its own to be moved to Renoso's for the cage and hoops;






Over at Renoso's shop we started the bumpers and mocking up all the steering components;







Once everything was lined up we finished the steering stuff and added the coilovers;








After that, we started on the cage. I wanted the cage to be inside the pillars and channels and welded to the body. That way I could hopefully put back most of the stock interior and give myself some extra interior space;








The rear storage and bumpers came next. I wanted to mount the CO2 tank, battery's & spare tire inside, down low, and still have room above for my footlockers for storage. I can fit 3 footlockers inside and 2 more on the roof rack. They are marked; Spares & tools, Camping, kitchen, clothes. Plus a misc. one. I only load the ones I'm going to use on any given adventure:)








Here is a few of the radius arm mounts, the transfer case cross member, and the skid plate which incorporates a front cross member in front of the oil pan;




OK! that's about it:eek: Here are a few shots from my first trip out with the new locker and rear axles. I ran the truck hard to try to find the weak spots and except for being a bit tippy (I'm going to lighten the AntiRock settings) the truck worked great!!!:D

It was a 2 hour freeway trip to Jacume & the truck was a dream on the road. No wobbles, shaking, or anything unpleasant. It drove like a comfy truck & wheeled like a Hell Raiser!









Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Nice job!! You really went all out on this build.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





The truck is bad arse, and that is that.

:salute:







I'm guessing this is why...

This set up is working good for about 30 jeeps done by Willys shop. I didn't trust it at first, but I've seen them take huge abuse & not break.







dude whoa nice friggin build
I especially like the cage inside the factory pillars, something I must keep in mind when I do my BII.....

Why dont you have an extra brace on the B pillar for the drivers side?
An X instead of a diagnal only for the passenger?

Just curious

How do you like the Ected front?
Do you still have side curtain airbags in the seats? hehehehe













dude whoa nice friggin build
I especially like the cage inside the factory pillars, something I must keep in mind when I do my BII.....

Why dont you have an extra brace on the B pillar for the drivers side?
An X instead of a diagnal only for the passenger?

How do you like the Ected front?
Do you still have side curtain airbags in the seats? hehehehe

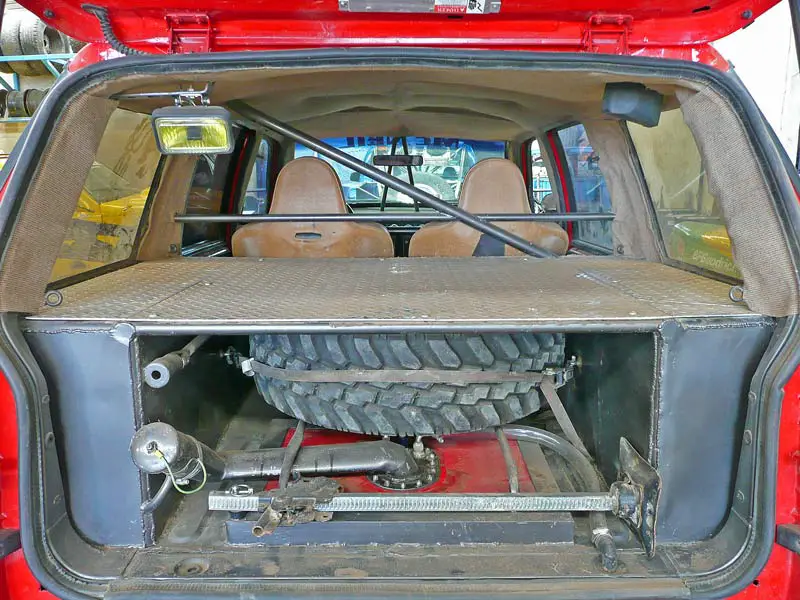

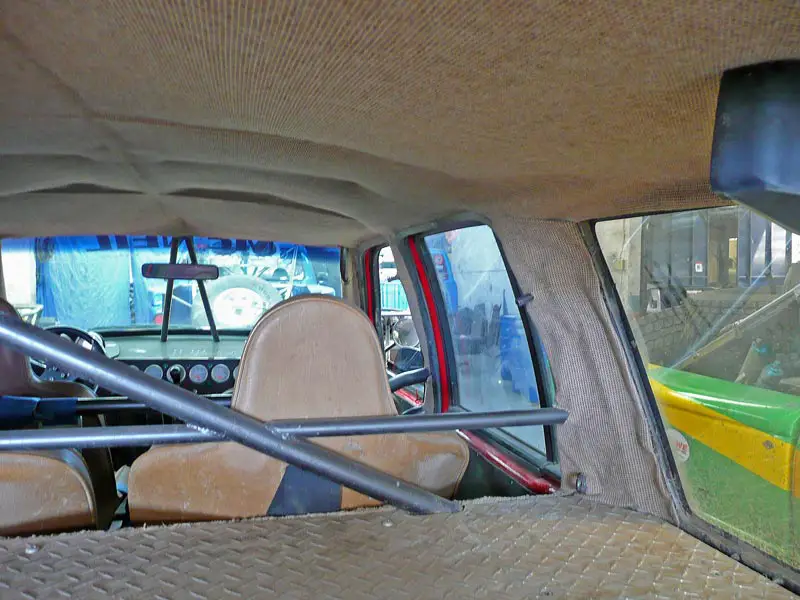

Most of the cage was modeled after the cage in the McNeils new Explorer prerunner. They have the diagonal support at the C pillar, but I wanted it at the B and flipped it to give myself more seat room.
