Great Pumpkin Solid Axle Swap 1993 Ford Explorer XL Rick Horwitz

My solid axle swap went through two phases of construction. The first utilized Trailmaster 4" coil springs and Rancho 9000 shocks. The setup was a 5 link, that is 4 links plus a panhard bar. The coil spring was allowed to fall way from it's upper mount and was kept in line by a piece of tubular steel which also served as a bump stop.

The axle is a Dana 44 High Pinion design from a '79 Bronco. The axle was shortened for this application. I do not have the measurements. All of the fabrication work was done by FST in Phoenix

Here are photos from Phase 1:














Main drawback to this design was the noise and sloppiness that occured when the coil spring fell away from the top mount. Everyone I wheeled with had to get used to the BANG when the coil popped back in place.


<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
-Two q's Rick.
1) It doesent look like you put the rear fiber glass on. Did you? is there any tubbing done iside the rear of you truck? Or is your travel in the rear pretty much limited to go down.
2) What size shocks (Length) are you running? Front coil-overs and the rear shocks?
Thank-you.

sorry, two more Q's heh heh.
3) Can you fix the bottom of my post to run further across the screen so it wont make my post look so long?
4) And how do i get an Avatar?

Thank-You, cant wait to check out your truck on the trails sometime!

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
No, I didn't use rear glass.

The rear stuffs just fine :D

Front coil overs have 11" of travel. Not sure on the rears.

Your signature is WAY to long. It should only be a maximum of six SHORT lines. All that info should be on your Explorer Registry page and then you can put a link in your signature for that.

Send me the photo you want to use iin your avatar and I'll set it up.

<



Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
Thanks for the info Rick. I'll fix that Signature.
Did you get that fiberglass hood from perry too?

<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Yes, I got the fenders hood and grill from Perry's.

Thanks for fixing the sig :D

<



Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
Sure, no-problem. Thanks for the info I might put the front fenders on and the hood but keep the 1st gen look. I want to run 38.5" tires so that would make it incredibly easy for me.

<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH

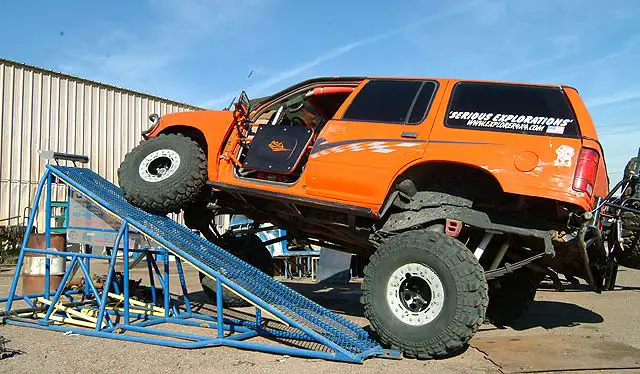

Ramp shot taken today and a shot of the rear leaf going severly negative arch!


Attachments

  • ramp.jpg
    61.7 KB · Views: 4,074
<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
2


Attachments

  • springnegative.jpg
    59.8 KB · Views: 4,940
<



JoshC

Only rolled it once honey
Joined
May 1, 2000
Messages
4,347
Reaction score
2
City, State
Culloden, WV
Year, Model & Trim Level
97 4d OHV
Wow, nice shots. Are you going to do anything about those leafs, or is that the way they are suppose to work?

Happy trails!!

<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
We're working on that Josh :D They don't live very long if you treat them like that :D

<



Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
You are getting serious flex out of that rick.

I have a Q for you. I was testing out the flex on my truck yesterday at one of my jobsites, and the front seems to be working excellent. The rear on the other hand didnt seem to have enough down travel. It might be that i just need longer shocks, but do you know of anything else that might make the rear leaf not travel very far down? It didnt really seem to look like the shock was at full droop but i am not sure what size these rear shocks are. Thanks.
-Tim

<



Robb

Explorer Addict
Joined
February 13, 2002
Messages
9,707
Reaction score
6
Chief,
Why not just unbolt the rear shocks at the bottom and give it another go? This would at least let you know if you are bottoming out the shocks.

Just a suggestion,

Robb

<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Opening up the spring clamps will allow more droop.

<



Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
Thank you for the suggestions. I will check into this.
I have another question, do you have any problems with your leaves moving within the leaf pack? i was going to just put another clamp on them further out to stop the leaf from twisting side to side but now that you said that i dont want to limit the down travel at all.

<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
You have a couple choices. When you open up the spring clamps you can leave the ens vertical so they trap the springs. Or you can weld a u-bolt to the overload spring which accomplishes the same thing. I just hit my spring with a hammer every now and then... I had the u-bolt when I was using stock springs but it wore through!

<



Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
Sounds good. I think i will bend the clamp. Thanks. Is there any way of telling how long the shock is by looking at or measuring the body? if not ill just un-bolt the shock.

<



Muskrat

Elite Explorer
Joined
March 9, 2002
Messages
1,503
Reaction score
0
City, State
Califon, NJ USA!!
Year, Model & Trim Level
97 Ranger STX
Rick, I saw that you had a bar installed in the coils to keep them in place. How did you work that, and would you recomemnd that type of setup for a DD?

<



Kirby N.

Elite Explorer
Joined
February 6, 2001
Messages
2,348
Reaction score
145
City, State
Colorado Springs, CO
Year, Model & Trim Level
1991 Ranger
Rick, can you post a shot of the rear bumper at the rear quarter panel? I chopped my rear fenders like yours and I am begining my bumper in a few days, thanks

<



Chief34

Elite Explorer
Elite Explorer
Joined
October 26, 2002
Messages
727
Reaction score
1
Location
Houston, Texas
City, State
Houston, Tx
Year, Model & Trim Level
'91 XLT, '08 F450superdty
Rick could you tell me what kind of leafs those are on your truck? Also, How do they ride. My leaves ride like a cadillac but I cant get them to flex like that . They barely go flat, they definately wont go negative arch.

<



Robb

Explorer Addict
Joined
February 13, 2002
Messages
9,707
Reaction score
6
Originally posted by Chief34
Rick could you tell me what kind of leafs those are on your truck? Also, How do they ride. My leaves ride like a cadillac but I cant get them to flex like that . They barely go flat, they definately wont go negative arch.
Do you want them to go negative?

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,368
Reaction score
1,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
They were National Springs. Now they are Dunbar Springs built to the same specs as the old Nationals.

Ideally you don't want to make a leaf spring go negative, but if you don't it doesn't flex.

<
