Scott B's 2006 Ranger FX4 Level II

Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Finished the Lokar installation. A very nice product - super clean install. Pictures this weekend.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...Care to share the part numbers while we are waiting on the pics??..:bounce:

<



<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...You didn't have to get the Explorer one or anything special?

...I now see it is the Explorer/wilwood package. Does it come with 2 different style clevis' ?

...I was thinking about getting the black set up, fu package but they are still pricey..:(

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
The Explorer model has cable ends that fit the factory caliper bracket perfectly.

Yes, they are a little pricey - but the fit is perfect. (Wait 'til you see the pictures!)

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
The Explorer model has cable ends that fit the factory caliper bracket perfectly.

Yes, they are a little pricey - but the fit is perfect. (Wait 'til you see the pictures!)

..:bounce:...It's the weekend and we are anxiously waiting to see the pics...Detailed on the routing would be a plus..:biggthump

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
E-Brake Cable Routing

Here are the pictures of the Lokar emergency brake cables and routing.

I made a bracket from a piece of angle, and mounted it to the factory e-brake cable mount on the front spring hanger.



Unfortunately, the factory piece bent, putting some slack in the cables. I also need to trim the cable ends sticking through the equalizer block, but I'm going to wait until all adjustments are final.



Here, you can see where I took the end of the factory passenger side e-brake cable, cut it, and put a loop at the end. This allowed me to use the original cable from the pedal, and easily adapt it to the Lokar assembly.



Driver's side attachment



Passenger side attachement



Passenger side routing over differential - the Lokar cable is tie-wrapped to the factory cable support on the top of the diff...


<



<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Thanks. It came out really well.

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Bilstein 5100s Installed

I also got the rear shocks installed.


<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...I have a couple questions...:D

The factory bracket needs to be replace or it will bend?

The black mounting block attached to your angle iron, is that included in the kit?

Did you use the clips on the ends for quick release at the assemblies?

Where did you get your clips to cinch your hoop?

Your pass side cable looks like it's running to the rear of the truck. How did you run it over?

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
...I have a couple questions...:D

The factory bracket needs to be replace or it will bend?

The black mounting block attached to your angle iron, is that included in the kit?

Did you use the clips on the ends for quick release at the assemblies?

Where did you get your clips to cinch your hoop?

Your pass side cable looks like it's running to the rear of the truck. How did you run it over?

I am going to replace the factory bracket with another piece of angle.

The "black mounting block" is the factory bracket (if I understand your question.)

The "clips on the ends" - I assume you mean where the cable attaches to the brake. Yes, I used the clips (included in the kit.)

To "cinch my hoop" - I assume you mean the passenger side e-brake cable. I used 5/32" cable ferrules and a thimble, and crimped on the cable.

In the last picture, the cable running approximately horizontal across the middle of the picture is the e-brake cable. It runs from the equalizer, through a loop on the frame (not pictured), across the top of the differential, through a retaining clip (attached to the u-bolt) to the brake.

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...Thanks an I'll check back in later...:hammer:

..:eek:..and your factory bracket looks purdy that's what threw me off...Not even the new stuff on my trucks look that purdy...:D

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..May be a dumb question...Where did you mount your hose bracket (that meets the hardline)?..I'm thinking of mounting mine to the block but I just can't see where yours are mounted to..:scratch:

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
I'm not sure I understand what you are asking, but I'll take a shot...

The soft line comes from the frame to the top of the differential, where it attaches to a junction block. Also attached to the junction block are the hard lines going to each caliper. (Remember, soft line between hard line and caliper.)

The junction block is mounted to the top of the diff via a 5/16" bolt (threaded hole in the top of the diff.)

(Look at the 6th picture in post #87.)

Between the junction block and diff, you will see a thin, flat piece of steel sticking out (facing forward.) This is from the original junction block, and holds the emergency brake cable.

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
(Remember, soft line between hard line and caliper.)

..This is the area I have a question..Usually there is a mounting point at the connection of the hard line and soft line as the soft line flexes when braking..

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Look at this.

On the left side of the picture, you can see a "tab" that I welded to the axle. This tab holds a fitting that connects the hard line to the AN-3 flex line.

Here is part at Summit.

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT

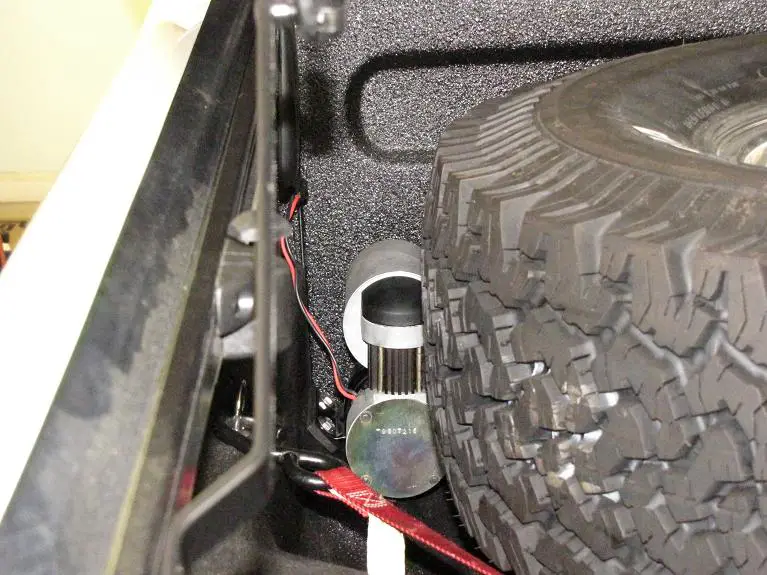

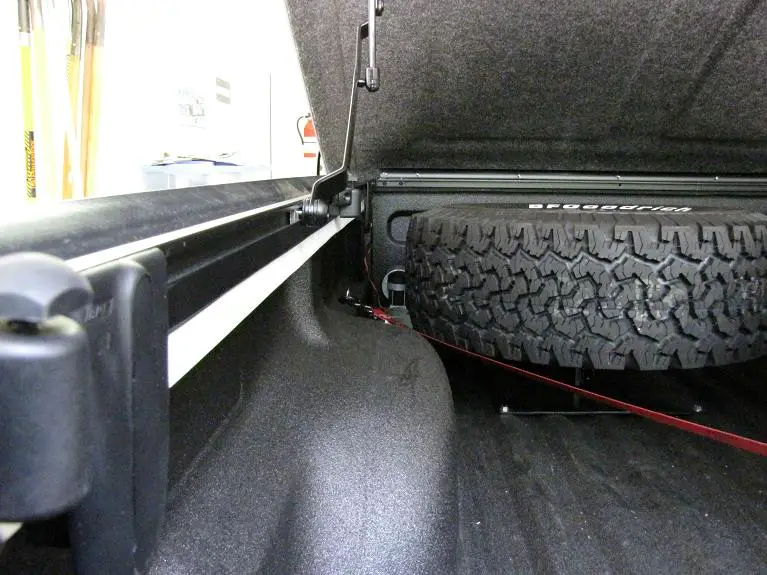

Air Compressor

I pulled the ARB compressor out of the other truck - it is getting replaced with a Viair compressor and tank.

So, I mounted the ARB compressor in the bed of this truck. It's up in the front corner, in the dead space between the tire and the side of the bed. Not super convenient to get to, but not too difficult, either.

On this truck, the compressor will be for emergencies rather than a regular routine of airing up tires - should work just fine.

(As soon as I get some 12 gauge wire, I can wire it up!)


Attachments

  • AC2.JPG
    89.4 KB · Views: 1,068
  • AC1.JPG
    84.3 KB · Views: 1,079
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
The battery in this truck is 5 1/2 years old, and no longer shows the green indicator. I am upgrading to an Optima Red Top, and a Ruff Stuff battery cage.

Here's the cage, fresh from the powder coater's (thanks Turdle!)

Sometime soon, I will replace the battery, switch to military-style battery clamps, and replace the clamps on the cables with terminal lugs. Not too much work, and a much more reliable and corrosion resistant connection.


Attachments

  • Parts 3.JPG
    Parts 3.JPG
    107.8 KB · Views: 1,070
<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
11,550
Reaction score
1,706
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Scott, I just read this entire thread. Amazing work you have done here. :thumbsup:

Everything you have done to this rig is top notch, and thoughtfully carried out. My hat is off to you sir, you done good. :)

<
