Scott B's 93 Ranger XLT V8 | Page 22 | Ford Explorer - Ford Ranger Forums - Serious Explorations

  • Register Today It's free! This box and some ads will disappear once registered!

Scott B's 93 Ranger XLT V8

Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
There will be a piece of angle welded to the swingout arm to catch/hold the end of the fuel can swingout - very similar to the existing one.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
The swingout is just about complete. I still need to add the stop/lock (keep it open) mechanism and the latch to hold it closed. And, I have a little more grinding to do.

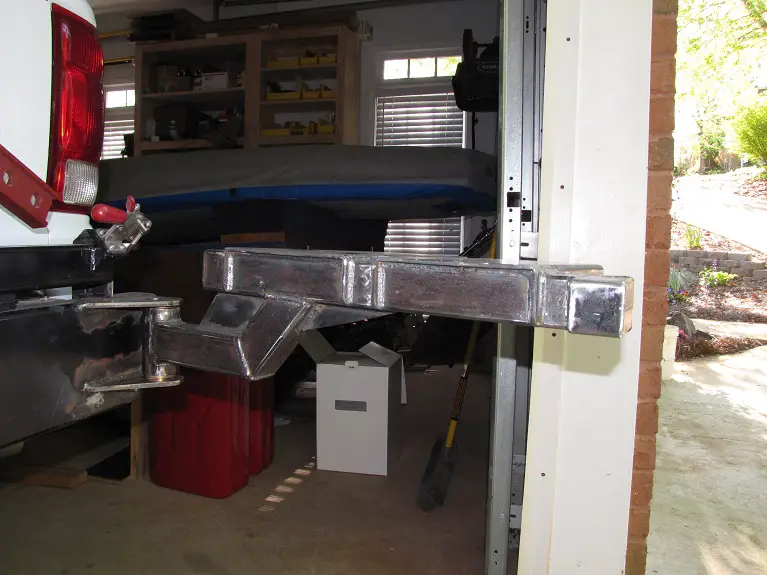

Here you can see the swingout from the rear, side and while turned out.


Attachments

  • FCSO1.jpg
    144.5 KB · Views: 586
  • FCSO2.jpg
    175.2 KB · Views: 597
  • FCSO3.jpg
    155.3 KB · Views: 590
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
And here it is with the fuel can carrier sitting in place.


Attachments

  • FCSO4.jpg
    145 KB · Views: 606
  • FCSO5.jpg
    209 KB · Views: 584
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT

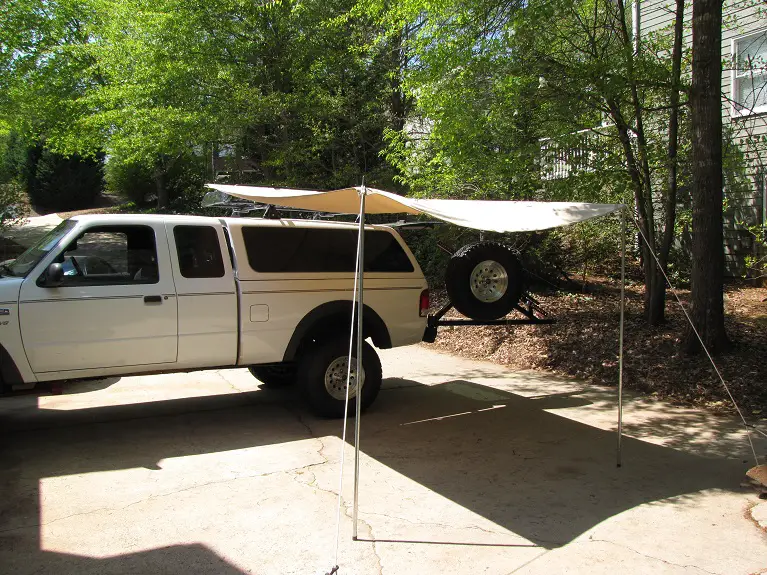

Here's what you can do with some extra tent poles, Sunbrella fabric, and a sewing machine (no, not me...)

The awning attaches to either side or the rear of the roof rack, is 7 feet wide and 10 feet long.


Attachments

  • Awning3.jpg
    184.7 KB · Views: 608
  • Awning2.jpg
    247.6 KB · Views: 644
  • Awning1.jpg
    268.6 KB · Views: 589
<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..Psssst..:shifty_ey ..You always put the shade to the south side...

..Unless you are south of the equator then...you put the shade on the North side..:p:

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
I also move the refrigerator into the truck. It is running off the 2nd battery.

You can see the very first can it cooled!


Attachments

  • FridgeInTruck.jpg
    154.7 KB · Views: 714
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
..Psssst..:shifty_ey ..You always put the shade to the south side...

..Unless you are south of the equator then...you put the shade on the North side..:p:

The south side is in the garage...

<



<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..You know how Scott is about his sweet tea..

..He wouldn't risk using it as a test subject..:nono:...:D

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Interior Upgrade

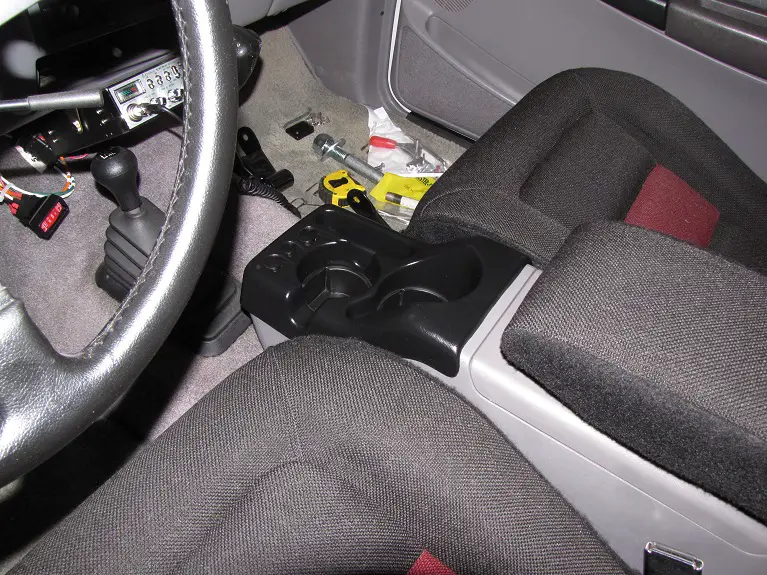

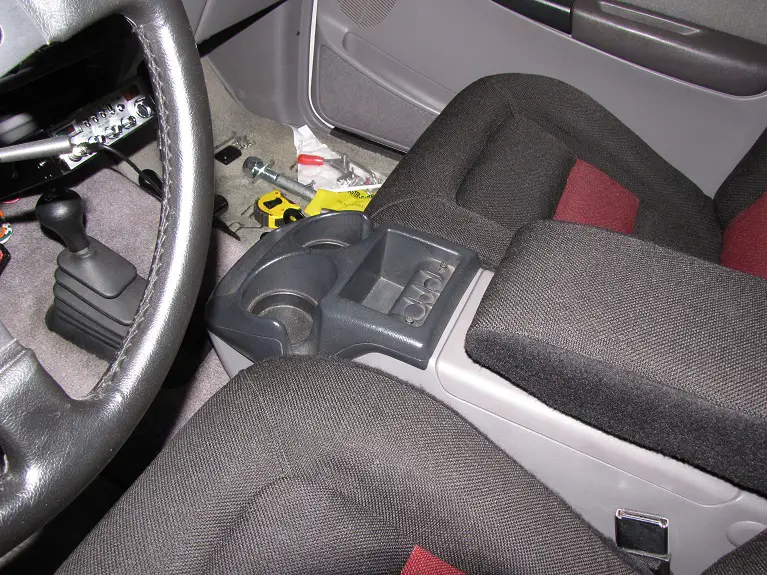

A minor upgrade to the interior - I changed the console cupholder to a newer style. I like the one in my '06, so I swapped it out.

Here you can see the original and the "upgrade"...


Attachments

  • Con-old.jpg
    230.7 KB · Views: 550
  • Con-new.jpg
    225.8 KB · Views: 548
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Fuel Can Swingout Built

I finished the swingout.

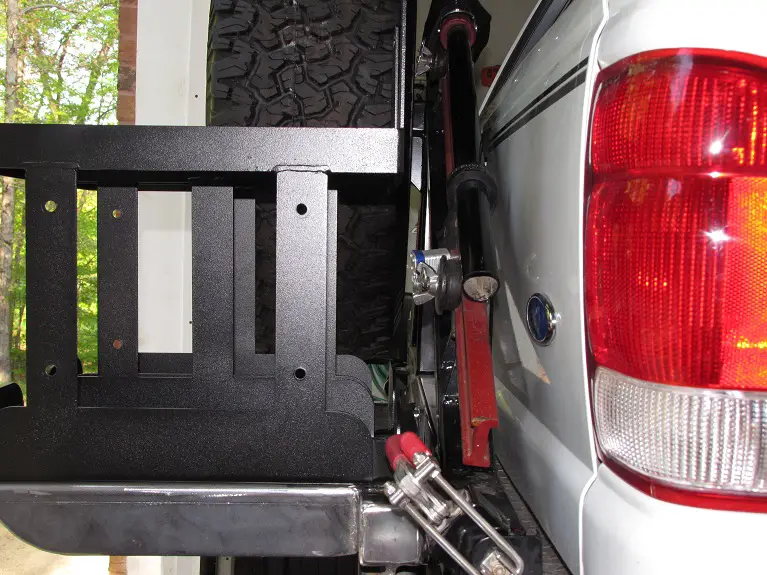

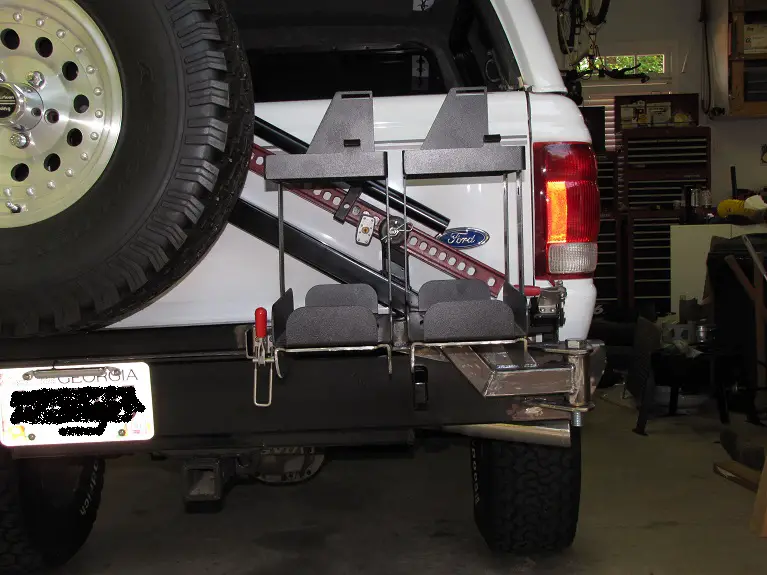

Here you can see it with the fuel cans and latch.

I have added a lock-open mechanism, but that is not in the pictures.

Currently, the swingout is at the powder coat shop. I'll post a picture when I get it back showing the lock-open.


Attachments

  • Done1.jpg
    156.8 KB · Views: 562
  • Done2.jpg
    142.6 KB · Views: 561
  • Done3.jpg
    195.9 KB · Views: 560
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Rear Springs

I replaced the rear leaf springs with custom built ones from Deaver Suspension.

These springs are built for the new weight of the truck, the V8, the inverted shackles. The leaf pack has 12 leaves plus a snail wrap on the front part of each pack.

While I was changing springs, I replaced the rear spring hangers, the shackles, all fasteners, painted the frame rails and I installed a Lokar emergency brake cable set.

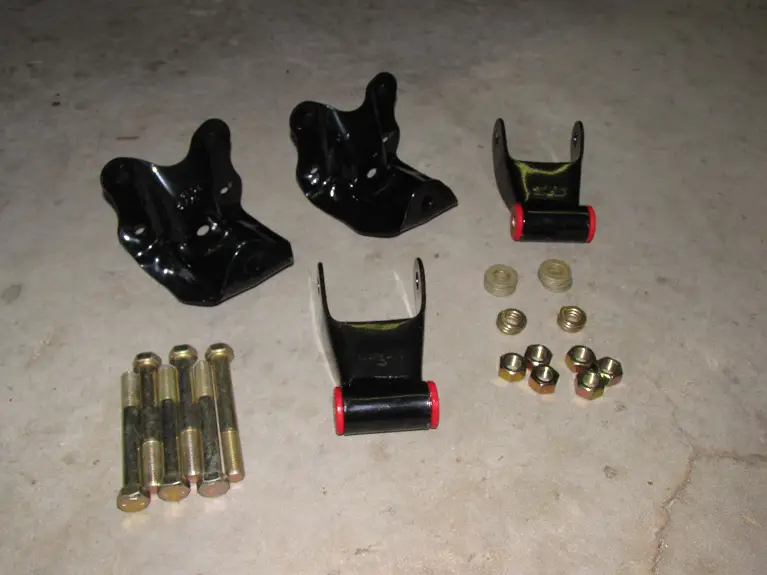

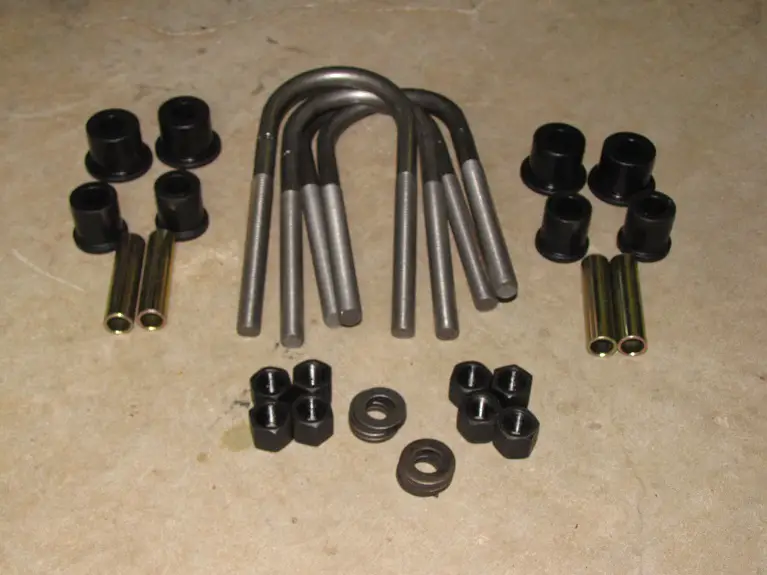

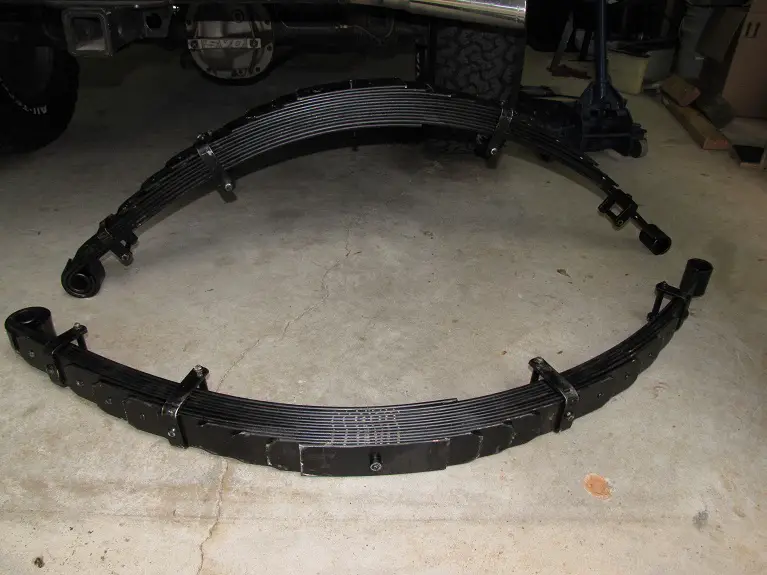

Here, you can see the spring packs, the 5/8" u-bolts and urethane spring bushings, and the new hangers, shackles (with Energy Suspension urethane bushings) and grade 8 hardware.


Attachments

  • Hardware.jpg
    126.2 KB · Views: 542
  • U-Bolts.jpg
    128.4 KB · Views: 559
  • Springs.jpg
    153.3 KB · Views: 562
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT

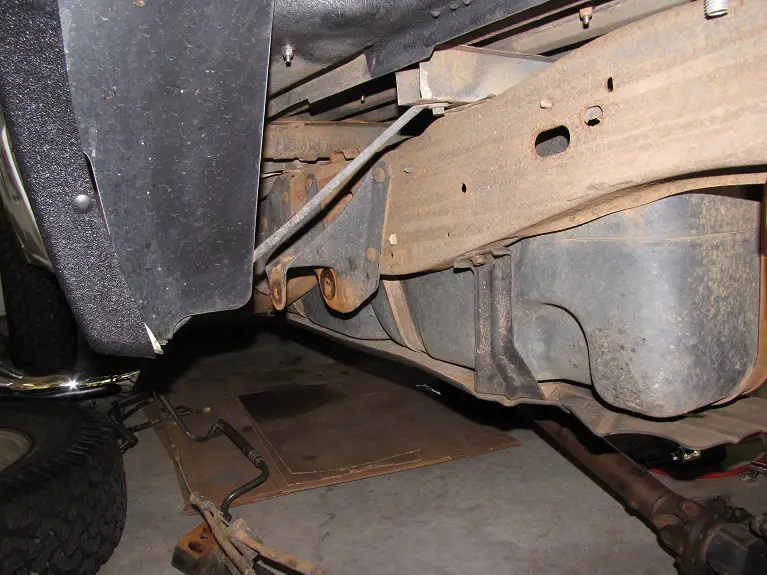

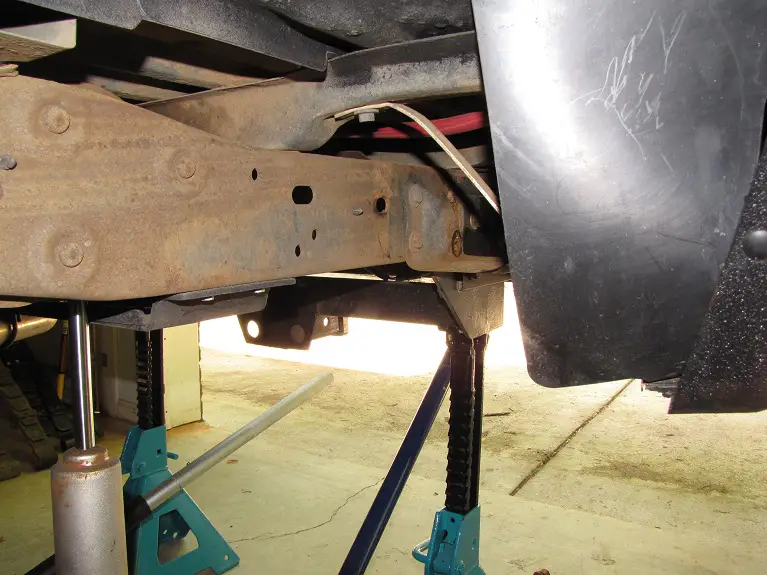

A couple of shots with the old springs removed.


Attachments

  • Old1.jpg
    179.7 KB · Views: 555
  • Old2.jpg
    192.1 KB · Views: 548
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT

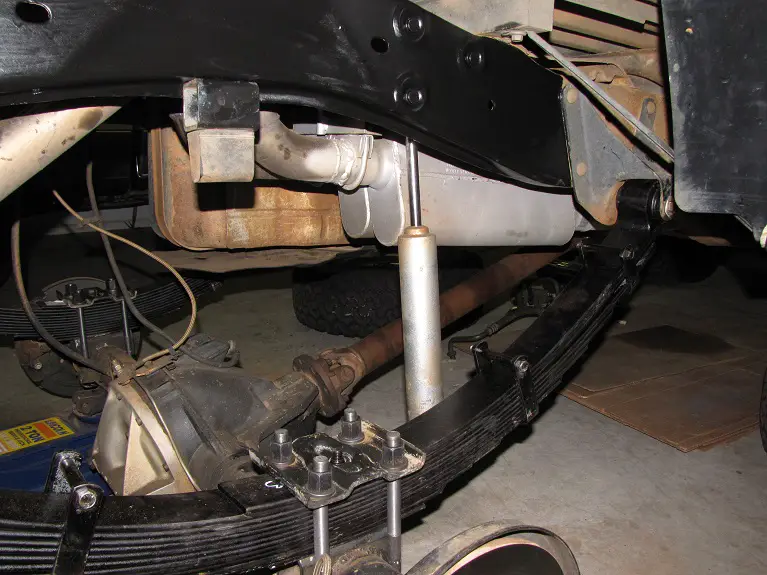

Springs installed.


Attachments

  • Done1.jpg
    172.6 KB · Views: 563
  • Done2.jpg
    180.1 KB · Views: 551
<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT

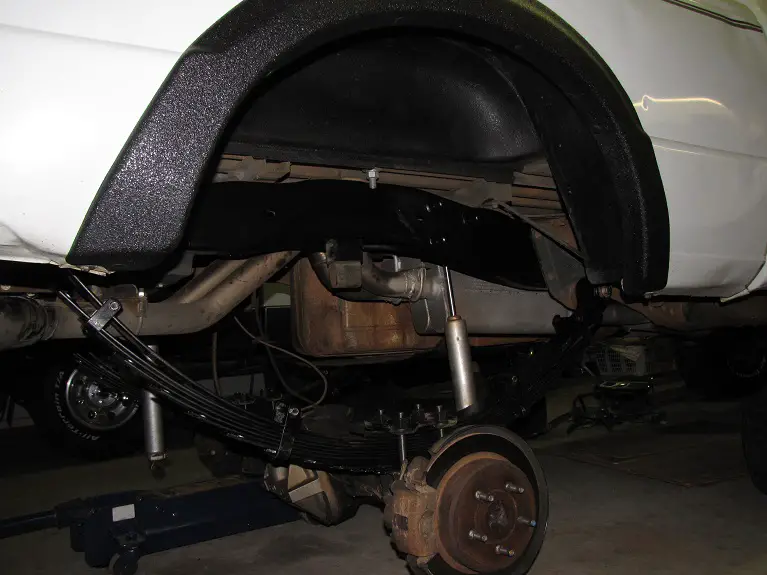

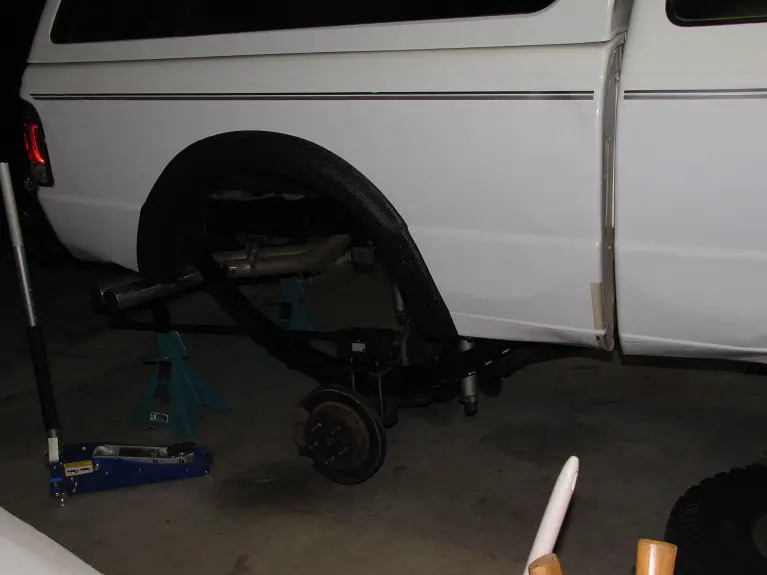

Some views of full droop. (Yes, my shocks limit the down-travel.)


Attachments

  • Droop2.jpg
    134 KB · Views: 543
  • Droop3.jpg
    85.5 KB · Views: 569
  • Full Droop.jpg
    Full Droop.jpg
    95.3 KB · Views: 566
<



ford99_1979

Well-Known Member
Joined
August 17, 2009
Messages
389
Reaction score
4
City, State
Calgary, Alberta
Year, Model & Trim Level
2020 ST
Great job with everything!!! Very clean work, functional and well planned. I like your truck alot. I used to own a 1994 and 2001 ranger. If they had a full second row of seats (crew cab) I'd still have one....

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Great job with everything!!! Very clean work, functional and well planned. I like your truck alot. I used to own a 1994 and 2001 ranger. If they had a full second row of seats (crew cab) I'd still have one....

Thanks. I like your 2001.

You know, you can get a crew cab Ranger in Mexico - shouldn't be to hard to transport it to Canada... :D

<



ford99_1979

Well-Known Member
Joined
August 17, 2009
Messages
389
Reaction score
4
City, State
Calgary, Alberta
Year, Model & Trim Level
2020 ST
Thanks. I like your 2001.

You know, you can get a crew cab Ranger in Mexico - shouldn't be to hard to transport it to Canada... :D

Something is just off with those 4 door Rangers from other Countries. Too much hassle as well, may as well look at Sport Tracs if a guy really needs the box. Funny thing is, now that I have the Explorer I havn't found too many times that I needed a box for my lifestyle.

Enough polluting your thread. Carry on with the transformation.:thumbsup:

<



Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Air Conditioning

Now that I am back from Desert Expedition III, I can post what I did for the A/C.

The longer engine necessitated moving the radiator forward, to the location of the factory condenser. This meant the condenser had to go in front of the core support - right where the transmission cooler sits. So, the trans cooler has to move forward, also.

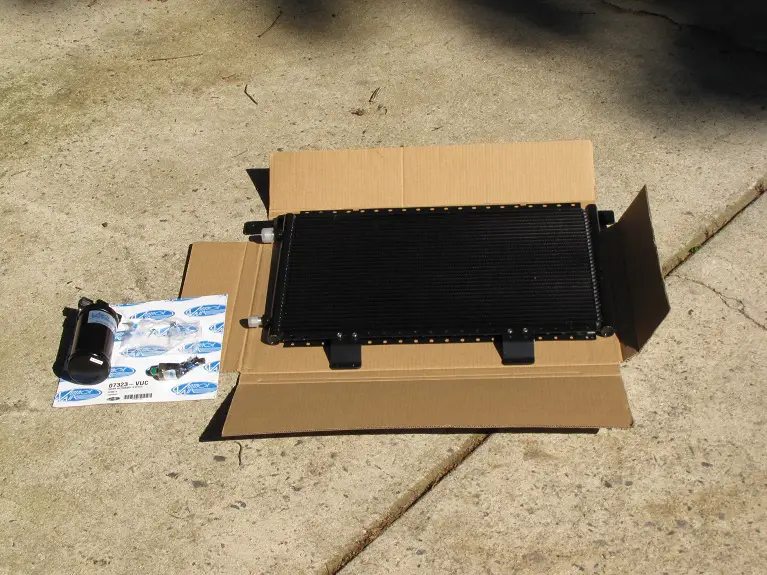

The factory condenser did not want to fit on the front side of the core support, so I picked up a generic condenser from Vintage Air. I also bought a generic dryer and a fitting/hose kit. There really was no way to use any stock pieces. Fortunately, Vintage also makes an adapter that mounts to the factory compressor.


Attachments

  • Condenser.jpg
    207.2 KB · Views: 472
  • Parts.jpg
    229.7 KB · Views: 479
<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Here are some pictures of the new condenser location.


Attachments

  • Before.jpg
    166.2 KB · Views: 484
  • Before2.jpg
    173.6 KB · Views: 481
  • Before3.jpg
    148.5 KB · Views: 471
<



Top
