Some electronic parts came in over the weekend.

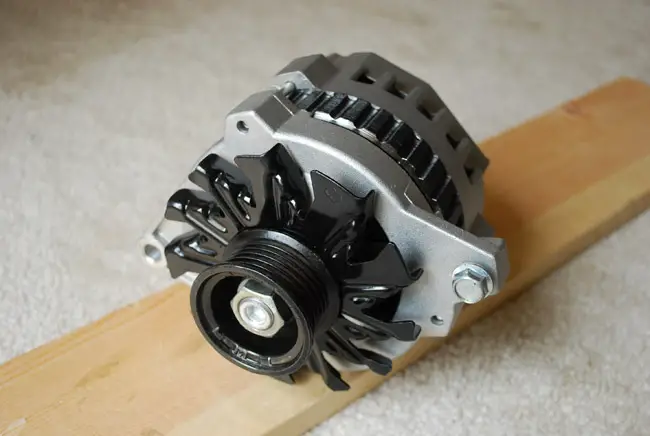

A GM 1-wire 140 amp alternator (CS-130, 12 o'clock casing):

The "1-wire" part:

12.1" LCD from a cop car. Its supposed to be around 1,500 nits so it should be readable in the sun. It also has a touch screen feature but I'm not sure that'll get used much (scratching issue). For future reference, PDF specs of unit is available at this L3 site.

Back of the panel:

Dimmer and on-off switch:



[IZwack]

Finished up the radiator tubes. The upper had to be modified - forgot that a tube was going to go where it was running.

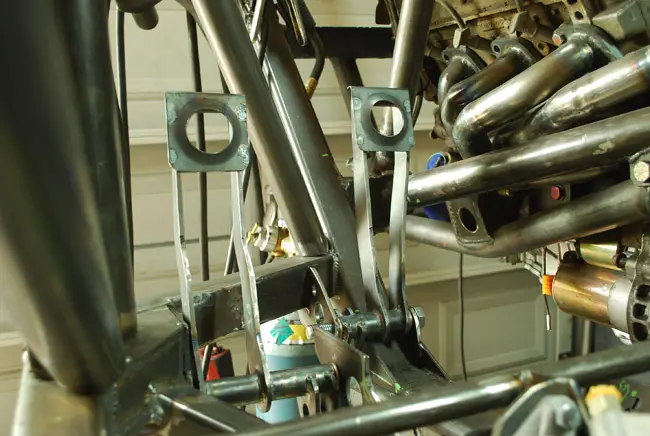

I figured I've been working on the passenger's side enough so time to move onto the driver's side - some brake pedals. Pivot is 5/8" bolt with some bronze bushings, heim is 3/8" (in compression so it should be all good). Pedal ratio is slightly under 6:1

As I posted a long time ago, I'm using a GM PowerMaster brake master cylinder. Well that unit needs to be dissasembled in order to fit the brake master cylinder part under the seat (mounted low to keep the CG low):

Clutch master cyl will be mounted behind and slight beside the brake master cyl. Obviously, both will have a remote reservoir.



[MrQ]

Well, I just spent 3 hours reading this whole thread. It all looks amazing to me. I still don't understand some of the suspension angles, but I am trying to learn. This "truxplorer" should really be named the "Junglegym."



[Diff Whack Daddy]

Some of us affectionately call it garage *****.



[wood1]

Oooohhhhhh... that's a slam isn't it? He just slammed you...



[livetoride21]

wow, just went through 74 pages. this thing is insane! Makes me wanna go crazy on my truck right now. Wish I had access to all that equipment. Crazy fabrication skills IZ!
SUSCRIBED~!



[section525]

Wait.. you're putting a nerdy computer into this thing?



[jwrezz]

I still like "Garage *****"



[BKennedy]

I still like "Garage *****"

Ditto!



[zhanx]

hmmm, I checked back in on this thread after last checking it on 06-19-2008, I see zero progress.



[IZwack]

Wait.. you're putting a nerdy computer into this thing?

Have to - gauges.

Wow I'm slacking huh - its been a month since I've uploaded anything.

Newbie pedals:

Links connecting the pedals to the master cylinders - 3/8" heims on the pedal end:

Master Cylinders:

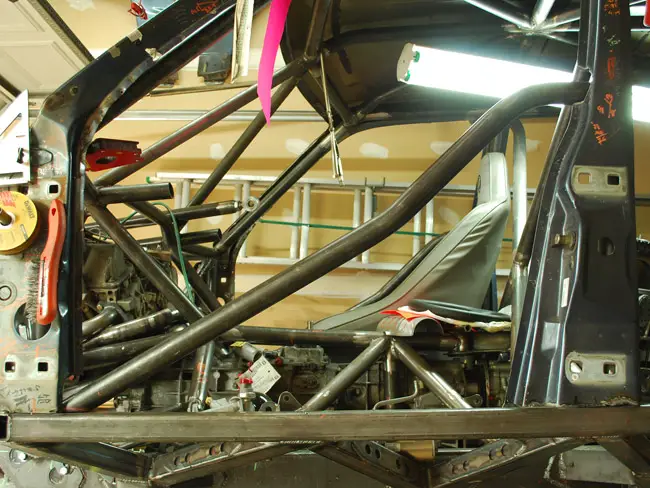

Started on these diagonal bars to protect the humans - which I need to do now because the bar that supports the steering valve connects to this structure.
