I've got this wild idea on making a small utility trailer for my chopped top Bronco2. Since there's hardly no room in the bed due to my 33" spare tire mounted back there on the cage. I'm giving it some thought on making one out of another matching Bronco 2 :confused: Maybe like cutting it in half at the pillar behind the door. Enclosing it off. Them skinning over all side glass and rear hatch glass with metal. Leave the rear hatch operable. And also rear axel. Then extending frame to a point with hitch. I have not even looked at another B2 to see if it is even feasible.
I know you guys have seen some old hot rods with matching trailer towed behind.
I know it would not hold much, but should be great for camping gear, hunting and fishing and even hauling home the venison. Could even put same matching stars and stripes paint job on it like the B2. Small roof cage even.
Has any one ever seen this done to a B2?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.








Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





RFR2212

Typing Police
Elite Explorer
Joined
April 10, 2000
Messages
5,272
Reaction score
10
City, State
In the mug by Chitown
Year, Model & Trim Level
95 JEEP Wrangler
Just keep that rear end filled, as it's easy to overlook. If you forget, it'll seize up and you're SOL. That's a bonus to running a trailer axle, only have to grease the hubs.







rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
Just keep that rear end filled, as it's easy to overlook. If you forget, it'll seize up and you're SOL. That's a bonus to running a trailer axle, only have to grease the hubs.

Point well taken :thumbsup:







TedJ

Well-Known Member
Joined
December 4, 2006
Messages
876
Reaction score
23
City, State
NY
Year, Model & Trim Level
'94 Sport
I think keeping the axle full (it shouldn't really empty itself anyway) is a lot easier than messing with tubs of grease and bearings... I hate grease and wheel bearings. Just change the fluid in the diff once so it's fresh, it should last almost forever because it's not going to be under any load.







rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
I think keeping the axle full (it shouldn't really empty itself anyway) is a lot easier than messing with tubs of grease and bearings... I hate grease and wheel bearings. Just change the fluid in the diff once so it's fresh, it should last almost forever because it's not going to be under any load.

That's what I'm going to do. Just change fluid. I've seen way to many trailers on the interstate with those failed bearings. Now I also check the outer bearings on this one while I'm at it.
I called and they said i should have it sometime tomorrow :D

Now I need to know where to I place a trailer build thread at?







rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"

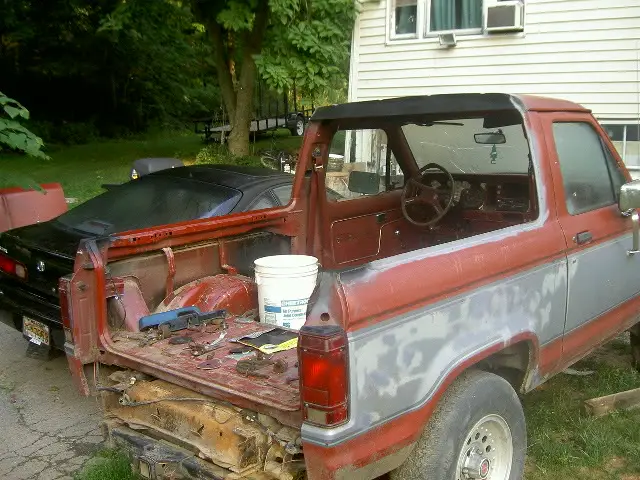

http://img.photobucket.com/albums/v81/honda2nr4life/PICT1888.jpg

This is a pic of my chopped top B2 I'm using for reference. My plan so far is to cut right at where the door meets the pillar. This might be what is called the B Pillar. Continue that cut across roof and down to other side. That would put the cut in front of the shoulder harness that you see on driver side. Here's the good thing. Looking at the roof you can see a black piece of metal coming down from roof. That is a piece that I fabbed up. What I'm getting at is on the other side of that metal up against the roof is a roof support. So now there is a roof support between where I made the cut and where the side glass used to butt up against that pillar. That's the gray primer area.
But I'm leaving the glass in on the trailer. So I'm hoping that this should give that end of the truck some stability while I'm makeing some kind of encloser.







GreenMando

Well-Known Member
Joined
December 28, 2007
Messages
483
Reaction score
1
City, State
Columbia, CA
Year, Model & Trim Level
'08 Sport Trac XLT 4x4 V8
http://img.photobucket.com/albums/v81/honda2nr4life/PICT1888.jpg

This is a pic of my chopped top B2 I'm using for reference.,,,
Here you go:







rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
Time for the fun to begin... :notworthy :popcorn:




Moderator, I don't know if this trailer build should go here or not?
It's finally here . It was delivered around 1:00 PM today. There's going to be a lot of pics initially. I like taking the pics because it gives me something to fall back on when this thing is hopefully completed. I noticed that it really helped on my Chopped top B2 when I needed to know, just how did I do that. It's hell getting old and forgetting stuff
Once I started tearing things out, I found out just how sweet this truck is. And to think it was going to the crusher. The price of steel has probably sent a fleet of these B2 to the crusher



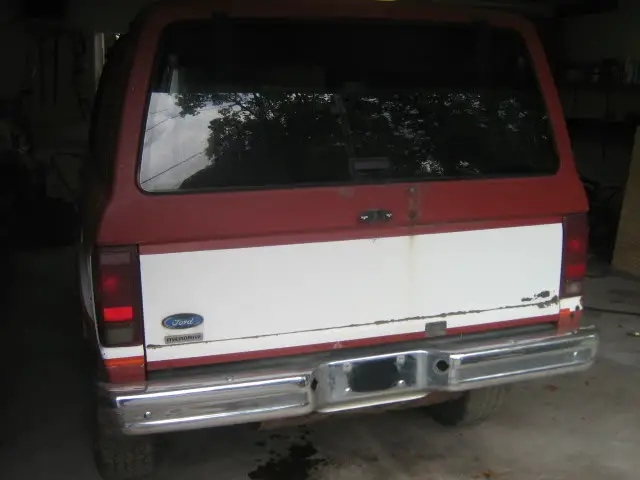

That bumper is like brand new.

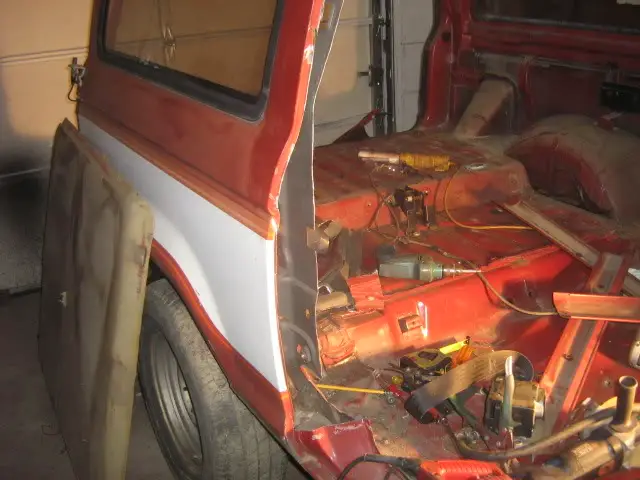

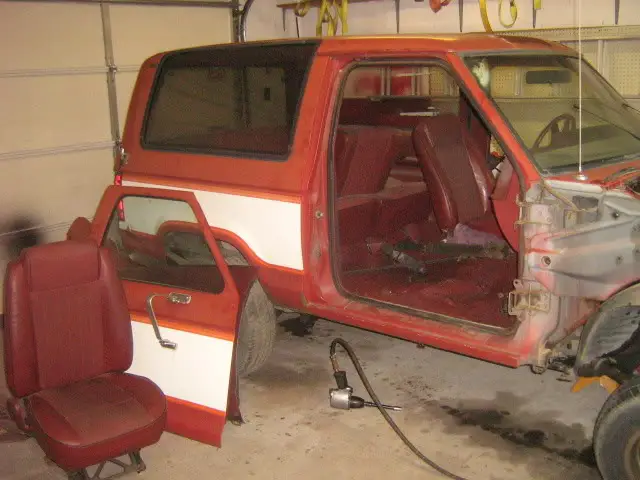

Starting to demo the inside. No rust on fenders, so these will be saved. The passenger seat has no rips or tears. Can't say the same for driver side. Doors will be saved also, again no rust .

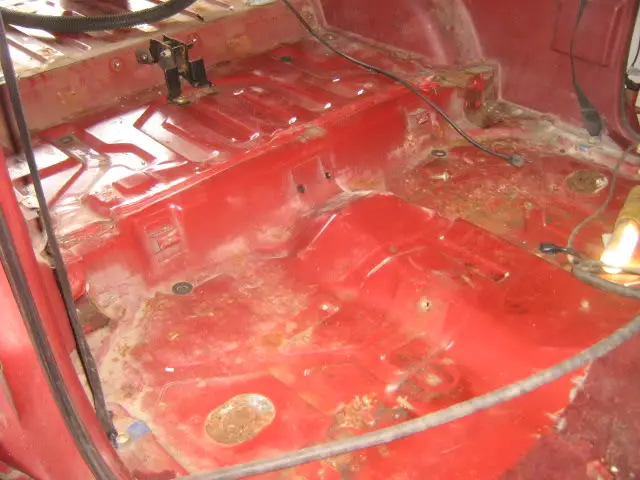

Now this is what I wanted to see under all that carpeting and seats. Looks like the day it rolled off the show room floor. Again no rust

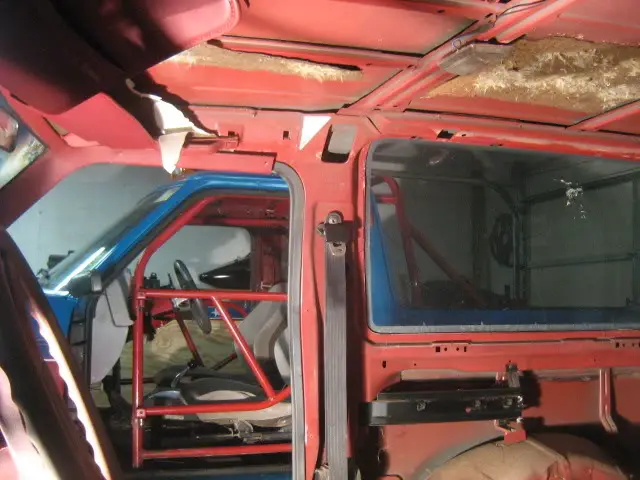

Headliner, doors and all molded plastic interior gone. My cut will be where the back of the door meets the body. There is a nice straight vertical body line that is bent in. I'll leave the bend for stiffness. This cut works out great with that diagonal roof support that's above shoulder strap.






This is when I was holding my breath as I was cutting along the bend on the outside of truck. I cut right in the corner of the bend. It has about a 5/8" bend that is turned in. This is where I'll fasten some kind of panel to.
Those are just paint scratches on the red paint when the cutting wheel got a little close.

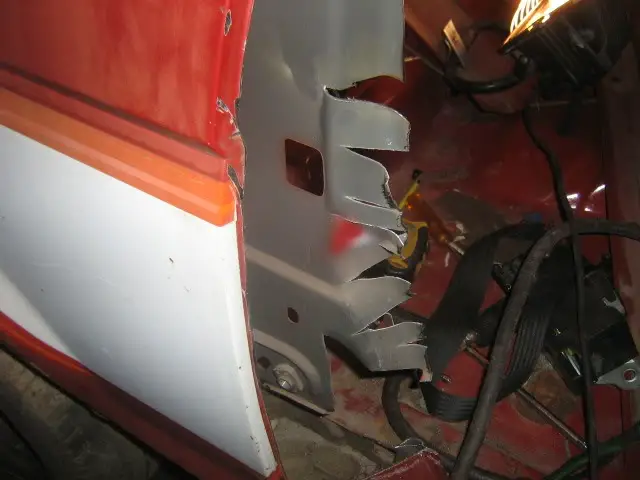

Then the inside I cut with tin snips. But first had to notch into the bends so I could cut the vertical piece. Makes cutting a whole lot easier.

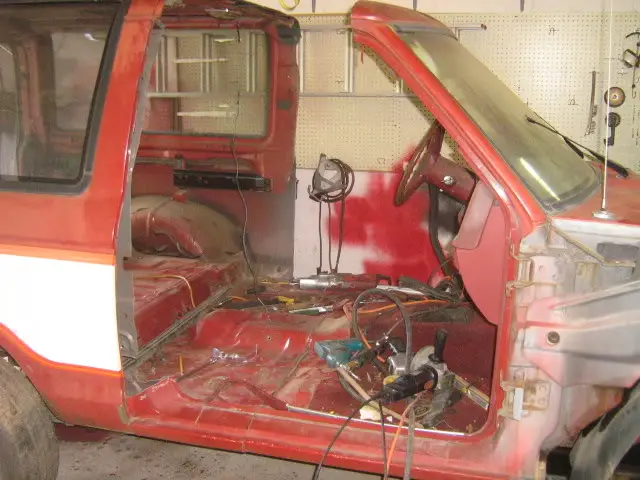

Almost done with the vertical inside sheet metal panel. Around the floor is going to be a little tricky. Plus I have to leave enough structural support. But I can always add some if I have to.

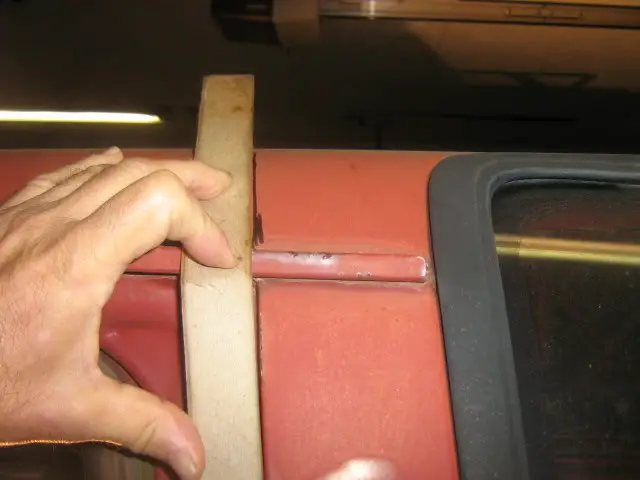

Now you can see the roof support and how it lines up close with my vertical cut.

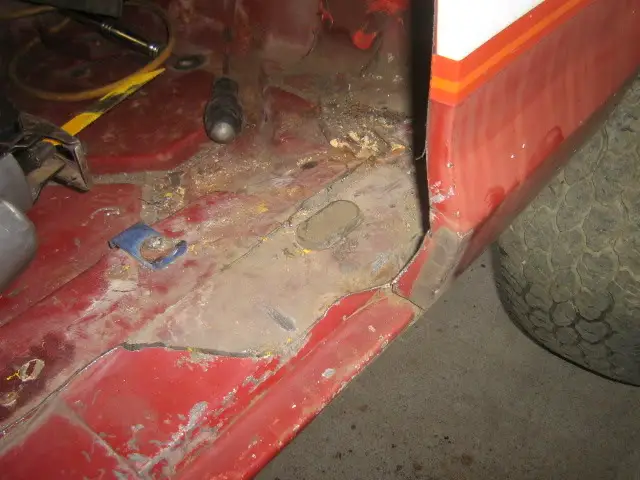

Now this is going to be a little tricky also. The rear is to the left. The cut that I made lines up with the spring perch that is on left. Then you see the body mount. Check how clean it looks. No rust. Now look further to the right and there is a diagonal floor support that runs from frame to frame. My thinking is make my floor cut just to the right of this support. This way I still have the body mount plus that floor support that follows the curve of the floor.
So when it's cut the floor will be out further then the vertical cut I made. Could make a tool box on top of that extended floor part or just angle the enclosure from roof to that extended floor.
OK, I'm done for tonight. Since I really don't have any threads anywhere that I can see how others have done B2s, if there are any, that have done this. All comments are appreciated.



















rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
looking good...


Thanks TedJ. The cool part is when I make the roof cut. I think that I'll mark a line from where I stopped the vertical cut across roof to same point of other side. Still need to cut other vertical also. But what I'm getting at, is instead of cutting on the line across roof. Make my cut about 1/2" in front of line toward driver side. Then bend down to make a reinforcing seam. Also this would give me an edge to fasten the forward bulkhead to.

But what will even be cooler :D is when I do the floor. The fact that I'm not going to cut straight across from the vertical on the floor should be interesting.

If the roof and floor works out. Then the biggest cut of all...The Frame :eek:.

Next would be to actually push the two halfs apart :D That is going to look Weird :confused:
Then at this point I should get a good feel to see if the roof needs to be reinforced.

Thanks Froader, posted same time.







Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,820
Reaction score
26
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Subscribing...

This is cool. Amazing that you found a truck with no rust - better for you!







rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
I know what you mean Scott. About a quarter of a century old :eek:







Going to need to clean this up.




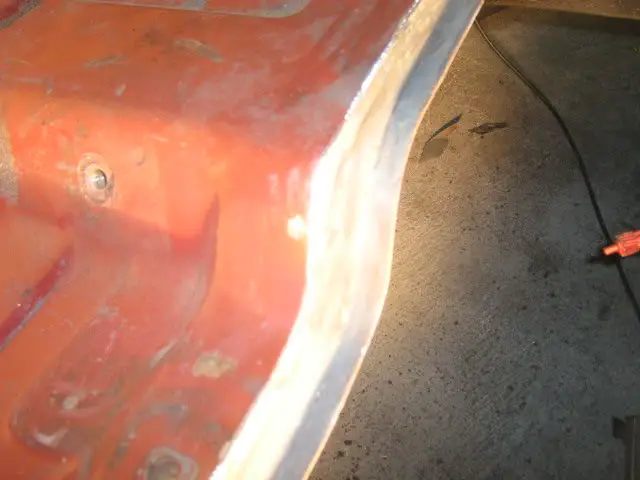

That's better.


Continuing line from door cut to roof. This is a slight angle.



I'm at the point of no return now :eek:

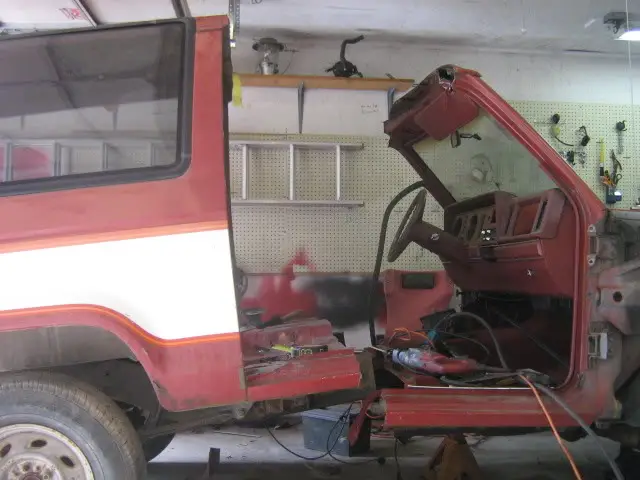

Bingo, frame is cut, and I have completely dissected this Bronco2 :confused:

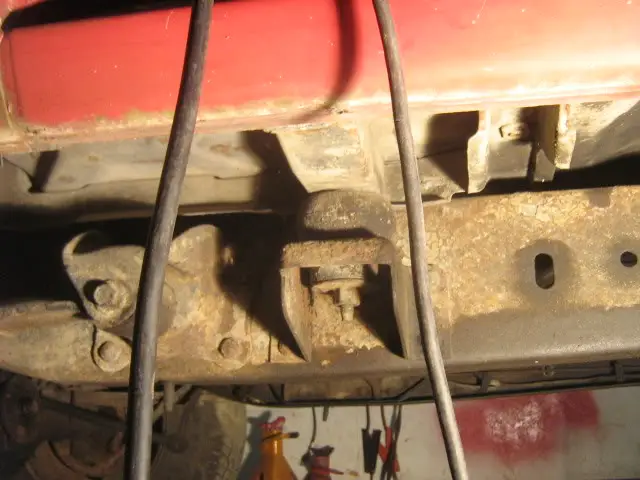

One very important point. If anybody does this same thing, be sure to use enough jack stands. I had a total of 6. One was at each end also. I was not sure which way this truck would want to shift when the last cut through frame was made.
Also I can not emphasize the importance of safety glasses. Some of these cuts were at difficult angles and stuff was flying everywhere. One wheel even exploded on me :eek:



I've decided on 19/32 plywood for a bulkhead. For some good reasons I think. One is I needed some more weight on the tongue, It really adds support for the roof, It is easy to attach to the truck and then I can add sheet metal covering of some sort or even ABS plastic.



Tracing.

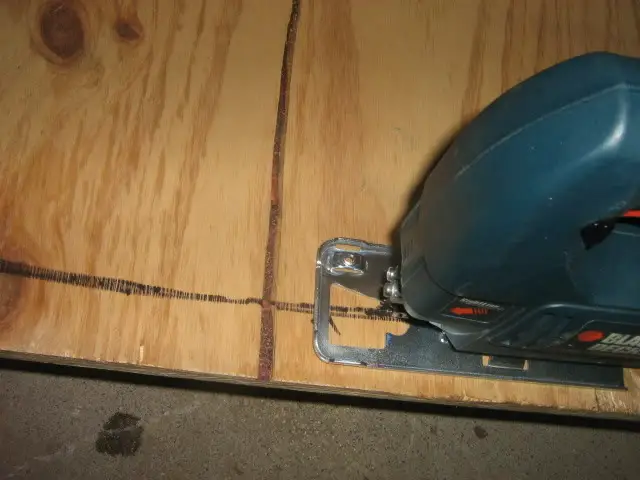

Cutting.

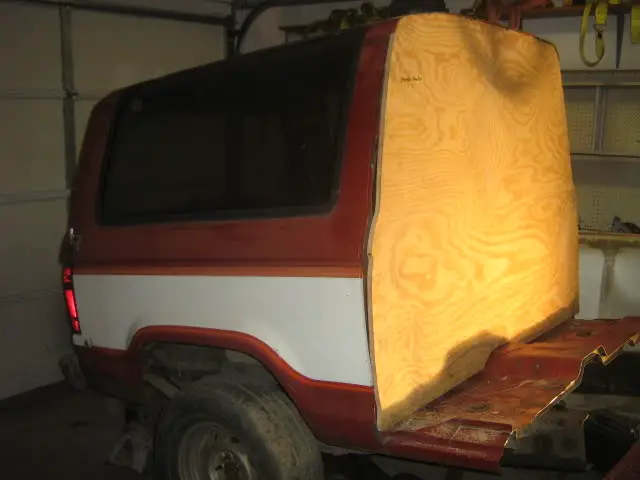

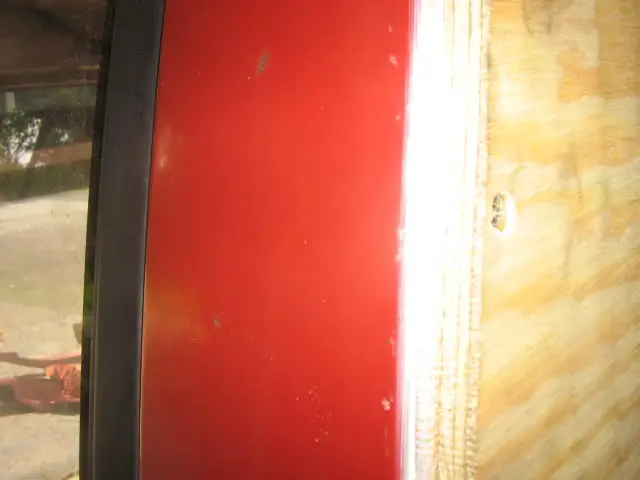

Fitting. Notice how I let the top stick out further then the vertical cut. At first I was going to bend down and add some sort of bulkhead. But once I got the plywood I thought it would be better for the roof to attach over top. Also those jagged edges will be cut clean.
This will protect the plywood better and really support the roof.



Need to notch for those roof bends.



Starting to fit like a glove.



Now all I have to do is to fasten to truck. At this point I'll probably just use some tempo ray screws.
Also notice that you can see why I cut the floor longer then the door cut. That floor support underneath should really help strengthen this up.
Plus I'm going to build a tool box on that extended floor :D

The plan so far is going a little to smooth :eek:

Just thought of somthing while looking a the last pic. I'm going to paint it like the my B2, so I'll continue that body panel part that is painted on the side to wrap around the new bulkhead also.







toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,377
Reaction score
630
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™
Great start :thumbsup:

Would have been funny if you could have just chopped out the doors, and welded it all back together. Then, instead of having a toolbox in front, you could have your storage under the hood :D







rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,285
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
Thanks toy, that would be funny. But I want a trailer that is smaller then the B2.



Looking inside. If you notice in the back is a roof support. I was very lucky that it lined up perfect with the vertical cut I made from the door jamb. Not to mention the interior light
Wonder if Ford engineers planed it this way for later use as a trailer :rolleyes:
My wife came out to look at, and suggested when It's done to get one of those tents that fasten to the back of a truck and use it for camping also. Just lift the hatch and attach tent to it. To make it longer in the back to sleep in, all I would have to do is make a slidable floor in the truck that would slide out with some kind of foldable legs.



Silicone sealer along seams. Now when it's done, if ever :D This will have a finished look.

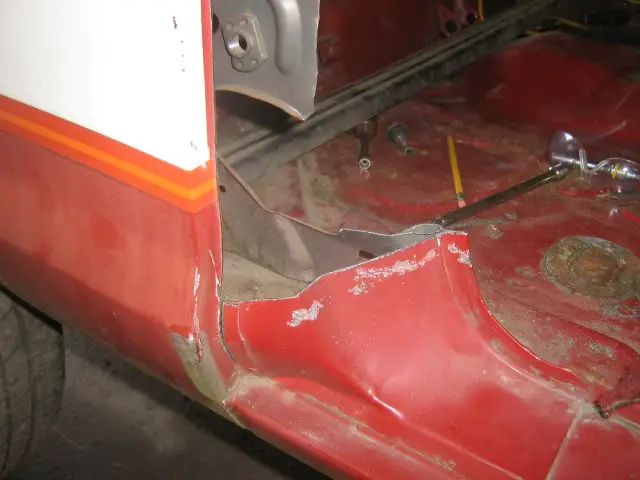

This is where I'm thankful I spent some time figuring out how and where to cut the floor board.
Here is the molded floor support that I've talked about. This will really give it some strength. Also about 8" behind that is a body mount. Now to the main reason I did it this way.



A tool box on the frame.

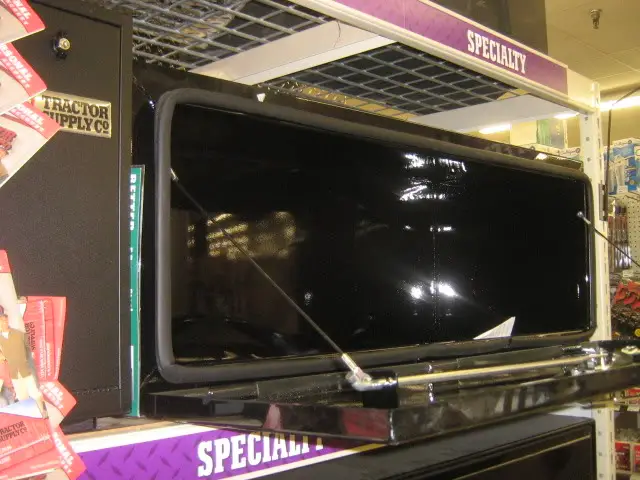

I really like this one. It's made for trailers. I need some more tongue weight and this one is made of steel. I found it at Family Farm, imagine that . I like the price also, about $$260.
