1 ton SAS into a '91! (build thread?)

rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Did you check caster (and pinion angle) before you welded the spring hangers / shackles ?

On the rear, yes, the pinion angle matches the angle at the t-case.

on the front, since i wasn't removing or modifying the perches on the axle, i just slapped it together as it was, there was quite a bit of negative caster but i believe negative caster is a good thing... well in this case i guess too much of a good thing causes problems! the front drive-line has a DC on top and a little pinion angle at the bottom right now, but as i back the caster off that'll go away.

i'm also having some issues with the tire clearance in front. i sawzall'd it out quite a bit in front, but with the shackle in back combined with the front spring mount being higher than the rear, the tire moves back quite as it moves up on suspension compression. so rubbing is an issue in front.

to fix the caster problem, as well as the slip-yoke problem (it doesn't have enough travel) and also the tire clearance problem i think i'm going to try putting the shackle in the front of the spring. that way the tire should pretty much go straight up on compression instead of up and back.

i'm also going to add a pan-hard bar. and i still need to make traction bars for front and rear as well to deal with axle twist.

here's a pic of how it looks now




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Just a little update....

I've been extremely busy and haven't had a chance to work on it for a while :( hopefully next week I'll get it completed. I'll keep you all posted.







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
update!!

Got some more work done it it today!! here's the latest, with pics!

On the front axle, to fix some of the issues i was having i moved the shackles to the front of the leafs. so i cut and modified the spring mounts at both ends and moved the shackles... here's some pics.
(yes, it's braced on the top!)

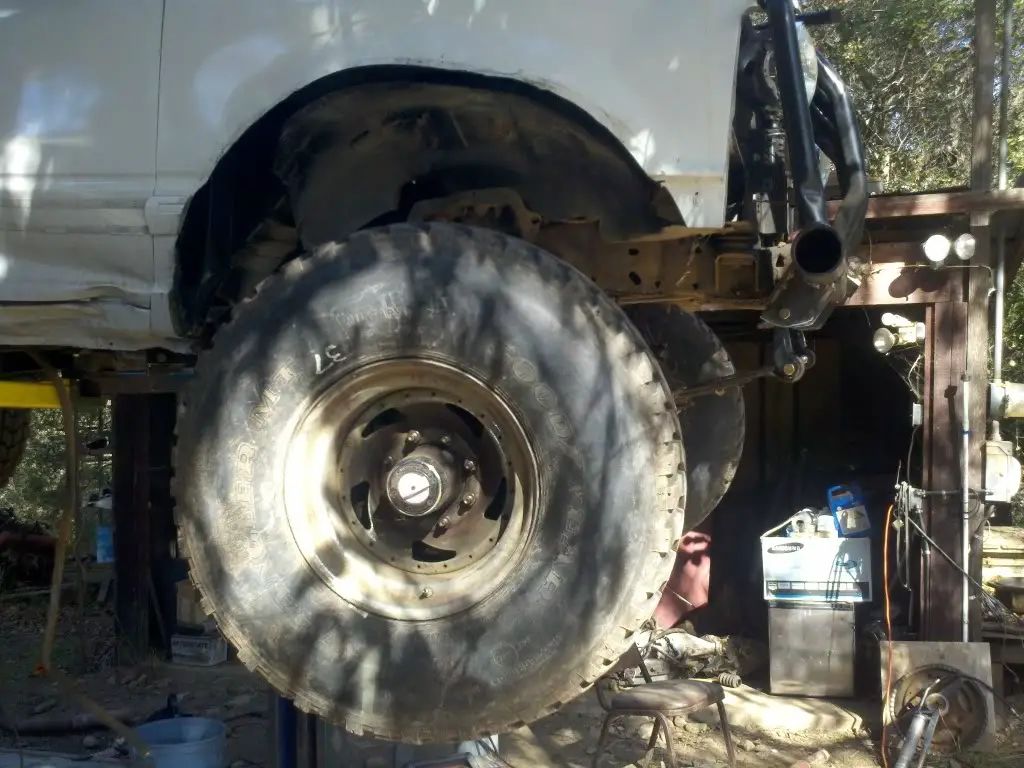

Here's how the front shackles look now

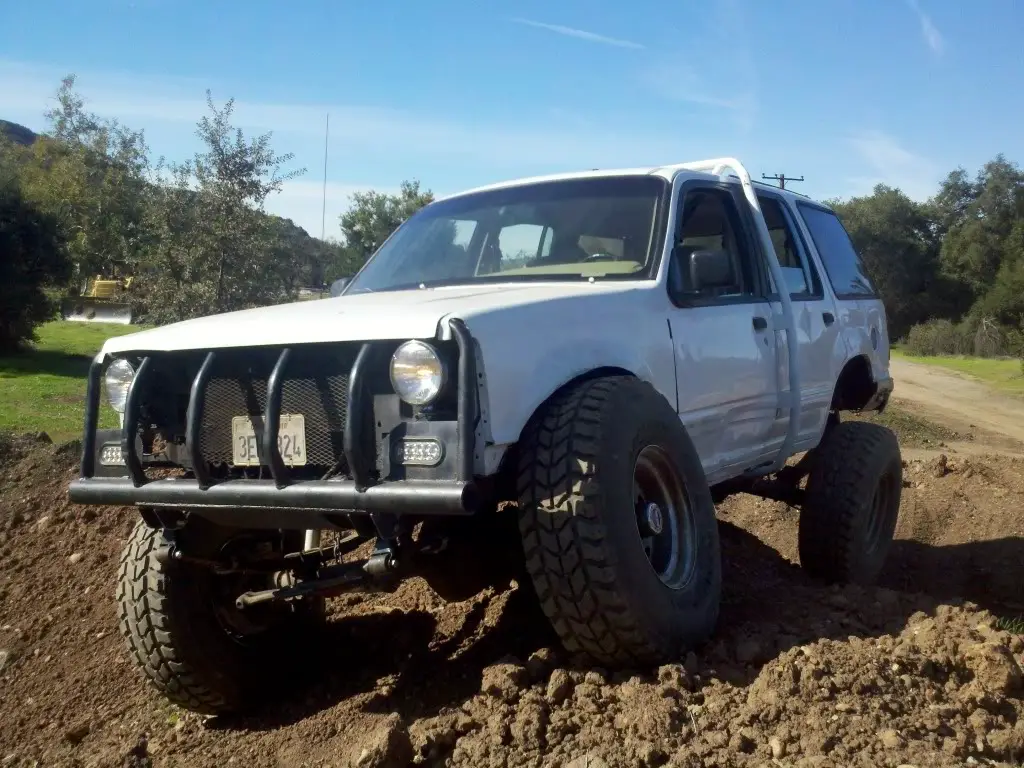

It reduced my approach angle by a tiny bit.. but i think it's still pretty good. with the axle hanging it's a couple inches lower than it normally would be, but this gives an idea anyway. i actually have the downward travel of the axle limited quite a bit because the brake lines i have now are a bit short.

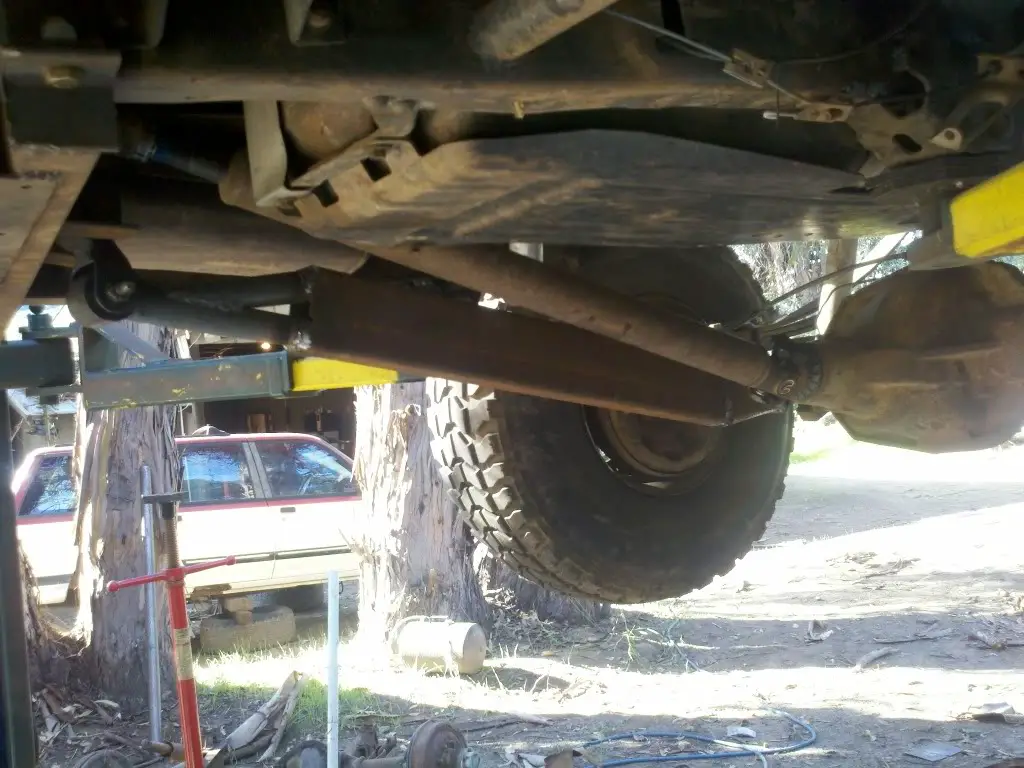

and for the rear, i got a traction bar in.. and it doubles as protection against rocks and high centering and stuff for the drive shaft. yes it's a silly looking design, but i think it's very functional. right next to the drive shaft, and just slightly lower. the pivot point is right below the t case U joint so it'll always move right with it and stay there.

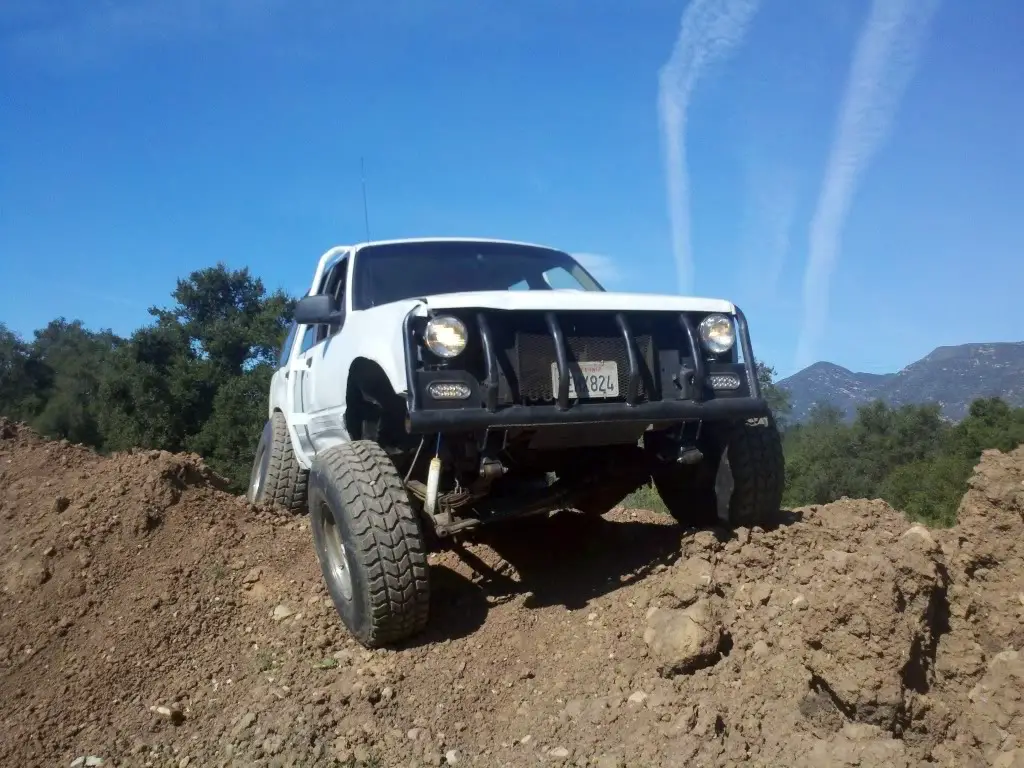

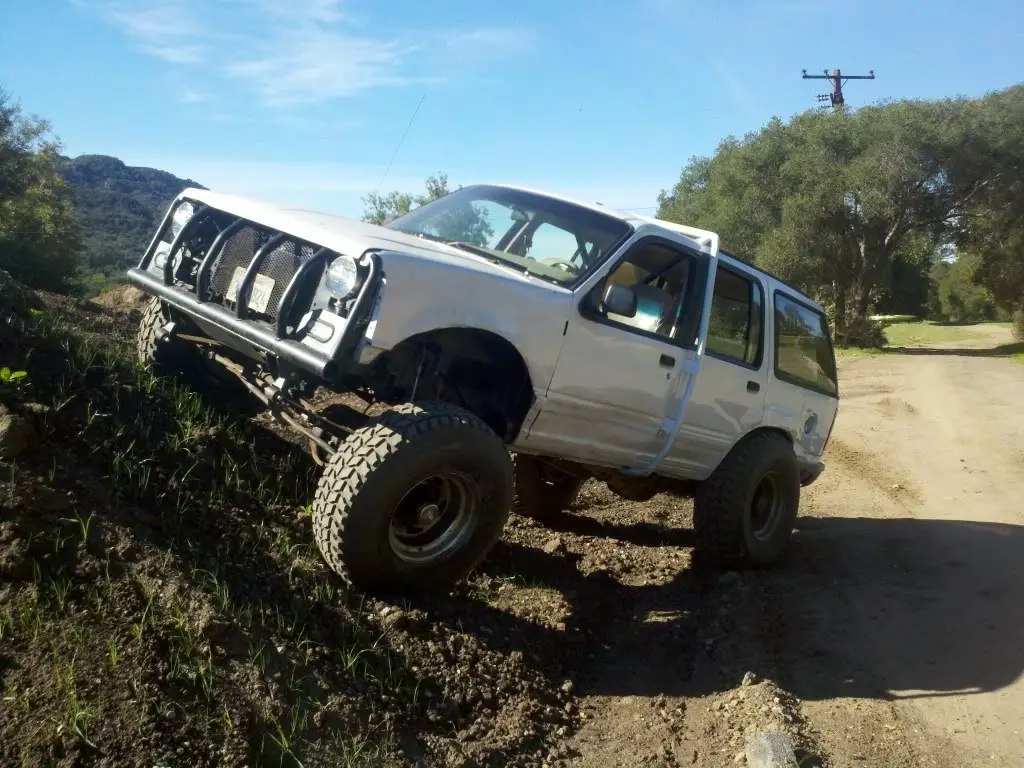

and i took it out for a little testing.. i tried to twist it up a bit, for some poser pics, but this was about all i got.




All i have left on the suspension is the front traction bar, and then it's on to the exo-cage!
oh, and a little more fender trimming.







Joined
September 18, 2010
Messages
19
Reaction score
5
City, State
NM
Year, Model & Trim Level
93 explorer
looks good man, I have a 93 that im currently doing a sas on only im using halfton running gear hp44 and 9in i bought a 77 ford f150 that wasnt running and stripped everything out from under it and I was debating going with leafs or coils but I think im gonna try to stick with the coils and radius arms out of the f150, so did you figure out your castor problem?







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Yeah, i got all the caster stuff squared away. its explained in my last update there above the pics, but i just flipped the shackles to the rear (that was for another reason, but it also benefited the caster problem) and i adjusted the spring mount points some as well. caster is perfect now and it goes down the road fine without death wobble now.


for another update.. i have also ordered 5.38 gears front and rear, a lock-right for the front, and a detroit locker for the rear. and i picked up the steel for the exo-cage and fenders. If my work schedule gives me a few days to work on it, i'm hoping to have it ready for wheelin' within a month.







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
I made some more progress.... (got the exo-cage started) here's pics.

Some progress on the right front fender area, and rock sliders.


I brought the tubing out a bit (i'm going to make it into a fender with sheet metal) the rear's will come out further, flush with the edges of the tires.


Also the rear bumper is off, going to replace it with a simple piece of 2"x4" rectangular tubing. pic of John torching at it.


I won't get a chance to work on it again until Tuesday at the soonest... but at least its progressing!







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Okay, made some more progress today. the exo-cage is pretty much finished except for some sheet metal/skin for the fenders, paint, trimming the ends off the rectangle tubing in a few places and plating the ends, a cross brace (to frame) near the back, some little gussets... and a few other things.. but its basically taken it's shape by now.

the only thing i'm not really happy with is the way the rear bumper came out. it looks too huge and bulky, i'm going to take about an inch off the ends, and cut them at an angle to make it hopefully look better.

anyway.. here's some pics.. what do you guys think so far?















i had to trim the door some to clear the "fender" piece.










Erki

Active Member
Joined
May 3, 2010
Messages
84
Reaction score
0
City, State
Alberta
Year, Model & Trim Level
1991 '47 p/u Explorer
thats awesome. nice work.







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
thats awesome. nice work.

Thanks.. here's another update..

i got some more done on it today... all 4 fenders are built, the front traction (axle warp) bar is built, and i modified the rear bumper some to make it look better... i didnt' think to take many pics today though, although i did get some pics of one of the front fenders... so here's how that looked. more pics of the rest to come later

cut out the fender bigger


had to trim a lot on the firewall... but its got plenty of clearance now (i haaattttee rub!)



and got some sheet metal cut and welded in for the inner fenders.. looks pretty sweet i think.









Erki

Active Member
Joined
May 3, 2010
Messages
84
Reaction score
0
City, State
Alberta
Year, Model & Trim Level
1991 '47 p/u Explorer
thats rugged man.







DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,674
Reaction score
56
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
...And got some sheet metal cut and welded in for the inner fenders.. looks pretty sweet i think.

Very Sweet indeed :cool:







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
it's getting there! only a few more details left!

i modified the rear bumper a little on the ends so it doesn't look as horrible.



then, even though i have a little more to do it on (the cross support bar in the rear part of the cage), i painted it all since it's supposed to rain this weekend.
what do you guys think about the color... i couldn't decide weither to paint it all white like the body, or black.. ended up with gloss black.

then i took it out for a little testing

the wheel-rub test.. passed! it looks like there is no wheel rub, which is nice



then time for some fun.. who says a 150hp v6 can't turn 37's and one tons?



still gotta get the 5.38's and lockers in it, and a couple finishing touches on the exo cage, and then it'll be time for some wheelin' i can't wait













rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
tore the axles down... got the lock-rite in the front carrier. still need to get it all reassembled





rear is apart too







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Update.. more progress has been made. Detroit locker and 5.38's are in the rear, i had to get a different yoke and U joint to fit the new gears (arrrg!) but its all together now.

turned out the front gears i got were standard cut, not thick cut... so i have to switch to the 4.56 and up carrier which sucks.

ok. pic time.. i had my wrench wench helping


and tightening down the pinion nut on the crush sleeve.. damn it takes a ton of torque to crush a 1 ton crush sleeve.. not like a 9"
(hanging from the breaker bar,... just for show yes)







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Well it's been raining.. but I wanted to try it out in this awesome mud today, and i had the day off.. so i the axles the rest of the way together this morning, and tested it out, it works!



I got some video today as well, so that will be coming soon.







rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
ok and heres the mud video. it doesn't have the horsepower to really clear the tires and do awesome in mud, but it did pretty well i think.



here's my friends "bronco" (well it was a bronco once) as well













rhauf

Explorer Addict
Joined
November 1, 2005
Messages
1,246
Reaction score
6
City, State
Ca
Year, Model & Trim Level
91,93,98,&02 Exploders
Took it to Gorman yesterday. got some video!!
also i learned what modifications i need to do before its ready for TDS... such as spring things to keep the springs from twisting up

by the way there is some more "truck stuff" in gorman now.. which is nice for a change.





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Ahteixeira4x4

Member
Joined
July 12, 2010
Messages
34
Reaction score
0
City, State
Turlock, Ca
Year, Model & Trim Level
92 XLT
You got a nice rig. I like what gov done to it.
