Hey guys, I really appreciate your enthusiasm, kind words, and humor. Thank you for all the helpful input too!! I'm the owner and I'm really enjoying this build being done for all to see. I'm just as excited as you guys. So I thought I should share a couple things with you all.

After talking over this build with 410customs for a while, I sort of had some idea what I was after. But my want list grew and I've continued to add to the pile. This has became so much more than just a V8 swap. I am so grateful he just keeps saying yes....

When I dropped the 07 off 410customs had barely moved to his new residence, let alone settled in. I told him if hes got stuff that he needs to do to, do it. I'm in no rush.

Since my truck was dropped off hes had things to do on his property, with family, and then there's the pandemic....life happens. I'm very happy with what's been done. The care and quality shows.

Of this I am certain, you all should keep coming back cause its gonna get good. It'll be worth the wait!!!

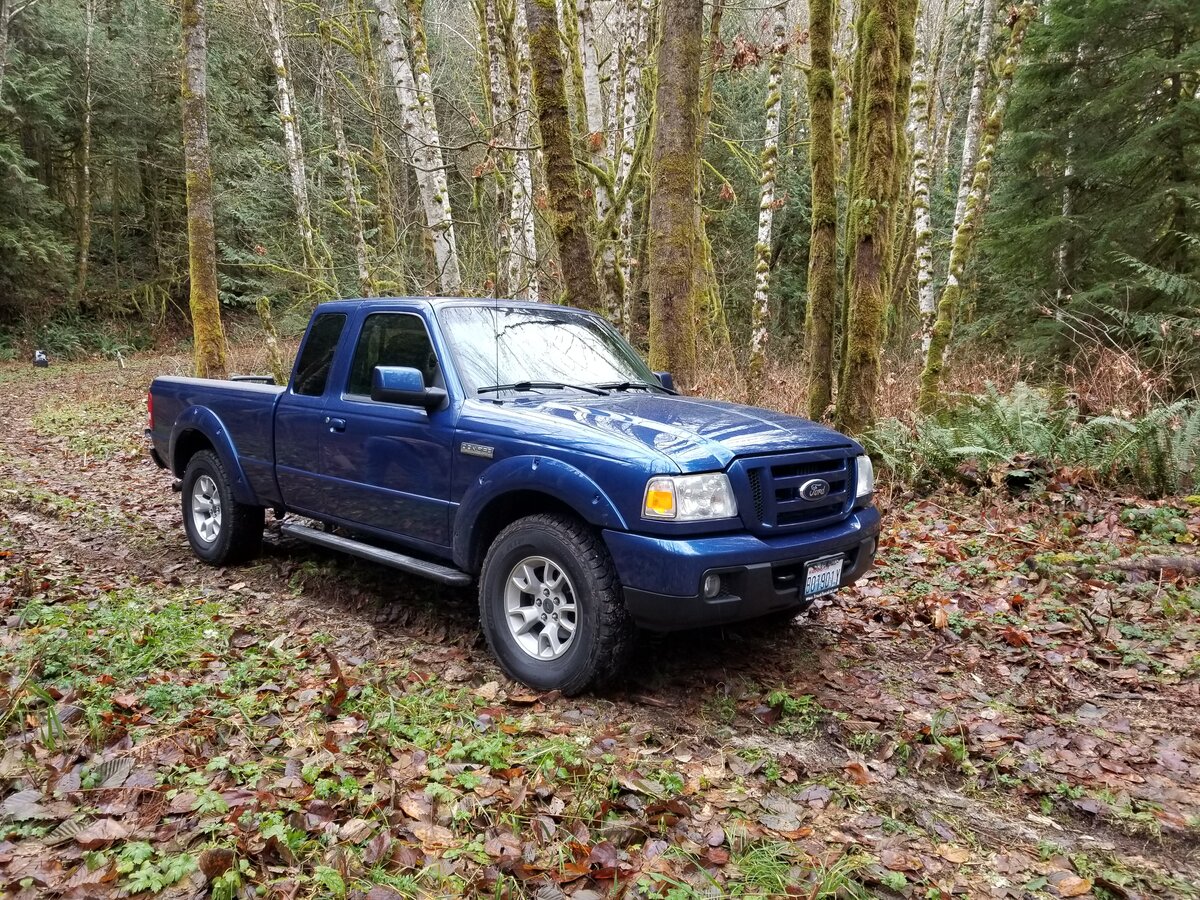

Before.

To be continued...





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Updated coming!! 2000 Ranger v8 is almost finished (running) and there are some packages headed my way for this 07.
Basically the 07 will be coming over front and center for the winter, with the snow falling I will be spending my days building this truck.
To celebrate @EddieMoney has shipped me some more goodies to go on the front of this truck........

I know I know we keep saying that, but this time it is actually happening!!





fastpakr

Elite Explorer
Joined
February 18, 2005
Messages
503
Reaction score
85
City, State
Roanoke, VA
Year, Model & Trim Level
99 4wd - 5.0/4R70W/BW4406
You're killing me with these updates! Meanwhile my 99 still sits in the driveway with an empty engine bay.





vroomzoomboom

Elite Canuck STOCK SUCKS!
Elite Explorer
Joined
January 22, 2007
Messages
9,662
Reaction score
924
City, State
selkirk, manitoba
Year, Model & Trim Level
98 supercharged 347 sport
needs a supercharger.


i know a guy

























fordpickupman

Elite Explorer
Joined
March 18, 2011
Messages
199
Reaction score
123
City, State
Cascade, ID
Year, Model & Trim Level
94 XLT
71 F250 Fummins
I love that body style in that color. The 5.0 will make it even better. There used to be a 3.0 one running around here. But she totaled it. 😕





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Merry Christmas!

It has been a long time coming, now the "Blue truck" as everyone here calls it is getting built
3 month buildup of the 301K mile v8 2000 ranger is complete, now back to our regularly scheduled program, that build can be seen here:
2000 Ranger 301K gets a fresh 306

First up lets install that long travel suspension shall we?
Time to clean up the shop, took a bunch of work just to get to this point!


Truck was hand washed and spray waxed in place, had to remove months of built up dust from under the car cover!!



Notice something missing? That's right! We removed the front bumper in favor of a new bumper/winch setup (more on that later)




I had some help in the shop



Disassembly complete! Time to build her up


Step 1, mock up front suspension
Remember we are planning to run the True Travel Dynamics +2 kit along with the superlift drop brackets and extended knuckles
I need to mock up the suspension so we can measure for new shocks, this way the shocks can be ordered

The frame rails were first scraped and wire wheeled clean where we will be working




Next the upper shock mount needs to be cut off, after much debate I decided a sawzall would make a clean cut....sure enough!


The stock shock bucket is only designed to handle the load of the shock absorber, while the torsion bars handle the weight of the vehicle.
For our suspension we will be using coilover shocks to suspend the truck, no more torsion bars!! So this piece has to go!
Sawzall with Milwaukee torch blade made such a clean cut there was very little grinding to do to remove all remnants of the oil shock mount

Shop dog approved


Here you can see what is left after careful cutting with saw



Now much grinding and prep to do so we can measure, place and tack weld in our new dual shock mount
After the grinder



All remnants of the old bucket erased


Time to tack weld in the new shock tower, instructions from the suspension kit say to start with it 1-3/4" back from the front UCA hanger


Hard to see but it is set with 1.75" exactly at the metal for the front UCA hanger


The AC canister is just a bit too low, the canister brackets were un bolted to gain us some clearance

After MUCH deliberation and testing the fit of BOTH brackets from the kit the shock tower was finally tack welded in place. TACK WELDED> Final welding will come MUCH LATER
Weld through primer is used to protect/coat the back side of the new tower as well as the now clean frame rail surfaces


New tower tacked in place, 3 large tack welds used placed in a spot where I can cut them again if needed.



Now we moved our attention to the superlift drop brackets, they need to be in place in order to correctly locate the LCA and knuckle
UCA (upper control arm) was hung using the stock bolts and alignment shims, perfect for mock up.

Now the UCA, LCA and Superlift knuckle are loosely bolted in place using the correct spacers and hardware provided with the True Travel kit







Now we are getting somewhere! I spent much time with this setup checking the travel, let me tell you this kit is impressive, it will travel way further then we need it to before hitting frame/maxing out the uniballs in both the full stuff and full droop positions.
Time to measure for shocks. Looks like a 10" stroke, 2" body threaded body and bypass shock will fit the bill
King 2.0 coilovers with a 10" stroke are 17.5" collapsed and 27.5" fully extended. Yes we will be using KINGS

So I fabricated a shock "placeholder" which allows us to check shock tower alignment and test shock length in all 4 front shock positions.
The Superlift bump stop was bolted up just for testing, to see where "stock" up travel is, I know from the True Travel instructions that this kit is designed to use 7" of shock stroke at the shock mounts, This will give me my full droop and full stuff positions.

Next pictures will show the wheel travel available!
I can tell you the superlift drop brackets and knuckle have this long travel kit cycling cleanly, same angles as the stock LCA suspension.





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Oh and just for testing /checking clearances before the superlift brackets were added I wanted to see how this +2 kit works without the Superlift, I just happen to have some old Fox 2.0, 8" coilovers in the shop, perfect for testing (this kit is designed to use 2.0, 8" stroke threaded bodies)







Everything looks good, except the stock bump stock bracket is right in the coilover spring..... no problem the stock Bump stop can be removed





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Okay back to our suspension travel
Here you can see the superlift bump stop extension put in place so I can get an idea of where "FULL STUFF" is AKA the highest point of the suspension travel





Here is the mock up shock I built, capable of being 17.5" tall collapsed and 27.5" extended (eyelet to eyelet)


Full stuff comes with the shock at about 21" long (LCA is resting on bump stop)


7" of shock stroke exposed from that point has us drooping WAAAY down


Approximate full droop (down travel will be limited by a limit strap included in the True Travel +2 kit)
The mock up shock is now at its full length, 27.5" from eye to eye (same as a 10" King)


So to recap:
Full stuff


Full droop


Full stuff


Full droop



IMPRESSIVE WHEEL TRAVEL for a 4x4
this is close I think the suspension will be limited just above this point to keep the CV axles happy
You can see the upper and lower Uniball's are at their max travel limits, stock ball joints would have broken into bits trying to do this

Although the new shock tower looks to be in the perfect location from all angles, final welding will be done AFTER both new coil over and new bypass shock are in place and travel/clearances are checked

time to prep, cut and tack weld the drivers side





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Did I mention the front bumper earlier?

Well..................here is what it is like to unbox an Affordable Off Road Ranger winch bumper!!
This one came with the front skid plate AND both sets of outer wings. He makes a plate steel "wing" and a tube steel "wing" we were sent both to decide which we like better. I already know which way I am leaning.









Notice the other box? An Apex 12,000 winch resides underneath all this metal!!
Our truck owner has been busy doing a little Black Friday shopping of his own :)
Stay tuned!





gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
11,409
Reaction score
1,558
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Nice! Glad to see this project back in action. 👍

I want a set of those LCA's in stock length. lol

I dig how those shock towers are tied into each other. Does that pose an issue for the drivers side brake / AC lines that occupy that space?

I trimmed the stock bump stop bracket a bit, drilled a new bolt hole, and pushed the stop inward enough to clear the coils.

Are the fender liners going back on?

I need to shut up, and just watch this progress. lol





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Yeah Buddy!! I never stop moving forward, just get pulled in many directions

no issues on drivers side, brake and ac lines can be re located/bent

Yes to fender liners

I'm going to hack off the stock bump stops and run a true can/pneumatic bump stop setup on this beast

This thread will have semi daily updates now until this truck is complete, shooting for some time in February

NO to shutting up and not asking questions!!! Discussion forum = go ahead and discuss!!!





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Do you think a 2.5” shock/coilover would fit the TTD kit? Instead of the 2.0” they recommend.


I am looking into this right now.
It looks as if we remove just a bit of material from the shock tower a 2.5" coilover might clear
I need to know the outer dia of the 2.0 and 2.5 threaded body coil springs and I can likely mock it up



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




dezertranger

Member
Joined
February 20, 2020
Messages
76
Reaction score
39
City, State
long beach, CA
Year, Model & Trim Level
1993 ranger
what are the travel numbers?

spring od will rely on thickness but for the most part you can account for a a 3/4" wire thickness on a 3" I.D. spring (2.5 coilover springs are 3" i.d)





Top
