Burns "Lime" Registry

1991 Explorer

Engine: Stock 4.0L V6 OHV
Transmission: Stock Mazda 5sp Manual
Transfer Case: Stock Borg Warner 13-54 electric shift Low: 2.48:1
Steering: Stock, Ratio 17:1
Front Suspension: Long Arms from While Horse 4x4
Rear Suspension: Stock Spring, soa, 3" Block
Front Axle: Dana 44, 4.88 gears, Open
Rear Axle: Ford 9", 4.88 gears, Open
Driveshafts: Front: Stock, Rear: Extended 3"
Communications: None other than cell phone
Recovery Equipment: Atlas Winch
Tires/Wheels: 37" Nitto Mud Grapplers. Custom Rims
Exterior: 1970's dodge charger green, Custom front bumper, clear corners, and a few dents
Interior: Ranger front seats, stock rear seats, no carpet, no headliner
Audio: 4 Visonik 12" subs, Hifonics BXI1206D amp, Power Acoustik 5x7's. Clarion head unit
Future Mods: Install new rear bumper, Install Manual 1354 transfer case, sliders, lockers, install cb, and more money wasting things


Stage One: 31's




Stage Two: 33's, Superlift 5.5" lift, Warn manual hubs, 5 speed conversion, winch bumper w/ Atlas winch






The Accident and Rebuild:




Stage Three: 36's Tsl Radials, D44/9", 4.88 gears, open f/r, extended ra's.










The Paint









UPDATE 03-27-08

Explorer has not really changes much lately. Got a Lime Green diff cover thanks to JTsmith and thats it.










Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Yeah 24k a year is killer on a rig this big... I have not had a big problem. Replaced the rear driveshaft ujoints once. Only needed the very rear one but did them both since i was there. Tires is my only problem haha who would have thought. Got that last killer deal which saved me a ton on that set.

Thanks on the rear graphic. I still got to get the text done. It will soon match the logo at the top of the pages.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
UPDATE

I have recenlty broken my steering and bent a shock all which was done at a off road challenge in TN.




This is the adjustor for the steering.




Aslo a new rear bumper and relocated license plate was added tonight. Pic tomm







Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Here is the new rear bumper. Needs a good coat of flat black but other than that is done. Need to get 2 longer bolts so i can finish attaching the plate to the hatch. Drilled four holes and using locking nuts on the inside to hold it on. Put some stick on insluation on the back of the plate so it does not come in contact with the body.

Oh and my new explorer emblem is on too















Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Its actually pretty clean at the moment.













robmurt04

Well-Known Member
Joined
December 23, 2006
Messages
369
Reaction score
0
City, State
Pennsylvania
Year, Model & Trim Level
'94 4WD
Might be stealing your color when I get my ex painted. No idea when I'm doing that, but hopefully I am soon. I narrowed it down to Lime Green & Neon Orange. Or If I can find Jurassic Park vinyls Ill go with green red and yellow. :p Nice Truck!













ExplorerSport77

Show Ready
Joined
June 23, 2003
Messages
961
Reaction score
3
City, State
Phoenixville,Pa
Year, Model & Trim Level
'99 Sport "Hotness"
Burns i LOVE your truck!...it came along way from being stock!......and superrr love the back hatch with the explorer!....ur truck is awesome....great job!....love the pictures...!:thumbsup:







Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Hey I just noticed this. Thanks

It has come a long way. Im very happy with it and want to change it a ton. Its a life long project.

Thanks on the hatch too.







Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
UPDATE 07-03-2009

The Explorer has been running great. Still getting a average of 16 mpg every tank. I am very pleased with that. While driving it to SMORR I averaged around 18.5 the whole trip.

Right now there are a few things in the process of happening. I need to get my rims ordered so I can run the new tires that I picked up at SMORR. (Thanks again guys for getting them there for me again and that was how i justified going :) ) I am ordering rims as soon as i can get in contact with roco4x4. They are having a set of black rock wheels (17x9) made for me with a 3.5" backspacing.

I also need to fix my front axle. I managed to loose two ujoint caps during SMORR. I have had this problem since i broke this shaft the first time. I guess its time for a whole new shaft. Oh well no problem. I also have a diff cover bolt broke off. That happened during the off road race that i did in lebanon when i sherred off my steering. No big deal. Ill get it out and a new one in soon.


Here are some recent pic of the explorer:

New tires with child inside



Loaded on my way back from SMORR. Man the tires were heavy. Three of them four foot off the back of the explorer really made it sag. That and the spare parts i carried.

http://www.explorerforum.com/photopost/data/3797/Heading-to-the-

Little fun while posing for pic



Hill madness (Stupid tires)

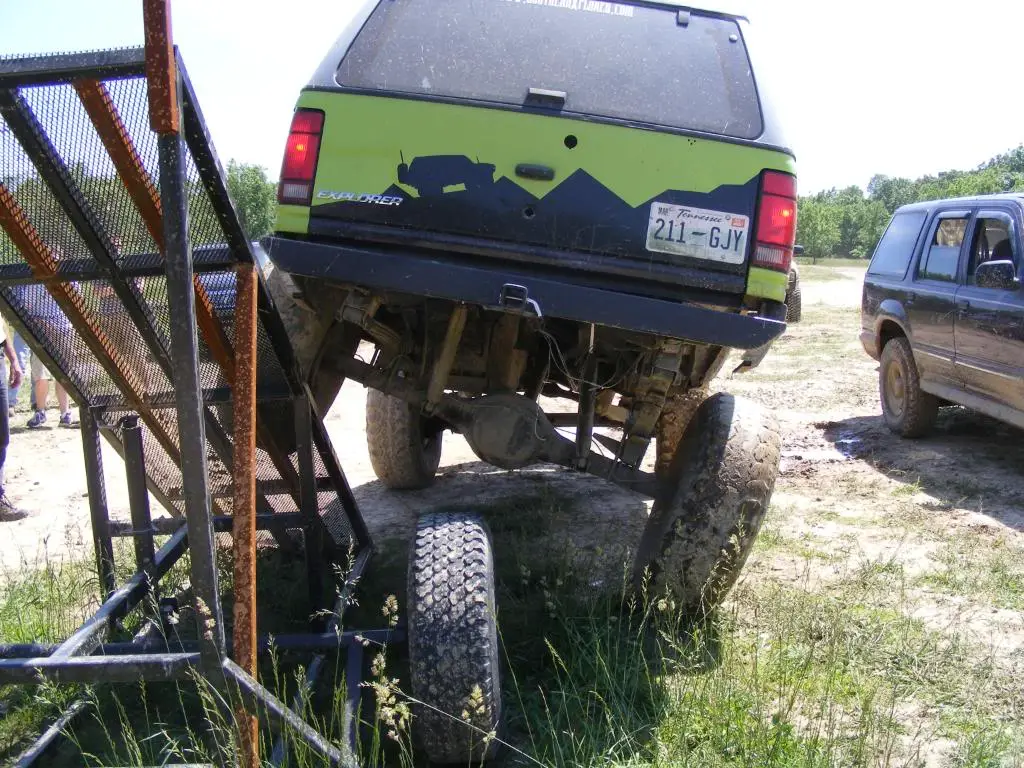

Bumper Twist




And just for Gman because it keeps showing up








Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Jon you will be happy to know that I ordered rims today. It will take about two weeks for them to get to me but they have been ordered.






:)







Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Here are some teaser pic from today. Just went and played around a little. Nothing major never kicked it into 4wheel.

I have better but they are on a friends camera. Ill get them soon










Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
The Lime must feel like its in heaven. It is getting some great attention this week. Tires, rims, body trims, and now im cutting on the front bumper. Working on my approach angle.

Hopefully it will have A/C in the next few weeks







Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Here is the work for this afternoon.

Got the tube bumper and winch off today and put the stock bumper on so I could drive my truck around. Its really strange to have the stock bumper on again. Looks weird.



Stripped off the winch and winch mounting plate and we went to cutting. Cut it down to bring it closer to the body to help the horrible approach angle I had going on. Also cut the winch mounting plate down so it is the same size as the width of the frame so it can be bolted and welded on.




Here it is all cut down and on the trailer. We do not have our bigger welder in the garage yet so we are taking it right down the road to one of our families house to do the deed. Its not the best pic but it will do for now. I forgot and snapped it in the garage with all the lights off.








Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Update 08-22-2009

Here is what I have got done today. The bumper has been pushed back and I trimmed down the winch plate and got it fitted right. Welded and bolted it on. There will be some plating added on for steps in the front.

Pictures go before and after.














JTX

Explorer Addict
Joined
April 24, 2003
Messages
2,446
Reaction score
6
City, State
New Mexico
Year, Model & Trim Level
94 xlt
Looks sweet man! Keep it up! What coils are you running? (to lazy to look)







Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Thanks

Im running the whildhorse 5.5 coils. They are good but im not getting enough flex. Its a problem we thought I would have but have not fixed it yet.


When the sas was completed we had to put a little tension on the radius arms to get them to line up right. Well they are binding pretty good and its just not letting anything move. It does ok but I know I can have more out of this set up. Hince the axle will get pushed forward and different joints will be added. I cant remember if they are called superflex joints or what. They are the rebuildable ones that IZ ran on has set up







JTX

Explorer Addict
Joined
April 24, 2003
Messages
2,446
Reaction score
6
City, State
New Mexico
Year, Model & Trim Level
94 xlt
Sweet! I got big plans for mine... Buying the stuff now.. Ill send you a link when i make the thread in a few weeks. I may have some spare parts, ill hook you up if i have any.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
27
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Update 10-08-2009

Here is some pictures from a few weeks ago. Got to play with the tires just a bit and like them in the dirt. Seem grippy so far.
