Extension Housing/ Parking Pawl

Back end of the case on the 4x4 has an "extension housing"that connects to the transfer case....within that is the parking pawl... that thing that keeps your Ex from rolling away in park. We'll install them next.

The parking pawl is an odd creature... it consists of a smallish spring...



which fits over a post



which then adds spring pressure to the pawl...



Now we are ready to install. I gooped the seal with sealant...



repeated it on the other side and bolted it into place... you have to work the manual lever into the parking pawl hole, but it's not difficult... once you have it... BANG! it slides home and everything lines up... Bolt that baby HOME!



Done!




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,826
Reaction score
66
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT
The PAN

I had hoped to be adding an aftermarket cast pan.... and will... but for now we are reattaching the stock pan.... but wait! I had a MOD !!!

Can you figure out what I added?

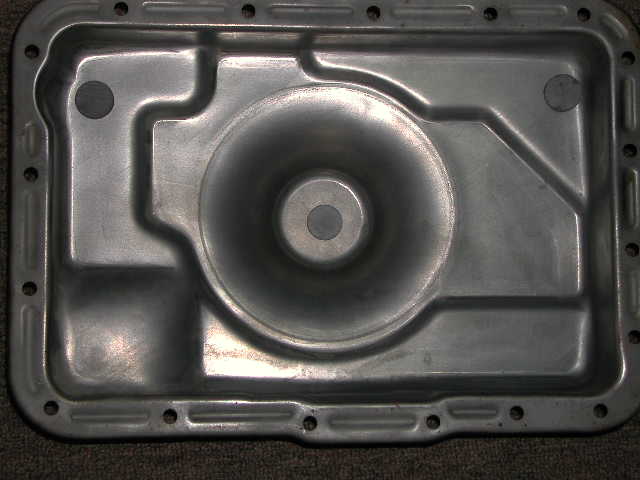

Yeah... ceramic magnets. I bought em at Radio Shack.
