My rear bumper with swingout tire carrier

Barn Owl

Member
Joined
November 11, 2008
Messages
29
Reaction score
0
City, State
San Diego California
Year, Model & Trim Level
"99 XLT
Sorry to hear that the bumper got stress tested, but you know that's why we build them tough. Can you imagine what whould have happened to your SUV with out it! looks like you made it better than it was, nothin like a little R&D to work out the weak spots.;)



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Zenshu

Member
Joined
March 28, 2010
Messages
20
Reaction score
0
City, State
El Paso, TX
Year, Model & Trim Level
'93 Sport 4x4
Very nice, would you mind posting up some general specs on materials used so I can get a local fab shop to make something similar to my '93, I want to move my spare to put in an aux fuel cell where it is currently located.





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,302
Reaction score
417
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Very nice, would you mind posting up some general specs on materials used so I can get a local fab shop to make something similar to my '93, I want to move my spare to put in an aux fuel cell where it is currently located.

2x6x3/16 tube
2x2x.120 tube
1/8" Treadplate/Diamondplate
1/4" plate
1"x4" bar for d-rings/shackles
receiver hitch stock
2"x? DOM tube for hinge

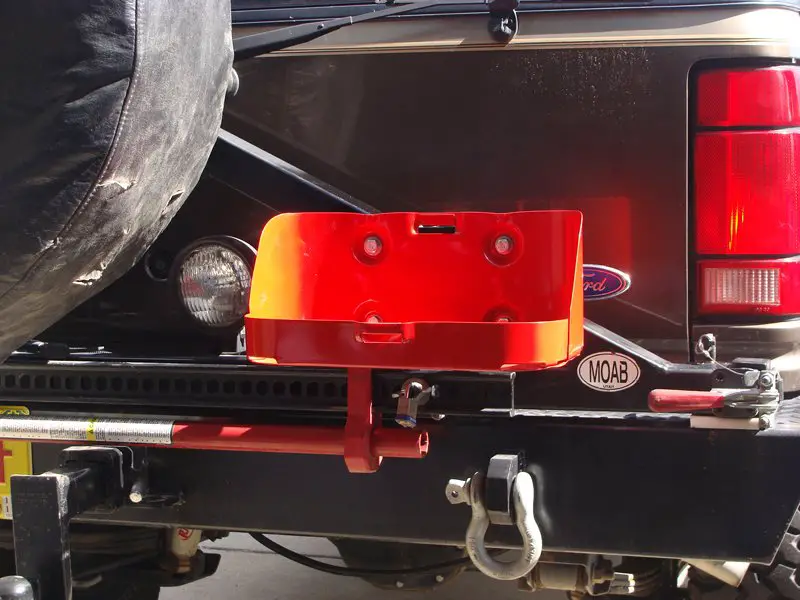

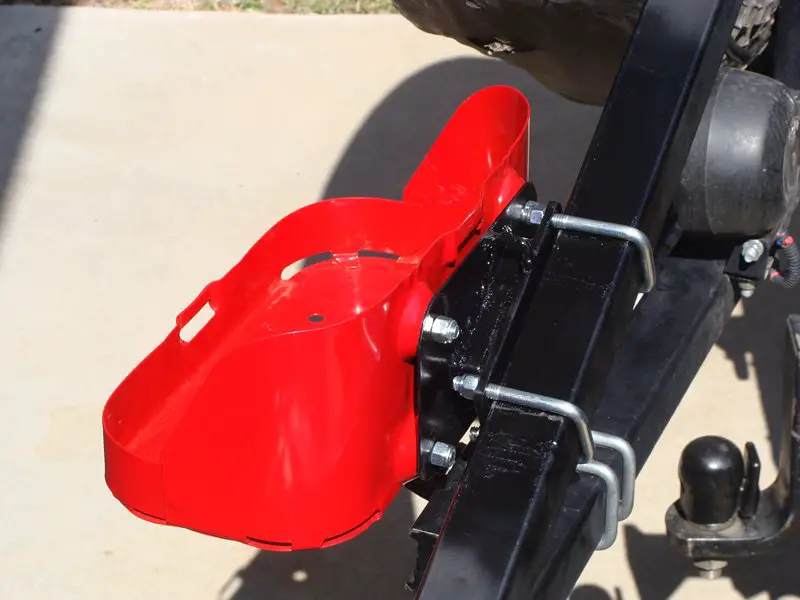

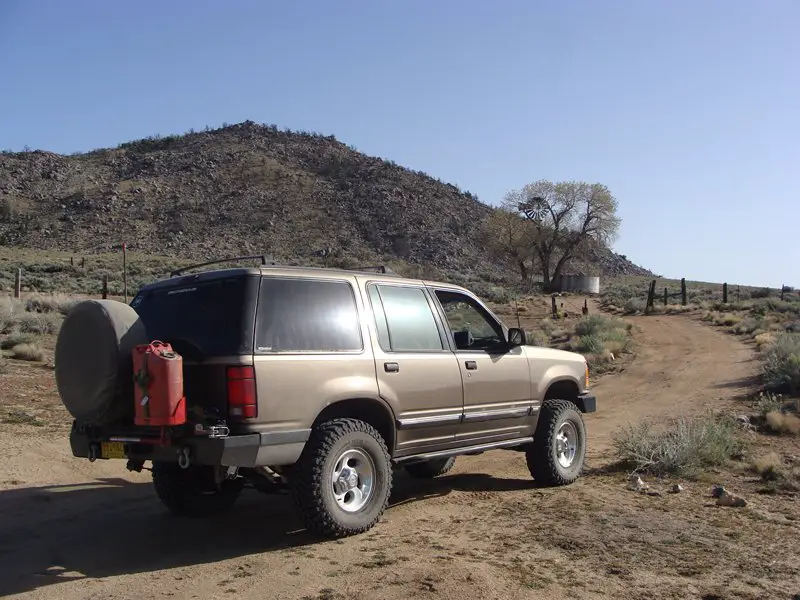

Added a gas can carrier, here is a recent picture from the Mojave Road. Gas can holder is modular, it bolts on with 2 u-bolts.


Attachments

  • m_DSC00095.jpg
    104.2 KB · Views: 2,784
  • m_modular Gas can carrier (3).jpg
    m_modular Gas can carrier (3).jpg
    65.5 KB · Views: 1,853
  • m_modular Gas can carrier.jpg
    m_modular Gas can carrier.jpg
    88.3 KB · Views: 1,838




Zenshu

Member
Joined
March 28, 2010
Messages
20
Reaction score
0
City, State
El Paso, TX
Year, Model & Trim Level
'93 Sport 4x4
Gracias for the info, I might have to check that thing out if I fnd myself crossing the western border any time soon





Zenshu

Member
Joined
March 28, 2010
Messages
20
Reaction score
0
City, State
El Paso, TX
Year, Model & Trim Level
'93 Sport 4x4
So...a couple of questions since I have 0 skill with a welder, #1 anyone found anyone who can make a bumper similar to this for us explorer guys and #2, if not or even if so, could i persuade you to build another one for my '93 sport since we don't live to far apart and if so how much would you charge for the work lol.





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,712
Reaction score
1,203
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Brian, could I ask a huge favor?

I would like the measurement from the bumper mounting bolt centers to the inside of the 2x6 bumper please.

In other words I need the bracket length, and this is the best for me to work from.

Thanks





Ageman

Well-Known Member
Joined
June 25, 2010
Messages
142
Reaction score
0
City, State
Buena Park, Orange County CA.
Year, Model & Trim Level
'92 5 speed 4x4 Explorer




coco944x4s

Well-Known Member
Joined
October 25, 2009
Messages
158
Reaction score
1
City, State
Staley, NC
Year, Model & Trim Level
94 Explorer 78 F150
where did you find the bolt and bearings that you used?









coco944x4s

Well-Known Member
Joined
October 25, 2009
Messages
158
Reaction score
1
City, State
Staley, NC
Year, Model & Trim Level
94 Explorer 78 F150
do you have the number of the bushing you used? or dimensions? I have some brass stock that i can have machined into the right size, i was just wondering what your dimensions were.





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,302
Reaction score
417
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
I dont know what the number was. It just depends on what you use for a sleeve and what size bolt you use. I used a 1.25" bolt and a 2" OD piece of DOM tube. I think the DOM was .25" wall so that makes it 1.5" ID and the bushing would have been 1.5 OD x 1.25" ID









n.gardner

Well-Known Member
Joined
August 13, 2010
Messages
499
Reaction score
1
City, State
Bel Air, MD
Year, Model & Trim Level
'02 XLS
Amazing dude! make a 3rd gen one?? lol





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,302
Reaction score
417
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Added a gas can carrier, here is a recent picture from the Mojave Road. Gas can holder is modular, it bolts on with 2 u-bolts.

So the gas can carrier didn't last very long :mad: The Blitz carrier is made of thin gauge steel and after getting back from my most recent expedition I found the top half had a stress crack around 1 bolt and the other side already had torn apart around the bolt. The flimsy carrier just couldn't hold up to the weight of the full can and the vibrations from off-road use. It had 4 trips on it where it actually carried a full can.

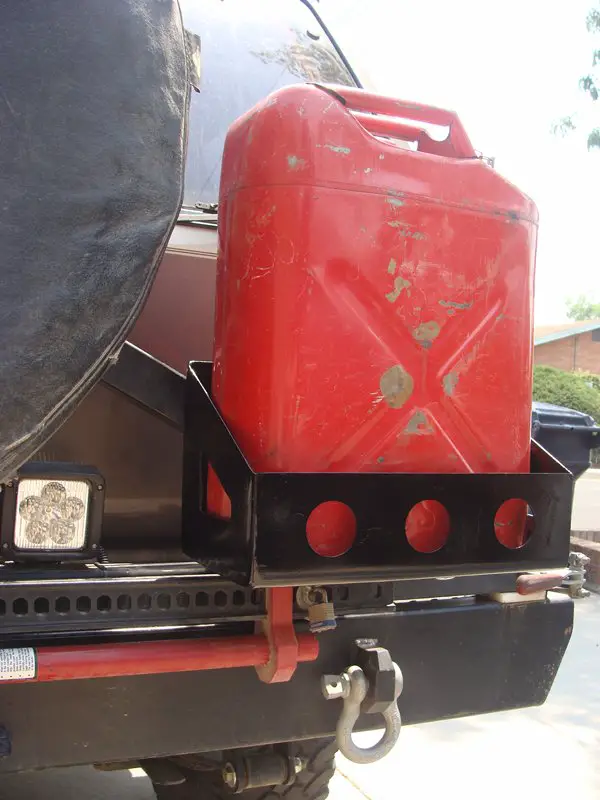

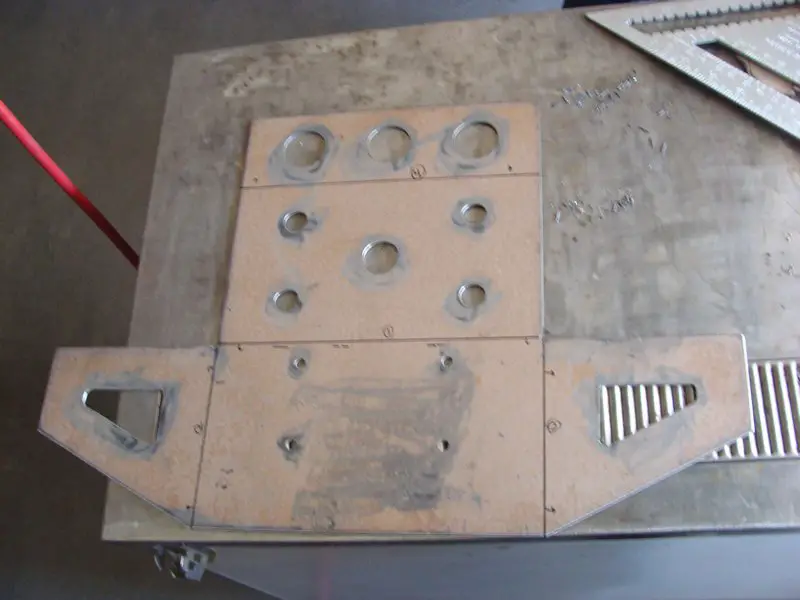

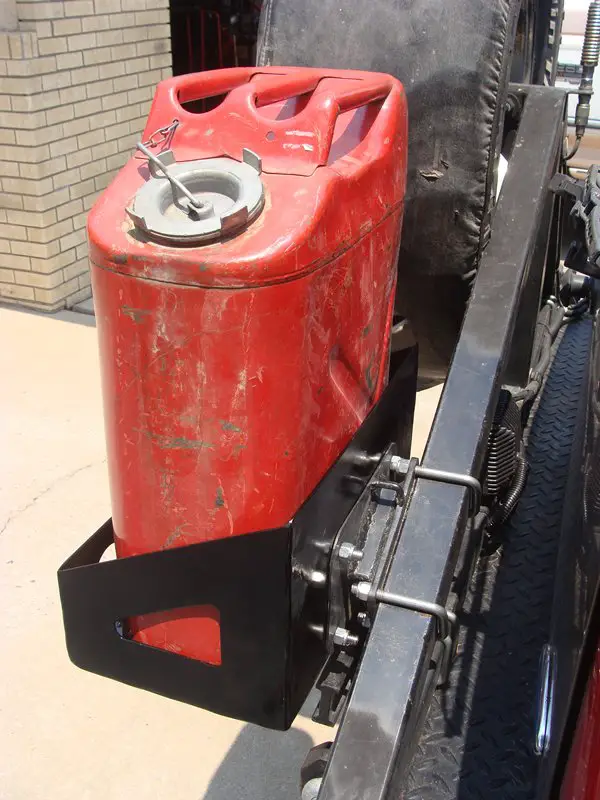

Version 3.0 now uses the same modular mounting bracket but I just replaced the Blitz carrier with my own design cut out of 1/8" steel. This one will also fit my water can when I don't need to carry fuel.


Attachments

  • m_gas carrier v3 (1).jpg
    m_gas carrier v3 (1).jpg
    65.1 KB · Views: 1,311
  • m_gas carrier v3 (8).jpg
    m_gas carrier v3 (8).jpg
    78.3 KB · Views: 1,354
  • m_gas carrier v3 (9).jpg
    m_gas carrier v3 (9).jpg
    102.1 KB · Views: 1,310




Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,816
Reaction score
21
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Why didn't you build the bracket taller, enclosing more of the can? (Like the expo style ones...)









Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,302
Reaction score
417
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Why didn't you build the bracket taller, enclosing more of the can? (Like the expo style ones...)

I didnt see the need to add the extra weight. It is 4" tall where the holes are and goes to 8" tall in back. I do like the Adventure Trailers mount but my Scepter water can and fuel cans have different dimensions and the steel strap mount they use wouldnt work for both of my cans.





n.gardner

Well-Known Member
Joined
August 13, 2010
Messages
499
Reaction score
1
City, State
Bel Air, MD
Year, Model & Trim Level
'02 XLS
you should repaint the cas can

just an idea, love the bumper





Phreaq

Member
Joined
December 19, 2007
Messages
20
Reaction score
0
City, State
Fresno CA
Year, Model & Trim Level
2k TJ, '92 XJ, 1970 F100
A+ work. What did the bumber/swing out parts cost? (hope its not in the thread, I haven't read it all yet :p)



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
69
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..I don't see it pictured but how are you holding the cans down? Bungee?
