MyNameIsAric's 98 FULL width SAS

I will keep this first post updated with my progress so people don't have to weed through all the boring crap associated with these buildup threads.
So far I have:

Front axle:
Dana 60 35 spline kingpin high pinion from a 79 f-250/350
detroit locker
dedenbear knuckles
5.38 gears
alloy usa shafts
longfield u-joints
warn hubs (should have went with drive flanges)
high steer arms with full hydraulic steering

Steering:
2x8 double ended cylinder from surpluscenter.com
steering valve out of an old forklift
misc. hoses and fittings from surpluscenter.com

Rear axle:
Dana 60 30 spline low pinion from a 79 f-250/350 (should have went with a 14 bolt)
full spool
5.38 gears
Disk brake conversion

Tires/wheels:
16.5" hummer h1 8 bolt double beadlocks recentered with custom stazworks centers.
36x12.50 wrangler rt II 6 ply military bias tires(sucky but cheap)

Things I need still:
new rims and tires and hopefully she wont shake so bad at 60mph.


Got axles

attachment.php

Cleaned up axles
attachment.php

Welded wheels
attachment.php

attachment.php

attachment.php

Got a new truck so i can dismantle the explorer and tow it around when i'm done.
attachment.php

Welded Diff covers


Rear axle almost done


Front axle almost done

Rear axle under truck

Welding up rear driveshaft (yes, it is square)


Machined parts for the upper control arms





Made coil buckets

Made lower control links




Mocking up Front axle and welded up hydraulic ram mount.





Got myself a forklift orbital for my hydraulic steering


welded on lower control arm mounts

Dropped the front IFS

Sent it to the scrap yard

IFS gone

Front axle starting to go in.



off jackstands




Took out the A/C system and cruise control. Also removed ABS brake controller, but I ended up having to put it back in later for the speedo to work.

Mounted new/slightly larger fluid reservoir for the hydro system.

Mounted the stock power steering cooler for the hydro system

Got this mounted in the engine bay where the A/C junk used to be

Had to chop down this thing first though.

Made some tie rods out of 100% grade A beef.

Installed hydraulic ram and tie rods.

View of the filter, and you can see the high pressure hose running from the pump down to the steering valve.

This is how i connected the stock steering wheel to the steering valve. 3/8" swivel

Better view of the steering valve.

Poor planning caused track bar issues

Made a new track bar bracket

Cut off first track bar bracket

Plated for good measure

Welded on new track bar bracket. Still had minor interference so i move the axle forward another 1/2"
Also started putting on shocks.




Tacked a tone ring to the rear d60 carrier

Reinstalled tone ring sensor so i can get speedometer back

blah blah blah tidied things up and poof.... an explorer that can only go 55mph now. If you have questions, just ask or PM me.






Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,827
Reaction score
3
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
i might, but the ground clearance and ring/pinion strength make me want the hp, and i dont want to spend all this money and regret ANYTHING. since the locker/carrier, shafts, knuckles etc. would all transfer over to a hp 8 lug, it doesnt sound like a bad idea, but then i would need a new ring/pinion, master install, setup costs and have to cleanup another housing, so i would rather find a hp to start with.





Mud Bug 94

Explorer Addict
Joined
January 16, 2007
Messages
1,202
Reaction score
2
City, State
Bloomingdale, N J
Year, Model & Trim Level
94 XLT-367k miles
use ur lp to mock everything up...then ull have time to get a hp44...





zainyD

Well-Known Member
Joined
March 3, 2004
Messages
574
Reaction score
0
City, State
Lakeland, FL
Year, Model & Trim Level
'96 Ranger 4x4 XLT
I would use the LP D44! You've already bought it and got it for a good price. I would run it until you can find a Hp D60. There's really no reason to swap in a HP D44 in it's place, just go straight up to a D60.


I would not suggest using a spool in the front unless you want increased steering effort. A LockRight or Aussie locker would only be about $100 more than a full spool would be and the steering effort would be a lot less.

Good luck!





mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,827
Reaction score
3
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
i am NEVER using a lunchbox locker again. both of my powertrax failed on me, and are the main reason i'm doing the SAS. This winter was a drag with one wheel drive. the rear never locks up and the front never unlocked(even with the driveshaft taken out) so i blew a cv shaft.. litererally. it went "POP!", grease flew everywhere and it just sort of clanked around until i came to a stop and then i got out and saw it dangling there. So I may use a detroit up front if anything. i was thinking about an ox, but i dont think i want to spend almost 1k on a locker. then again, whats another 300 hundred bucks ontop of a detroit when you're talking about a 5-6k buildup?

I just don't want to invest any money into an axle i'm not going to use. I plan to spend alot of money on this, and i'm not going cut corners, but i'm also not going to spend money twice.





SkanlaxJMO

Explorer Addict
Joined
September 30, 2005
Messages
3,108
Reaction score
1
City, State
Syracuse, New York
Year, Model & Trim Level
96 XLT
looks like a good buildup.





Premier

Explorer Addict
Joined
June 10, 2003
Messages
5,208
Reaction score
5
City, State
Utah
Year, Model & Trim Level
96 sport
Pimpin :cool:





21robbie21

Elite SPort
Joined
January 11, 2004
Messages
385
Reaction score
0
City, State
duluth, ga
Year, Model & Trim Level
explorer sport 2001
To clean the "nooks" on my housing i just sandblasted the entire thing and it cleans most of those out. Just take the axle to your work and sandblast it.





dirtbro

Well-Known Member
Joined
July 1, 2005
Messages
178
Reaction score
0
City, State
Pine Mountain Club, CA
Year, Model & Trim Level
1998 XLT
sounds like a sick build but do you really want a spooled front if it is going to be a daily driver...?





mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,827
Reaction score
3
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
hubs will take care of the spool while its on the road. if i go with the dana44, i will probably go detroit, but if i go 60, then i like the idea of a spool... just means i'll have to add hydro assist :D





dirtbro

Well-Known Member
Joined
July 1, 2005
Messages
178
Reaction score
0
City, State
Pine Mountain Club, CA
Year, Model & Trim Level
1998 XLT
gotcha...should have thought about that before...good luck on the build:thumbsup:





mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,827
Reaction score
3
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX

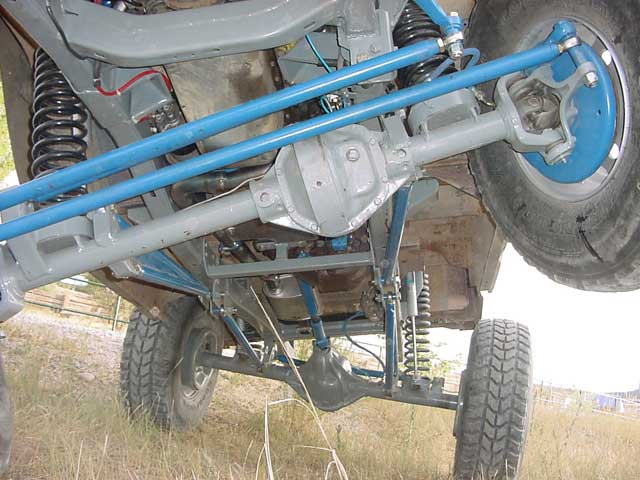

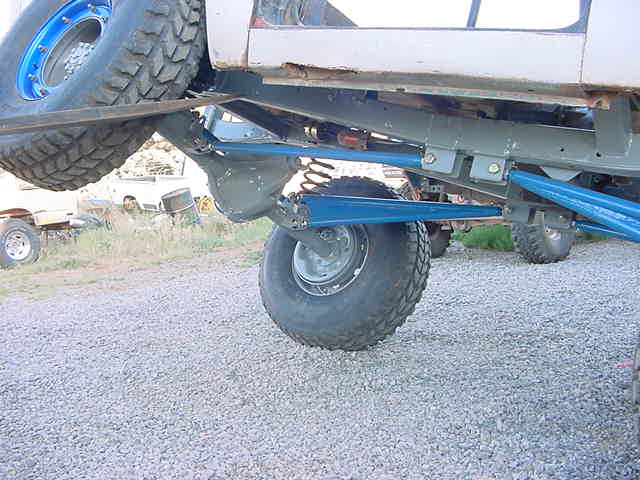

instead of the TJ radius arm deal, i saw the following images on JoshC's SAS #2 thread, and i really like this idea. It looks alot easier to fab up. Do you guys have any opinions on this setup? Whoever has this rig is using the rims and axles i want to use too.






sn0border88

Master Apprentice
Elite Explorer
Joined
June 27, 2005
Messages
4,205
Reaction score
4
City, State
Souderton, PA
Year, Model & Trim Level
1992 XLT
thats a early bronco over on pirate. Post the pic over theere and im sure the owner will turn up. Its on hummer rims as well.

Curious, you want to do disk brake conversion, a detriot locker and an 8 lug rear. Why not 14b? You can get them for the same price as the 60, its stronger and detriots are everywhere for them. You can probably get one with one already in it.





mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,827
Reaction score
3
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
well i already have the d60, and if i put it together, i know the quality going into it, and i'm sure a d60 will be plenty strong for my application. I'm only running 37 or 38's.

besides.... who wants cheby parts on their truck? :D





Mud Bug 94

Explorer Addict
Joined
January 16, 2007
Messages
1,202
Reaction score
2
City, State
Bloomingdale, N J
Year, Model & Trim Level
94 XLT-367k miles
im only runnin 35s...and you read my thread...





'97 V8

Explorer Addict
Joined
April 2, 2005
Messages
3,618
Reaction score
0
City, State
ft. knox ky
Year, Model & Trim Level
'97 mounty 5.0 4x4 baby!!
If you put all the costs together, it would be cheaper to buy (and stronger) a stock d60 then to build the hell out of the 44. Occasionally some 78-79 60 housings go on ebay and sell for around 350-400. I would def go that route if i had to do it all again.





Mud Bug 94

Explorer Addict
Joined
January 16, 2007
Messages
1,202
Reaction score
2
City, State
Bloomingdale, N J
Year, Model & Trim Level
94 XLT-367k miles
haha i already have one:smoke: :bsnicker:





mechanix

Got beer?!?!?!
Joined
February 20, 2005
Messages
799
Reaction score
0
City, State
Springport, Michigan
Year, Model & Trim Level
91 xlt & 93 xlt
I would use the LP D44! You've already bought it and got it for a good price. I would run it until you can find a Hp D60. There's really no reason to swap in a HP D44 in it's place, just go straight up to a D60.


I would not suggest using a spool in the front unless you want increased steering effort. A LockRight or Aussie locker would only be about $100 more than a full spool would be and the steering effort would be a lot less.

Good luck!

I agree with zainyD on the use of a spool in the front end. It makes the steering alot harder and puts alot more force on the drive line than it really needs. Aussie has a good reputation around and they are life time garunteed. I think your problem with your other lockers is they where in a full time 4x4 axle (cv shafts never had a way to unlock from each other) and they was always fighting each other even if you was not in 4x4.

Eric



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,827
Reaction score
3
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
If you put all the costs together, it would be cheaper to buy (and stronger) a stock d60 then to build the hell out of the 44. Occasionally some 78-79 60 housings go on ebay and sell for around 350-400. I would def go that route if i had to do it all again.

you haven't done it the first time. lol:D

But i am definitely looking into a 60. I'm set on my 60 rear, so i at least have something to work on for now.

Anybody have any thoughts about that disc brake conversion kit on pirate? I think i will be ordering that shortly.

on another note, the weather around here isn;t cooperating. i have an operating temperature minimum of 45 degrees, and its still in the 30's around here. So as soon as it warms up a bit more, you will see more progress. I get paid friday, so i will probably order some goodies for the 60 then.
