New Navajo Truggy build


Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy

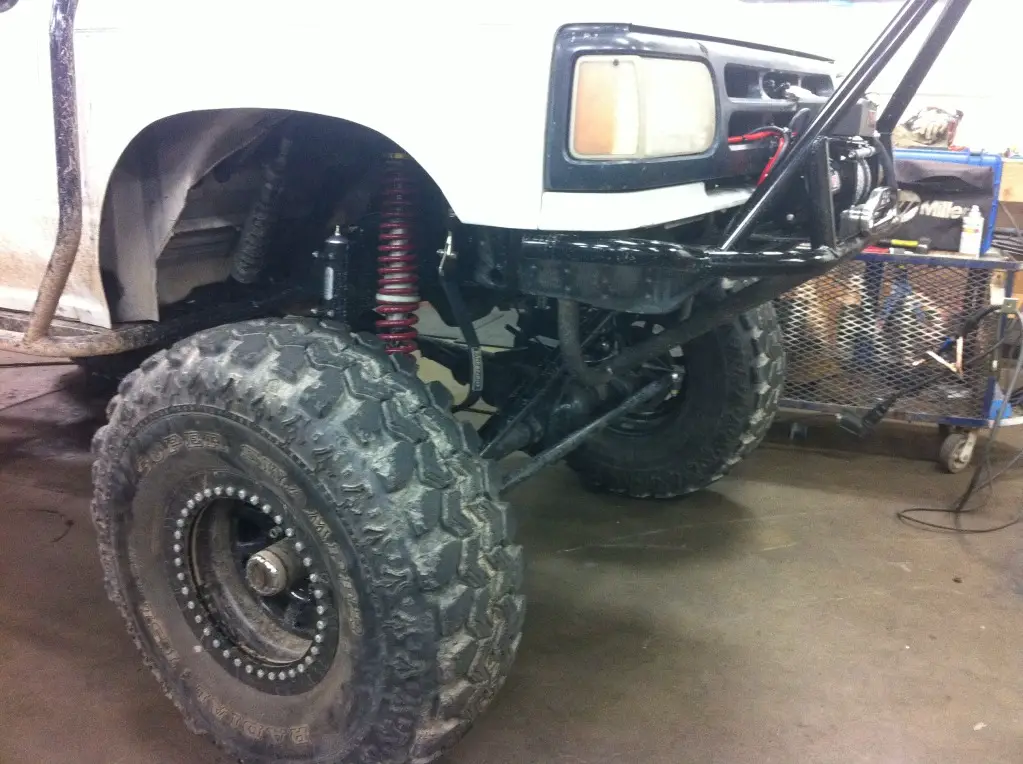

Bumper and winch CHECK.

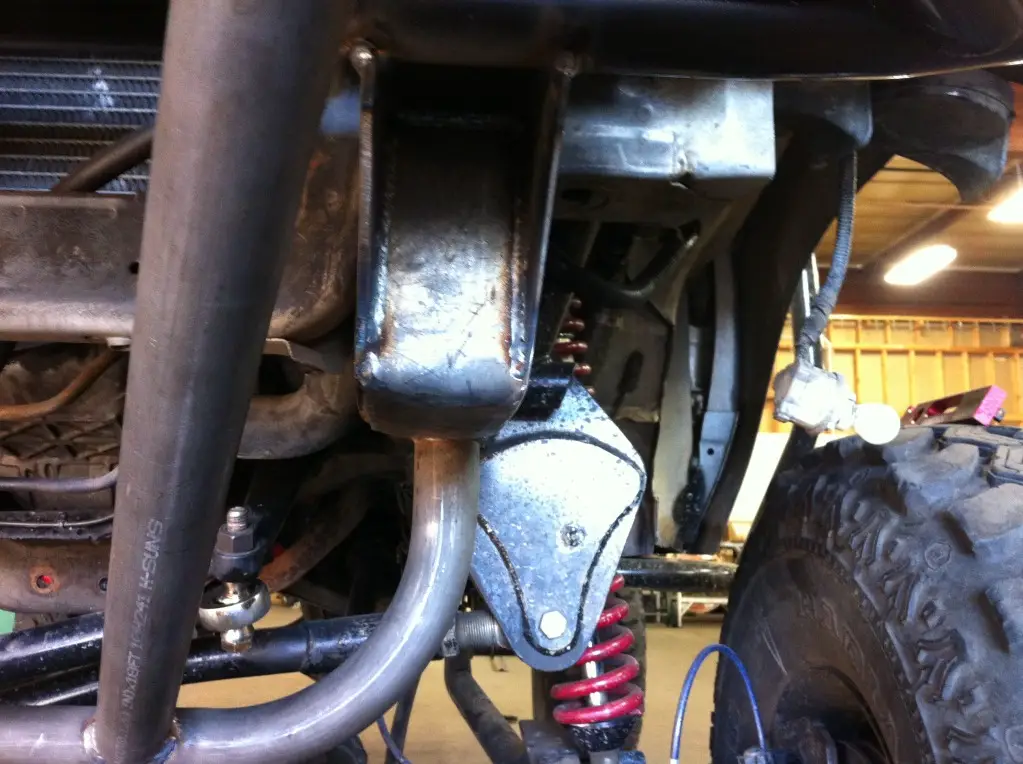

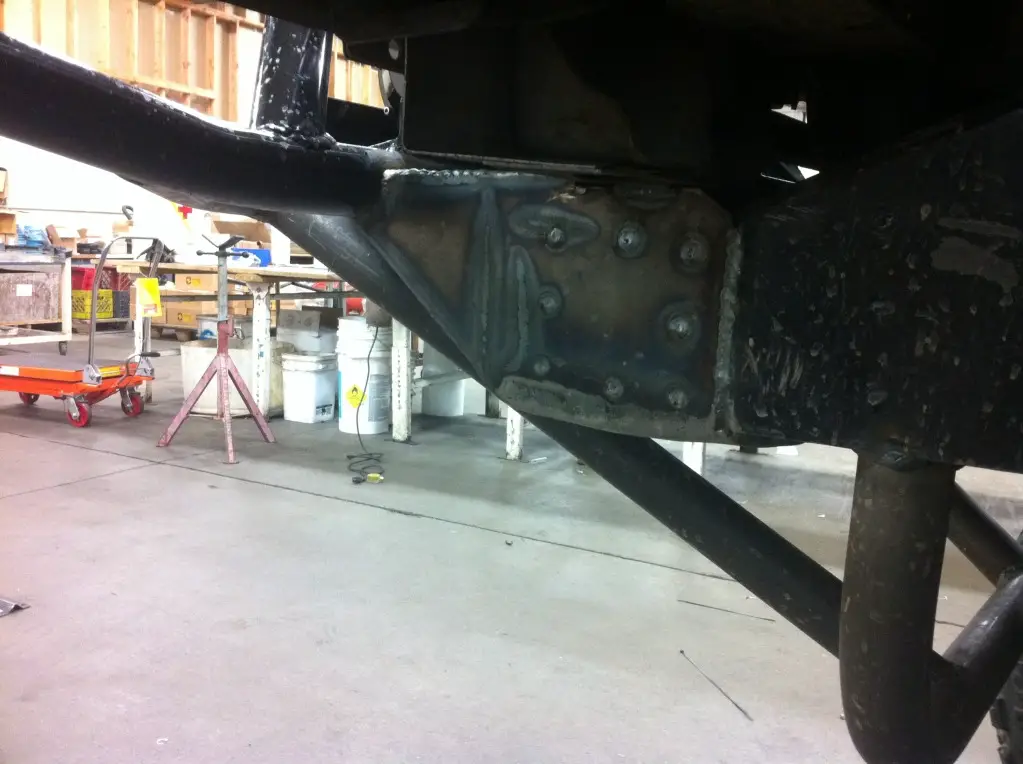

More steps to building the bumper

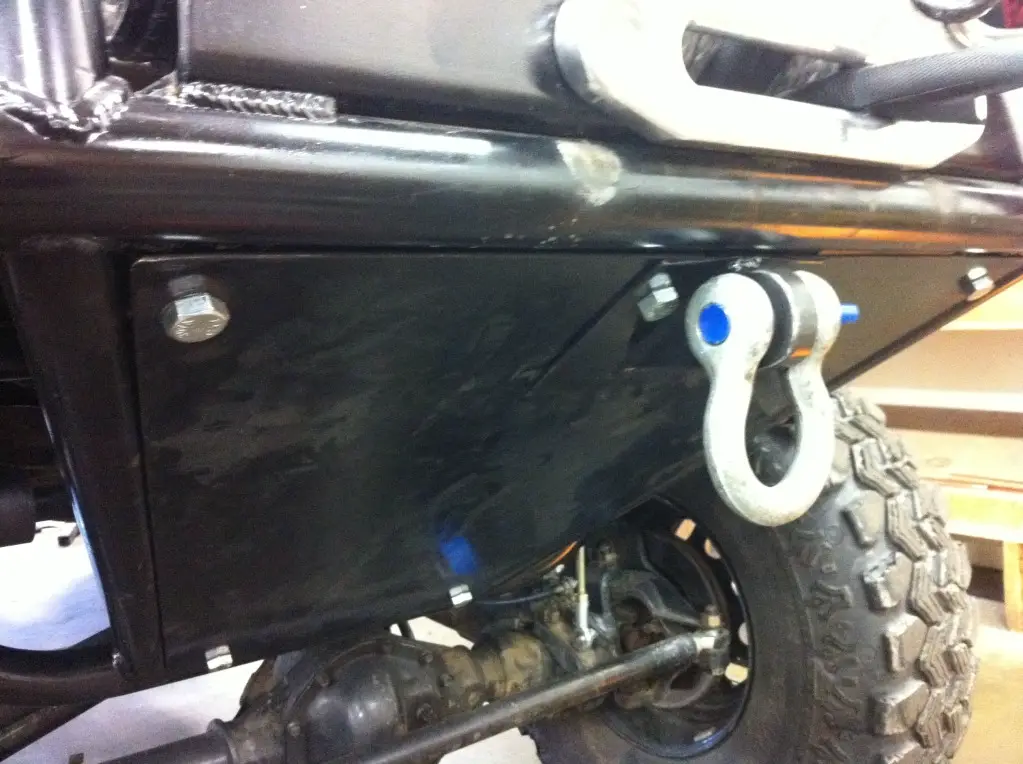

Those damn crumple zones. I plated over all of them.


Look what Santa brought me. Its the Smittybilt XRC 8000 lb competition winch.





Got the limit straps on tonight.






Got the tail tabs welded on tonight also. Hope these are bright.

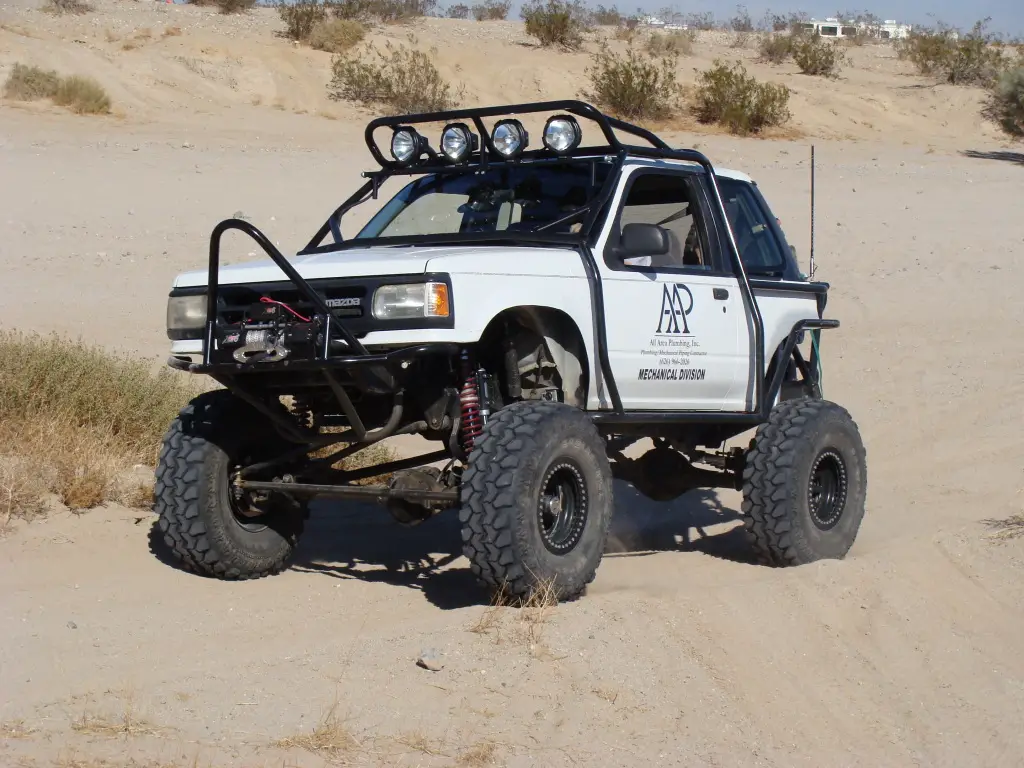

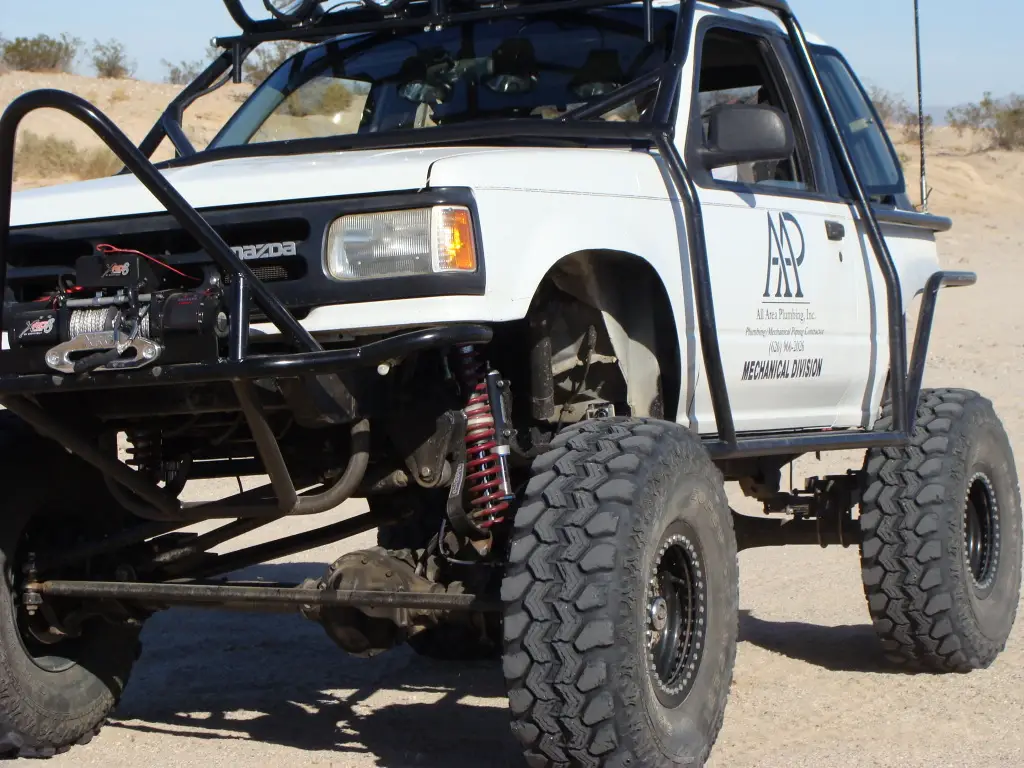

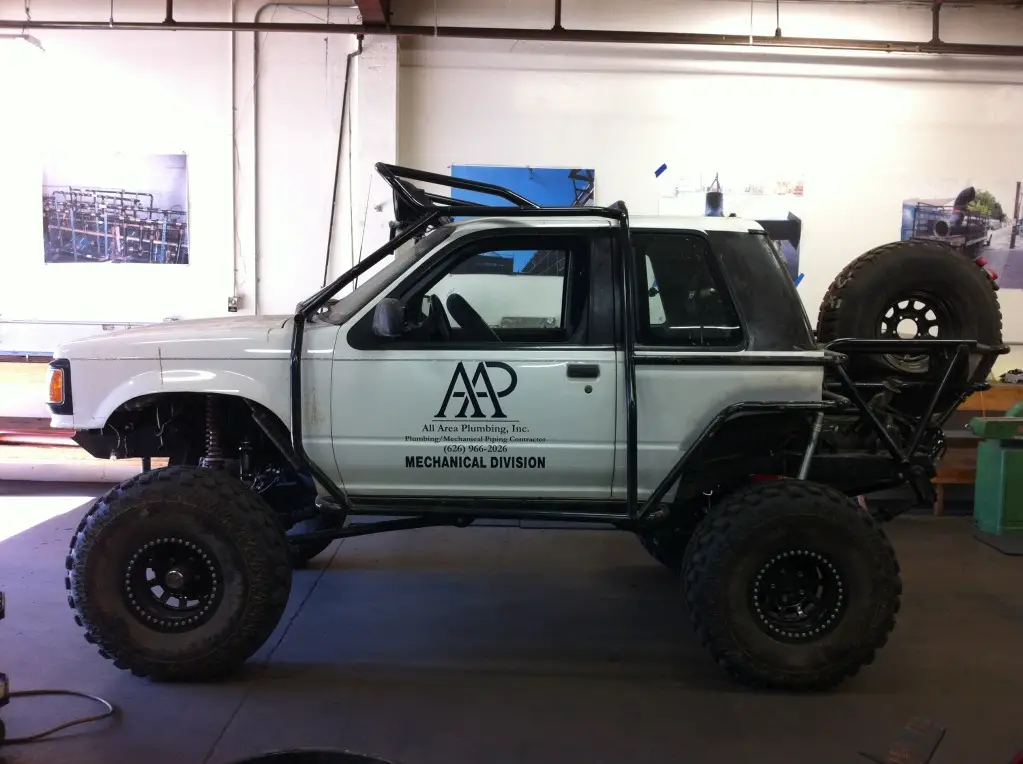

Flying the company stickers.


Just got back from Lake Arrowhead this afternoon. Ran the Navajo through its paces. Really hammered it and it took it very well. Ran 99% of the trail in 4lo with hubs unlocked. Its very well balanced and flexy. The suspension is soft but thanks to the air bumps it firms up when needed. Leaving for Truck Haven this Thursday morning and will be there until Saturday afternoon. If you see the truck please say hello.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




MikeSak

New Member
Joined
October 16, 2011
Messages
19
Reaction score
0
City, State
Frankfort, IL
Year, Model & Trim Level
91 Ranger XLT
That's one awesome company truck. Ha.





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
Pics from Truck Haven



I have to say. Hydraulic bump stops are worth their weight in gold. The Navajo lands so softly. It seemed like the higher I jumped it the softer the landing. I did use up all 4" of the Fox bump stops. I have no plans to shorten the stroke.



















These pics were taken over the New Years holiday. I ended up breaking the rear driveshaft. No not from jumping. It was a little too much throttle on a step up with a bad hop.

Currently I have the Navajo up on jack stands in my driveway. The axles are removed and the gears are on my work bench. I'm installing 5.38 in the front with a Auburn limited slip and 5.43 in the rear with a full spool.

Next project is going to be the Currie Antirock sway bar.





wood1

Well-Known Member
Joined
May 3, 2007
Messages
2,921
Reaction score
4
City, State
North of Edmonton
Year, Model & Trim Level
'93 XLT, Cayman Green RIP
Awesome, I love your truck.

It looks like everyone had a great day.





mounty71

It's green, not gray.
Elite Explorer
Joined
February 3, 2007
Messages
3,617
Reaction score
197
City, State
Oakland, CA
Year, Model & Trim Level
'00 Mountaineer
I don't know much about shock valving so I won't try to tell you what to do, but I'm pretty sure if you're blowing through your travel on a jump like that and fully compressing your bumpstops, you need stiffer compression valving and you might want to charge your bumpstops to a higher psi. I know you signed up on dezertrangers, maybe try to get some valving suggestions over there. Truck definitely looks like fun though!





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
I don't know much about shock valving so I won't try to tell you what to do, but I'm pretty sure if you're blowing through your travel on a jump like that and fully compressing your bumpstops, you need stiffer compression valving and you might want to charge your bumpstops to a higher psi. I know you signed up on dezertrangers, maybe try to get some valving suggestions over there. Truck definitely looks like fun though!

I didn't bottom out on these jumps. i think it was from a whoop section that I hammered through pretty fast. I never actually felt "bottom". I just noticed that over the course of the weekend it did use up all the travel from the marks on the bump stop shaft.
I don't plan to "sky" this thing. I am just glad its a very comfortable and well rounded.

If anyone needs any suspension parts I'm selling some parts I ended up removing.

Bilstein 12" stroke shocks
Ballistic adjustable coil buckets
early bronco 5 1/2" coils
Polyurethane coil inserts
Ranger fiberglass fenders and front clip





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
Gears and Traction devices

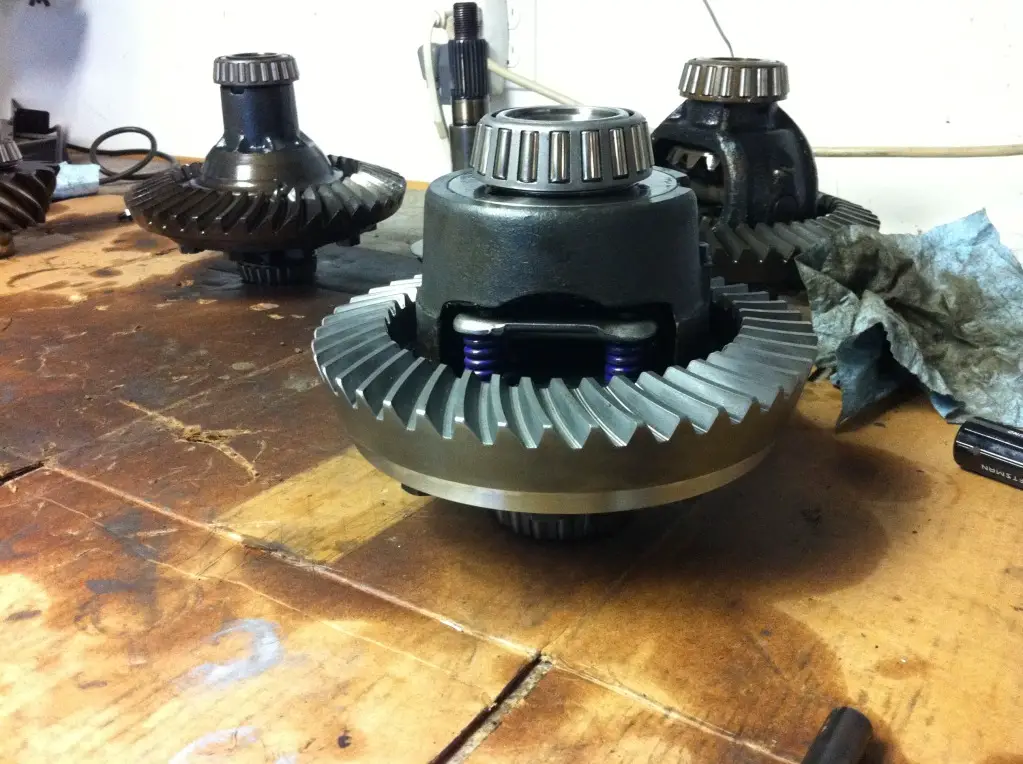

Finally finished the gears on the Navajo. I noticed something on the gears I removed them. The rear was a 3.00 ratio and the front was a 3.54. I was told when I bought the axles they were out of a 79 Bronco, must not have been the same Bronco.


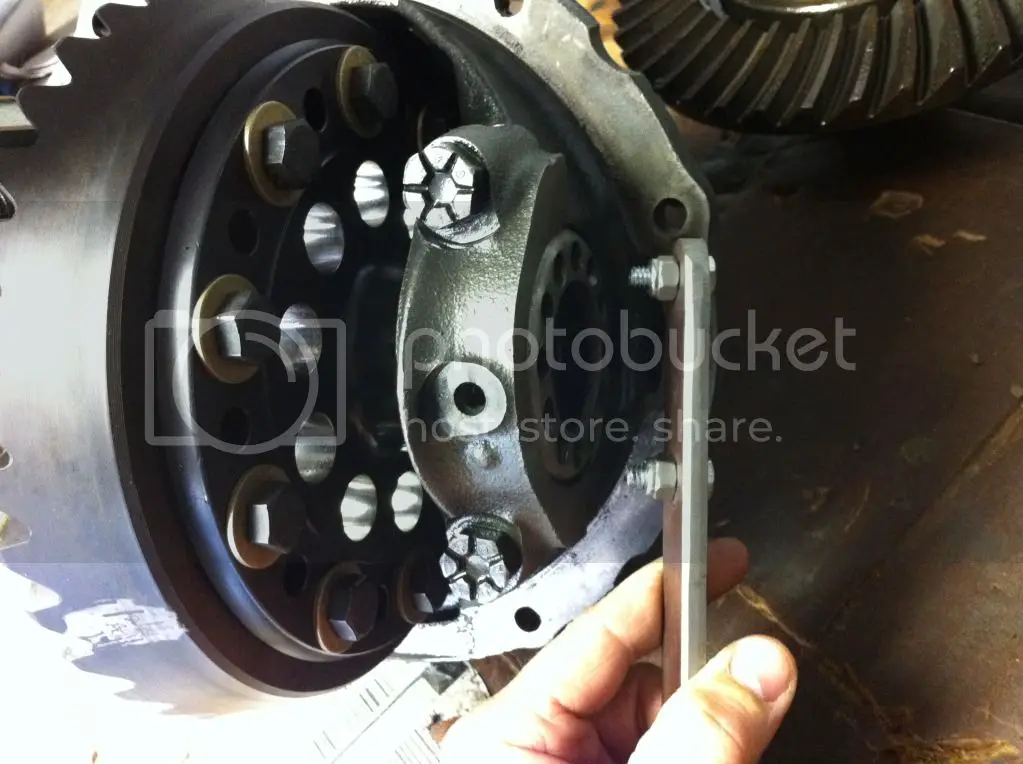

I'm running a full Drag Race spool in the rear with 5.43 gears
In the front I am running an Auburn Limited slip with 5.38





Check out the wear pattern. Not bad for a pipe fitter.





Made a fancy tool





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,103
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Dang, This truck is so sweet I was going to say something, but you already have children.

Seriously though, I am extremely impressed. This is my favorite rig on the site.





projectBlack

Member
Joined
January 24, 2012
Messages
82
Reaction score
0
City, State
Clayton, Ga
Year, Model & Trim Level
91 explorer 4x4 5speed
wow dude just went through your thread and its amazing.....i hope that one day i can have half your skills. you did an awesome build.





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
Currie AntiRock Sway Bar

I want to thank everyone for all the kind works about my project. I used a lot of information from this forum to help with this build.

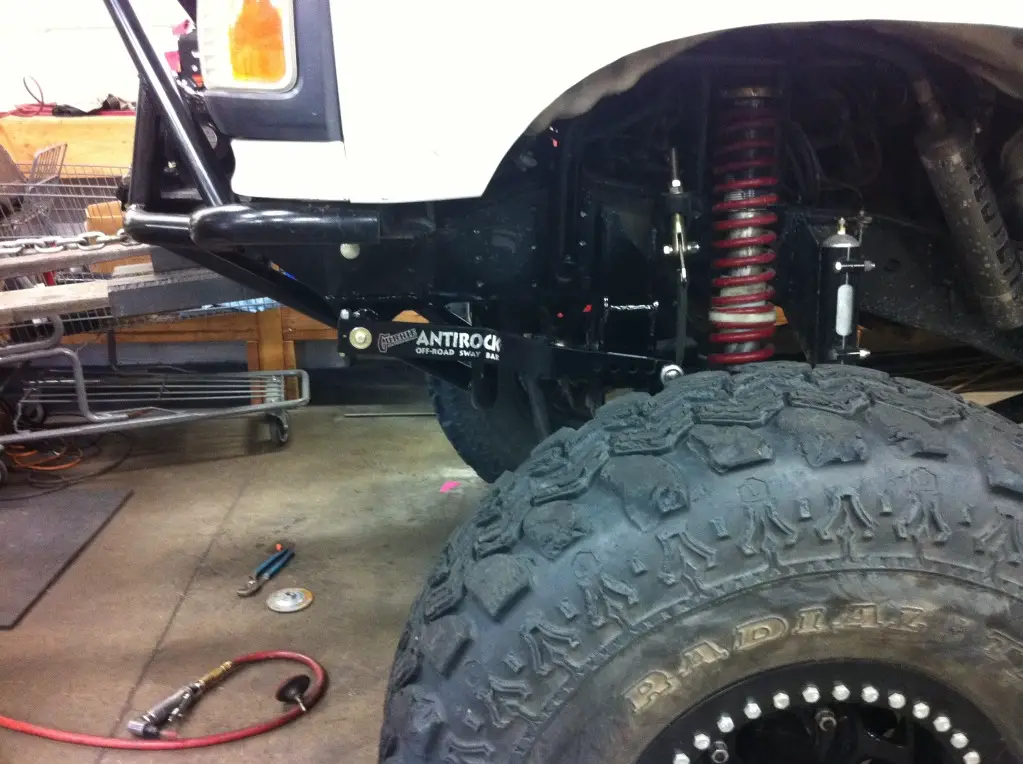

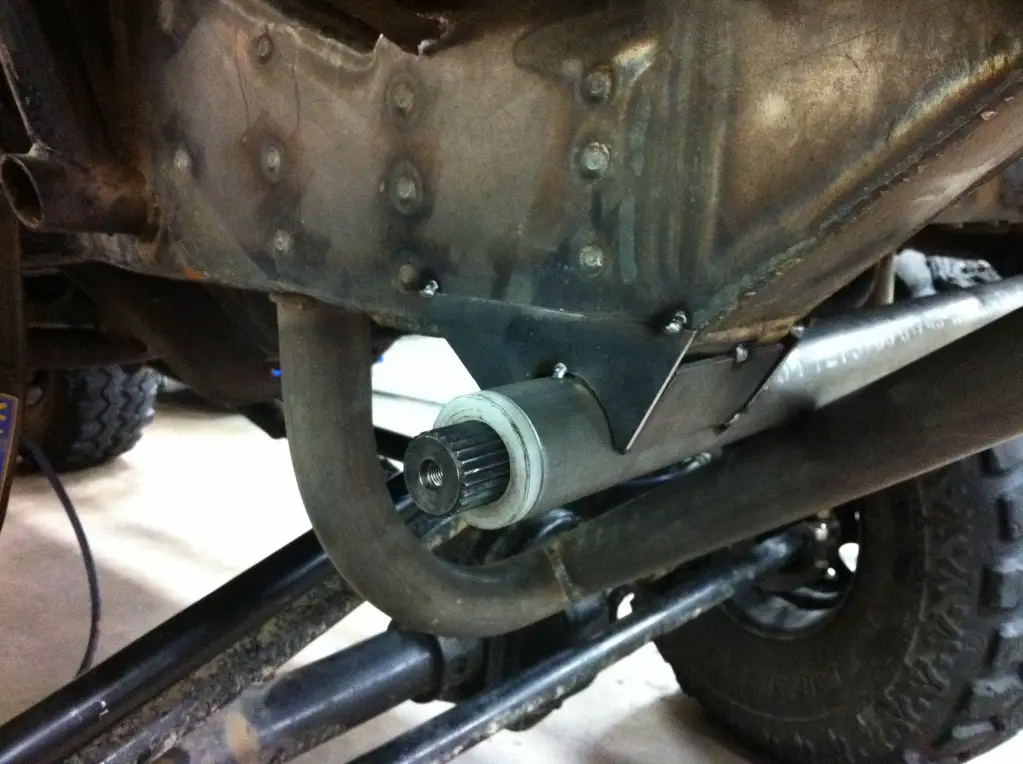

As for most of the parts on this project things have to be modified. I started out with Curries 32" universal Anti rock sway bay kit with 20" bent bars. I added more angle to the bars to clear the track bar bracket and to align the links with the radius arms.

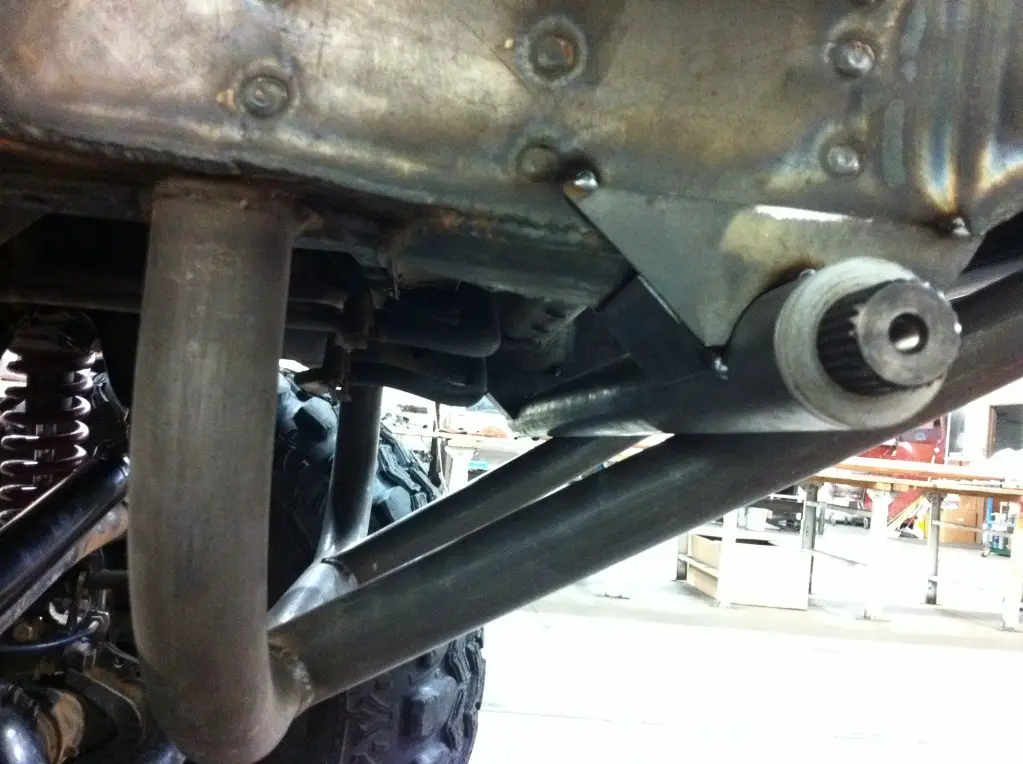

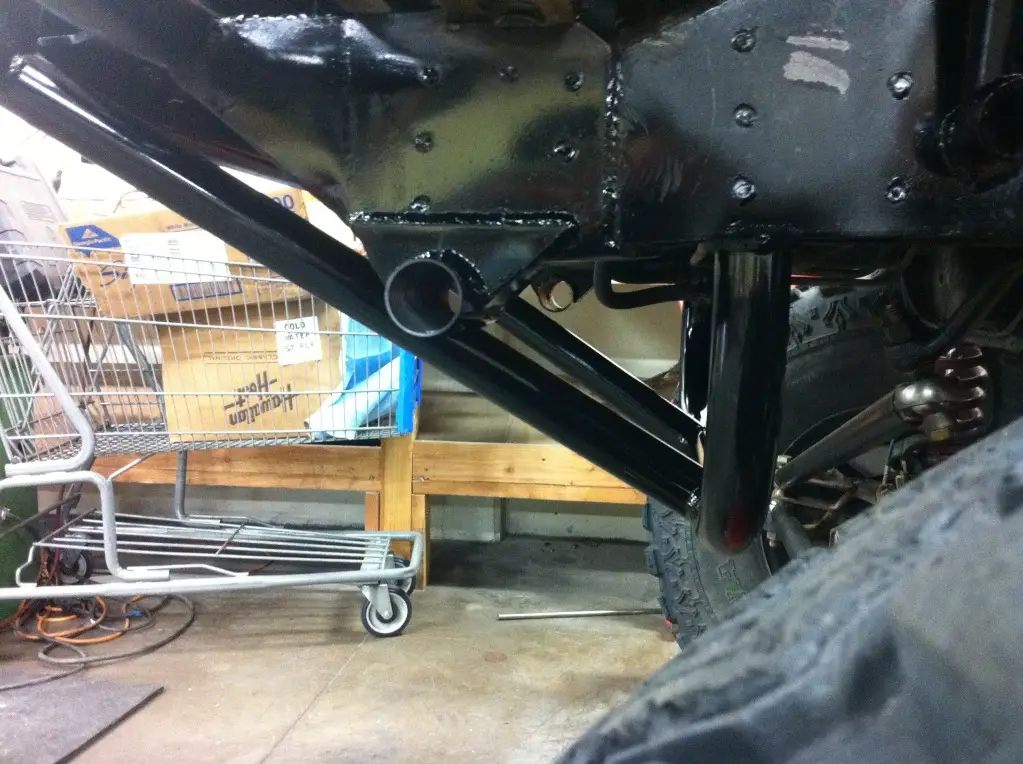

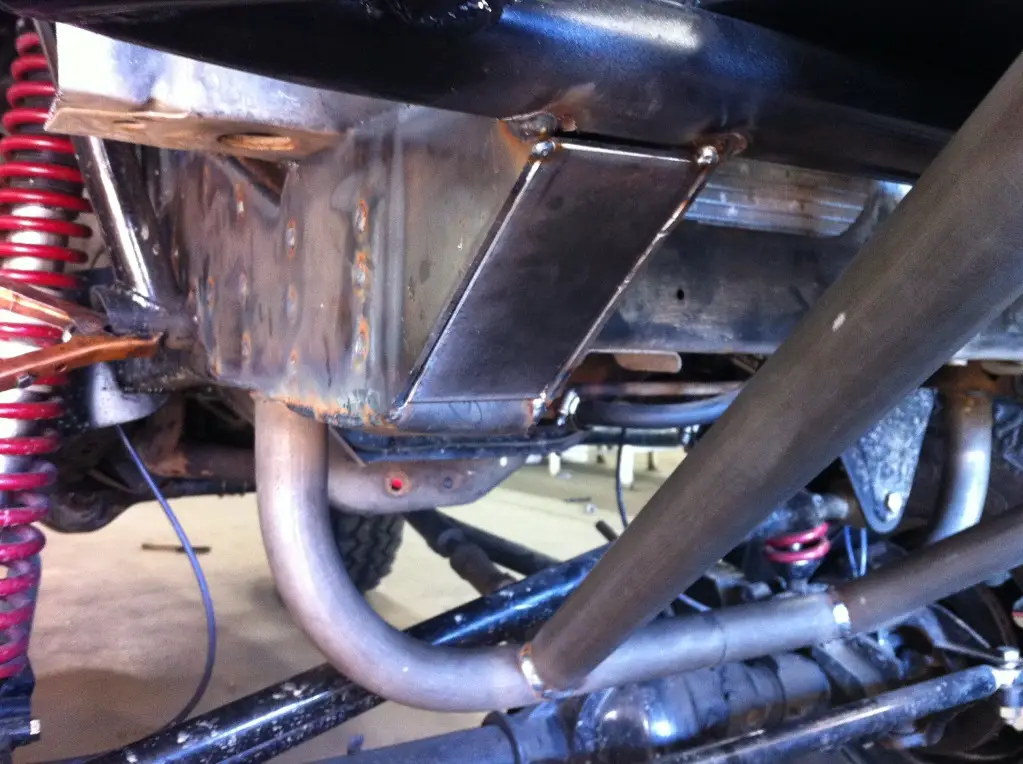

Started off by tacking the tubing to the frame then made a few templates and tacked some pieces in place






After it was all welded up I cut off the tubing in the middle of the frame. I thought it would look weird if I left it as one piece.




Currie gave me a couple more stickers to to finish off the arms

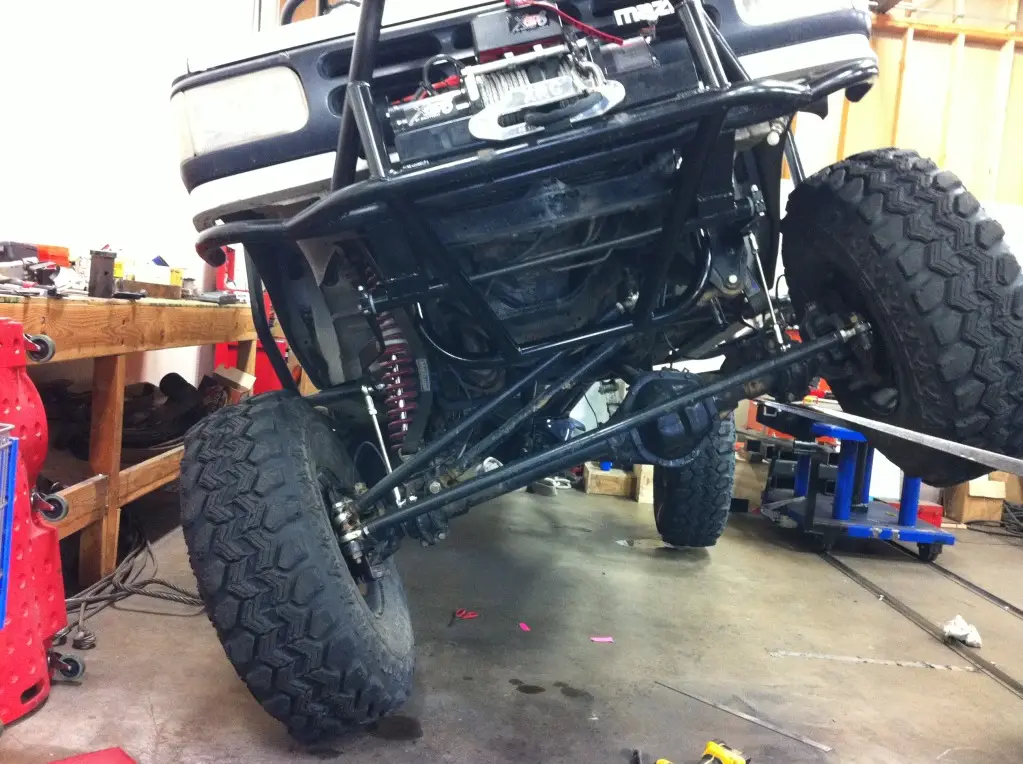

Full droop








Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
Youtube video at Azusa Canyon

It was supposed to be a easy day of wheeling until I broke a front axle shaft (I think). I guess that's what happens when you jump in 4 low.
I'll tear into it this week and post some pics of the carnage.

http://youtu.be/Pi4Lotd7yYM





GRNMACHINE

Well-Known Member
Joined
September 11, 2000
Messages
2,482
Reaction score
6
City, State
IL
Year, Model & Trim Level
95 Sport 4x4
Awesome!!!!





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
Broken Transfer case

I crawled under the Navajo today to see exactly what broke. I disconnected the front drive shaft to see if it was in the axle or the transfer case. Well it wasn't a broken axle, it was my transfer case. Not sure what broke exactly buy there is definitely something wrong when I spin the front driveshaft.
Does anyone know what it could be?

The output will spin, with intermediate resistance. There isn't and binding like a pieces of gears floating around would act. There was a clunking right after it happened, I unlocked the hubs, put it in 2 wd and put it on the trailer. HELP.

This is a electric shift stock case.





lifeguard379

Well-Known Member
Joined
July 10, 2004
Messages
1,278
Reaction score
4
City, State
sacremento,ca
Year, Model & Trim Level
93 eddie bauer 2 door
the chain broken or one of the shift forks?





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy

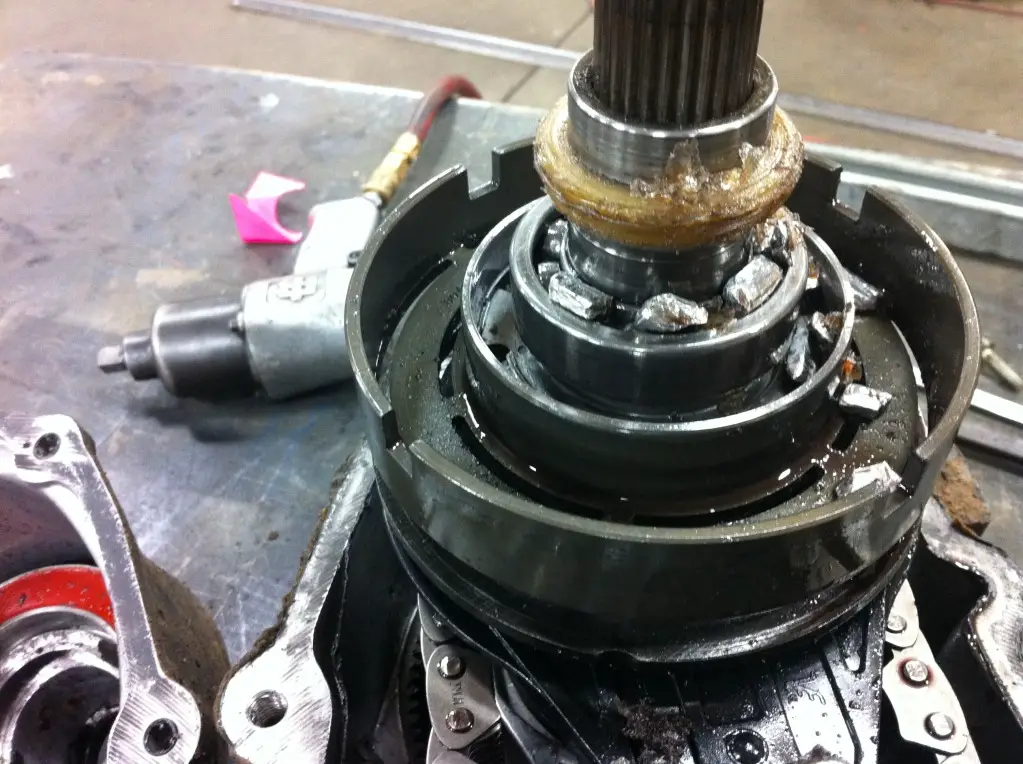

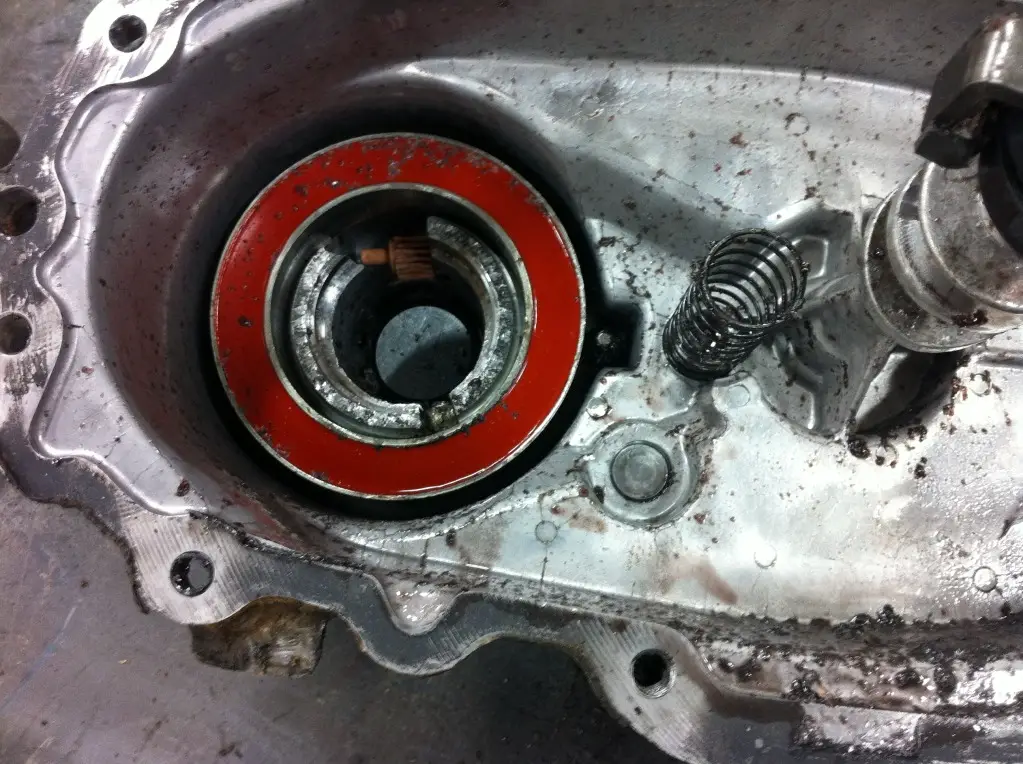

Borg Warner 1354 Carnage Photos. I've never seen anything like it.

Well I guess the technical term is FUBAR. I hope this doesn't become a habit. It was my understanding that the BW 1354 was a fairly decent transfer case. Maybe the ring and pinion miss match I found helped contribute to the destruction.

I picked up a used 1345 on craigslist tonight for $100.

If it happens again i'm doing a c4 dana 20 swap.




















Trckmagik

Ole Bag
Moderator Emeritus
Joined
August 22, 1999
Messages
4,772
Reaction score
0
City, State
Celina, Texas
Year, Model & Trim Level
1996
Yours gears front and rear dont match? This is for sure what caused this if so.





Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy
Yours gears front and rear dont match? This is for sure what caused this if so.

They match now. I just got done with the gears. I did however wheel the Navajo a couple times with the original gears (3.00 rear and 3.54 front). I didn't realize the miss match until I tore the axel apart when doing the ring and pinion.





Diff Whack Daddy

And the Roll Over Posse! Under the Hood Moderator
Elite Explorer
Moderator Emeritus
Joined
February 19, 1999
Messages
3,789
Reaction score
5
City, State
Mount Vernon, WA
Year, Model & Trim Level
1st Gen XLT 4dr
Callsign
KG7VTT
:eek::eek::eek::eek:

Wow, impressive carnage!





corncobbcolin

New Member
Joined
November 9, 2011
Messages
44
Reaction score
0
City, State
Omaha Nebraska
Year, Model & Trim Level
1994 ford explorer
Great build up A+++. Its hard not to drool my way through this thread as I went from page to page.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Elgatoprerunner

Active Member
Joined
February 6, 2011
Messages
224
Reaction score
10
City, State
La Habra, CA
Year, Model & Trim Level
1992 Mazda Navajo Truggy

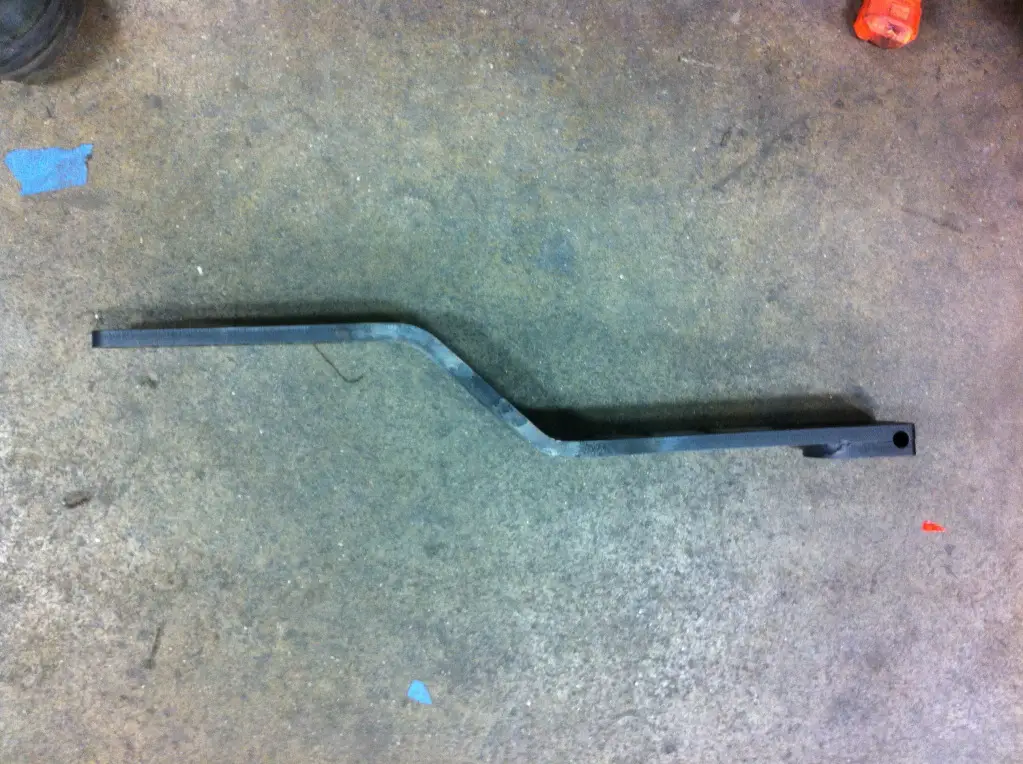

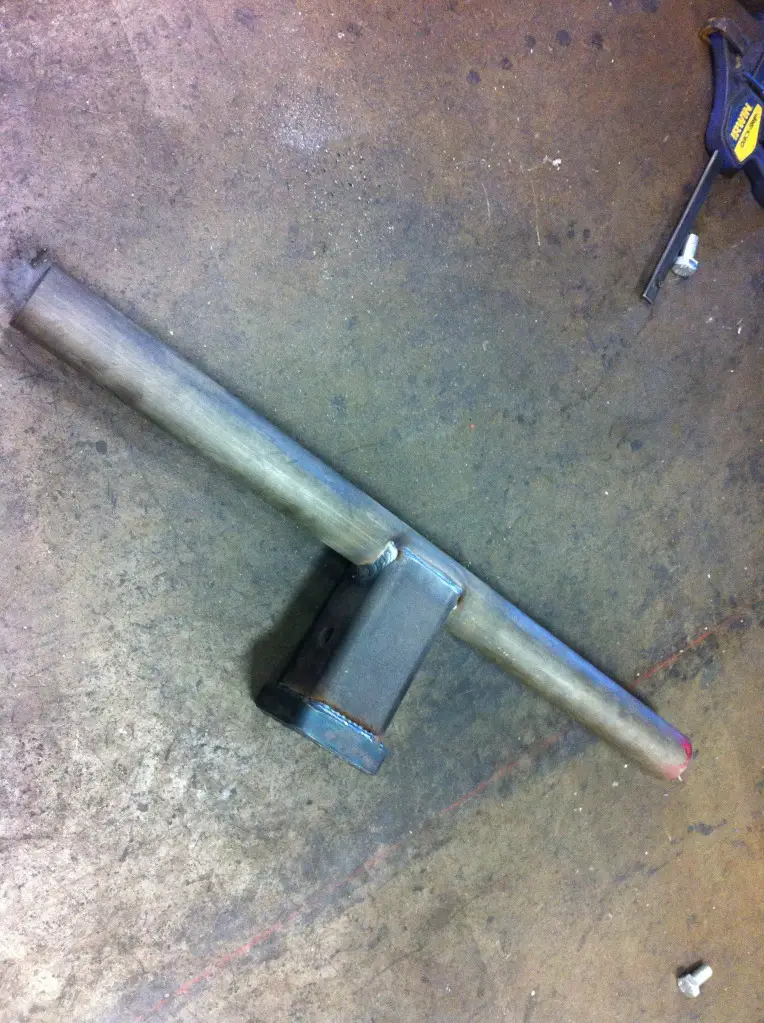

Front reciever mount and skit plate

I thought it would be a good idea to have a good attachment point on the front of the Navajo. Here is what I came up with

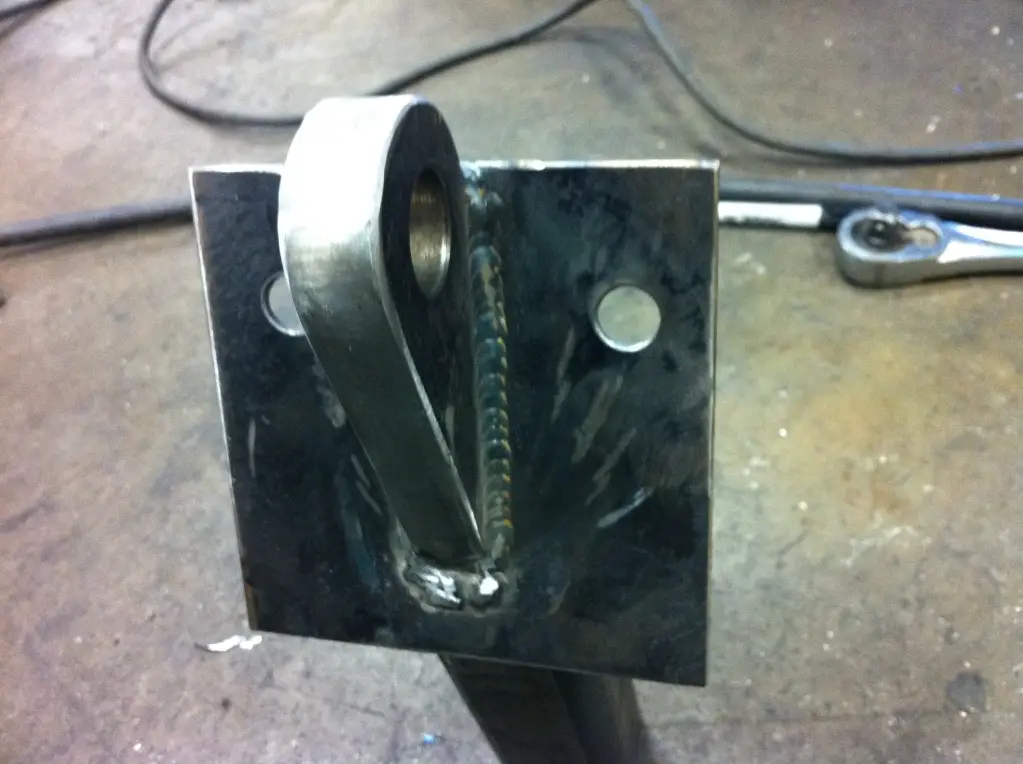

Welded it between the frame rails. Also added some tabs for the skid plate

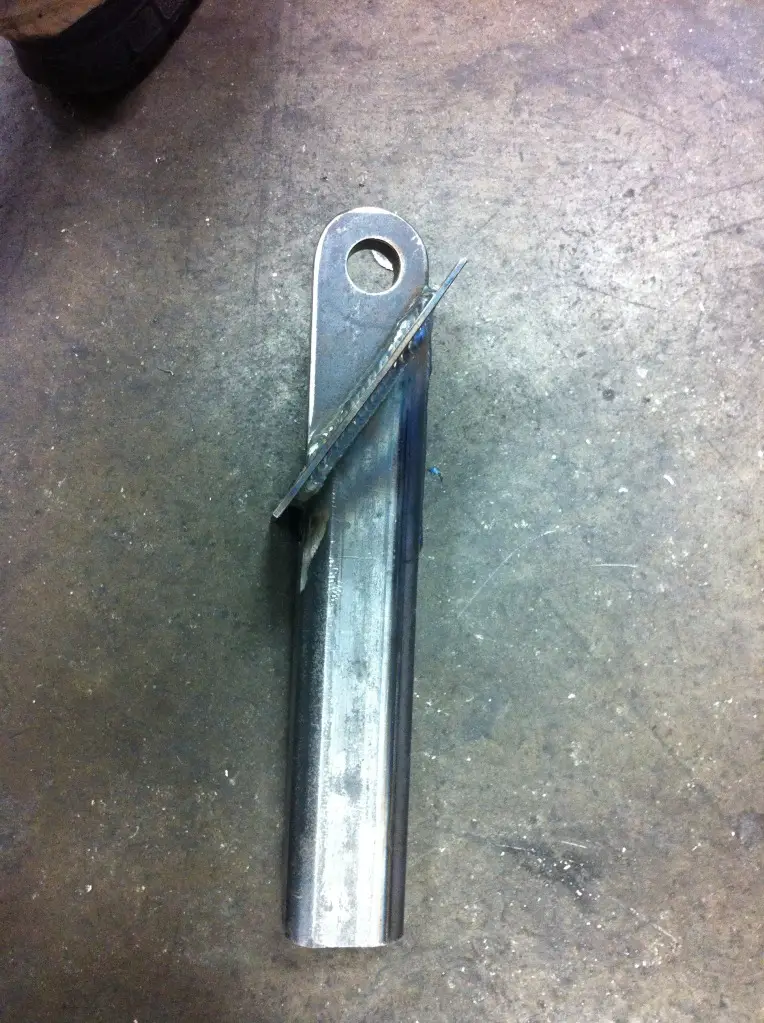

I wanted a shackle up front but I didn't want it to hurt the approach angle too much. Here is my stealth receiver idea

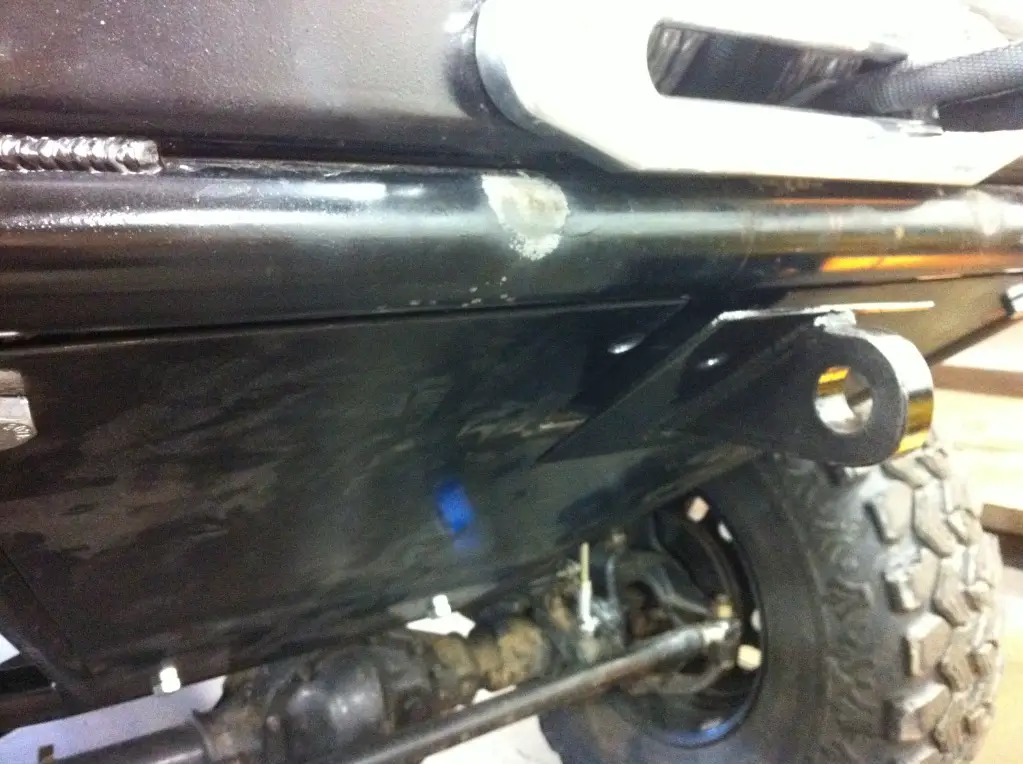

Finished.





Top
