Completed Project New Navajo Truggy build

[Elgatoprerunner]

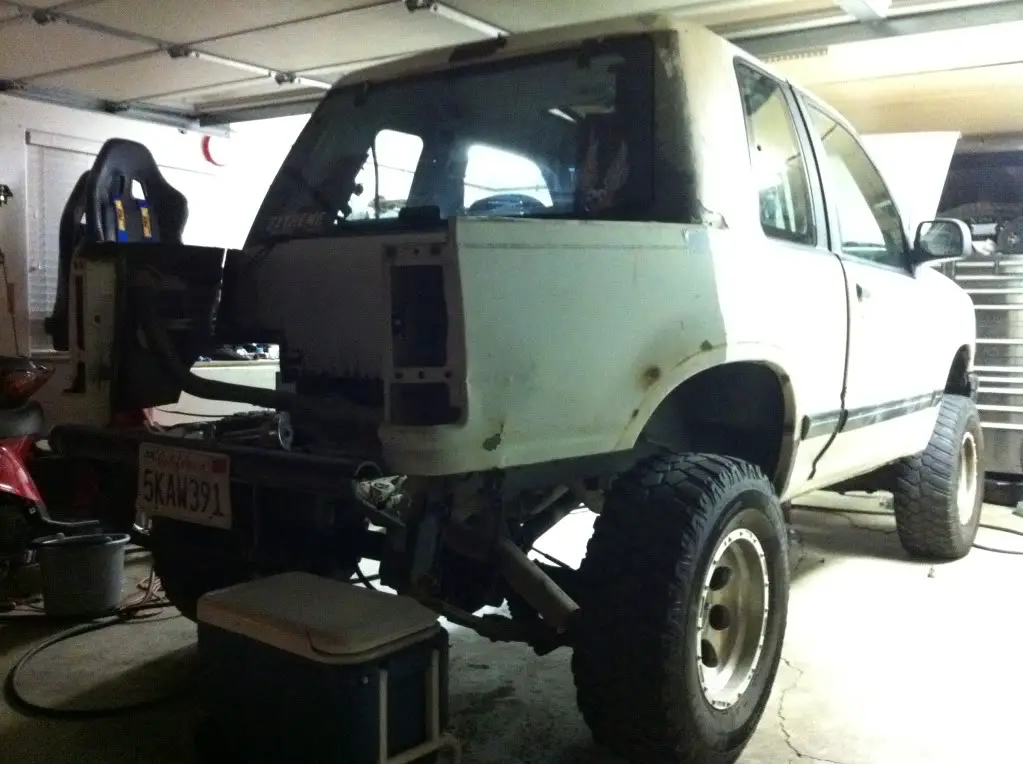

Removed the bed and skinned the rear bed sides

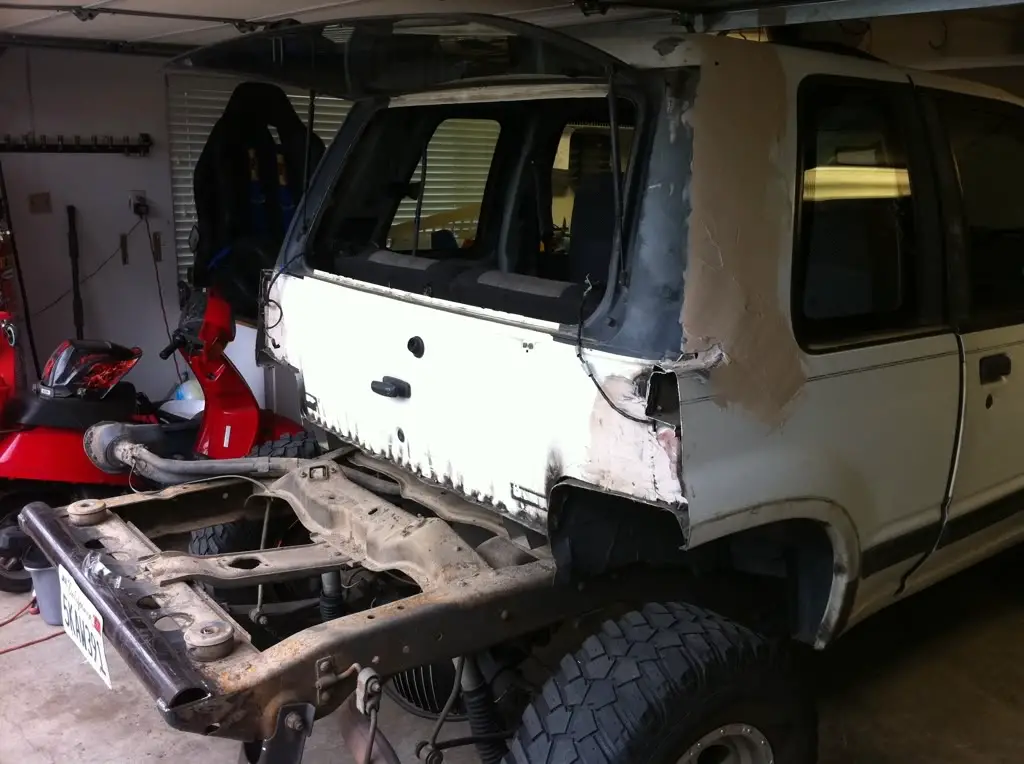

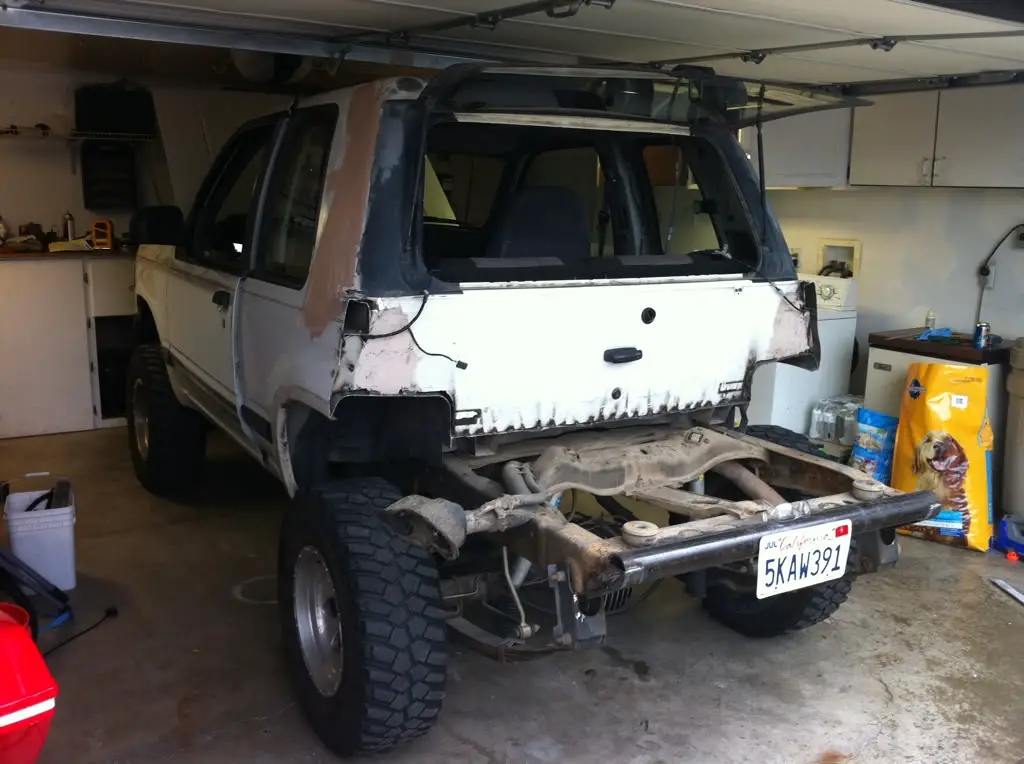

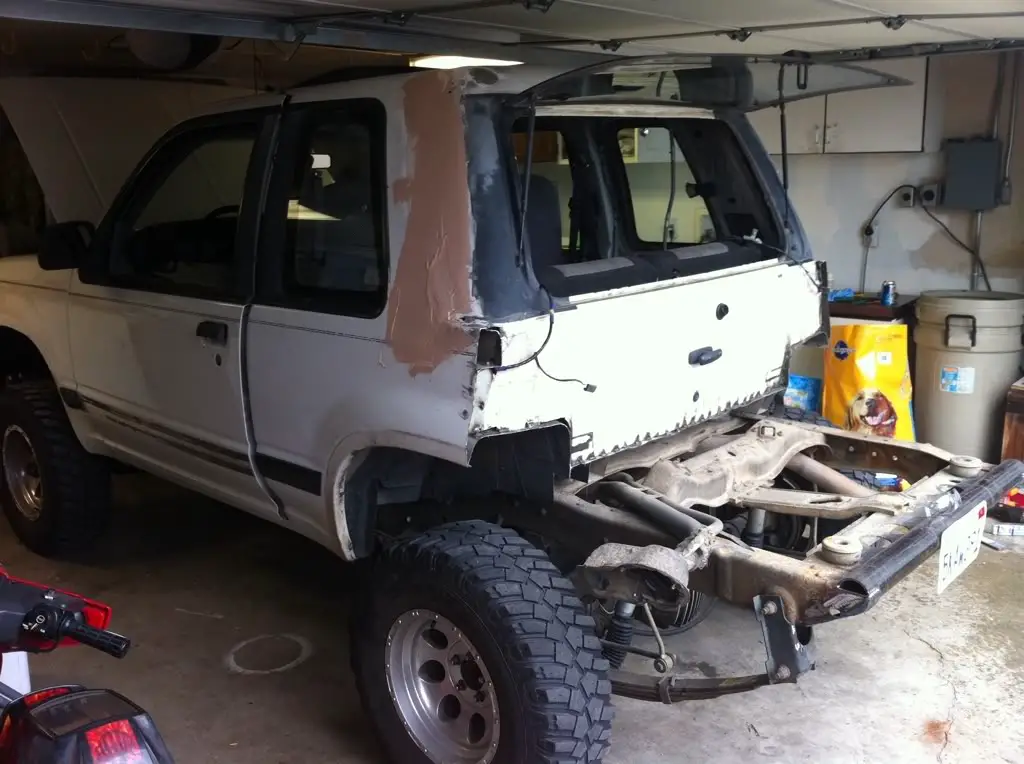

Cut the bed off, or what was left of it. I wanted to make room for all of the upcoming cage and suspension work.

Not sure if I like the "bobbed" look. I might install the sides un-bobbed using Dzus fasteners. Any help with the design of the rear would be very helpful. I have searched all over this forum and Google for ideas.

This is off subject but I thought I might get some advise.
These are the rockers off a good used 4.0L motor i bought from a junk yard. The engine does come with a 3 month warranty. Any way, I noticed a rattle coming from the engine when warm and in neutral. This rattle happens around 2500 rpm. I had some good used rockers off the previous engine that I installed. I have not fired it up yet. Does anyone think this excessive wear could cause the rattle?



[Elgatoprerunner]

Oops

Sorry for the multiple posts of the same topic. There was a 3-4 day delay from when I posted till it showed up. Does anyone know why?



[bftank]

i vote tubestyle bed with removable skins. no bed does look weird.



[Elgatoprerunner]

Bed sides

There will be some sort of bed sides when I'm done.
The problem I'm having is with the rear window opening.
The bed area is so short that making a cage that allows
window to function is a challenge. I've seen a few truggys
with a high caged rear that looked good. Looking around the
forums for ideas.



[FROADER]

You probably don't need the rear glass to go all the way up. If you go that way, you could put some rubber (soft material) pads on a bar that it goes up to. Just an idea if that made sense.



[Elgatoprerunner]

Beadlocks are here. This is how a pipe fitter does it.

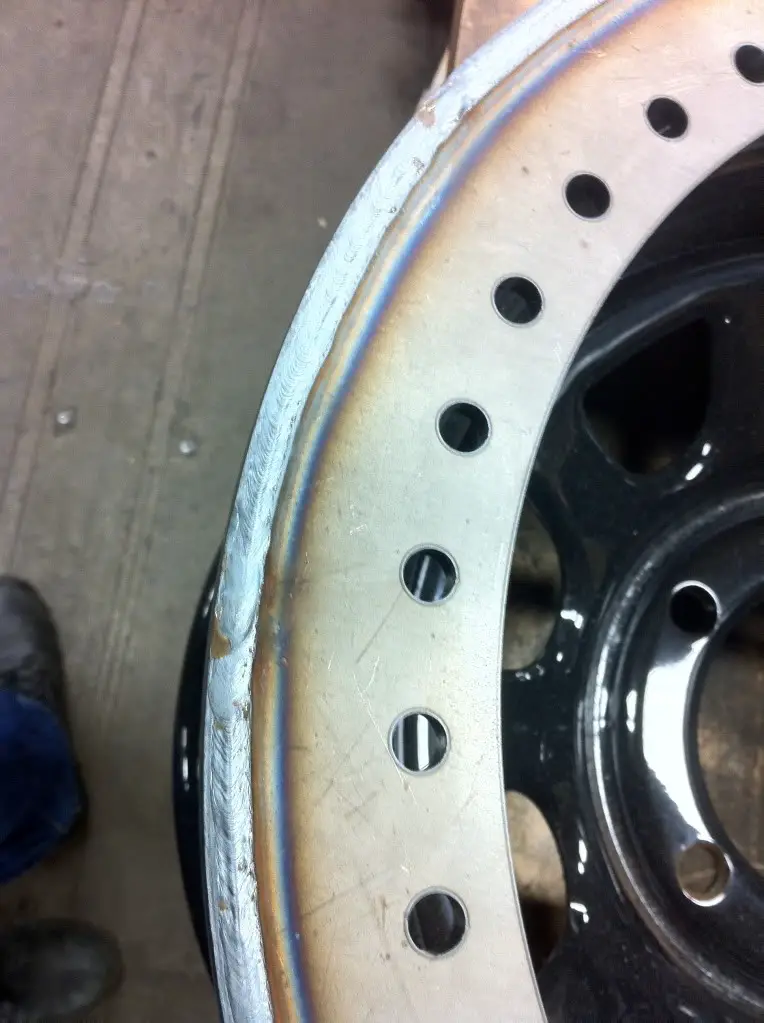

I finally received my 16.5x8" steel wheels from 4 wheel parts. I installed the wheel on my pipe positioner (it turns with a foot peddle), broke out the Miller Passport and started welding. Here are some picks of the progress.



[Slowlyvverot]

sweet.



[Elgatoprerunner]

Bed cage ideas

I came across this picture. I like the way the tire is tucked out of the way.

Might look ok with a tiny bed area like mine.

The license plate does hinge out of the way to remove the tire.



[Keeper0311]

Looks like one sweet build! Hope to see you out at Truckhaven.



[GRNMACHINE]

Subscribing, very different-I like it and want to see the progress.



[Elgatoprerunner]

Gonna rip into her tomorrow.

Thanks for all the Kudos on the build. Still a long way to go. The next issue I see is adapting the VSS or vehicle speed scensor to the 9" or relocate it to the transfercase output. What is the cheapest way to do this? The Navajo does have a Auto. I did think about converting to manual shift auto. A ratcheting shifter where the console is now. Anyone doing this?




Did a quick rattle can paint job.

Rear end is coming out tomorrow. Hopefully I can get the 9" under it and siting on the swampers. I'm doing a spring over axle.

Bead lock have held air for the past 3 days.

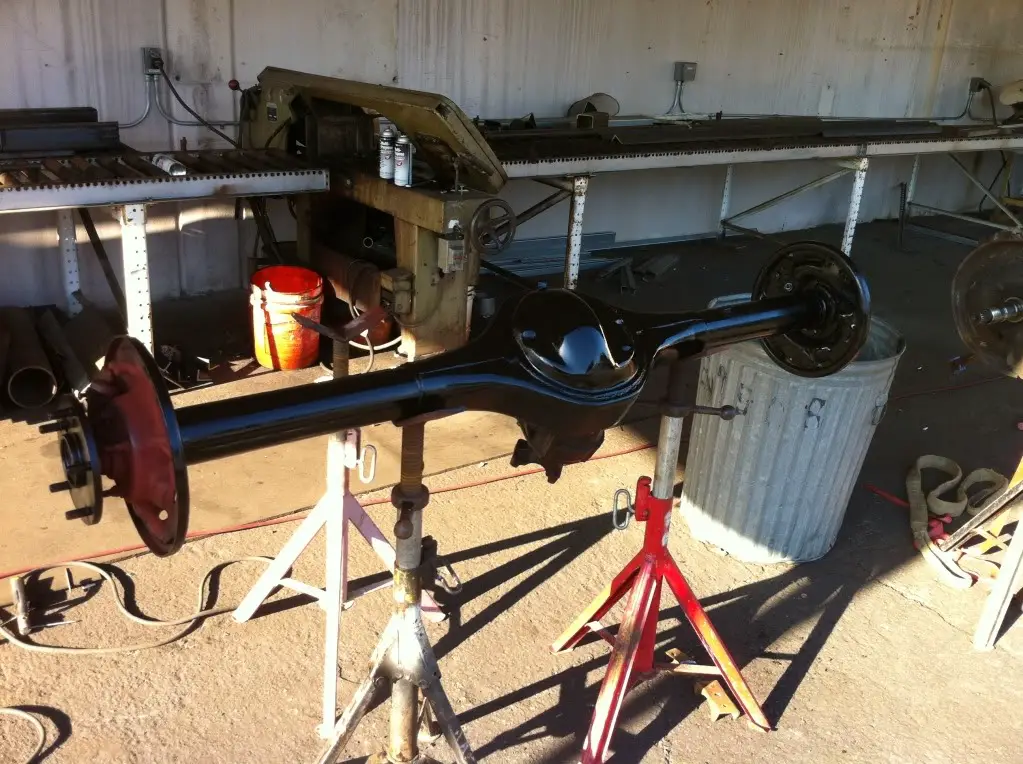

A little primer and gloss black and you would never know its 32 years old



[RangerX]

You should find a bed from a 92 Ranger, cut it in half at the center of the wheelwells, and graft it on.



[GRNMACHINE]

Dig the "cage bed" pic. Nice weld work on the wheels too!



[Dannyboy]

Thanks for all the Kudos on the build. Still a long way to go. The next issue I see is adapting the VSS or vehicle speed scensor to the 9" or relocate it to the transfercase output. What is the cheapest way to do this?

Not sure if that is an issue, I have a 9" on my 91 as well as a C5 transmission, VSS is in the transfer case.



[Elgatoprerunner]

VSS. And Ford 9"

I think you solved your own problem. I heard that the A4LD needs the vss in orders to shift. That is why I was considering a manual ratchet type auto. Smell what I'm thinking?



[iheartbeams]

your old rims 15 by 8? any chance you wanna get rid of them?



[Elgatoprerunner]

All the old axles, wheels, and stuff like that was heading for Craigslist.
I have 5 of those wheels. None are in great condition. Not sure the width.



[Elgatoprerunner]

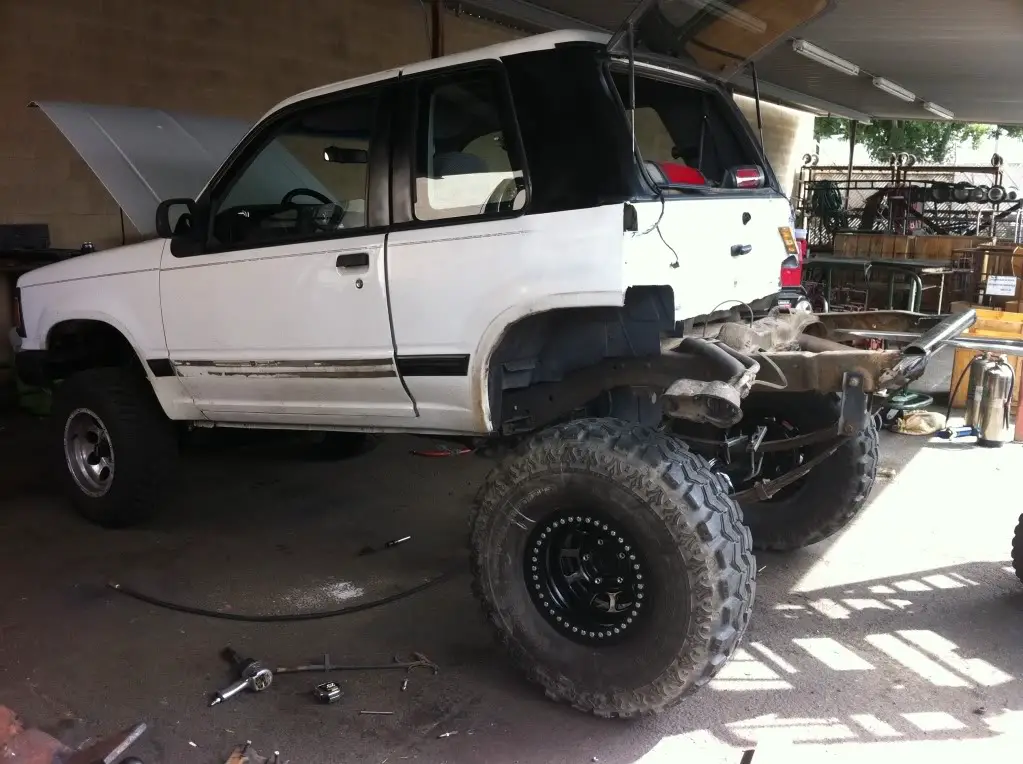

Wow, Its So BIG.

Got the 9" installed today. Like a dumb ass I cut the old u bolts with my plasma to save time. It turns out I could have used them. Oh well.

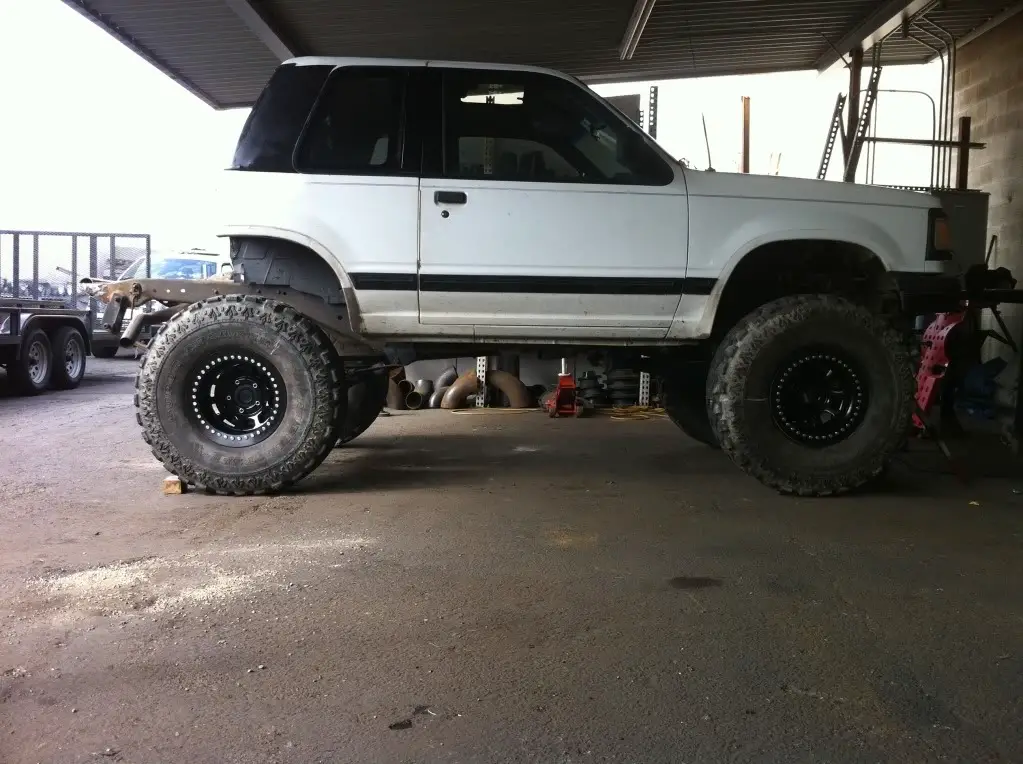

The S.O.A gained me about 6"

Forklift made quick work of the swap

My son Nate. He's spent countless hours with me at my shop, he never complains.

I used some pipe jack stands under the front frame. Removed puney tires and mocked up the front.

Tomorrow I should finish the rear and hopefully get the TTB removed from the front.



[Elgatoprerunner]

Sunday progress

I thought of a good way to set pinion angle without having to worry about if the axle moved side to side. I found and marked the axle where the perches needed to go. I then tack welded some angle clips next to the perch to act as a guide.

I installed the u-bolts loosley so I could jack up the pinion. It worked really good.

Welded them on both sides

Of course I took a picture of the best weld. Local 250 Pipe fitter baby.



[n.gardner]

Dude this looks so badass. Cant wait to see it done.
