Over heat? FIRST GEN All aluminum 3 row radiators!

FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Check these out. :thumbsup:

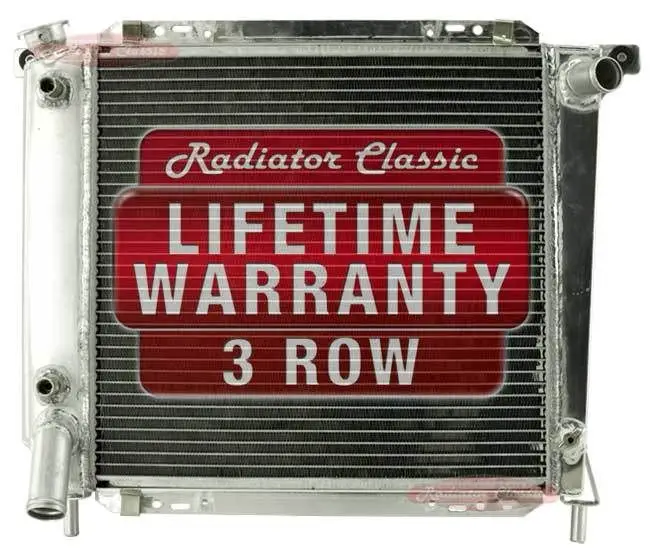

3 ROW ALL ALUMINUM RADIATOR: [Update!] Radiator Classic is back in the game and now offering Lifetime warranty! Nice.



http://www.ebay.com/itm/3-Row-w-o-E...rd|Model:Explorer&hash=item43c477ceae&vxp=mtr

Just say'n. duh.:eek:

little more $$ but just a little.

My '94 came with a factory 3row,, HD cooling package. This option was apparently rare. Probably why my a4ld still works fine. 135k

But they are no longer available.

Huge news! the trans cooler portion of these radiators holds 3 quarts!:eek:
If you have the factory cooler. Keep it. if not add one.

No more transmission failure due to insufficient cooling!

Not to mention I live in phoenix, AZ and you can't get enough cooling down here. Can wheel with a/c at idle indefinitely!;)

INSTALL NOTES:

Couple of tips for ya when you install.

1. The lower hose nipple needs a trim to clear the steering box. No Biggie.

2. If you run a puller electric fan it gets a bit tight, may need to bob the water pump. Also no biggie.

3. Scrape the factory "wind" foam off the core support the new rad fits nice and tight to the support, but no contact, which is a good thing.

4. The stock fan shroud fits like a glove.:D

5. stock fan is good to go.:D

6. stock air intake tube is good to go.:D

7. Will need to buy Female adapters for the trans cooler lines. Hardware store plumbing dep. Just male pipe to female flare adapter.:D

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




aubeagle

Elite Explorer
Joined
May 17, 2013
Messages
19
Reaction score
1
City, State
n.va
Year, Model & Trim Level
94 explorer xlt
Those look's like the ticket, I think i'll be the proud owner of one myself. Also it's not if the aluminum/plastic Radiator is gonna leak it's when... And it's also got a larger trans cooler too?

<



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,463
Reaction score
1,792
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
That's a nice find:chug:

<



Carguy3J

Explorer Addict
Joined
June 21, 2008
Messages
1,527
Reaction score
3
City, State
North East New Jersey
Year, Model & Trim Level
'99 4dr. XLT SOHC A4WD
What about just using the 2nd gen rad? Its much thicker. I think I even saw the same thick rad in a '95 Ranger, with the OHV, when I was shopping for the '95-'97 knuckles.

<



larrydd999

Elite Explorer
Joined
December 14, 2010
Messages
443
Reaction score
15
City, State
Port Angeles, WA
Year, Model & Trim Level
92 XLT, 94 Limited
<



FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Larrydd999,

That one won't work! Look at the lower hose nipple.


First gens need the nipple angled down to clear the steering box. Even so the one with the nipple angled down is 3/4" to long and must be cut.

Also with it that high it will rub on the belt at the power steering pump.
And you won't be able to use a factory hose.

AND THAT ONE HAS NO TRANSMISSION COOLER AT ALL!!!!!!!

That one is for manual transmission.

<



jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
If only we could find a 3row all aluminum manual one.I ran their one or maybe two (can't remember now) row all aluminum one for awile and it started leaking at every fin after about 3ish years.


Edit..sorry didn't click on the link..that's awesome I've been searching for one as I'm supercharged and need the extra cooling..


I've also been looking at them and intend to purchase one soon for the next time I need to change one. Here's another one, a bit less expensive: http://www.ebay.com/itm/New-3-ROW-A...ies&hash=item3a849677d1&vxp=mtr#ht_2411wt_883
I agree, the plastic/aluminum radiator is a PITA, it doesn't hold up as well as I'd expect.

<



larrydd999

Elite Explorer
Joined
December 14, 2010
Messages
443
Reaction score
15
City, State
Port Angeles, WA
Year, Model & Trim Level
92 XLT, 94 Limited
Thanks, FR-425 - you saved me from a stupid mistake! I should have known that all radiators are not created equal, even though they are supposedly intended for the same vehicle.
Once again the forum shows its value.
Larry

<



Jason94sport

Explorer Addict
Joined
April 30, 2001
Messages
4,170
Reaction score
67
City, State
FL
Year, Model & Trim Level
02 Sport 2WD 5 speed
The 2nd one is for manual trans. That's great. Though I have to wonder how the welds are. Are they hand done or machine done? Post some pics when you guys get them.

<



FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
:salute:

<



zman1995

Member
Joined
May 22, 2009
Messages
42
Reaction score
0
City, State
Naperville, Il
Year, Model & Trim Level
1991 XLT Explorer
geez.......if only I fixed my truck......this would be going in it

<



<



FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited

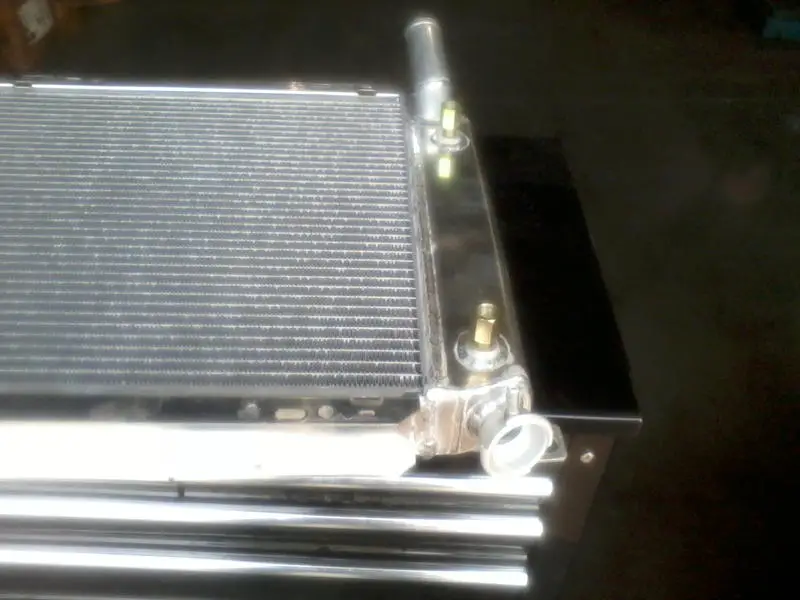

Sure, here's a few snaps:

Been running it for three years now.

Beats the Arizona heat into submission!


.

.

.

<



gmbroy

Elite Explorer
Joined
June 24, 2013
Messages
221
Reaction score
24
City, State
Orange VA
Year, Model & Trim Level
1996 explorer Eddie Bauer

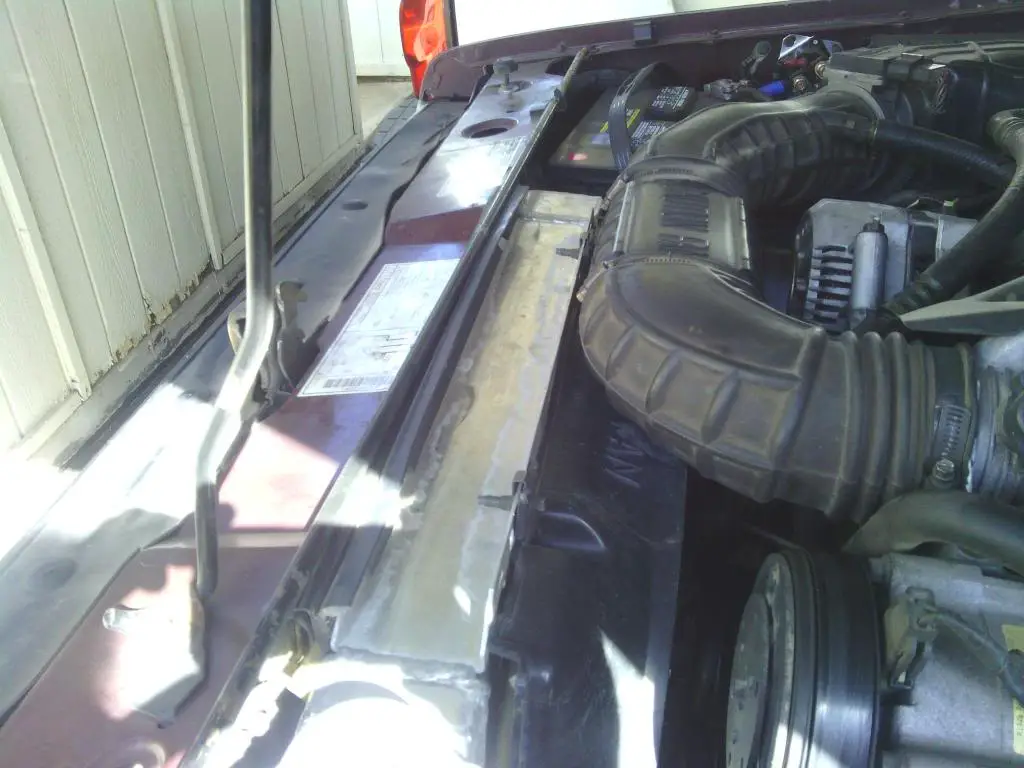

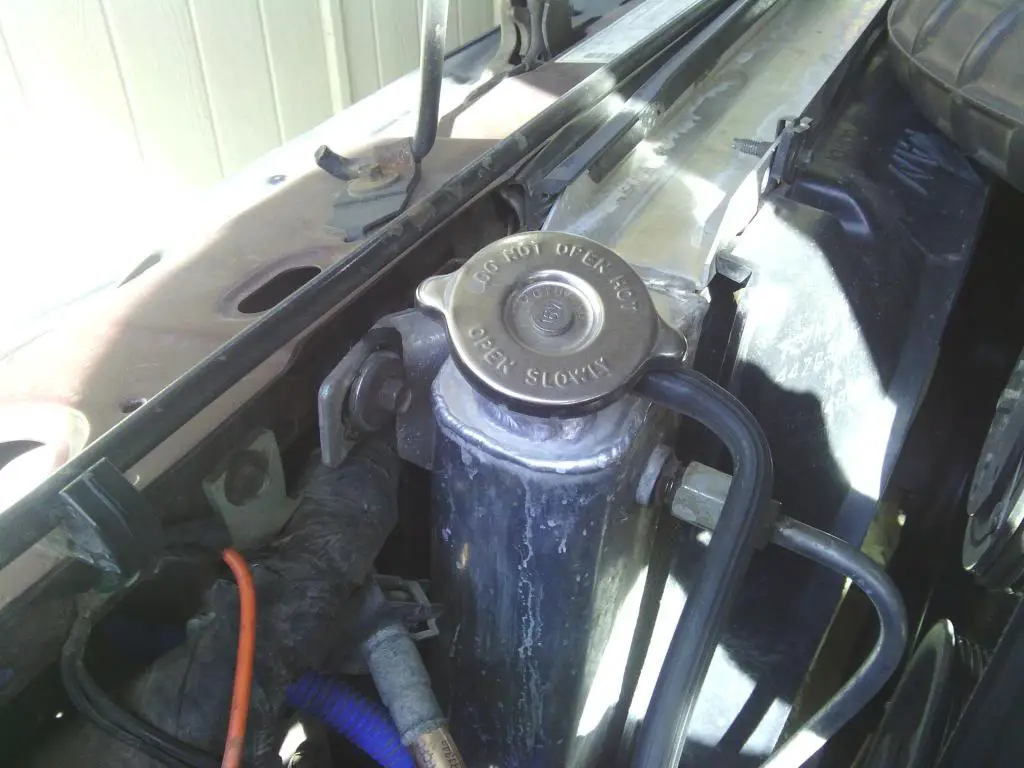

I just bought me one it will be here soon . I will let you know how it goes . !!! THANKS I just got my new radiator & I installed it . I have a 1991 xlt with the hd cooling . I did not have to trim the bottom for clearance & the fittings supplied with the rad. worked perfect . It fits like a glove .I have attached some pics the first 2 is the before . I am very pleased with this radiator . Thanks so much for the tip !!

<



FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Cool! I guess classic is now shipping them with the fittings. Nice!

Summers come'n

Bumpidy bump!

<



FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
I'm just gonna keep bump'n this, so the seller will keep them up.

Gonna need another one soon, stupid e-fan rubbed a hole or two in it!

<



natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
That is awesome. $150 for a lifetime all-aluminum radiator. Can't beat that with a stick.

<



Bruces expo

Explorer Addict
Joined
January 19, 2005
Messages
2,182
Reaction score
2
City, State
Middle GA
Year, Model & Trim Level
91 Mazda Navajo
wow that looks great , Think I know which one I'm going with here in a couple of months ! .

<



gmbroy

Elite Explorer
Joined
June 24, 2013
Messages
221
Reaction score
24
City, State
Orange VA
Year, Model & Trim Level
1996 explorer Eddie Bauer
Hey fr-425 They are out of the alum. 3 core rads. But I just got word that more is on the way in a month or two !!! Just thought you might want tot know !! later:salute:

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
111
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Hey fr-425 They are out of the alum. 3 core rads. But I just got word that more is on the way in a month or two !!! Just thought you might want tot know !! later:salute:


Yea, I'm trying to boost sales on this item so they don't discontinue it.

Cause as long as people on here keep buy'n them he'll keep make'n them.

Looks like he sold 21 in the last 60 days, so I'd say the plan is working.

I'll keep bump'n this thread as soon as more are in stock.

<
