DB_1's re re re...aww heck, i'm re-doing my set-up

I've reworked my front suspension a few times since doing the SAS but this time i'm going change up my front set up once and for all because it's never quite been dialed in. Currently I'm running a control arm set up just like the Rubicon Express long arm system...It's really just a fancy radius arm.

So the problem is that on the frame end of the arms i'm running 7/8" x 3/4" rod ends which have only around 17* of misalignment. I quickly run out of misalignment on the rod end on downtravel which then loosens the jamb nuts. Not exactly the best situation when off roading with all that slop. That's the only reason I have good flex is from the jam nuts loosening up...it can be better.

Current specs on the links are:

Uppers:
1.5" x .250 wall DOM tubing
3/4" heims on the link end
3/4" rubber joints on the axle end

Lowers:
1.5" x .250 wall DOM sleeved with 1.75" x .120 wall DOM
3/4" rubber bushings on axle end
7/8" x 3/4" heims on the frame end

So the plan is to also move the axle forward an inch or so to keep the tires out of the firewall but it might interfere with the engine crossmember, that will be a challenge.
I also want to lower the front an inch as well as add an inch of travel. Somehow I have to find 2 inches of space in the engine bay for the upper shock mounts to do that.
The lower control arm mounts will be spread apart a few inches to help with the heim misalignment issue.

Now, on with the goods. I've been accumulating these parts for at least a year now so time to get them on the truck:D

New specs on the control arms will be as follows:

Uppers:
1.5" x .250 wall DOM
3/4" thread hex tube inserts from Spidertrax
3/4" shank with 5/8" bolt urethane boulder bushing from Poison Spider Customs on link end
Urethane bushings from Ballistic on axle end

Lowers:
2" x .250 wall DOM tubing
1.25" thread hex tube inserts from Currie
1.25" FK heims with hi-misalignment spacers (double the misalignment of my old heims)
2 1/8" dia. x .250 wall with 5/8 bolt urethane bushings from Summit Machine on axle end
K.O.R.E. 1/4" thick link brackets on frame end
Ballistic 1/4" thick link brackets on axle end
Ruff Stuff 1/4" brackets for X-member

Here's some pics...just for giggles, last pic compares a 1.25" heim to a 3/4" heim. Makes it look...cute:p:








Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





redranger4.0

Well-Known Member
Joined
April 8, 2003
Messages
735
Reaction score
0
City, State
Salem CT
Year, Model & Trim Level
2000 Ranger XLT
Whos panhard mount is that?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Diff Whack Daddy

And the Roll Over Posse! Under the Hood Moderator
Elite Explorer
Moderator Emeritus
Joined
February 19, 1999
Messages
3,781
Reaction score
11
City, State
Mount Vernon, WA
Year, Model & Trim Level
1st Gen XLT 4dr
Callsign
KG7VTT
I've noticed a lot of people seem to be a little scared of hacking on that engine crossmember. I think it needs to be pointed out that the only reason that thing is so beefy to begin with is that the stock suspension also used it as a mounting point. Since the stress of the suspension is no longer there, it is way strong enough for the engine. Most of the engines weight and torque is absorbed further out by the framerails. I have very little of the front drivers side of mine left and haven't has any problems.







Fabbed4d88

Well-Known Member
Joined
April 10, 2009
Messages
279
Reaction score
0
City, State
Grand Forks North Dakota
Year, Model & Trim Level
98 XLT 5.0






RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,390
Reaction score
617
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Why wait? :p:

Just be sure to take notes and make a template, so we all can have one. :D







Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,900
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4






Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
34,477
Reaction score
2,735
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Can't wait to see the final results! Sounds like it should work out great:chug:







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Thanks guys:D

Josh, for now the battery will stay put behind the pass. seat, it's mounted with the j-hooks:p: I actually have a battery box/mount from Kartek in the garage somewhere, someday i'll put it to use.













DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Time to open this thread back up:D

After a long hot summer here in the dez, it's finally cooled off and I can work on the truck again. I've been making steady progress the last couple weeks so here's what i've got so far.

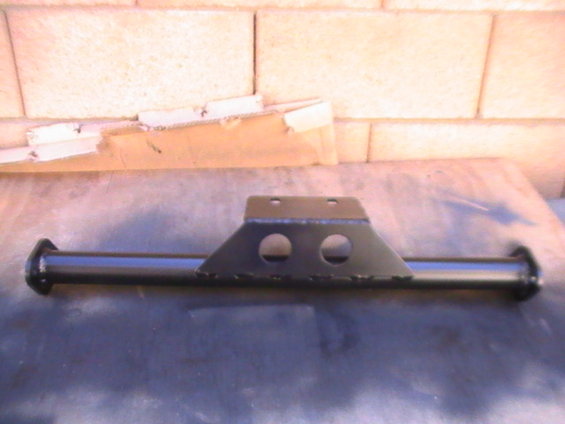

Got the lower frame brackets with tranny X-member welded, painted and installed. Front bolt of the X-member will be shared with the heim bolt (3/4") on the bracket.
Then I just drilled a 1/2" hole further back on the bracket to finish it off.

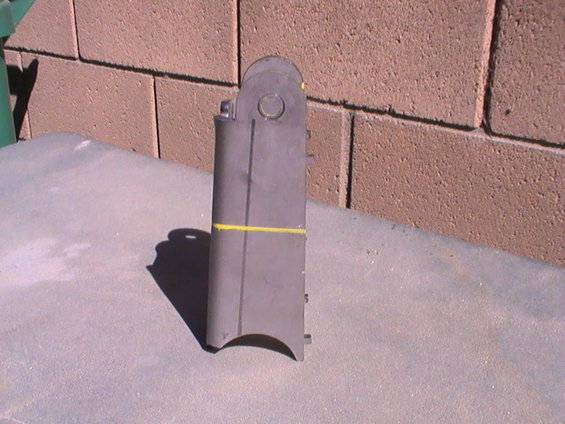

Next I worked on the upper mounts for the axle. I bought the tallest link bracket Ballistic makes to give me room for error. I made a template of the bracket and cut it down to what size I needed. I just layed the template pieces on the sides, traced it then cut one side with the angle grinder and the other with a hole saw...worked like a charm.

That's pretty much whats completed at this point but i'm plugging along so updates to come.
Here's the pics in order of description above.




















cybergasm

Explorer Addict
Joined
January 8, 2006
Messages
6,436
Reaction score
15
City, State
Humboldt Ks
Year, Model & Trim Level
1997 Mountaineer 5.0
Damn that welding is sexy :cool:

one question tho in the Second pic why is there a large bolt in there and a small one ?







90ranajo

The Little TJ that could
Joined
April 21, 2002
Messages
1,808
Reaction score
13
City, State
Pattaya, Chonburi
Year, Model & Trim Level
2012 Toyota Fortuner
Callsign
KG7MXH
Damn that welding is sexy :cool:

one question tho in the Second pic why is there a large bolt in there and a small one ?

Front bolt of the X-member will be shared with the heim bolt (3/4") on the bracket.
Then I just drilled a 1/2" further back on the bracket to finish it off.







cybergasm

Explorer Addict
Joined
January 8, 2006
Messages
6,436
Reaction score
15
City, State
Humboldt Ks
Year, Model & Trim Level
1997 Mountaineer 5.0
ok so i am hella tired tonight and not paying attention ;)







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
I can't take credit for the welding on the brackets, those were bought that way. My welding isn't quite up to par with that yet...as long as everything stays glued together then i'm happy:p:







zjrog

Well-Known Member
Joined
February 26, 2007
Messages
235
Reaction score
0
City, State
Tooele,Ut
Year, Model & Trim Level
1990 Ranger
I like this thread...













DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
It will be close, I have the upper/lower shock mounts and shock hoop brace to figure out and fab yet. Then it's a matter of welding that stuff plus the links and all the bracketry on the axle.







RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,390
Reaction score
617
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Then stop webbing, and start welding. :p:













DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Nothing real exciting today...got the axle, all brackets and links prepped for welding.
The I had to fab up the drivers side upper link bracket on the axle because I hoped I could use what was there already but it wasn't going to work. Had I known before hand I would've ordered a pair of the Ballistic link brackets.

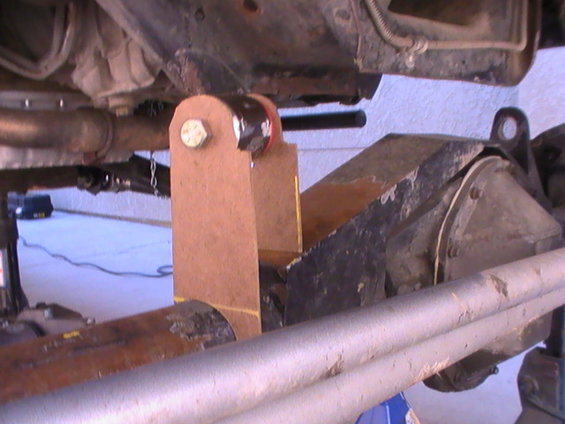

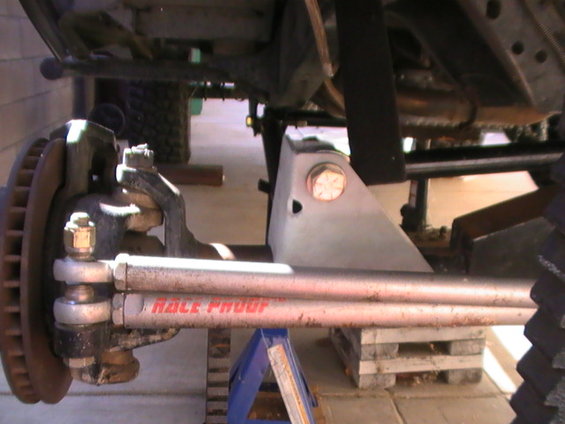

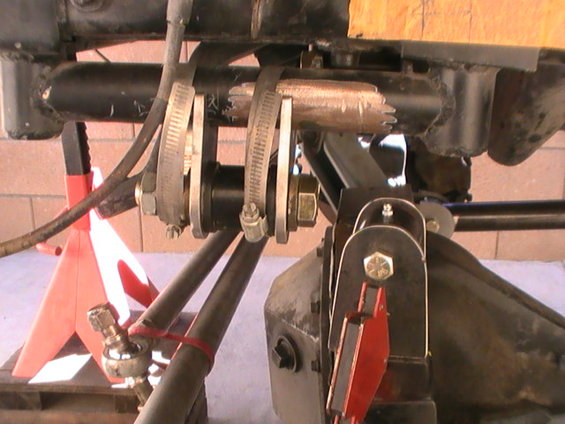

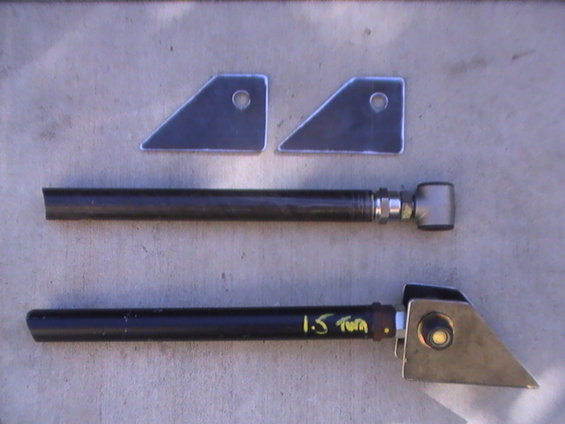

Snapped a few pics of the upper links, the brackets they will attatch to and a mock up of where the Polyperformance panhard bracket will go plus a pic of the drivers side upper link bracket.









Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Stuff is still getting done but I had a bit of a snafu. The shock hoops I have on there aren't tall enough plus they angle out from the frame too much so i'm in the process of making new ones.
Originally they were set up for the shocks to be straight up with no angle and my ride height was an inch higher.
I have the pieces cut for one of the hoops and tomorrow I'll work on the other one.
I'll also have to come up with a new brace that spans the engine bay to tie the shock hoops together.

I'll have some updated pics to post sometime this weekend.
