LED Mirror Light Conversion (Pics)

MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
This is the way to convert your mirror lights over to LEDs for 97-01 Explorers

Materials:
-24 5mm 55,000mcd, white LEDs
-24 Resistors
-Radio Shack Project Board

Tools:
-Dremel
-Hot Glue Gun
-Soldering Iron

Remove the bulb housing from the mirror.


Using the dremel and a cut off wheel, cut off the top of the housing


Then cut a piece of project board to fit in the light housing


Glue on 12 LEDs to each board.


Solder on a resistor to each + LED lead


Then group the + leads, and connect the - leads


Cover all the exposed wires with hot glue then put the board inside the housing and glue it together.


Test


Results




Good Luck!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




trj360

Explorer Addict
Joined
October 2, 2007
Messages
1,211
Reaction score
1
Year, Model & Trim Level
1999 XLT SOHC
that looks awesome, i might have to do that one day. puddle lights rule!!!





Blazepet7

Well-Known Member
Joined
January 28, 2008
Messages
431
Reaction score
0
City, State
Queens, NYC
Year, Model & Trim Level
99' XLT 5.0
Nice touch

your pretty good with the lighting on the x i saw your other project with the rack lights. you buy the led bulbs from radio shack also ? lighting is one of the key upgrades that i focus on too.





anti*commander

Well-Known Member
Joined
June 14, 2007
Messages
270
Reaction score
0
City, State
algonquin, IL.
Year, Model & Trim Level
1999 Explorer XLT
i did this a while ago but with blue lights. Made a neat little module that plugged into the orgional wiring. no cutting required. nice write up though.









MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
your pretty good with the lighting on the x i saw your other project with the rack lights. you buy the led bulbs from radio shack also ? lighting is one of the key upgrades that i focus on too.

Thank you
I buy my LEDs on eBay in bulk, usually from someone from Hong Kong.





Blazepet7

Well-Known Member
Joined
January 28, 2008
Messages
431
Reaction score
0
City, State
Queens, NYC
Year, Model & Trim Level
99' XLT 5.0
cool thanks and by the way i just looked at the rest of the upgrades you did and i am impressed.....thanks for the pointers





Blazepet7

Well-Known Member
Joined
January 28, 2008
Messages
431
Reaction score
0
City, State
Queens, NYC
Year, Model & Trim Level
99' XLT 5.0
hella help

Listen mustang you would probably know ive been searching for a while now, i bought hella 500 lights and i want to have them run with either my low beams or both high and lows preferably. the diagram gives me the way to connect them to my highs. im guessing i can splice it to the low beams but can i just have the lights run by themselves. thanks





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Listen mustang you would probably know ive been searching for a while now, i bought hella 500 lights and i want to have them run with either my low beams or both high and lows preferably. the diagram gives me the way to connect them to my highs. im guessing i can splice it to the low beams but can i just have the lights run by themselves. thanks

You can wire them to a separate switch to operate them independently. The reason they say to tie them into the high beams is because they will blind oncoming drivers, and should be shut off with the high beams.

In the future you should start a new thread if you have a question unrelated to the thread, its no big deal, but its just courteous.

Try making your own thread, asking about this, you will get alot more help lots of people here have aux driving lights, and can give you better info then I can, since I haven't done it myself.





Sams01XplrSprt

Southern Cali Explorer
Joined
November 14, 2004
Messages
14,231
Reaction score
2
City, State
Newport Beach California & Bay Area California
Year, Model & Trim Level
2001 Sport (sold)
looks awesome keep up the good work





Blazepet7

Well-Known Member
Joined
January 28, 2008
Messages
431
Reaction score
0
City, State
Queens, NYC
Year, Model & Trim Level
99' XLT 5.0
I didnt mean to ask you on your thread i am new to the site and was trying to start a thread but didnt really know where to do that, not too good with forums. I didnt mean to step on anyones toes...thanks for the info though very helful





AAnnddrreeww

Well-Known Member
Joined
September 25, 2007
Messages
170
Reaction score
0
City, State
Triad, NC
Year, Model & Trim Level
'01 XLT 4x4
God dang
I gotta try that, that looks amazing.













anti*commander

Well-Known Member
Joined
June 14, 2007
Messages
270
Reaction score
0
City, State
algonquin, IL.
Year, Model & Trim Level
1999 Explorer XLT
the only pic i have of the lights is this:






anti*commander

Well-Known Member
Joined
June 14, 2007
Messages
270
Reaction score
0
City, State
algonquin, IL.
Year, Model & Trim Level
1999 Explorer XLT
the only pic i have of the lights is this:

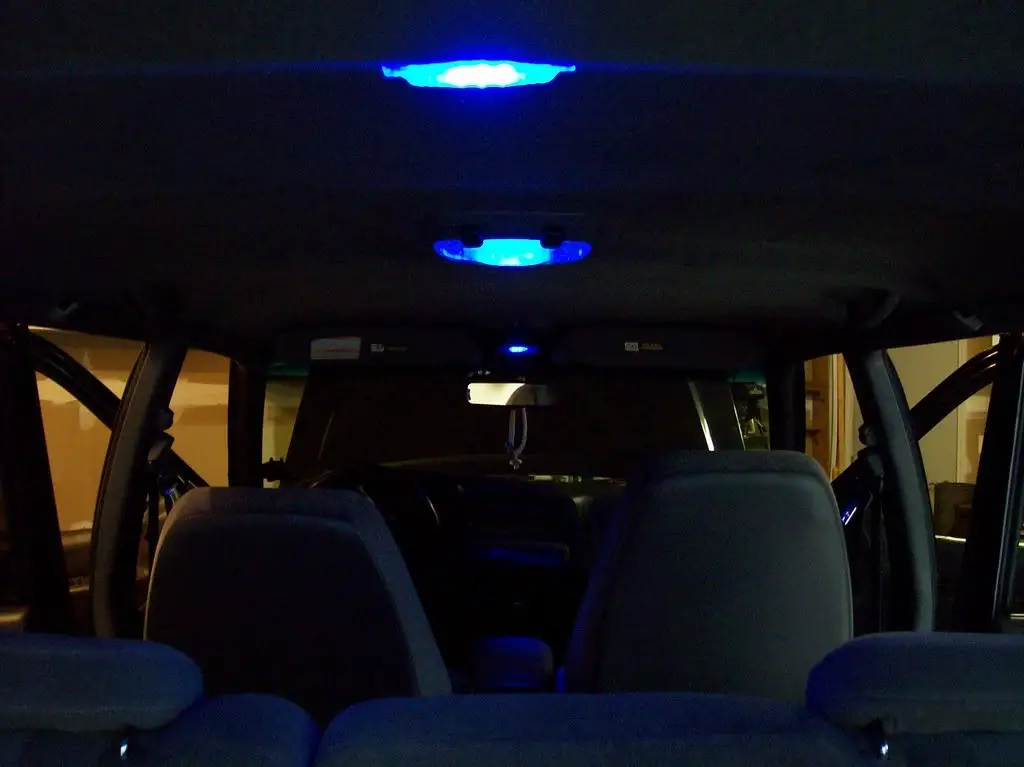

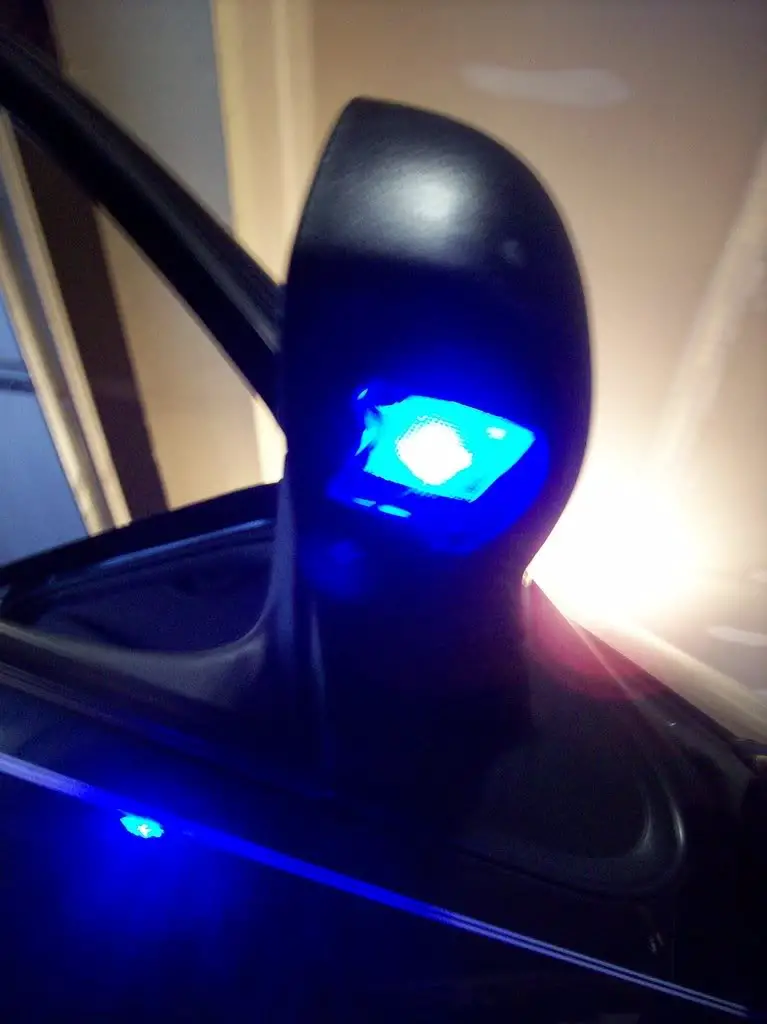

and then ive got this done to my truck also, everything is blue, gauges, center console, rear controols, door controlls, even the glove box is blue and lights in the vents.
