LED Mirror Light Conversion (Pics)

98xploder

Well-Known Member
Joined
January 27, 2008
Messages
150
Reaction score
0
City, State
ohio
Year, Model & Trim Level
98 xlt

this shows the blue mirror lights and the white led's inside the truck.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




<



Steeda04SVT

Well-Known Member
Joined
March 14, 2011
Messages
552
Reaction score
0
City, State
Kansas City, MO
Year, Model & Trim Level
1997 Eddie Bauer Explorer
For the mirrors with puddle lights that I found on ebay at a good price luckily. My main question is that with my ex not having puddle lights from the factory, if I buy the power mirrors with puddle lights is there an extra wire that comes on the harness on the mirrors with puddle lights for the puddle lights to get power? Or do I need to plug in the new mirror with puddle lights to my Ex then splice a wire to the interior lights for the puddle light to work? Hope that made sense, thanks to anybody that has the info on this.

<



MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
For the mirrors with puddle lights that I found on ebay at a good price luckily. My main question is that with my ex not having puddle lights from the factory, if I buy the power mirrors with puddle lights is there an extra wire that comes on the harness on the mirrors with puddle lights for the puddle lights to get power? Or do I need to plug in the new mirror with puddle lights to my Ex then splice a wire to the interior lights for the puddle light to work? Hope that made sense, thanks to anybody that has the info on this.

Haha yes you made perfect sense. I have not been inside the door panels in years nor have I looked at the harness for the mirrors other then the 2 leads for the puddle lights, but in my experience of trying to add equipment that was not installed from the factory is that you will need to run your own wiring. I have never been blessed with an OMG IT JUST PLUGS IN project... Ever.

The wring will be a PITA inside the door, but all you will need to do is tap into a black/blue wire coming off the dimmer switch to feed the puddle lights.

The Heated mirror part might be a bit more complicated. I imagine that the oem setup will have more then just an on off button, but have some kind of relay setup with a timeout and overheat circuit. I could be wrong just my guess.

<



©H®I$

Active Member
Joined
September 10, 2010
Messages
86
Reaction score
0
City, State
Whittier, Ca
Year, Model & Trim Level
2000 Explorer XLS
So I have a quick question, my side mirrors dont have the puddle lights below them, but if I wanted too, could I buy some with the puddle lights and swap them out? Like would the cable that plugs into the mirrors for the power mirrors also be the same cable for the puddle lights?

<



MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
So I have a quick question, my side mirrors dont have the puddle lights below them, but if I wanted too, could I buy some with the puddle lights and swap them out? Like would the cable that plugs into the mirrors for the power mirrors also be the same cable for the puddle lights?



in my experience of trying to add equipment that was not installed from the factory is that you will need to run your own wiring. I have never been blessed with an OMG IT JUST PLUGS IN project... Ever.

<



©H®I$

Active Member
Joined
September 10, 2010
Messages
86
Reaction score
0
City, State
Whittier, Ca
Year, Model & Trim Level
2000 Explorer XLS
Ahhh I see. That saddens me :(

<



MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Ahhh I see. That saddens me :(

All it takes is a few hours of fishing wires through the doors and dash. There is still hope!

<



Steeda04SVT

Well-Known Member
Joined
March 14, 2011
Messages
552
Reaction score
0
City, State
Kansas City, MO
Year, Model & Trim Level
1997 Eddie Bauer Explorer
Thanks for the info Mustang, I was thinking of just splicing it to the black/blue wire which you mentioned which is already exposed thanks to me having the door courtesy lights. So If I can get it to plug to my factory harness and splice the wire then I should be good. Luckily I don't have to worry about the heated part. The mirrors are also non heated that I found on ebay.

<



Steeda04SVT

Well-Known Member
Joined
March 14, 2011
Messages
552
Reaction score
0
City, State
Kansas City, MO
Year, Model & Trim Level
1997 Eddie Bauer Explorer
Another question. Is the only way to separate the puddle lights clear piece from the black piece is to just dremel it?

<



Dawgpack

Member
Joined
January 29, 2012
Messages
30
Reaction score
1
City, State
Bozeman, MT
Year, Model & Trim Level
1999 Explorer
Posting my results...

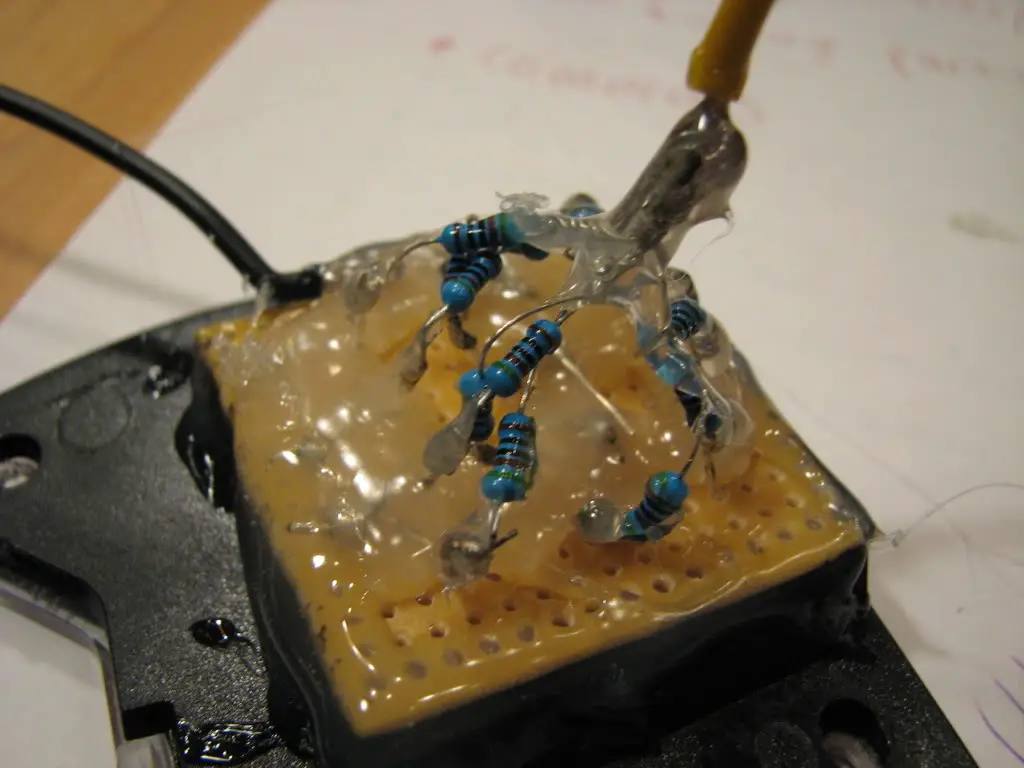

Here's what it ended up looking like. This was my first time soldering besides a few wires I practiced on. I was very happy with the results.

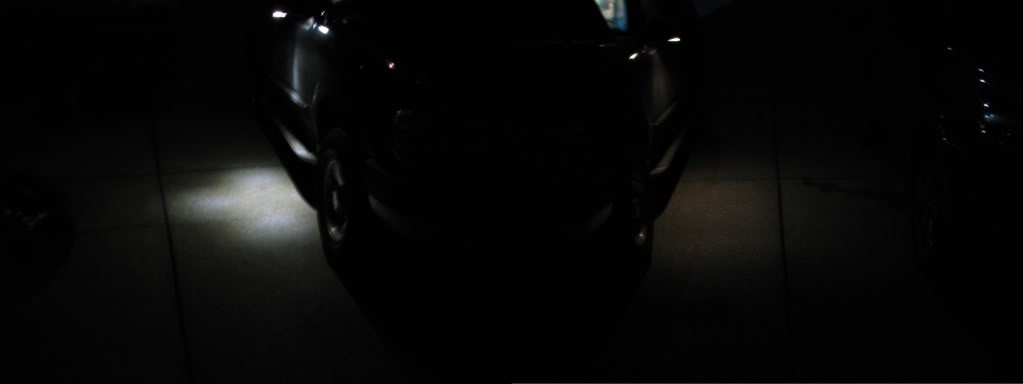

I got some stock vs LED shots. I think it's pretty obvious which side is which :D




<



MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Another question. Is the only way to separate the puddle lights clear piece from the black piece is to just dremel it?

I did not try any other methods of taking them apart. A Dremel with a cutoff wheel is the best way to do this.

Posting my results...

Here's what it ended up looking like. This was my first time soldering besides a few wires I practiced on. I was very happy with the results.

Looks good, thanks for the pictures!

<



Steeda04SVT

Well-Known Member
Joined
March 14, 2011
Messages
552
Reaction score
0
City, State
Kansas City, MO
Year, Model & Trim Level
1997 Eddie Bauer Explorer
Thanks for the info Mustang.

<



EXPLODRR

Member
Joined
January 18, 2013
Messages
12
Reaction score
0
City, State
OREGON STATE
Year, Model & Trim Level
1999 FORD EXPLORER

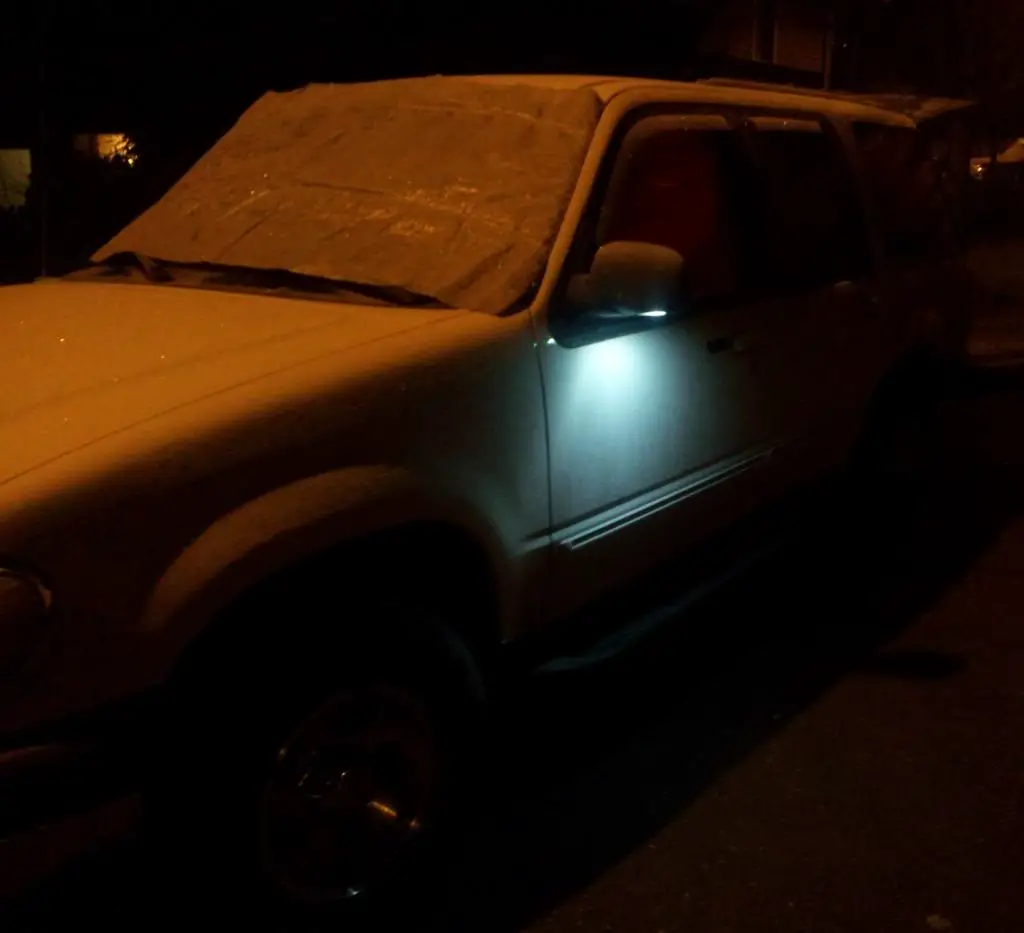

cool white led 194


from superbrightled.com and painted the inside reflector area white for extra affect.

<



FIND

Explorer Addict
Joined
December 27, 2009
Messages
3,862
Reaction score
12
City, State
Vermillion, SD
Year, Model & Trim Level
99 XLT V8 AWD
Ah, I should have taken pics of mine before I filled it with resin and coated the back... 18 5050 SMDs in each mirror.

<



aimtimes100

New Member
Joined
March 8, 2013
Messages
9
Reaction score
0
Year, Model & Trim Level
1998 ford explorer xtl
stupid question but i'm guessing their aren't any LED bulbs available to just swap put with the stock puddle ones?

<



MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
stupid question but i'm guessing their aren't any LED bulbs available to just swap put with the stock puddle ones?

They do make them. Do a google search for 168 LEDs, the only thing is they are not the best quality.

<



milonius

New Member
Joined
April 12, 2013
Messages
1
Reaction score
0
Could this be done with SMD leds? if so would type of resistors would they need. for say 5050smd.
Thanks

<



<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Beerking27

Member
Joined
January 24, 2013
Messages
28
Reaction score
0
City, State
Central NJ
Year, Model & Trim Level
00 Explorer XLT 4.0 SOHC
Just wanted to thank Mustangp51 for this post as it helped me make my puddle lights so much brighter! Also wanted to add a picture of the plug in connector I made for those who don't like to splice things like me.



hopefully this helps someone!

<
