M90 rebuild (rudy)

jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
so got the motor pulled outa the 96 this weekend..i lost oil psi before i pulled it so from what i know a rod bearing usually wont loose oil psi because its a ""end"" flow..but crank bearing will,so there is no telling how many bearings or damage is done to this motor so its going in the parts pile.

plan is to use the motor outa the 94 as it ran fine before i blew the head gasket.so gonna replace all gaskets and use the new rockers/pushrods i put on the 96 motor.plus the lower intake,cam sensor and all wiring..hopefully there wont be any issues once installed in the 96 and i can get it sold fast to fund my new motor..the machinist said he would bump mine to front of the line the sec i say go..

my pops is outa town this coming weekend and i wont get the gaskets till friday so gonna be 2 weeks before i get the motor back in the 96..i still have some work to do on the 94 before i can drop the new motor in..it needs all new body mounts and gonna put a 5/8'' body lift on to clear my second intercooler.then dropping the rear 2'' and the front a 1''ish..till then stay tuned because that new motor should be done in about 3 weeks or a month now...



starting to pile up....

Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


Dono

347 V8 Limited turbo
Elite Explorer
Joined
February 18, 2009
Messages
5,265
Reaction score
534
City, State
Winnipeg, Manitoba
Year, Model & Trim Level
00 Limited V8
Sweet!
Did you ever manage to make a deal on some Tom Morana rockers?


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
Sweet!
Did you ever manage to make a deal on some Tom Morana rockers?
no i have not..i would like to give him a call but honestly i dont have any extra money to be playing with..they would be nice and now would be the time to get them but doubt he will go for a ''test'' type of deal..also my motor was built and based around the 1.5 and 422 cam specs,i dont know how that would effect it,something i would have to call JE pistons back about..


Dono

347 V8 Limited turbo
Elite Explorer
Joined
February 18, 2009
Messages
5,265
Reaction score
534
City, State
Winnipeg, Manitoba
Year, Model & Trim Level
00 Limited V8
you could run into piston to valve issues for sure. That and they are HUGE cash.


4pointslow

Explorer Torture Tester
Elite Explorer
Joined
April 3, 2008
Messages
2,927
Reaction score
418
City, State
Gloucester City, NJ
Year, Model & Trim Level
98 2Dr,98 & 04 4dr xlt
Engine Build

I am staying Tuned!
Cant wait to see the new and improved 4.0 with boost and two intercoolers!
Going to be bad@ss!


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
you could run into piston to valve issues for sure. That and they are HUGE cash.
Yea especially because it would destroy the piston,valve and maybe head..plus at some point I believe the valve size comes into play,meaning it doesn't matter how much more it opens it will flow the same as say @.500..now if it stayed open longer or earlier would be different story..but then you run into overlap issues


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger

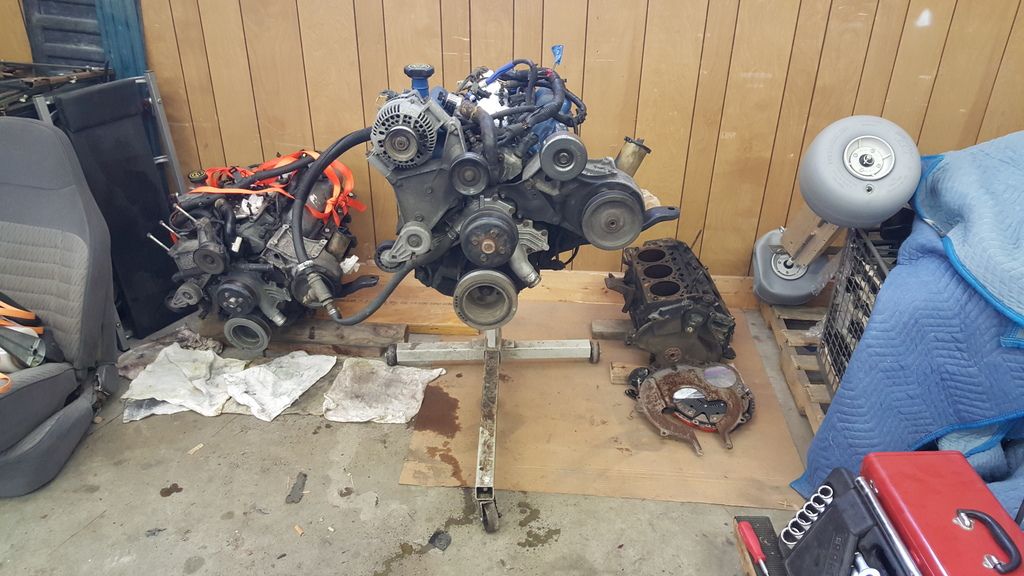

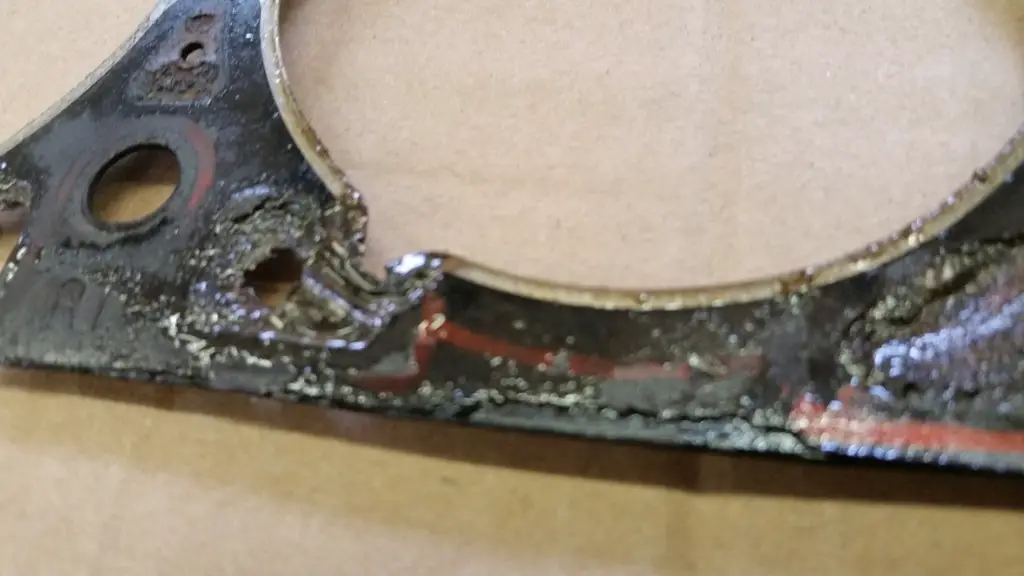

got the blown motor torn apart and man i did a number on the gaskets,worse ive ever seen...hopefully i get it rebuilt and put into the 96 red ranger this weekend..








Last edited:

Dono

347 V8 Limited turbo
Elite Explorer
Joined
February 18, 2009
Messages
5,265
Reaction score
534
City, State
Winnipeg, Manitoba
Year, Model & Trim Level
00 Limited V8
wow, a couple of cylinders. Impressive.


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
wow, a couple of cylinders. Impressive.
lol ill take that:D:D

yea was shocked after seeing the melted middle ring that all of them didnt show signs..the driver side looks fine,just those two.why just those two is anyones guess..head,block and piston all look good tho.


Dono

347 V8 Limited turbo
Elite Explorer
Joined
February 18, 2009
Messages
5,265
Reaction score
534
City, State
Winnipeg, Manitoba
Year, Model & Trim Level
00 Limited V8
I keep reading that you don't want too good of a head gasket so it can act as a fuse. This way, the head gasket blows out before you trash the rest of your motor.
I guess this is a perfect example.


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
I keep reading that you don't want too good of a head gasket so it can act as a fuse. This way, the head gasket blows out before you trash the rest of your motor.
I guess this is a perfect example.
Thats why i built the explorer using the cheap red gaskets. It took 10 psi at 10.6:1 compression. .this motor took 12 psi at 9:1 compression. .so basically thats the limits for red fel pro gaskets. .the blue super duty i would imagine could handle little more but honestly i think its the stock TTY head bolts thats causes this. .


4pointslow

Explorer Torture Tester
Elite Explorer
Joined
April 3, 2008
Messages
2,927
Reaction score
418
City, State
Gloucester City, NJ
Year, Model & Trim Level
98 2Dr,98 & 04 4dr xlt
Head Gaskets

The pictures of those head gaskets are awesome! They are blown to smithereens! (small fragments, not the rock group).

Sometimes a blown head gasket can lead to a bent connecting rod.
Did all the pistons still come up to the top of the cylinders evenly?


mr cribb

US Army Retired
Joined
December 16, 2010
Messages
2,353
Reaction score
79
City, State
Harviell, MO
Year, Model & Trim Level
94 Chevy Z71, 93 X EB
It seems like you are the guinea pig for showing us what a 4.0 can handle, or it shows us what not to do. :dunno:


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
The pictures of those head gaskets are awesome! They are blown to smithereens! (small fragments, not the rock group).

Sometimes a blown head gasket can lead to a bent connecting rod.
Did all the pistons still come up to the top of the cylinders evenly?
Yes and actually they all come slightly above deck surface which i didnt think they did,i thought they came flush..explains why our math kept coming up with a different ratio than 9:1....believe it was 8.8:1 or something. .have to look at my notes


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
Red truck is up and running..i ended up using the 94 block and 96 heads..the 94 heads had 2 exhaust bolts that broke off and i tried everything to get them out,then just gave up..so yes the motor is running 10:1 and its been running for 2 days of 87 gas with no issues YET...

Im just waiting on some steering wheel switches and may have to replace the radiator before i sell it,it has developed a leak..runs and drives GREAT tho,still would like to keep it but its paying for mh machine work on the blower motor sooo..

I think im gonna drive it for next 2 weeks then take the rest of parts to machinist and try and get a final price for all the work..then put it up for sale,which will also be payday and off week for bills..

Anyone wanna buy a red 96 ranger???lol



https://youtu.be/1UsftCA7qxs


4pointslow

Explorer Torture Tester
Elite Explorer
Joined
April 3, 2008
Messages
2,927
Reaction score
418
City, State
Gloucester City, NJ
Year, Model & Trim Level
98 2Dr,98 & 04 4dr xlt
engine

Probably has a little more pep to it with the higher compression.
Shame you can't keep it, but the other engine is more important anyway!


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
It definitely does have little more pep but then again last motor was LITERALLY on its last leg..its a nice truck and being obd2 and ttb,i really wish i could keep it as tuning would be easier and all my suspension parts would swap right over..but i gota finish this other motor,its killn me not having boost!!


GRNMACHINE

Well-Known Member
Joined
September 11, 2000
Messages
2,486
Reaction score
6
City, State
IL
Year, Model & Trim Level
95 Sport 4x4
Sorry to hear about job, back, and motor!!! Also looking forward to the new and improved 4.0!!!


buford1972

New Member
Joined
March 13, 2011
Messages
13
Reaction score
2
City, State
Peoria, Arizona
Year, Model & Trim Level
91 XLT
Do you have any pictures or info on your adapter between the 4.0 LIM and the M90 intercooler/SC?

Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
Do you have any pictures or info on your adapter between the 4.0 LIM and the M90 intercooler/SC?

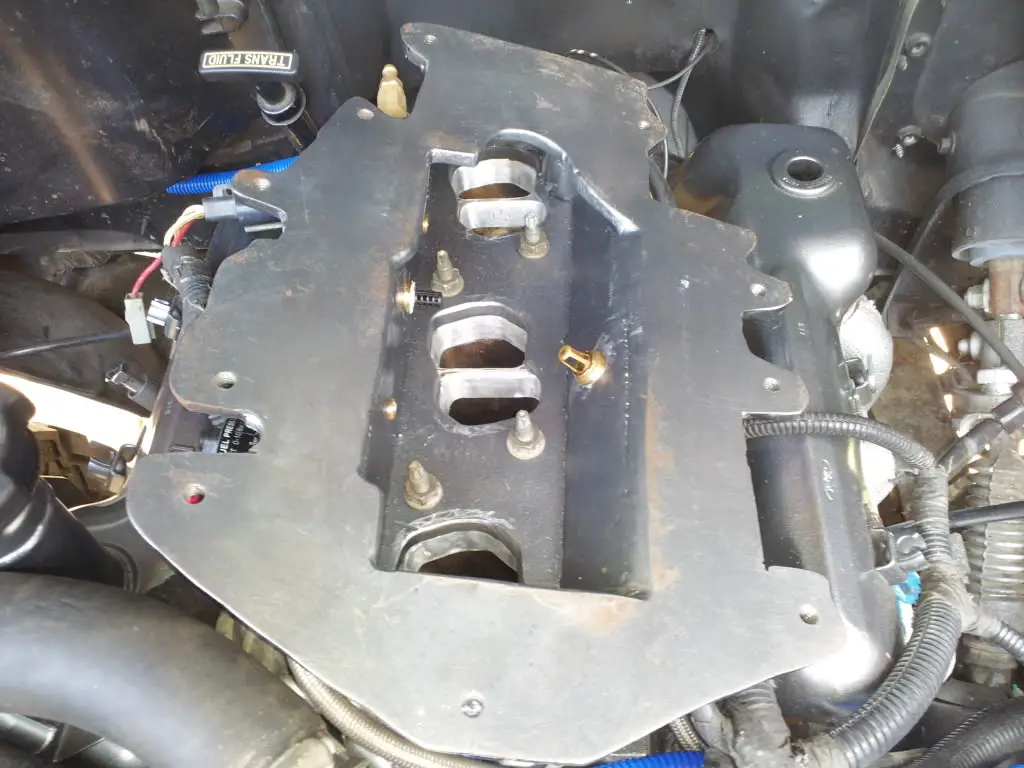

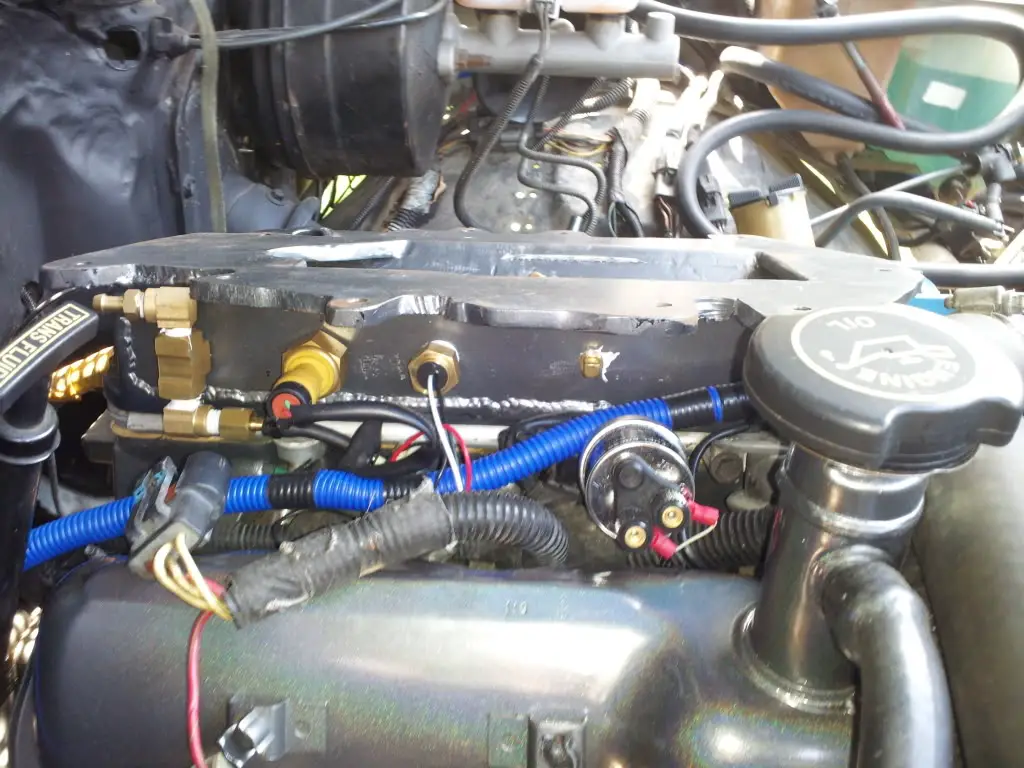

Its custom. .its for a GM M90 though
