My turbocharged 2000 5.0 AWD....

I just wanted to show off my DIY remote build. The truck is an AWD 2000 5.0 Explorer. - I like to think of it as an AWD SUV Mustang:) This truck actually was lifted with tube bumpers, safari rack, and 32" ATs on 20" wheels just a few months ago- it has undergone a big transformation here lately. It is now lowered slightly in the front with the rear at stock height(with sagging springs). I kept the same wheels but put smaller tires on them and added 2" spacers. Now onto the turbo...

The Turbo is a T04E 57trim which turned out to be perfect for remote mounting. It is a little small if one wanted 10psi+, but I planned on 6psi max and fast spool. I am using the stock exhaust with muffler delete to the turbo, then a 3" mandrel bent tailpipe. In the tailpipe is my AEM wideband o2 sensor. For charge pipe, I bought a 2" mandrel bent intercooler kit along with some 2" pipe from my local muffler shop. For couplers, I am using cut pieces of 2" ID radiator hose. It can be bought from Advance Auto pretty cheaply- I got one piece that was a large 90 for $13 and had some left over. I just cut it into the desired length with a bandsaw. The charge pipe goes to a 2" to 2.5" steel adapter, then into a 2.5" to 3" silicone coupler from AutoZone. This coupler feeds into my 3" BOV adapter then into the 3" mandrel bend aluminum pipe leading into the engine bay. I brought the 3" down pretty far to try and eliminate turbulence in the MAF.

I am using an STS oil pump to return the oil back to the oil filler neck. I got the pump from an STS dealer who upgraded a customers car to their high volume pump. I am using the nipple that originally had the vent hose to the intake for the oil return fitting- I am using a vented push in oil cap to make up for it. It was alot easier this way than tapping the oil cap like STS does.

I haven't had it tuned yet but it will break the tires loose from a rolling start in 1st gear(remember, I am AWD), and I have full boost almost immediately. I already have a 6psi spring for the wastegate that will go in when I put on the 30lb injectors and Cobra fuel pump.


Here are the pictures and it you have any questions just ask.


Attachments

  • IM000974 (Medium).JPG
    IM000974 (Medium).JPG
    81.4 KB · Views: 8,640
  • IM000977 (Medium).JPG
    IM000977 (Medium).JPG
    79.3 KB · Views: 7,788
  • IM000989 (Large) (Medium).JPG
    IM000989 (Large) (Medium).JPG
    71.5 KB · Views: 7,778
  • IM000972 (Medium).JPG
    IM000972 (Medium).JPG
    86.5 KB · Views: 11,460
<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




tmsoko

Well-Known Member
Joined
March 12, 2001
Messages
847
Reaction score
2
City, State
Plymouth, MI
Year, Model & Trim Level
2010 Adrenalin
The main concern with the stock short block is the block itself, not the rotating assembly (however, the pistons are iffy). The blocks tend to split in half when you get to the power levels you are speaking of. Even the FRPP sportsman blocks were failing below 500HP, leading to FRPP removing the HP rating from the advertisment.

As for block itself, the Man O War block is not the best choice for the explorer. I looked at getting one when Brian at ADPerformance had a special on them. problem is the 6 hole bolt pattern for head attachment. The exhaust side bolt hole boss will cause you a MAJOR head ache when trying to build custom headers for the engine in the explorer engine bay. When I made my long tubes, I had to pull the primaries VERY close to the block at the block/head interface, so the boss would have interfered if I went with one of those. Also, there are no (mainstream) heads that I know of that use the 6 bolt pattern, so no real benefit there either. Get a Dart and be done with it.

500+ RWHP (~600flywheel) through stock heads is increadible to the point of being in-creadible. Those numbers are normally seen with 185cc and up heads.

For my combo, I am shooting for ~550-600AWHP with a 351W, AFR205 heads, water to air intercooler and a 2.4L Kenne Bell. I know turbo's make better max HP on average over superchargers, but the 500+ listed above seems like a stretch on the stock part combos. I am building for durability however, which most of the mustang drag guys seem to overlook.

Now, get us the video - a little rain never hurt anybody... :)

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Jakee

Explorer Addict
Joined
May 6, 2006
Messages
2,824
Reaction score
5
City, State
Huntsville, Texas
Year, Model & Trim Level
01 Sport
Can he come-a-long a chain around the engine to hold it together?

<



tktrain

Well-Known Member
Joined
August 19, 2004
Messages
107
Reaction score
0
City, State
Evansville, IN
Year, Model & Trim Level
'98 XLT 5.0
Nah, he wants to get a billet titanium block...

<



<



Jakee

Explorer Addict
Joined
May 6, 2006
Messages
2,824
Reaction score
5
City, State
Huntsville, Texas
Year, Model & Trim Level
01 Sport
I don't WANT Justins engine to blow--

I just want to see it if it does--am I bad?

No - What would be bad is if you we're egging him on to go for it when you know what would happen. It's human nature.

However, Justin seems to be a smart guy. He's shown dedication and I believe he'll do well.

Watch me blow my little puny 4.0 up trying to get over 210 to the wheels!! Don't think I won't ask james to keep leaning it out till I see the numbers I want to see!!

No really, I will not take that chance. It's not worth it. I would save my money until I get all the stuff I needed to do it right. That away you don't have to worry about anything going boom.

<



justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,204
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo
The main concern with the stock short block is the block itself, not the rotating assembly (however, the pistons are iffy). The blocks tend to split in half when you get to the power levels you are speaking of. Even the FRPP sportsman blocks were failing below 500HP, leading to FRPP removing the HP rating from the advertisment.

As for block itself, the Man O War block is not the best choice for the explorer. I looked at getting one when Brian at ADPerformance had a special on them. problem is the 6 hole bolt pattern for head attachment. The exhaust side bolt hole boss will cause you a MAJOR head ache when trying to build custom headers for the engine in the explorer engine bay. When I made my long tubes, I had to pull the primaries VERY close to the block at the block/head interface, so the boss would have interfered if I went with one of those. Also, there are no (mainstream) heads that I know of that use the 6 bolt pattern, so no real benefit there either. Get a Dart and be done with it.

500+ RWHP (~600flywheel) through stock heads is increadible to the point of being in-creadible. Those numbers are normally seen with 185cc and up heads.

For my combo, I am shooting for ~550-600AWHP with a 351W, AFR205 heads, water to air intercooler and a 2.4L Kenne Bell. I know turbo's make better max HP on average over superchargers, but the 500+ listed above seems like a stretch on the stock part combos. I am building for durability however, which most of the mustang drag guys seem to overlook.

Now, get us the video - a little rain never hurt anybody... :)


Splitting the block isnt a major concern of mine, I am never going to rev mine to 6500RPM- so it will be less likely. I already have the Man O' War block and AFR heads, so I'll make do with the exhaust situation. These AFR's were on the engine when the block had a rotating assembly. I plan on building some log style manifolds in the near future, and I'll make them work on the new combo. Making long-tubes or even buying Torque Monsters will be pointless considering I have a turbo. I also have been looking at the Ford Racing headers that Summit has. They'll give extra flow capacity without alot of volume to fill. I am doing this when I move the turbo the front- which will be soon. It will probably be a low-mount, so I'll still have to use the oil return pump.

As far as 500whp with stock heads, there are numerous cars at turbomustangs.com making those numbers with stock heads at 15-20psi. I'll try to get some dyno charts after I get home from work. I dont want to make those numbers, I am shooting for 350-390ish. I'll be happy with 13's at the moment.


If and when I decide I want more I'll go with the new block. At the same time, I'll upgrade the fuel lines and go all out- but not just yet:)

<



justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,204
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo
Heck, sometimes even when no error has been made there are still kabooms that happen. Good luck man, forge it, fuel it, tranny it and boost it to all hell!


I know all too well about good parts going kaboom, that is the reason I have this Man O' War block in the first place. Its forged crank gave up under a big shot of nitrous, and the previous owner moved up to a 351. So I bought the heads first, then decided I better not let that block get away. The truck only gets driven about 1000miles a year, so if it sees a little down time its not a big deal. I recently got rid of my daily driver and looking for a replacement though:)

<



justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,204
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo

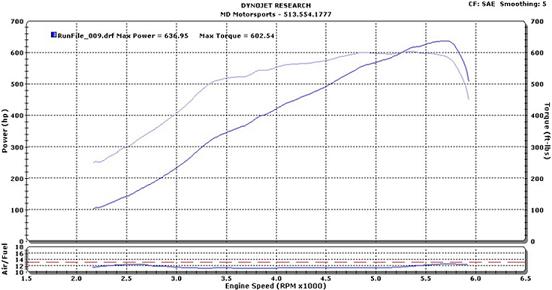

Ok, here's the first dyno sheet-
-stock explorer engine with holley intake
-MP T70 w/ .68 a/r exhaust housing
- 42 lb. injectors
- stock computer, no chip


Attachments

  • 636hpDYNO.jpg
    40.1 KB · Views: 701
<



justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,204
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo

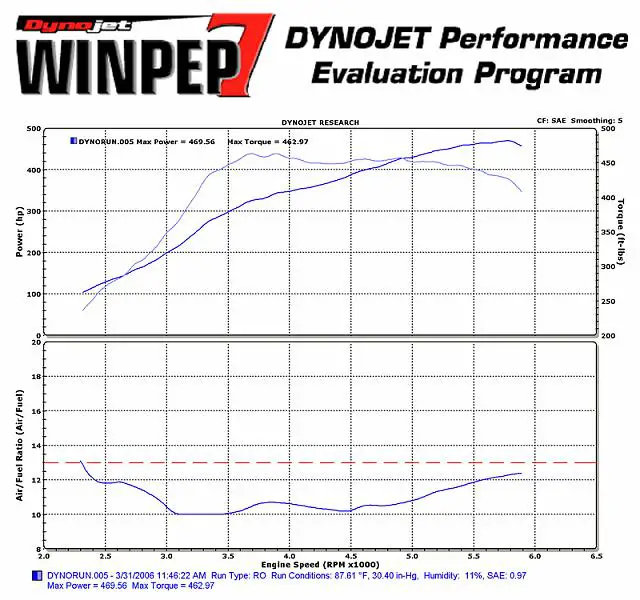

here is the second... not quite 500, but with E7's

turbonetics 62-1 turbo @ 13 psi - stock 302 shortblock, stock e7 heads, stock ecu, stock t5, f303 cam, holley intake, 42# injectors, Granatelli 75mm mass air, BBK 75mm throttle body, msd, 255lph fuel pump, single 3.5" exhaust with a straight thru muffler and a dump...

hp @ 470, tq @ 463

here are videos taken during another pull, same car

exterior shot http://www.wendyzak.com/dyno/wendy4.wmv

gauge shot http://www.wendyzak.com/dyno/gauges1.wmv


Attachments

  • dynosae.jpg
    69.1 KB · Views: 696
<



justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,204
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo

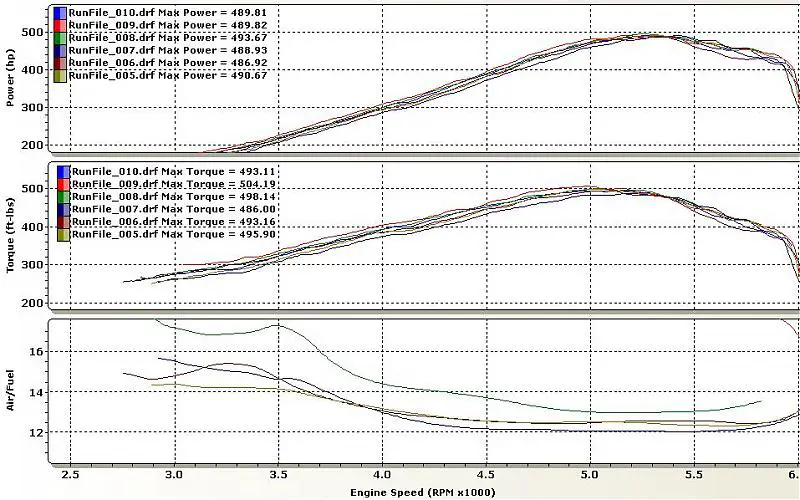

here's my last one..
