why not just invest in an aluminum link for the bottom. a 1 time investment.

I have been doing the press fix for mine for a long time now, but will be upgrading to an aluminum link across the bottom since it will bend back to original location. Ruff Stuff sells them
Main reason is its expensive, and mine is set up with a saddle type mount tig welded on for the drag link.

I will try the way I was thinking first, then if it bends again, replacing.

I was going to use my winch and a tree saver to try to straighten it, but it is so mildly bowed that it didn't change the toe, so decided to wait until I got home. Give it a better chance of success.


Join the Elite Explorers for $20. Gets rid of the ads!

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.





FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
101
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Have it heat treated.

A case hardening will make it into spring steel.



DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
41
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Have it heat treated.

A case hardening will make it into spring steel.
It's just 1020 DOM and heat treating would have no affect on it. It needs to be cro-moly to be heat treatable. That tie rod is too small imo, I'd go 1.5 x .250 wall...but still anything can be bent. I think Matt bent his tie rod once and it was 1.5 x .250 wall cro mo. Ideally having heat treated cro mo would be as strong as you can get.

Last edited:


BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,091
Reaction score
926
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
Thanks for the tie rod info. I will have to deal with it next month, as this month I am actually busy.

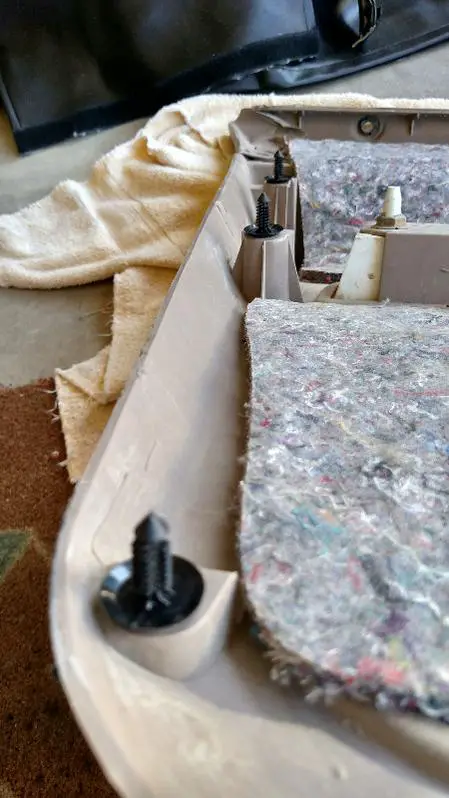

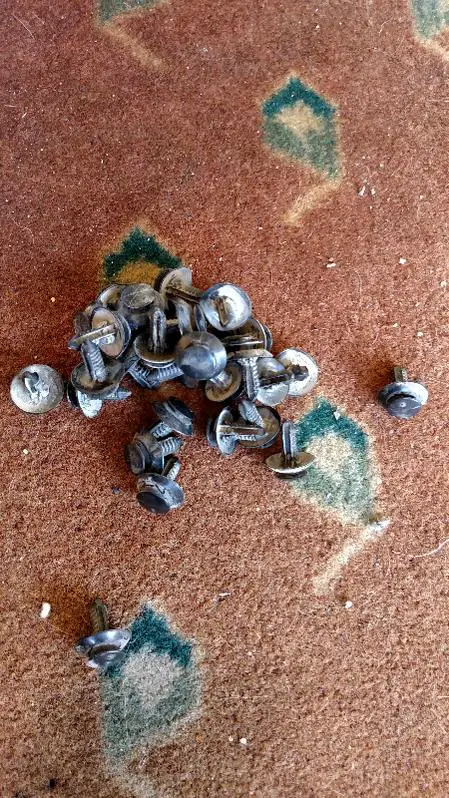

While I was cleaning up the Explorer from its dirt bath last weekend, I took the time to replace the door panel clips. They were all worn out and the only thing keeping the panel's on was the handles. $5 on eBay got me 30 new clips. Said they for 81 and up Mustangs, but are also for Explorers.
Old




New




Was 4 clips short, but the panel's are holding. Just for reference, 94 Explorer door panels have 8 clips on front, 9 on rear.



FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
101
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
It's just 1020 DOM and heat treating would have no affect on it. It needs to be cro-moly to be heat treatable. That tie rod is too small imo, I'd go 1.5 x .250 wall...but still anything can be bent. I think Matt bent his tie rod once and it was 1.5 x .250 wall cro mo. Ideally having heat treated cro mo would be as strong as you can get.
http://www.azom.com/article.aspx?ArticleID=6114

Just FYI



DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
41
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Last edited:




BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,091
Reaction score
926
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
My idea of finding some thick wall tube to press inside the tie rod is a fail. I thought it was 1-1/4 OD x 1/4" wall, but it's a funky sized 1-1/8 OD. No standard tube or hardened rod will fit. Can't sleeve the outside because of the saddle for the drag link and can't match the OD with the ID of a heavy enough wall tube to make it worth while.

Going to get it to the machine shop tomorrow and see what they can do with it. He can press it straight, but that's a temporary fix. Maybe he can come up with something else.



josh40601

Elite Explorer
Joined
January 17, 2011
Messages
595
Reaction score
169
City, State
La Mesa, CA
Year, Model & Trim Level
Ranger & Explorer
what's the ID of the funky tube?



RockRanger

Elite Ranger
Elite Explorer
Joined
January 14, 2001
Messages
6,209
Reaction score
176
City, State
Fresno CA
Year, Model & Trim Level
86 ranger no more
Callsign
KK6TDL
I'd go 1.5 x .250 wall...but still anything can be bent. I think Matt bent his tie rod once and it was 1.5 x .250 wall cro mo. Ideally having heat treated cro mo would be as strong as you can get.
Mine is 1.5x.250 cro mo. I have a sliggt bend in it. Maybe 1/32 of an inch. You cant see it unless you hold a strait edge to it. I am still running it as is.



Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,787
Reaction score
472
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT
Mine is 1.5x.250 cro mo. I have a sliggt bend in it. Maybe 1/32 of an inch. You cant see it unless you hold a strait edge to it. I am still running it as is.
Mine is the same size. But mine is DOM. I try not to run into things with the front axle after ditching the IFS:D





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
6
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Mine is the same size. But mine is DOM. I try not to run into things with the front axle after ditching the IFS:D
Mine is the same size Dom, but looks more like Jack Nicholson smiling. Still drives great at highway speeds, so I just leave it be. :D



BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,091
Reaction score
926
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
what's the ID of the funky tube?
Can't get a proper measurement because the ends are threaded and my calipers are not that deep (3+ inches). It seems to be thicker walled than 1/4" which is what BC Broncos says it is. 1-1/8", minus 1/2" should be 5/8". No where that I could find is there 5/8" OD thick walled tubing or cro-mo solid rod.

Can't leave it along, because its more like a Jack Nicholson as the Joker smile and it rubs on the drag link at full passenger side compression. And, it bugs me.

Last edited:


RockRanger

Elite Ranger
Elite Explorer
Joined
January 14, 2001
Messages
6,209
Reaction score
176
City, State
Fresno CA
Year, Model & Trim Level
86 ranger no more
Callsign
KK6TDL
Did you try mcmaster carr? I looked real quick and it looks like they have some that might work.



19Ranger94

New Member
Joined
March 29, 2016
Messages
2
Reaction score
0
City, State
Oregom
Year, Model & Trim Level
1994 ford ranger
I have to say the details in this thread are awesome! I have really used this as an outline for my own build. my one question though is did you end up trying the 94 f150 mc? did it work just fine with the stock booster?



Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
32,101
Reaction score
1,012
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
While still on the subject of brakes. Do you have a photo of how you bypassed your ABS pump? I still have mine in there and would like to free up the space.



BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,091
Reaction score
926
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
Did you try mcmaster carr? I looked real quick and it looks like they have some that might work.
Didn't try that, the machine shop guy says he will find some proper material to sleeve it with. I will post up when I get it back.

I have to say the details in this thread are awesome! I have really used this as an outline for my own build. my one question though is did you end up trying the 94 f150 mc? did it work just fine with the stock booster?
Kept the 99' MC in place. Adjusted the proportioning valve some more and removed the shims in the front calipers. Seems to have much more braking power now, but still not perfect. I am satisfied with it for now. What I am experiencing now is brake fade. Brakes work good at speed, fade quickly while slow crawling. Still work, but pedal gets soft.

While still on the subject of brakes. Do you have a photo of how you bypassed your ABS pump? I still have mine in there and would like to free up the space.
There is really nothing there to take a picture of as I removed the entire ABS pump, wiring, etc.. I used the OEM passenger side brake line since it was longer. One end to the MC, the other end I ran to the engine cross member and centered over the differential. Cut it down to length and installed the proper fittings. Used a 12-14" extended SS brake line from the hard line at the cross member to the hard line "T" manifold on the axle at the differential.
