Brian1 91 XLT 4x4

Brian1's 1991 Ford Explorer
Moab Edition

Drivetrain:

4.0 V6
BrianBuilt intake adapter with AEM Dryflow filter and Pre-filter
Dynomax cat back exhaust with
High flow cat
Spectre 3" Aluminum intake
BBK Throttle Body
5 speed manual trans With custom transmission mount
4.10 gears
Front D35 TTB, locked
Rear 8.8 with disc brakes, Powertrax No-slip locker, welded tubes to diff, Riddler Cover
Warn manual hubs
Manual BW1354 Transfer Case (swapped in)

Chassis & Suspension:
Skyjacker 2" coils and add a leafs
1" custom aluminum body lift
Quick disconnect front swaybar
Bilstein 5125s 10" shocks rear
Bilstein 5125s 10" shocks front
F250 Shock Tower Conversion
Custom Extended Radius Arms


Interior:
PRP daily driver seat
Cobra CB
E-track cargo tie down system
Lowrance HDS 5 Baja GPS for offroad explorations
Yaesu FT2800 HAM Radio

Wheels & Tires:
LT265/75R16 Dick Cepek Trail Country EXP tires (currently, Cooper STT and BFG MT in the past)
16" GenII teardrop wheels, formerly had 15" stock Gen II teardrop wheels

Misc:
Warn 9000lb multi mount winch with synthetic rope
Onboard Air using Viair 480c compressor and 2.5 gallon tank
Front diff guard from BrianBuilt
Rear u-bolt skid plates and raised shock mounts from BrianBuilt
Raised axle and t-case breathers
Custom Bolt-on Rock Sliders (version 2.0)
Custom Winch bumper
Custom rear bumper with tire carrier
9" Vision X ADV Cannons LED Lights (Old: 9" import LEDs and 7" HID Lights)
Reverse light
Pro-comp extended brake lines
9007 Headlight conversion
Fuel Pump Access Panel
Replacement Door Weatherstripping
Dual Batteries with auxillary fuse block
ARB Awning
ARB Fridge
Maxtrax Recovery Boards
Trasharoo Spare Tire Trash Bag

Project Super Stock








Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.






Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,613
Reaction score
2,291
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
I run the Amsoil/Injen "blue" dry air filters these days, I installed a amsoil pre filter over it, I could not be happier with the way it has handled our extremely dusty environment

We have like 14 trucks parked out front at any given time (custom truck / repair shop) and we live at the end of a 2 mile dirt trail we call our road. Every once in a while my neighbor will show up with a bolt....."hey found this on the road" and I CRINGE!!!!!!!!!!!!! LOL last time he showed up it was a rubber bump stop, I cant find any missing bump stops! drives me insane

















Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,272
Reaction score
366
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
The group run in Colorado was fun but I also did lots more exploring and camping on my own while out in the area. Here is a short video I put together of my wanderings. Everything went fine on the trip, had a strange puff of smoke out the tailpipe on a section of trail. We think maybe some oil possibly went through the PCV because it seemed to clear up. Got a few new scrapes on my rear bumper (in the video), rock slider and at least 1 wheel that I will need to buff out. Time to change the oil, get some new wiper blades and power-wash the Explorer.






Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,272
Reaction score
366
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Current situation, my Explorer has been down now going on a week with 0wheel-drive. I decided to rebuild my transfer case and freshen it up, nothing was wrong with it but I did have the rear yoke come loose recently and a vibration from that so I wanted to put new bearings in it at least. I ordered up a rebuild kit and new chain on ebay from a national distributor who claims to private label rebuild kits for several other companies. It came in while I was in Colorado and I took off my case last week to start the process.

Long story short the last bearing I got to after tearing the case completely apart is the input bearing. The rebuild kit did not have the proper bearing with a snap ring groove which keeps the planetary held into the front cover. I asked the company to send me the correct bearing and their customer service has been terrible. Last response I got was "That bearing was pulled out of the kit 2 years ago because it was discontinued" and nothing else. The listing picture still shows the correct bearing. I ordered the correct bearing Tuesday morning direct from another supplier but that has yet to ship as far as I know :banghead: I also ordered a new shifter bushing from a Ford dealer and that hasn't shipped either

Once the new bearing gets here, hopefully soon, I can put all the pieces back together. I plan on doing a brief/basic write-up on the rebuild (on this forum) as there really are no good tech write-ups I have found on the rebuild process start to finish. You can bet the company who supplied my kit will be getting a mention if they don't make good on it. Using their bearing would result in internal damage as the planetary and main shaft could walk without that snap ring securing the bearing in place.






Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,814
Reaction score
20
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
I rebuilt mine at about 200K miles. It was actually a simple job. Fortunately, there was no major wear, and it was clean inside.

Are you replacing the pump as well?





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,272
Reaction score
366
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
I rebuilt mine at about 200K miles. It was actually a simple job. Fortunately, there was no major wear, and it was clean inside.

Are you replacing the pump as well?

I wasn't planning on replacing the pump. Filter screen looked in good condition and hardly anything on the magnet. Did you swap a new pump on yours? I have no idea how many miles are on this case as I got it in a junkyard around the cash for clunkers time. Ive probably put 50k on it myself. Gears all look pretty good as well





Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,814
Reaction score
20
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
I wasn't planning on replacing the pump. Filter screen looked in good condition and hardly anything on the magnet. Did you swap a new pump on yours? I have no idea how many miles are on this case as I got it in a junkyard around the cash for clunkers time. Ive probably put 50k on it myself. Gears all look pretty good as well

I did. i figured since I was in there, I might as well. My magnet was clean, as was the filter screen.

I also changed the fluid every 15K miles, which helped keep everything clean.

Is this a manual-shift case?









Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
32,734
Reaction score
1,454
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Current situation, my Explorer has been down now going on a week with 0wheel-drive. I decided to rebuild my transfer case and freshen it up, nothing was wrong with it but I did have the rear yoke come loose recently and a vibration from that so I wanted to put new bearings in it at least. I ordered up a rebuild kit and new chain on ebay from a national distributor who claims to private label rebuild kits for several other companies. It came in while I was in Colorado and I took off my case last week to start the process.

Long story short the last bearing I got to after tearing the case completely apart is the input bearing. The rebuild kit did not have the proper bearing with a snap ring groove which keeps the planetary held into the front cover. I asked the company to send me the correct bearing and their customer service has been terrible. Last response I got was "That bearing was pulled out of the kit 2 years ago because it was discontinued" and nothing else. The listing picture still shows the correct bearing. I ordered the correct bearing Tuesday morning direct from another supplier but that has yet to ship as far as I know :banghead: I also ordered a new shifter bushing from a Ford dealer and that hasn't shipped either

Once the new bearing gets here, hopefully soon, I can put all the pieces back together. I plan on doing a brief/basic write-up on the rebuild (on this forum) as there really are no good tech write-ups I have found on the rebuild process start to finish. You can bet the company who supplied my kit will be getting a mention if they don't make good on it. Using their bearing would result in internal damage as the planetary and main shaft could walk without that snap ring securing the bearing in place.

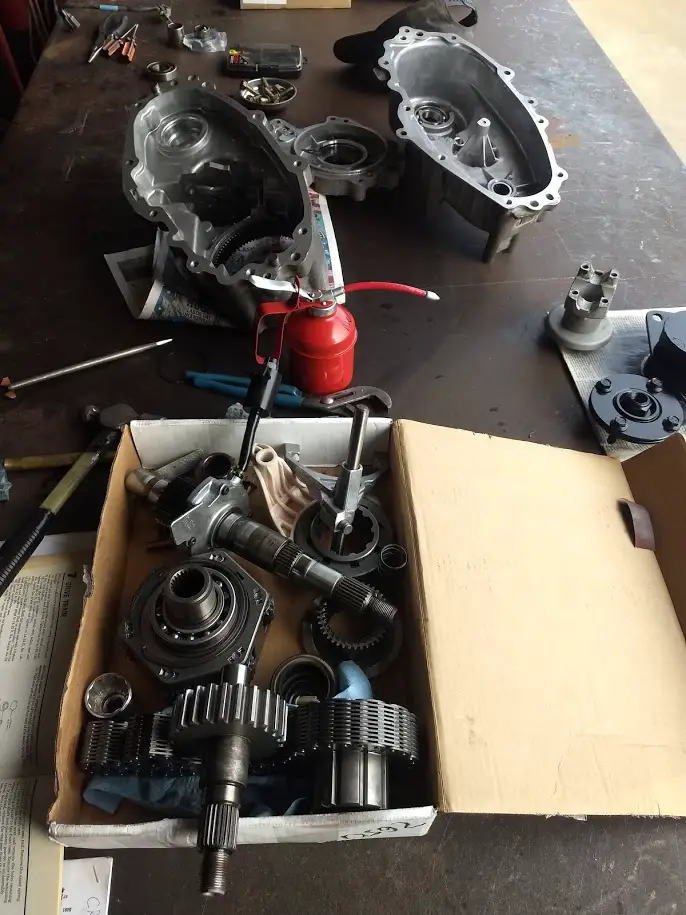

View attachment 321261


I just had to comment on the red oil can in the photo. A couple weeks ago I was filling the OD unit of the Dart with an oil can like that. I need the flexible wand to reach the fill hole. The tip of the wand broke off and fell into the OD unit:eek: Had to remove it and pull it all apart to get the darn thing out. Just something to watch out for. Mine wasn't obviously loose either.





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,272
Reaction score
366
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
I just had to comment on the red oil can in the photo. A couple weeks ago I was filling the OD unit of the Dart with an oil can like that. I need the flexible wand to reach the fill hole. The tip of the wand broke off and fell into the OD unit:eek: Had to remove it and pull it all apart to get the darn thing out. Just something to watch out for. Mine wasn't obviously loose either.

Yikes! Thanks for the heads up! It is a Harbor Freight unit so it wouldn't surprise me. I'm just pre-lubing the bearings with it but I also use it to top off my trans so I will keep an eye on that.





BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,975
Reaction score
1,418
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
If you got the kit on eBay you can initiate a return on it and they will probably send you a refund without making you send back the parts





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,613
Reaction score
2,291
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Brett just rebuilt one of these for my friend, a 96 1354m............when he did he upgraded it with 2004 Ranger FXII lvl 2 internals I believe there were some upgrades in those that make them stronger? Just throwing this out there, that is about the extent of my knowledge with 1354 rebuild....I have always just put another one in when one went south :)





Scott B.

Explorer Addict
Joined
February 15, 1999
Messages
2,814
Reaction score
20
City, State
GA
Year, Model & Trim Level
'93 Ranger XLT
Brett just rebuilt one of these for my friend, a 96 1354m............when he did he upgraded it with 2004 Ranger FXII lvl 2 internals I believe there were some upgrades in those that make them stronger? Just throwing this out there, that is about the extent of my knowledge with 1354 rebuild....I have always just put another one in when one went south :)

I wasn't aware of any difference in the internals of the FX4 case to the standard case. The documentation from my '06 Level II didn't mention anything about any upgrades.

Of course, if I still had that truck, I could go open it up and look... ;)





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,272
Reaction score
366
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Well there's your problem right there!

Noticed a cracked seal on rear driveshaft ujoint at the pinion so I decided to pull it out to check. Yup, that's junk. Too much dirt and water for it. They have a lifetime warranty so I'll probably just get a refund and get Spicer lifetime joints.






CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
21,214
Reaction score
1,965
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Good catch Brian. U-joints get forgotten by many people. I've been wanting to make time to replace some of mine.
