My little ranger is just not quite low enough in the rocks. I did the 4 cylinder transmission gear swap and that helped, but 5.13s and 35s still just isn't enough.
On my last build, I did the D and D doubler kit that is no longer available. The gearing was awesome, but there were a few things I didn't love. Duffy, the creator of the kit, told me never to put the front case in low when the rear case was in high. He said that would break the shaft in a heartbeat. That was a bit of a bummer because I wanted to use 2 low at times- and shifting the front without shifting rear would allow 2 low even when the hubs were locked. It also just made me feel a bit uneasy about the strength and reliability of the thing.
I had to cut the front case and weld in a block off plate to cover the hole where the chain went. This wasn't a huge deal, but I suck at tig welding so I had to get a guy to do it. Mine didn't leak after the second try at sealing it- and luckily the guy I had weld it did a wonderful job. But they were a little prone to leaking.
After all the driveshaft and belly pan work in my last build, I had decided I was going to run an Atlas on the ranger instead of a doubler. However, Advance Adapters no longer supports our platform. Thats not handy.
Here is a picture of my last rig:
Then I ran across Behemoth Drivetrain a few months ago: Behemoth Drivetrain
I know they used to have a terrible reputation but they have been purchased by a new owner, Jim. I called and spent some time talking to Jim and to his lead guy, Dillon, and I was really pleased to learn about where they have taken the company. Their shorty case for the 1354 Ranger and Explorer transfer case is a really innovative idea. It incorporates the whole front housing of the case into the doubler for a super short setup. The doubler basically houses the planetaries from both cases. It comes in at just over 4" over all!! I have 7" until I would interfere with the gas tank. Plenty of space.
I am pretty sure this case will fit in a Explorer Sport without getting into the gas tank.
This design also includes a support bearing on the shaft between the cases and a unique design for the intermediary shaft that allows it to be shorter because the transmission shaft goes inside the intermediary shaft.
Behemoth said I can do whatever I want and the shaft won't break. front case in low, rear in whatever.
Ill have to lengthen the front driveshaft- but that will help with the amount of available travel before my driveshaft bottoms, and I will have to shorten the rear driveshaft- which will help with the vibes it makes at 85 MPH.

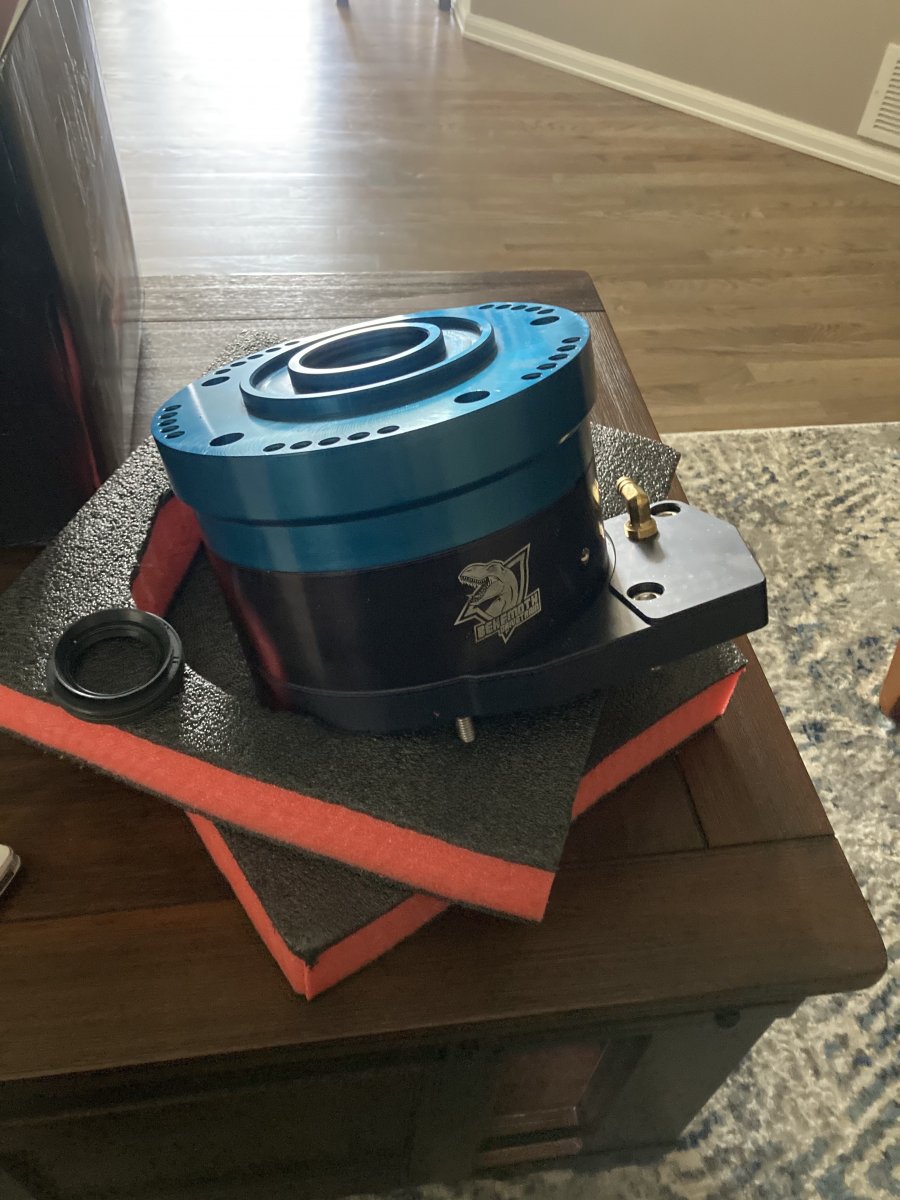

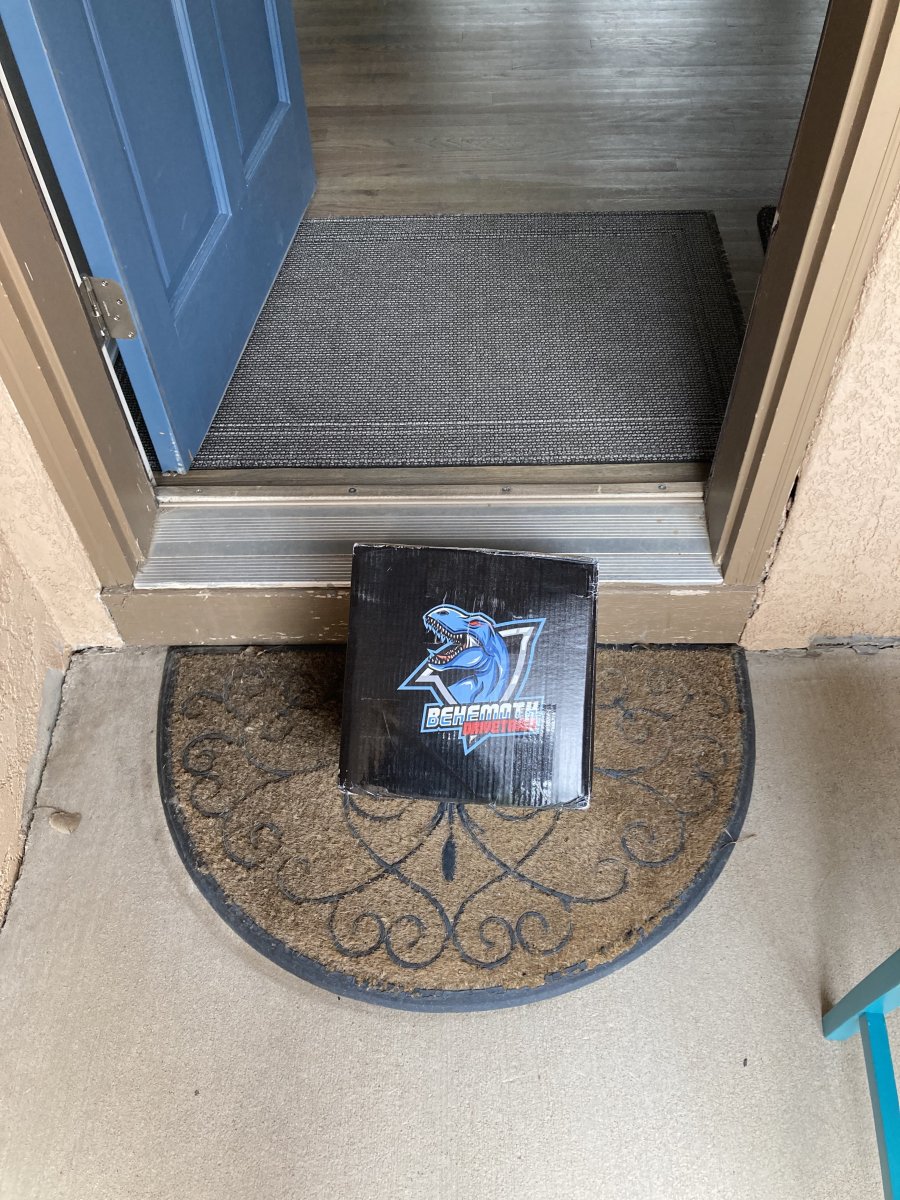

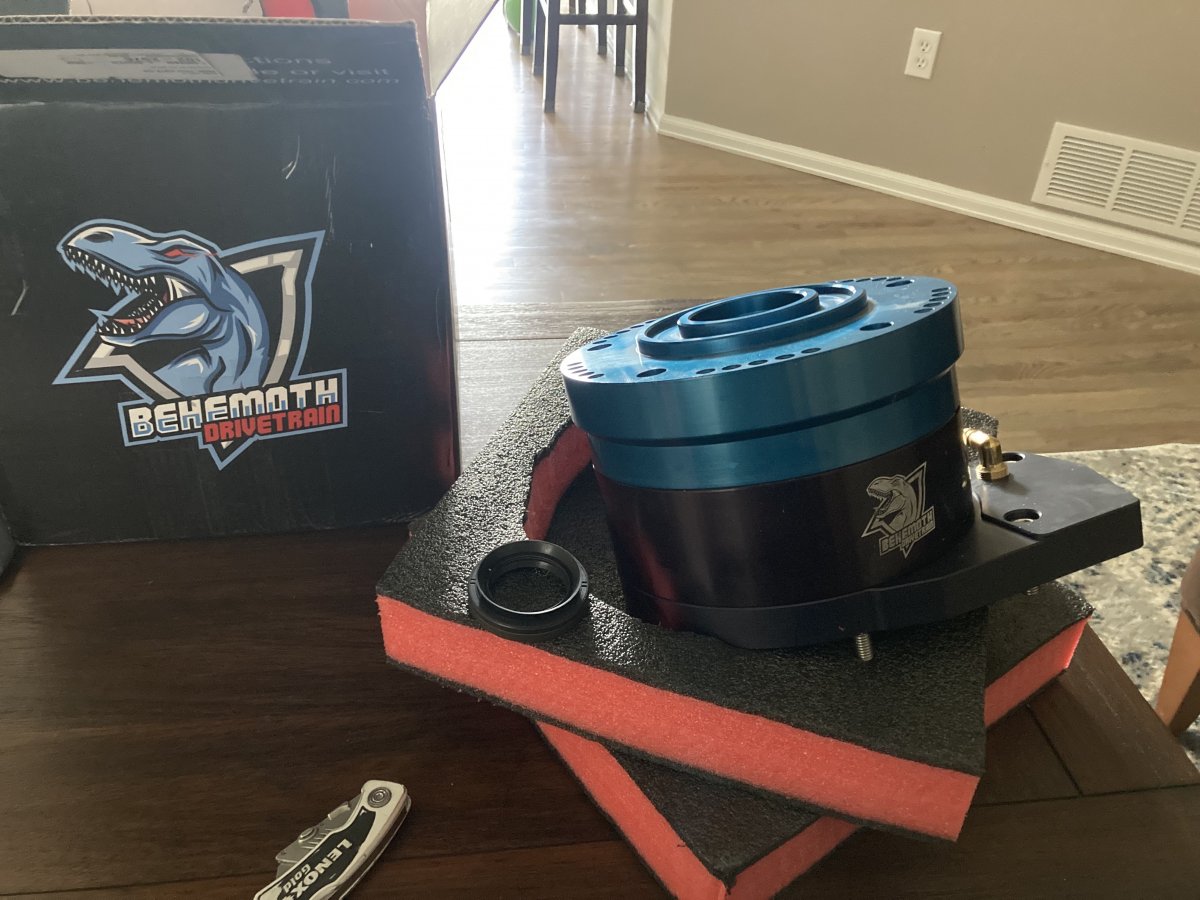

I will post pictures when it gets here. Everything I am seeing and learning about it- I think it will exceed my expectations.
behemothdrivetrain.com
I have never seen a doubler quite like this. I am really stoked to put it together and have low gears again. Once you have had low gears, nothing really compares.
They also have this beautiful billet tcable shifter- I got the twin stick setup. The doubler allows a ton of clocking options. My case hangs down maybe an inch now- should be able to fix it.
They also make a more typical 1354 doubler- little bit longer in size but similar design to the D and D and others I have seen- but without the strength concerns.
Checkout their website!
I had to buy one and a billet twin stick. I will add pictures when I receive mine and of course along the way as I install it. Pretty stoked to have some good support for our platform since Advance Adapters ditched us. And hey, this one is cheaper than an atlas!
