Snorkel On!!

Bruce-L

Active Member
Joined
August 30, 2001
Messages
77
Reaction score
0
City, State
Sacramento, CA
Year, Model & Trim Level
97 XLT

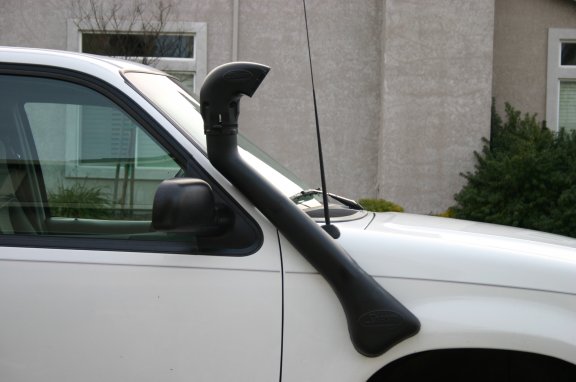

I used a Toyota Tacoma snorkel, heat gun for reshaping, an aluminum inlet bell from intenseperformance.com in the air filter housing, some wire reinforced rubber hose, a little aluminum intake tubing, a bunch of black silicone, and blocked off the stock inlet.
