I've been working on a 02 sport trac 5.0 and its wiring lately if you need further guidance

This thread is awesome, but it just dead ended 2 years ago now...........................



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Audible

New Member
Joined
April 29, 2017
Messages
12
Reaction score
1
Location
Canada
City, State
Winnipeg, MB.
Year, Model & Trim Level
2005 Sport Trac Adrenalin
I'm doing a 99 to 05 sport trac right now, its taking time but I’m guessing i should start a thread.
I haven't got to the real deep trouble parts yet.
When i started following this thread it looked promising. A lot of prep and documentation.





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,605
Reaction score
2,255
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
05 is a little more tricky but can be done
There are only a few examples of a 05 being converted online and the details are scarce
But the 05 model still has the C115 (on explorer v8 it is called c115, rangers c112, and sometimes others its c110 42 pin plug) which makes the swap way possible
You will have to wire around the fuel pump driver module and sort out the pats system or tune around it, 05 is the last year of the "easy" 5.0 conversion
After 06 they introduced the can bus communications network and smart junction box, no more 42 pin connector.........this is where it gets really nasty :)





COtoMI

New Member
Joined
June 5, 2019
Messages
13
Reaction score
7
City, State
Grand Rapids, Michigan
Year, Model & Trim Level
2005 Sport Trac 5.0
I did a 99 5.0 in my 05 trac. The main differences between an 01-03 swap is the fuel pump driver module wiring and the cluster. I ended up using the GEM and cluster from the 99 and a Dakota digital to get most everything working. If anyone has any specific questions, let me know. It can be done!





Audible

New Member
Joined
April 29, 2017
Messages
12
Reaction score
1
Location
Canada
City, State
Winnipeg, MB.
Year, Model & Trim Level
2005 Sport Trac Adrenalin
One of the things I certainly didn't catch before was the Fuel Pump Driver, that's a huge leg up!
CotoMI what is the reasons for changing the GEM? does it have to do with the digital portion of the cluster?





COtoMI

New Member
Joined
June 5, 2019
Messages
13
Reaction score
7
City, State
Grand Rapids, Michigan
Year, Model & Trim Level
2005 Sport Trac 5.0
The 04-05 digital cluster uses the SCP data links to get speed and RPM but i couldn't get it to work with the 99 ECU. The 04-05 cluster microprocessor does most of what the GEM did in earlier models so to swap clusters, you also need to add in the GEM. Big pain, but it worked! When I get the motivation, I have a 03 ST GEM that I will replace the 99 explorer GEM with. The SRS light is on with the current setup, I think because the way the restraint control module is wired up (different between 99-01 explorers and 01-05 tracs). You will also lose the auto headlights, but I'm sure there is a work around for that, just haven't bothered with it.





tjtheman007

Elite Explorer
Joined
May 31, 2010
Messages
61
Reaction score
9
City, State
Kankakee, il
Year, Model & Trim Level
2004 Sport Trac Adrenalin
All,
I apologize as reply notifications to this thread were were going to my spam folder within my email.

Give me a couple days and I'll have a formal update to this and see if I can give more clarifications to some of the questions.

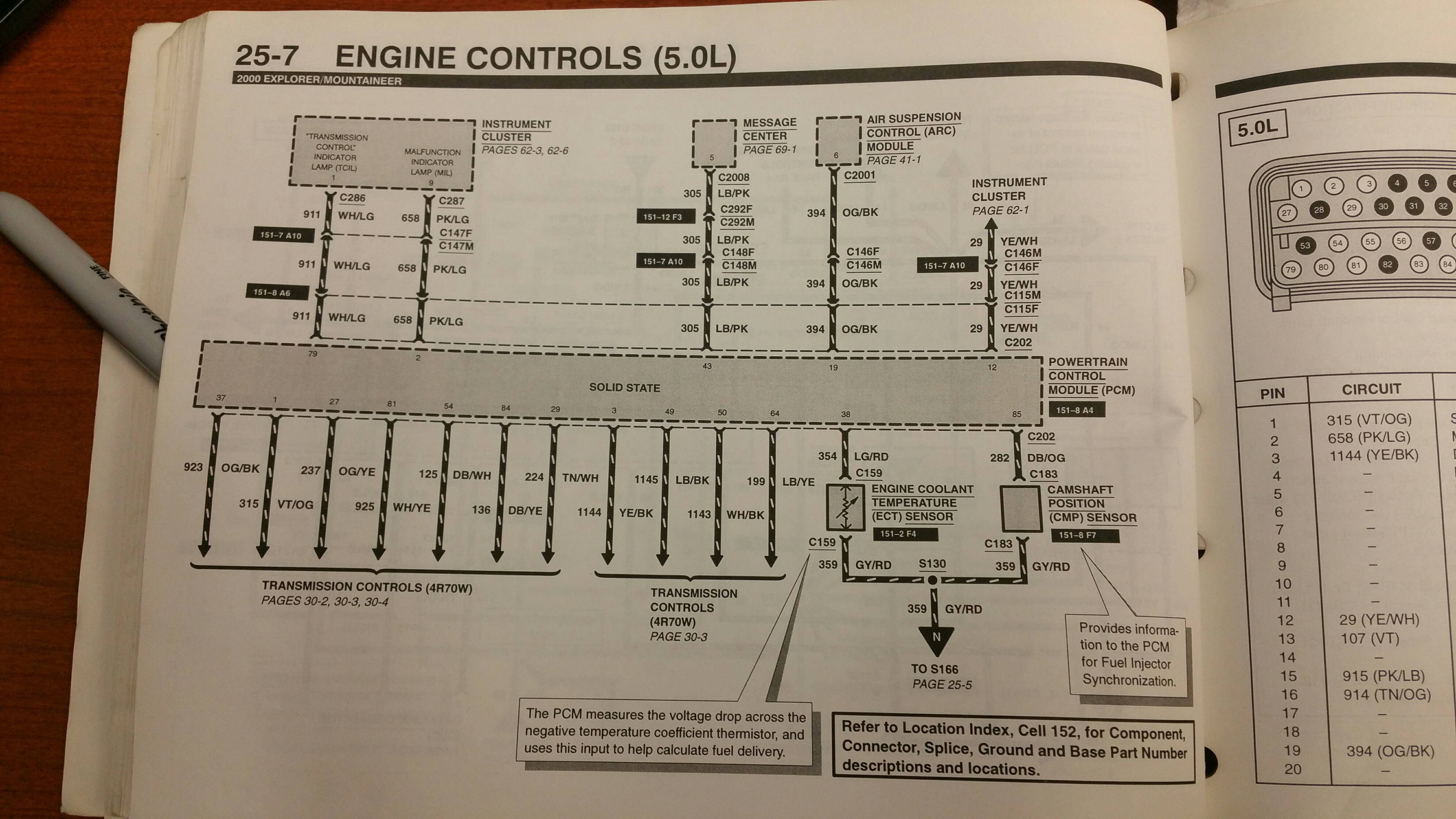

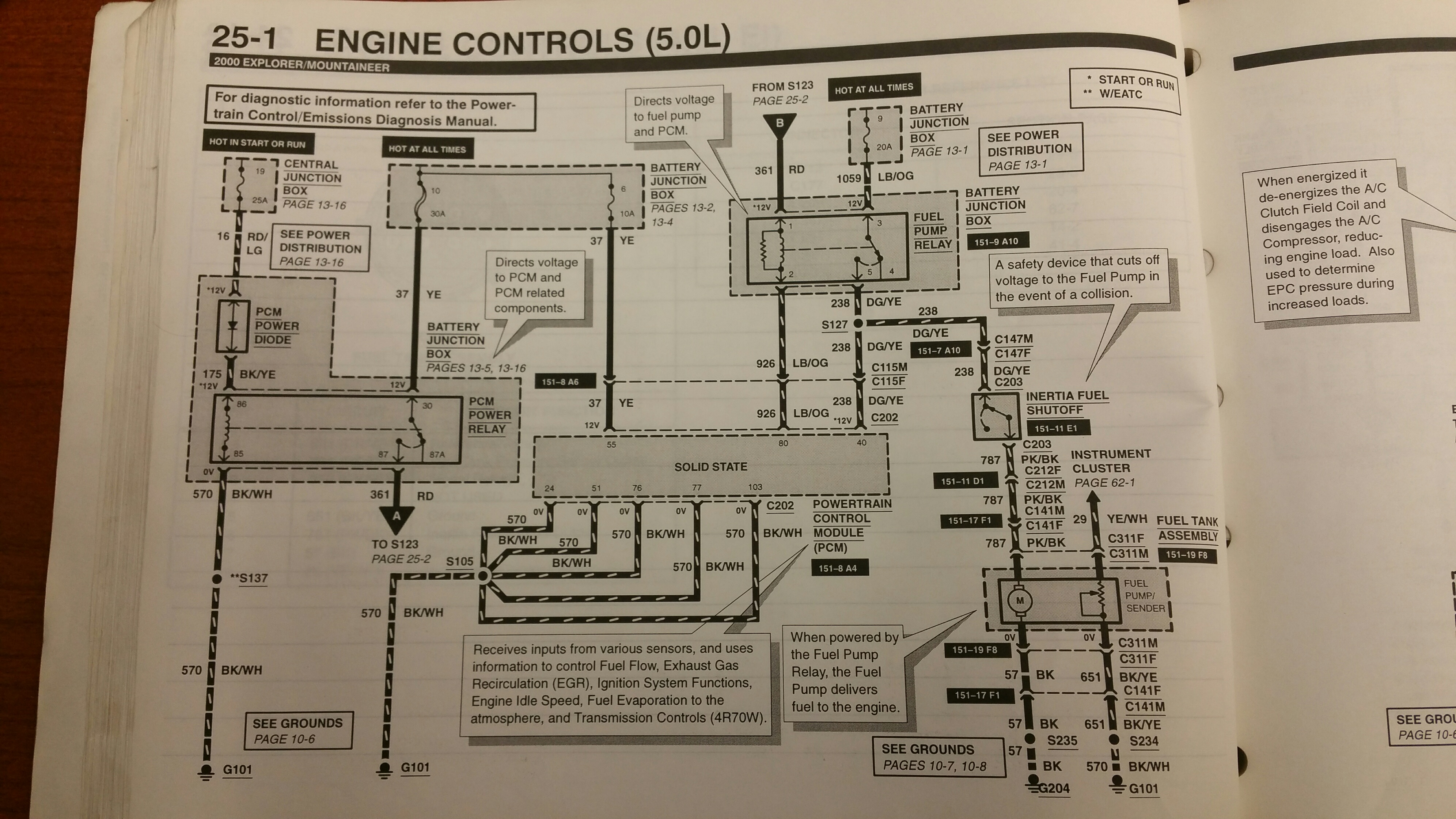

In addition to a wiring schematic for the 42-pin engine/body harness adapter/extension & the C139 harness, I also have a hand written wiring diagram that goes over bypassing the FPDM. I'll see if I can get that posted.


Please note, wiring for 04 & 05 Sport Trac's is different from the Job 2 01-03 Sport Tracs. 04 & 05, you have a digital cluster and a FPDM (Fuel pump driver module, next to spare tire) that needs to be addressed. A few of the pinouts of the 42-pin engine harness are different as well.



(Long story short, I still have the Sport Trac, but it needed the frame repaired. -Where the exhaust down pipe meets the cat-back. With the Illinois salt and the heat cycles of the exhaust, it wreaked havoc on the frame where those coupled.- Under the passenger front door, inside frame rail. I'll include some pictures of that. Kinda a known issue here in the rust belt on the 4.0 v6 explorers of this generation.
Engine is removed, trans is removed, exhaust is out, etc. The donor engine needed some attention as well. Time is my biggest enemy, but hoping to have everything installed within the next 1-2 months. I just need to get this project finished!! Its been farrrrr to long!)





tjtheman007

Elite Explorer
Joined
May 31, 2010
Messages
61
Reaction score
9
City, State
Kankakee, il
Year, Model & Trim Level
2004 Sport Trac Adrenalin
The 04-05 digital cluster uses the SCP data links to get speed and RPM but i couldn't get it to work with the 99 ECU. The 04-05 cluster microprocessor does most of what the GEM did in earlier models so to swap clusters, you also need to add in the GEM. Big pain, but it worked! When I get the motivation, I have a 03 ST GEM that I will replace the 99 explorer GEM with. The SRS light is on with the current setup, I think because the way the restraint control module is wired up (different between 99-01 explorers and 01-05 tracs). You will also lose the auto headlights, but I'm sure there is a work around for that, just haven't bothered with it.

@COtoMI Thanks for the information!!!
I was hoping the SCP bus WOULD work with the 04 Sport Trac cluster; the communication between the 5.0 PCM and the digital cluster. I assumed it worked similar to a ScanGaugeII. Crap, that might throw a wrench into things. Worst case, I can use a ScanGauge II if necessary temporarily to verify I can get the truck running. (My donor is a 2000 Explorer, so PCM should be identical to your donor 99) Did the Sport Trac cluster get any readings at all? I believe there are 1-2 analog gauges on there, did those work?



PATS is another post I'll have to make. I actually was able to self-program keys to work on the old PCM/PATS module -From the donor 2000. I'll need to swap in the donor's PATS module, but everything else should work. the 04-05 keys & PATS are a newer system with the newer style keys. I had to have the older style, the style used on the 99-01 explorers, cut to my ignition & doors on the Sport Trac. I then took apart the donor 2000 Explorer's steering column & ignition key socket so I could hold a good known working key within the RFID sensor while using the other within the key'd ignition. (This does require 2 working keys for the donor!) Its essentially just programming an extra key or two using the self-program method. I just had to take it a step further as the new keys were cut for the Sport Trac, not the donor vehicle.
I'll elaborate more later and include pictures. (Obviously easier to go to a Ford dealer and have them program it for you :) I was suborn and wanted to try this out for myself. It worked!)





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,605
Reaction score
2,255
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
well heck yeah! good info...looking forward to more









COtoMI

New Member
Joined
June 5, 2019
Messages
13
Reaction score
7
City, State
Grand Rapids, Michigan
Year, Model & Trim Level
2005 Sport Trac 5.0
@tjtheman007 I was hoping it would work too! I got readings through the scan gauge, but couldn't get the tac, speedometer or odometer to work. If I remember correctly, the other temp and pressure gauges worked, which is weird because those are said to be also communicated over SCP. If someone can figure this out, it would make the swap waaay easier. I feel like it might have something to do with the PCM and cluster being linked together somehow, but that is only a guess. I just gave up and went the old school route.





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,605
Reaction score
2,255
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
tacometer and speedometer issues with the digital smart cluster you might be able to solve with a little doohickey for under $100

Universal Speedometer Signal Interface

"(different between 99-01 explorers and 01-05 tracs). You will also lose the auto headlights, but I'm sure there is a work around for that, just haven't bothered with it."

I do not believe the 99-01 Explorer ever had a restrains computer.....





COtoMI

New Member
Joined
June 5, 2019
Messages
13
Reaction score
7
City, State
Grand Rapids, Michigan
Year, Model & Trim Level
2005 Sport Trac 5.0
That's the problem. 99-01 Ex fed the driver seat belt signal to the gem and then to the cluster and used the message center (if equipped) for the tone request (annoying beeping). 01-03 ST fed a single signal from the SRS for both driver and passenger to the gem and then the cluster and used the gem for the tone request. 04-05 ST fed a single signal from the SRS for both driver and passenger to the cluster and used the cluster for the tone request. Unless you can get the 04-05 digital cluster to work, I'd use a 99-03 cluster, a 01-03 ST gem and the dakota digital SGI-5E along with the original 04-05 abs unit. That should make everything work correctly (minus auto headlights). I used the 99-01 explorer gem which is why I think I have seat belt light and SRS light issues and no seat belt beeping.





Chris Cajun

New Member
Joined
February 24, 2018
Messages
6
Reaction score
1
Year, Model & Trim Level
2001 Sport Trac
To the OP, did you ever finish the truck? You had mentioned a paper copy of the fuel pump delivery module, is that something you still have? Like you, Im trying to do all the research stuff, so I have something to refer to for the wiring. Im putting a 2000 explorer 5.0 into a 04 ST. Thank you all for helping and giving your previous findings!
