Completed Project Kirby's 1991 Ranger Build Up

Use this prefix for completed projects that are not "How to" articles or threads asking for help.
I haven't posted much here since I sold my 1993 Mazda Navajo around 2010 or 2011. It was 10 years in the making and finally to a solid, reliable state. I had some other priorities and decided to sell it and get something more versatile. I will include some pictures below of its developing states and final state when I sold it below. In the end, it had 37" MTRs, Arb front, detroit rear, 4.56 gears, D and D doubler and I built all the armor and the Dana 44 front Solid Axle Swap.

James duff 3.5" VR coil lift, 235" defender tires and a home made heavy ugly bumper (around 2000 when I bought it) :


2001 with 33x10.50s and James duff 4.5" lift with extended radius arms, manual hubs and new auto tranny:

Here it is just after the SAS with 34s and a swapped in manual tcase and tranny:



Winching out of Mikeys hot tub circa 2002 or so



Stuck on a tree just after 37s


37s, winch bumper rebuild etc


Final State Explorerforum moab trip 2010







Last Poser Shots




I hear it still gets around Colorado and Utah and I have had buddies call me with airings from time to time.

I have had a few rangers and one explorer since I sold my explorer.
Here are some pics of those:

Beat up 1994 Ranger 2.4l ($250)


Traded 1993 Ranger 4.0l and an abused auto tranny



1991 Manual Tcase and Tranny Explorer Sport




We have also had a ton of cool Jeeps. Here are a couple of pics, along with our current Jeep which we are hanging on to:

2005 unlimited Rubicon Sahara 5.7 L Hemi



2005 unlimited Rubicon 35s and 4" lift


Our Current 2005 Unlimited Rubicon 4" Lift 315 Kevlars


It does great grocery getter, family truckster, and occasional wekend wheeler, but I need a truck and I miss my exploder, so I decided to build a Ranger. However, I want to build it a little different this time.

I have always wanted to build a 1989-1992 ranger, so I spent a considerable amount of time looking for a low mile one with the right engine, tranny and tcase in good shape. 4.0l, m5od and 1354M stock. My explorer ended up with this combo, but started out as an auto tranny and tcase. This made for a ton of modifications and headaches with my explorer. Rangers can be had in many other undesirable configurations because they were available with 3 different v6s in 1989-92 and a 4cylinder. It proved to be a difficult task. Finally in the fall of 2012 I picked this one up. A 1991 4.0l manual tranny and transfer case 4x4 extended cab "mountain States Edition. It had 130k on it and ran great. The paint was toast, it had a rusty bed and (my biggest complaint) it had no factory air.



I drove it for a year until I was ready to have it painted. I fixed a bunch on it- thermostat, muffler, wheel bearings, brakes, had a new headliner installed, etc. When I got a quote for the paint (one solid color and fix the dings) it was 2k. So then I started thinking I better look for a different ranger to build! I settled on this one. It too is a 1991, it has air (huge plus after not having it in my other truck all summer), manual case and tranny and everything else and a 4.0. The body is really straight no rust and the interior is super nice. The odo read 83k and I believed it.



Since then I tracked down the original and only owner to find it has 183 k on it and they were all hwy miles. The only complaints I have is I wish it had the other mirrors and pop out extended cab windows. I can deal with those, though. This truck has been taken care of.

First order of business was a tune up, brakes and leaky valve cover gaskets.

The build plan is pretty simple: build it similar to how my explorer ended up, with out all the half builds in between. It took me a lot of work and money to get my explorer to preform well off-road and on the street and be reliable. On this one I want to skip all the poor performing, cheapskate half steps I took with the explorer.

My goal is to end up with a reliable, daily drive able, off-road capable ranger that will make a great driver, great work truck and great expo vehicle. I like the idea of a truck over a explorer sport because I need to haul dirt bikes and Sheetrock and plywood and all kinds of stuff all the time so I always needed a pickup when I had the explorer even though I wanted to drive the explorer all the time. Hopefully this will do both functions well.

So far, I have installed:

A blue tooth pioneer stereo (replacing the stock tape deck)



A optima yellow top


A Black grill and headlight bezels along with new headlights:


The only body work it needs is the topper it had on it was put on with a loose and poorly placed clamp that rubbed a hole in the bed cap. I will weld it up and hopefully add a LineX bedliner over the top


I purchased a Dana 44 out of a 76 f150 with no guts or outers for a $50 bill. I still have my spare warn premium hubs off my ex, and I plan to build this one stout before I put it in and leave it full width but move the c bushings in about 2" per side. I will likely then run stock style f150 wheels with stock backspacing and 35s or 37s as skinny as I can find. It will get a full rebuild and at least 4.88s, maybe 5.13s. I am not decided on radius arms yet. I suppose extended ones are on the bill instead of the stock wristed ones I had before, but I haven't sorted that out yet. The wrist traveled fine but it clunked and made a racket and it was also a pain to get out and pull the pin when it was time to wheel. Extended arms won't perform quite as well on the street as the stock length ones did with the pin in, but longer arms should stream line things.

For the rear I will rebuild a full width late model 31 spline 8.8 put of a bronco or f150 and install explorer disk brakes. I will likely need to have the axle flanges turned down and drill the rotors for the new bolt pattern.

I will extend the wheel base around 3" by moving the front axle forward and leave the rear axle centered in the wheel well. I plan to leave the bed size stock as I need the truck to haul stuff all the time. I will build bumpers and sliders before I beat it up this time.

Stay Tuned, I am picking up the front axle tomorrow.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





May want to move that reservoir to the rear- that doesn’t look awesome for the brake line.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Well, I had some time to tinker today. I had to pull the head off the jeep due to a couple cooked exhaust valves. So it is down right now and I had some time.

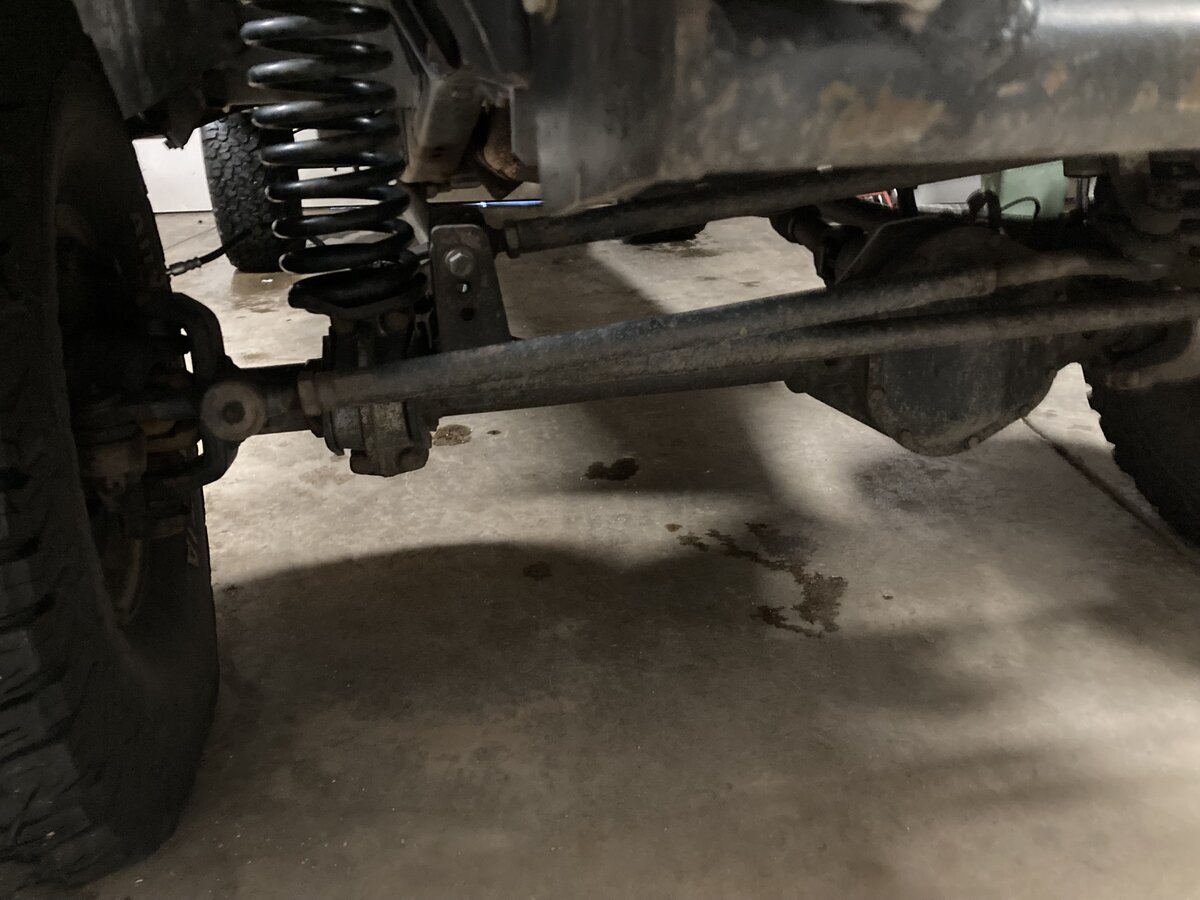

First thing, I was getting some death wobble and come to find out the tie rod ends on both ends of my tierod were so sloppy. So sloppy. Just completely worn out. I did replace the tierod ends on my drag link recently for the same reason, but haven't changed the ones on my tie rod. I ended up going with a Ruff Stuff Engineering passenger side tie rod end. The cool thing about these, is that they come pre drilled for the taper that will fit the drag link. I used Moog for the other end.

Tie Rod.jpg


Tier Rod 2.jpg

Quick Solid Axle Steering note:

The lower drag link joint- you have the choice of using a normal tie rod end, which is what I used on mine- this is a similar end to the one on the drivers side of the tierod, but left hand thread. That is what I used on this setup. Its the ES2234. I believe I got it in a kit from ruff stuff originally.

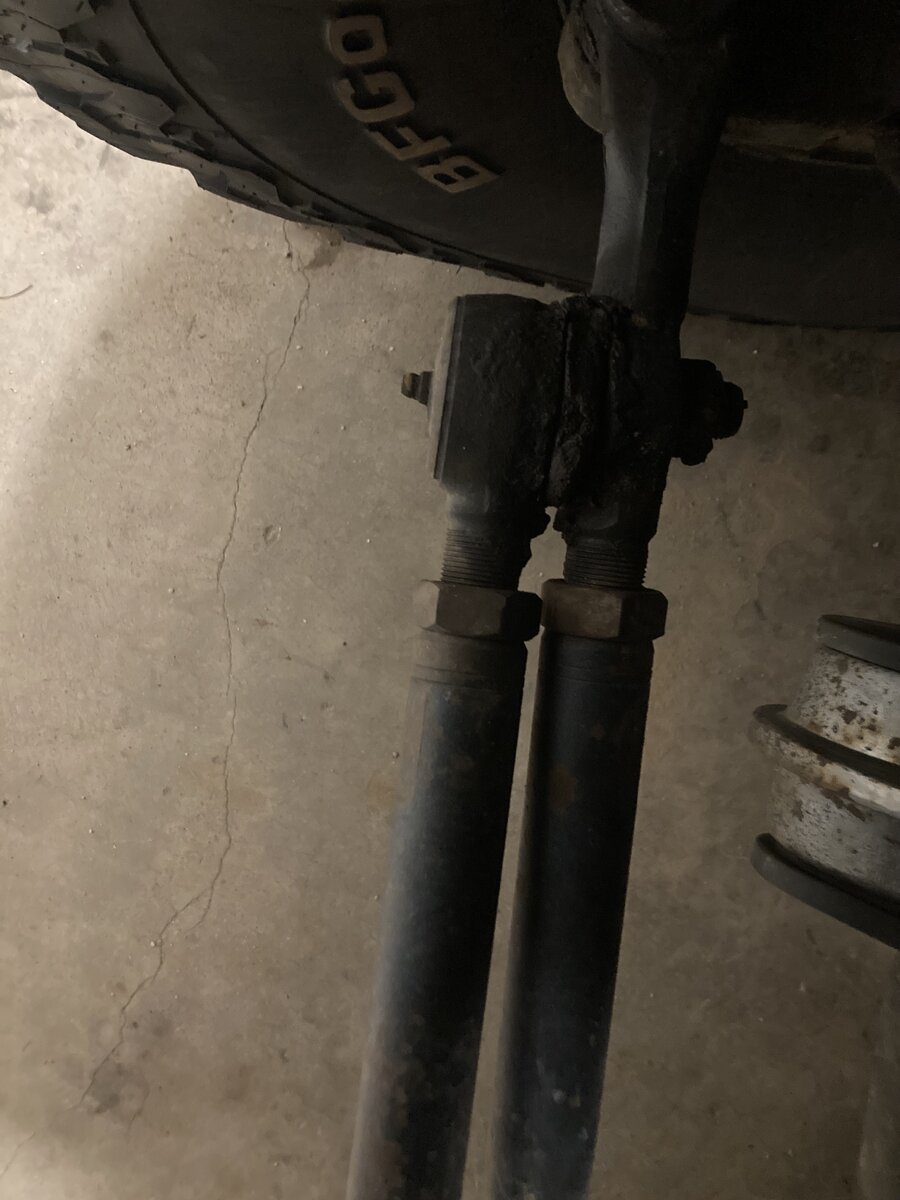

However, as you can see in this picture- its not the ideal setup.
Tie Rod 3.jpg

especially upon compression- there is a really good chance that the jam nuts and the link will make contact.

I should have used the ES2027L. This is a high angle joint that has more shaft and would get the jam nut up out of the way.

I think I was able to push my explorer axle a little further and it wasn't an issue because I used this joint on the bottom of the drag link (I built it with helms, so it wasn't something that I was worried about when I built it- but later swapped to the gm y link). The other think that allowed it to be further forward was that I didn't have a drop pitman arm and I had a higher ride height.

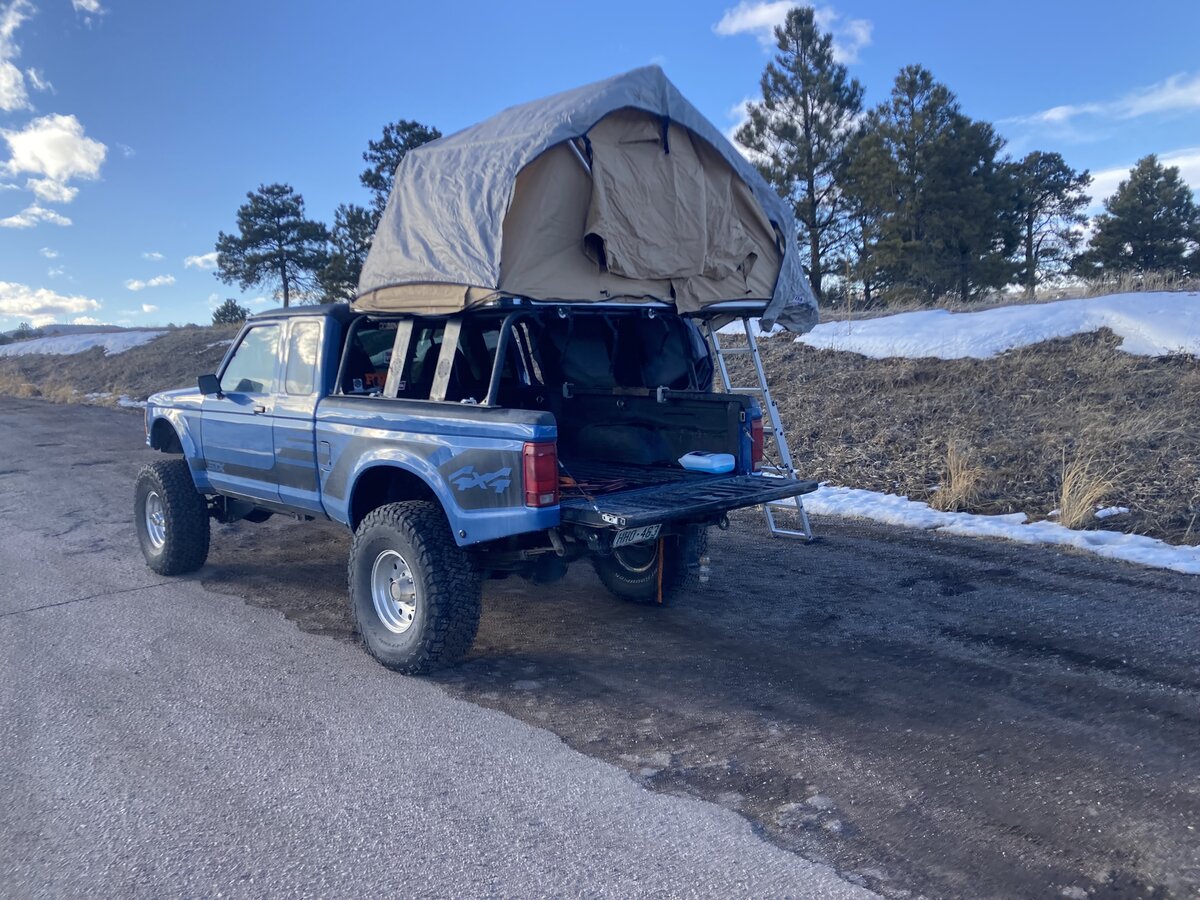

I also found a deal on a RTT I couldn't pass up. It is an ARB simpson 3. I think we are going to try to do a little camping this summer. This should be perfect for that.

I also went to the junk yard today and grabbed a throttle cable. I had modded the other one so that it would open up the throttle completely and with the new engine and throttle body- I feared it might have something to do with that. Quick swap. It ideas a little lower. About 800 rpm.







I also found a deal on a RTT I couldn't pass up. It is an ARB simpson 3. I think we are going to try to do a little camping this summer. This should be perfect for that. View attachment 439445
I also went to the junk yard today and grabbed a throttle cable. I had modded the other one so that it would open up the throttle completely and with the new engine and throttle body- I feared it might have something to do with that. Quick swap. It ideas a little lower. About 800 rpm.
nice truck! looks like how id build one if i did one lol







Last thing, I made a pretty large purchase today.

My front driveshaft is limiting my droop on the drivers side. And though my transmission gear swap has helped, I still want a little lower gears. I had decided I wasn't doing another doubler like I had in my explorer and on this build I would do an atlas. However, Advance Adapters no longer supports our platform. Thats not handy.

I ran across Behemoth Drivetrain a few months ago: Behemoth Drivetrain I know they used to have a terrible reputation but they have been purchased by a new owner, Jim. I called and spent some time talking to Jim and to his lead guy, Dillon, and I was really pleased to learn about where they have taken the company. Their shorty case for the 1354 Ranger and Explorer transfer case is a really innovative idea. It incorporates the whole front housing of the case into the doubler for a super short setup. The doubler basically houses the planetarium from both cases. It comes in at just over 4" over all!! I have 7" until I would interfere with the gas tank. Plenty of space.

I am pretty sure this case will fit in a Explorer Sport without getting into the gas tank.

This design also includes a support bearing on the shaft between the cases and a unique design for the intermediary shaft that allows it to be shorter because the transmission shaft goes inside the intermediary shaft.

When I had the d and d doubler, Duffy, the creator of the kit, told me never to put the front case in low when the rear case was in high. He said that would break the shaft in a heartbeat. That was a bit of a bummer because I wanted to use 2 low at times- and shifting the front without shifting rear would allow 2 low even when the hubs were locked. It also just made me feel a bit uneasy about the strength and reliability of the thing.


Also, with the d and d kit that I ran in my explorer, I had to cut the front case and weld in a block off plate to cover the hole where the chain went. This wasn't a huge deal, but I suck at tig welding so I had to get a guy to do it. Mine didn't leak after the second try at sealing it- and luckily the guy I had weld it did a wonderful job. But they were a little prone to leaking.

Behemoth said I can do whatever I want and the shaft won't break. front case in low, rear in whatever.



Ill have to lengthen the front driveshaft- that will help with the amount of available travel before my driveshaft bottoms, and I will have to shorten the rear driveshaft- which will help with the vibes it makes at 85 MPH.

I will post pictures when it gets here. Everything I am seeing and learning about it- I think it will exceed my expectations.




I have never seen a doubler quite like this. I am really stoked to put it together and have low gears again. Once you have had low gears, nothing really compares.

They also have this beautiful billet tcable shifter- I got the twin stick setup. The doubler allows a ton of clocking options. My case hangs down maybe an inch now- should be able to fix it.










drool!!!!!!!!!!!!!

how much does that set you back? Have to mod some mounts and some driveshafts but man your ranger just went next level with this!!!







The box itself is $1395. Then the shifters. I didn’t get cables with the shifters- not sure what length will be ideal. Behemoth offers 4’ cables, others offer assorted lengths. Wondering if I ought to get 1 4 footer and see if I can make it work. Never really setup cable shifters before. In my explorer I fabbed up another shifter off the stock pivot and hooked them up with all thread and heims. They weren’t quite setup correctly though- the handles traveled too far to get them engaged. Needed a longer arm past the pivot on the bottom side.







cables waaaay easier
48" might be enough do they have a 5' option? Ill have to checkout their site
Cant believe we are talking about behemoth again! good!!







Klune used to offer an under/overdrive unit that was divorced you could mount a transfer case to. It was discontinued by the time I was ready to buy it.







I have the older version of the Behemoth shorty doubler and like it overall but it was kind of a pain to install. It works perfect with the 1354 but once you put it in an Explorer chassis it gets interesting to get it to fit. The clocking options are pretty much non-existent, there is 1 hole you can use, maybe 2 if you are lucky or else it just wont fit under the floor or hang really low. Also, I hope they have changed the design and made the threaded bolt holes bigger for stock-sized bolts. The old ones used a smaller bolt than stock that had a lot of slop, so far it hasn't been an issue but that was one of my gripes.

Do you have a body lift? I had a 1" body lift and it helped to fit it under the floor but I still had to cut some body and exhaust heat shielding. I don't know how people without a body lift are fitting the doubler, I never found a good install write-up showing how it fits in the Explorer/Ranger. I detailed my install a little bit in my trail Explorer thread and I would put it up against any other install as one of the cleanest out there for the 1354 shorty. I used the cable but made my own shifters and bracket off the stock mounting points for a few reasons, the big one being I like to pull back to go into low gear and with their shifter setup you push the lever forward to go into low. That is backwards from any other 4x4 I have ever owned.

Looking forward to seeing your install. Once you get it in and start using it you will like it too.

edit - Link for my doubler install







Seems like a good way to add length to the drive train and get more gear options. I've planned on getting a NWF iBox for a while now, just haven't jumped in.

I was looking on Behemoth web site and they have lots of options, but nothing about an Atlas. The NWF box integrates with Atlas, but maybe the 300 box does that for Behemoth.

When they are talking about gears, do they mean the planetary gears? I'm letting my ignorance of transfer cases show here, but I have a NP231 planetary under my workbench.







cables waaaay easier
48" might be enough do they have a 5' option? Ill have to checkout their site
Cant believe we are talking about behemoth again! good!!

Thats good news! Behemoth only has the 4' option. I did tell think Jim might have had better success changing the name! JB Custom Fab has some different length cables.







I have the older version of the Behemoth shorty doubler and like it overall but it was kind of a pain to install. It works perfect with the 1354 but once you put it in an Explorer chassis it gets interesting to get it to fit. The clocking options are pretty much non-existent, there is 1 hole you can use, maybe 2 if you are lucky or else it just wont fit under the floor or hang really low. Also, I hope they have changed the design and made the threaded bolt holes bigger for stock-sized bolts. The old ones used a smaller bolt than stock that had a lot of slop, so far it hasn't been an issue but that was one of my gripes.

Do you have a body lift? I had a 1" body lift and it helped to fit it under the floor but I still had to cut some body and exhaust heat shielding. I don't know how people without a body lift are fitting the doubler, I never found a good install write-up showing how it fits in the Explorer/Ranger. I detailed my install a little bit in my trail Explorer thread and I would put it up against any other install as one of the cleanest out there for the 1354 shorty. I used the cable but made my own shifters and bracket off the stock mounting points for a few reasons, the big one being I like to pull back to go into low gear and with their shifter setup you push the lever forward to go into low. That is backwards from any other 4x4 I have ever owned.

Looking forward to seeing your install. Once you get it in and start using it you will like it too.

edit - Link for my doubler install

Thanks for the link. Your install is clean! Yours looks like an older version like you said- with previous ownership. From what I understand Jim has been building this Strongbox for less than a year. I first talked to him when I was building my engine in the fall, but I wanted to get the engine sorted before I ordered one. I understand that they improved on the shifting design and detents. Your shift fork looks significantly different than the one in the install videos. I hope they also changed the bolt holes that you mention. I will ask about that.

I dont have a body lift. I was able to get my explorer doubler flat with a little trimming under there and some hammer work- not a lot. Mine was a sport- so it may have been different than yours. I expect I might need to do the same to get this one flat- I will document what it takes. I also trimmed some un needed material off the top if I remember correctly. Your shifters look a lot like the ones I built for my explorer- but I like that cable orientation going around the back. That is brilliant. It is tough because there isn't many others using this setup. I want a stock looking setup like yours. That is what I will be shooting for.

I remember the first thing I did with my explorer doubler is stood on the brakes in the garage and smoked the rear the rear tires at idle. That destroyed my engine mounts. Haha! Then I had one rip apart on hells revenge and had to chain my engine down. I dont think that will be an issue on my ranger because I have your engine mounts and Rockranger's transmission mount.







I have the Behemoth on my wish list. Not sure if I can make it fit in the Navajo though. There is not a lot of room there, with the 2nd gen tank in the 1st gen.

What pitman arm are you running? I can't believe how flat your steering link is. Mine in my Explorer has way more angle. 🤔







I fit a d and d in my sport with the stock tank. My rear axle was moved back 1”, so I modded the stock tank mounts to set the tank back 1” too. Then I cut the front of the skid off and the dampner and bosses off the transfer case and it fit. Like I said earlier, I really think the shorty would fit with out all that. I also like the idea of less tcase hanging off the back of the tranny and the strength of the design replacing the whole front section of the rear case.

My drag link is pretty flat. Thanks for noticing. I worked hard to get it there when I built it. I am running a standard ranger drop pitman arm and relatively low ride height with I think I remember 6” springs and full height f150 buckets. I noticed on my explorer that part of what limited my travel was the axle moving drastically laterally through travel because my drag link was steep- I built my track bar to match so I wouldn’t have bump steer. It drove fine, but it inhibited travel.







60” cables a little easier to work with allow you enough room to make a full u turn and keep it from getting too tight of a circle

I have a bii with no body lift and a v8 stuffed in there with huge transmission, I still bet I can make one of these suckers fit ;) now just need some money hahaha







@Brian1 I talked to Dillon today at behemoth. He said the shifter forks have been updated with billet steel instead of fabricated parts and the moving parts have been case hardened and hard coat anodized. He also said all of the assemblies use holes that are 1/32" of an inch larger than the bolt for clearance- which is an industry standard- and they haven't heard of sloppy bolts.







@Brian1 I talked to Dillon today at behemoth. He said the shifter forks have been updated with billet steel instead of fabricated parts and the moving parts have been case hardened and hard coat anodized. He also said all of the assemblies use holes that are 1/32" of an inch larger than the bolt for clearance- which is an industry standard- and they haven't heard of sloppy bolts.

Maybe I wasn't clear enough - If you take the factory transmission to t-case bolt and compare it to what the Behemoth is drilled and tapped for, the stock Ford bolt is larger and will not thread in them, not even close (and not because of a metric vs SAE difference). They, at least on the old version, require a smaller bolt to mate the doubler to the transmission adapter flange. To put some numbers to it it was something like the transmission flange has 1/2" holes for the bolts and the Behemoth is tapped for 3/8" bolts. A 3/8" bolt in a 1/2" hole was really sloppy and I was worried about torque rotating the whole doubler around the shaft at the mating face because of that slop but so far that hasn't been an issue I have noticed.

Its good they upgraded the shifting mechanism, the old one was kind of janky. The problem where it chewed up the inside of my case was probably because loctite was not used on the bolts holding the blocks to the swing arm when it was assembled at Behemoth.







Cool! I share with Dillon and see what he says




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





@Brian1 here is the response:

"Newer cases use 10mm bolts (0.394”). Older cases use 3/8” bolts (0.375”). Behemoth Drivetrain uses 3/8”. With only 0.019” difference, this is not going to be the issue. The through holes in the transmission adapter would be nearly the same “slop” with either thread size.


The industry standard for this through hole would be about 0.406” to 0.438”. We will almost always drill these to 0.406” on any components we are manufacturing.

Older Transfer cases from Ford, Chevy, Dodge, and Jeep will be 3/8" bolts. They all started moving to metric around the late 80's. Behemoth has always used standard bolts, no Ford case used 1/2" Bolts to mate to the transmission.
