Looking good you building those in the shop where you work at.

I am building these at work which is an 80,000 sq foot building. Plenty of room to move around :)

I am taking a break right now, working on the mounts, should have one side done and a coat of paint on before I go home. The other side will have to wait until after Christmas.

After seeing Brian1's and Froader's with the tube outters, I think I am going to take these somewhere and get some tubes put on before I get the painting completely done.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I got some done today not as much as I would have liked. I made two U shaped brackets to slide up on the frame, then drilled holes at the top to bolt them in.

To make my welds stronger, I beveled the edges of the butt welds





Here are the brackets in place-

Rear bracket by the gas tank



I am going to be able to leave the tank in to install these



Middle bracket, by the transfer case



The front bracket is two plates with four holes drilled in them



I didn't bother making a U bracket for the front, I gain nothing by doing so since the torsion bars are there.

Now, a question. I cut my first piece of metal shorter than this one, but it looked funny to me because it didn't go from wheel well to wheel well. So I made my second cut a little longer. It fits nice and tight- But is there a reason others haven't made theirs like this?

These pictures aren't with the slider mounted, but this will be very close to how it will end up.









Should it be shorter??













FROADER

Staff member
Moderator
Elite Explorer
Joined
January 28, 2000
Messages
19,964
Reaction score
233
City, State
Huntington Beach, CA
Year, Model & Trim Level
1991 Eddie

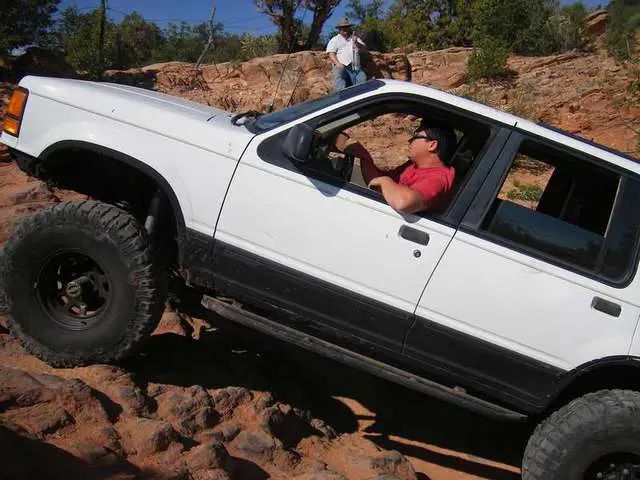

Look at the back of mine and see how close the tire is to the body. If it was as long as yours I might be rubbing on it already. The front I'll be cutting my fenders just about to where the slider stops next week, for tire clearance.








Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
14,117
Reaction score
1,166
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 X '19 Rngr
Don't put them so high.. leave a gap between the body and the slider. Other wise when you hit arock you'll just crush the your body. and like colin said shorten them a bit, but maybe not as much as colins.







MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
How much of a gap should I leave?

I don't intend to put them as close as they are in the picture, it was just the best I could do with the limited adjustments of the jackstands.







Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
14,117
Reaction score
1,166
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 X '19 Rngr
I would say move them down a inch or so. make the top of the slider even with the bottom of split seam, or just above it.;)







MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Well, the pinch weld is 1" down- I got one mount made today that put it about 3/8" into the pinch weld, which leaves about 3/4" from the body. Is that too close?

If it put corner gussets on the brackets, making the sliders rigid, how much will the frame give with three outriggers?







Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
14,117
Reaction score
1,166
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 X '19 Rngr
Well, the pinch weld is 1" down- I got one mount made today that put it about 3/8" into the pinch weld, which leaves about 3/4" from the body. Is that too close?

If it put corner gussets on the brackets, making the sliders rigid, how much will the frame give with three outriggers?


3/4" should be good:thumbsup: I'm only running 2 supports, but I'be been meanig to add a third. If you can do a third, do it. The frame will still flex, but just remember, a little flex is ok....if not good. With out it you'll be flexing other parts that may not be as strong.

I would have to say though, I think my frame and body flex less, after the sas, sense now the susp. does all the work.







95beater

Member
Joined
March 5, 2004
Messages
33
Reaction score
0
City, State
West Houston, TX
Year, Model & Trim Level
1995 XLT
Bump.

I love what you are doing with your Mounty. :thumbsup:







MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I would have to say though, I think my frame and body flex less, after the sas, sense now the susp. does all the work.

Yeah, Ive been thinking about that whole SAS thing for a little later. :D













MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
No progress yet. I have been doing family suff but will go back to work on it tomorrow. I did get a new 6 amp 1/2" drill to drill my holes with. I about burned up the old 3/8" drill. Smoke was rolling the other day when I was finishing up.

Not really related, but I also got SAE and Metric sets of gear wrenches. :)













MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Yep, the tools were just what I wanted. I got some Craftsman universals and a magnetic pickup tool with a light built in. :D Tools are great :thumbsup:

No work today, ended up staying with the family longer than planned. I intend to start in early tomorrow and work all day. I should get both sets done tomorrow, I am almost done with the first one now. I've got to get these things done.

Now Ive got some tools to try out, they should make things easier. They will be painted flat black for the short term until I get the tube outer parts done and welded on.







MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4












Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,367
Reaction score
556
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ






MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,482
Reaction score
47
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
A question about welding-

Can I weld on those brackets while they are on my truck if I disconnect the battery or will it fry stuff?

Ive never welded on a functioning vehicle, and I don't want to fry anything.
