The rig gets some much needed TLC

Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4

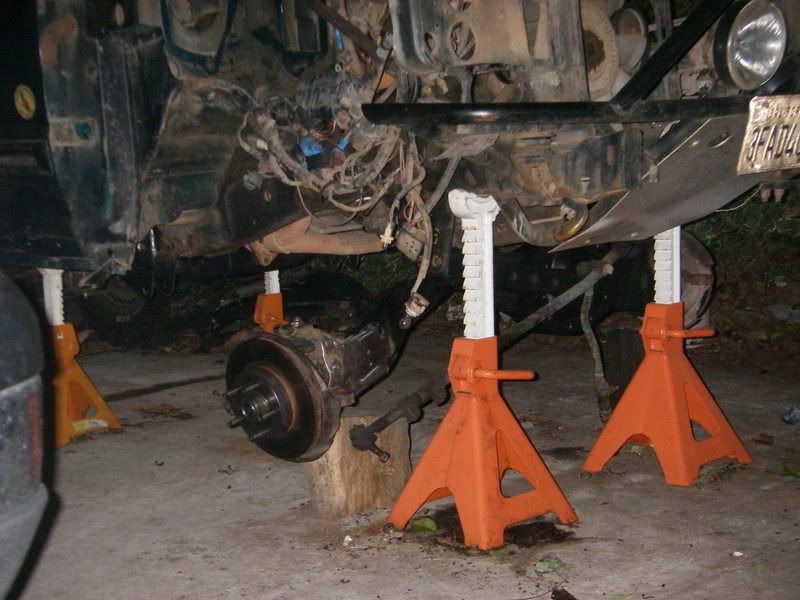

Well I got the motor crossmember bent back into submission(still need to gusset). Found out that the passenger side beam I made was messed up so we grabbed another from the junkyard and I got that finished up yesterday. The rotors and bearings got all cleaned up and the beams thrown on the truck. Started on the radius arms a little bit so that is next up!

Truck with beams patiently waiting for radius arms


Had a buddy helping me out for the afternoon:)


First step towards the radius arms:D

Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


ReDLiNeZL

Active Member
Joined
January 30, 2008
Messages
192
Reaction score
0
City, State
Lancaster PA
Year, Model & Trim Level
'94 XLT 4DR
i want ur fenders


Last edited by a moderator:

Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
All the fiberglass on the truck was made by McNeil.:thumbsup:

We got started on the radius arms on Friday between rainstorms and made some good progress. Numbnuts me picked up the wrong size misaligns so I'm gonna have to exchange those:mad:

We are going with a different style than normal, but I really like it and its going to be strong as hell;)




Buddy's dog guarding the chopsaw:D


Thanks for helping out guys!


We ran out of tubing so I need to head down to the metal shop sometime this week. Hopefully this weekend they can be just about done!


IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,772
Reaction score
15
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Derk derk allah!!


[/hijack]


R.J.

Elite Explorer
Joined
November 16, 2006
Messages
2,249
Reaction score
131
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
ohhhh, baka-laka daka


section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,803
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Super bling! That bender mount is siiiick!!

I may be hauling an empty trailer up to wa this summer... I'll keep you updated. Should find out more this weekend.


Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Super bling! That bender mount is siiiick!!

I may be hauling an empty trailer up to wa this summer... I'll keep you updated. Should find out more this weekend.
Shoot man seriously let me know! I need this pig hauled up there. I lined up something from that dude on Pirate that hauls but it's gonna cost me a few bones. Name your price;)

School and work are kickin balls this week so I probly won't be able to make any progress until Friday. Should be ordering the plasma sometime next week:smoke:

Oh yah johnny any chance of gettin some dimple dies in these blingers? It's either that or I'll plate in with 3/16" and just drill some holes:rolleyes:


IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,772
Reaction score
15
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Hey Josh S. -- two quick questions if you dont mind: what are the dimensions on the tubes you used (diam, wall) ? Any difficulties bending it?


section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,803
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Think I'll be home Sunday Night/Monday morning.


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,776
Reaction score
1,148
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
nice to see the progress Josh get her back on the sand!


Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Hey Josh S. -- two quick questions if you dont mind: what are the dimensions on the tubes you used (diam, wall) ? Any difficulties bending it?
It is 1.75x.120 wall DOM. No problems bending it with the JD2. Well except when you mess up it gets expensive fast haha.

Think I'll be home Sunday Night/Monday morning.
ok man, for sure? If so I will cut plates and get them drilled and ready for dimpleage if you're for sure! Otherwise it would suck to do all that crap and just end up using 3/16". Thanks! Let me know man. I don't have class till noon on monday. Oh and what size holes do i need to drill? 1/8" steel is good for that thing right?

nice to see the progress Josh get her back on the sand!
Thanks buddy! She has a long way to go!


IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,772
Reaction score
15
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
It is 1.75x.120 wall DOM. No problems bending it with the JD2. Well except when you mess up it gets expensive fast haha.
Gotcha, thanks!


section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,803
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Don't you have an update? I recall seeing these things leaving my shop last night... :shifty_ey


Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
you made me get up

Don't you have an update? I recall seeing these things leaving my shop last night... :shifty_ey
That place is pretty haggard but if you wanna call it a shop I guess I'll go along with it:confused:

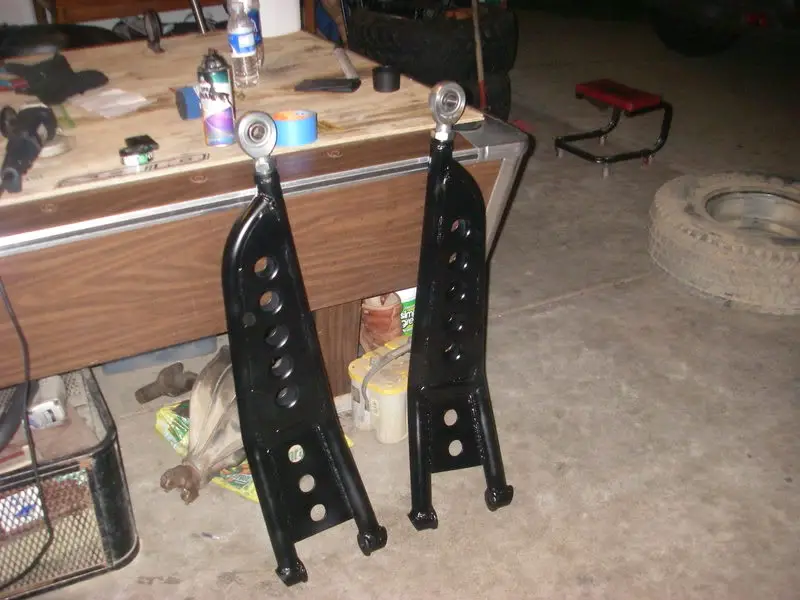

Rare spy pic of the 3/16" plates welded in...


Before


After some lovin on Johhny's press with a dimple die:D


They should turn out pretty nice when I can find some time to weld the suckers up;)


And before anybody says anything about one arm having two holes in the bottom plate and one having three, the one with two had to be shorter to clear the pumpkin junk on the driver's side;) Real busy this week but I should be able to get these suckers done and mounted on Friday.

Thanks for the help with the dimples and the torches Johnny, you're a life saver:chug:


Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Well I guess all you EF dudes are only into SAS swaps but I will still continue to post my desert junk in here in hopes of inspiring someone to build up D35 prerunners;)

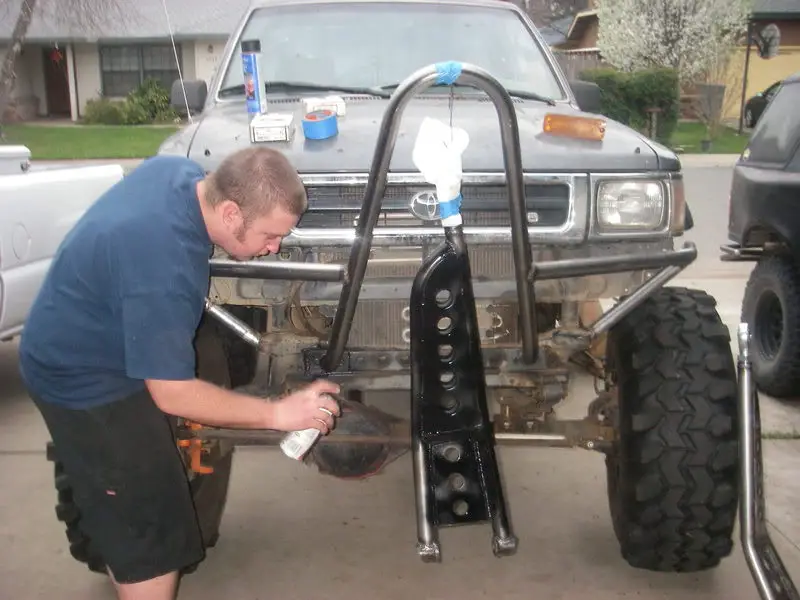

Here ya go Johnny, Marc's triple EXXXtreme bumper works great as a paint booth...


another


SAS is for girls:D

Last edited:

Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,423
Reaction score
990
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Wow-
That's some nice work there.
I don't have nor understand a TTB, but I do know when I see nice fab work.

can you show me the tube bender and mount please? That is the best idea I've seen all day.


Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Thanks Jon:)

Here's a side view of the bender stand my buddies made. Just some square stock and rectangular tubing they had lying around then the bender bolts to a piece of 1/4" plate I believe. Let me know if you need more pics. You can catch some closer up ones of the bender at www.jd2.com. It is the Model 3 bender.
