Warrior 153 shackles install with pics


QuietRiot25

New Member
Joined
April 29, 2010
Messages
33
Reaction score
1
City, State
Cranbrook BC
Year, Model & Trim Level
98 Explorer
not too sure they're pretty close though; but you can always just add length in and make the support peice either bigger or add a second one right? sorry about the delay on the response



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




DaVille

New Member
Joined
June 17, 2010
Messages
6
Reaction score
0
City, State
Louisville, KY
Year, Model & Trim Level
2001 Sport
I have a 2001 Ford Explorer Sport and am in the process of getting all the parts needed to do the Warrior shackle lift along with the torcion bar lift and I was wondering if I need to take my car to a shop to have the Torcion bar lift done or is that something I could do at home?





buffyslyr

New Member
Joined
February 13, 2010
Messages
8
Reaction score
0
City, State
Kremmling, Colorado
Year, Model & Trim Level
'94 XLT
Thanks:

Really nice job with the pictures and easy to follow how to steps. I hope to do the same to my 1994 exp. What problems with allignment have you had since adding the 2'' springs in the front?
Mike





project_ex

New Member
Joined
July 24, 2010
Messages
1
Reaction score
0
City, State
Cincinnati, Ohio
Year, Model & Trim Level
'98 XL
i have the warrior shackles sitting in the garage and im wondering if i need new bushings. they look to be dry rotted and unusable but i cant find just bushings anywhere locally or online. any help on where to get new polyeurathane bushings? i have a 98 explorer, thanks





buffyslyr

New Member
Joined
February 13, 2010
Messages
8
Reaction score
0
City, State
Kremmling, Colorado
Year, Model & Trim Level
'94 XLT
Bushings:

i have the warrior shackles sitting in the garage and im wondering if i need new bushings. they look to be dry rotted and unusable but i cant find just bushings anywhere locally or online. any help on where to get new polyeurathane bushings? i have a 98 explorer, thanks
I just did a search on Google for Ford Explorer Bushing kit. That pretty much brings you to this site at times, I read the info, take down brand names, and then head back to Google. I use the combination of words to search on Google Shopping, and eventually you'll find what your looking for. I bought a whole poly bushing kit for around $115 if I remember right, but since have seen cheaper kits. My kit included all the bushings and it was a great deal (including the shackle bushing your looking for).





Przybysz

Active Member
Joined
August 29, 2009
Messages
351
Reaction score
0
City, State
Its pronounced (Priz-biz)
Year, Model & Trim Level
'96 XLT
Okay I've read all i can on this... and I cant figure out what the lift spring is. I have a feeling those are the springs on the front wheels right? And those would make a smoother ride I hear. But what am I looking for to buy these? Am i looking for a certain size or something??

I have a 2nd gen 4.0 explorer





buffyslyr

New Member
Joined
February 13, 2010
Messages
8
Reaction score
0
City, State
Kremmling, Colorado
Year, Model & Trim Level
'94 XLT
przybysz reply:

Okay I've read all i can on this... and I cant figure out what the lift spring is. I have a feeling those are the springs on the front wheels right? And those would make a smoother ride I hear. But what am I looking for to buy these? Am i looking for a certain size or something??

I have a 2nd gen 4.0 explorer
I'm no expert, but I can speak from experience? Ok, most Ford suspensions are weak at some point due to wear. With that said, they are also difficult to work on because of their geometry. If you want to lift it, then I suggest buying the 'whole' kit option as apposed to just springs frankly. I just did a spring only, and then spend $alot on an alignment (about $350). Its common though as it takes two $50 parts for the chamber, alignment fee, and labor charge for 3+ hours. Get the whole kit and you may be able to get away with the $50 chamber pieces. I've read some also never needed these with a 2'' spring lift, but I needed them. Also, it will increase stress on certain parts lifting, full kit or not. Consider U-joints, bushings, ball joints also will be exposed on a vehicle more than 10 years old. Takes $ to work on older cars, but I find they return that cash ten fold if taken care of.
Hopes this helps?





Maniak

Moderator-Stock 91-94
Staff member
Moderator
Elite Explorer
Joined
February 9, 1999
Messages
12,116
Reaction score
102
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
Okay I've read all i can on this... and I cant figure out what the lift spring is. I have a feeling those are the springs on the front wheels right? And those would make a smoother ride I hear. But what am I looking for to buy these? Am i looking for a certain size or something??

I have a 2nd gen 4.0 explorer
Part of your confusion is you have a 2nd Gen explorer. That means you don't have "springs" in the conventional sense. You have a torsion bar from suspension. Its a bar under torsional stress that acts like a spring.

The Warrior 153 shackles are for the rear springs. They change/lower one of the mounting positions of the spring which in turn lifts the rear of the truck. Roughly for every 1" you drop one mount you gain 1/2 of lift.

Look up Torsion Twist in the lift section.. That should help clear up some confusion about your front springs.

~Mark





GuardianSport

Active Member
Joined
May 20, 2009
Messages
384
Reaction score
1
City, State
Lindsay, ON
Year, Model & Trim Level
'04 ST Adrenalin
Uh, wanted to put on different shackles today but the bolt going through the frame would just not budge! It was maddening to no end.





Przybysz

Active Member
Joined
August 29, 2009
Messages
351
Reaction score
0
City, State
Its pronounced (Priz-biz)
Year, Model & Trim Level
'96 XLT
Awesome. Thank you so muck buffy and Maniak. That helped a bunch :D





suzukid124

New Member
Joined
March 25, 2009
Messages
6
Reaction score
0
City, State
Chicago, Illinois
Year, Model & Trim Level
1997 Explorer XLT
Before I start on the install I would like to say that PB Blaster is our friend, and should be used liberally days prior to any work.

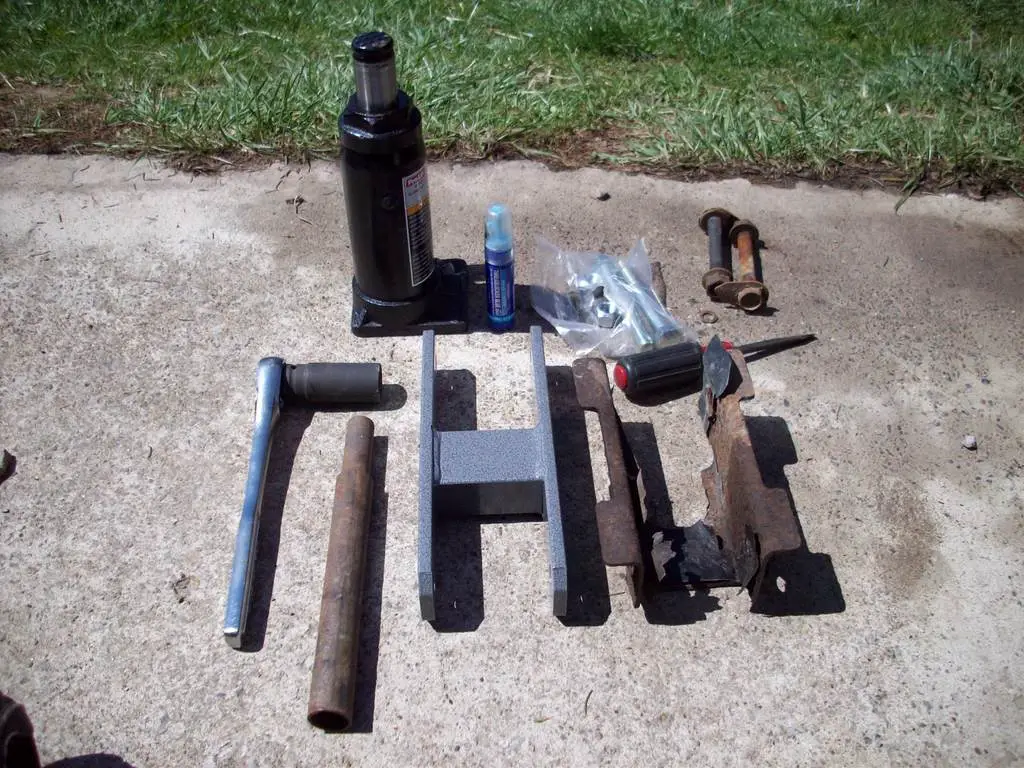

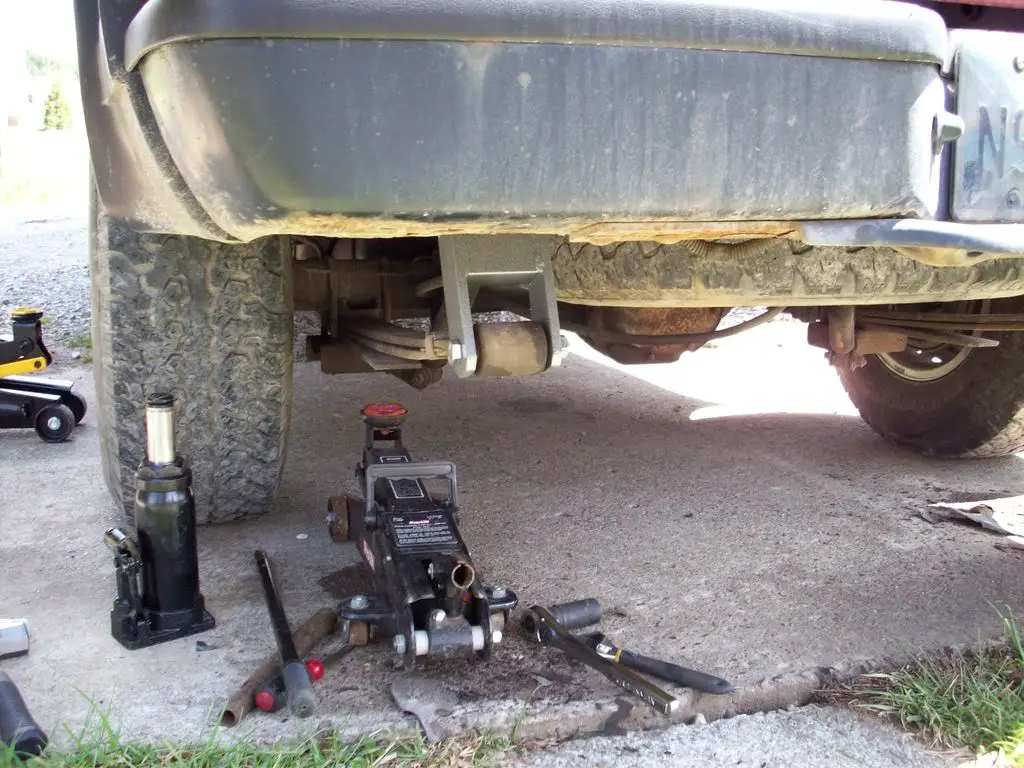

I started by gathering all the stuff I thought i might need, this included a 1/2" drive ratchet, socket, the new shackles, blue loc-tite, a cheater bar, bottle jack, the new hardware, and a med. size flat head screwdriver. not pictured are the jack and jack stands that i already had under the truck and a 3 lb mini sledge that i used to tap out the bolts.

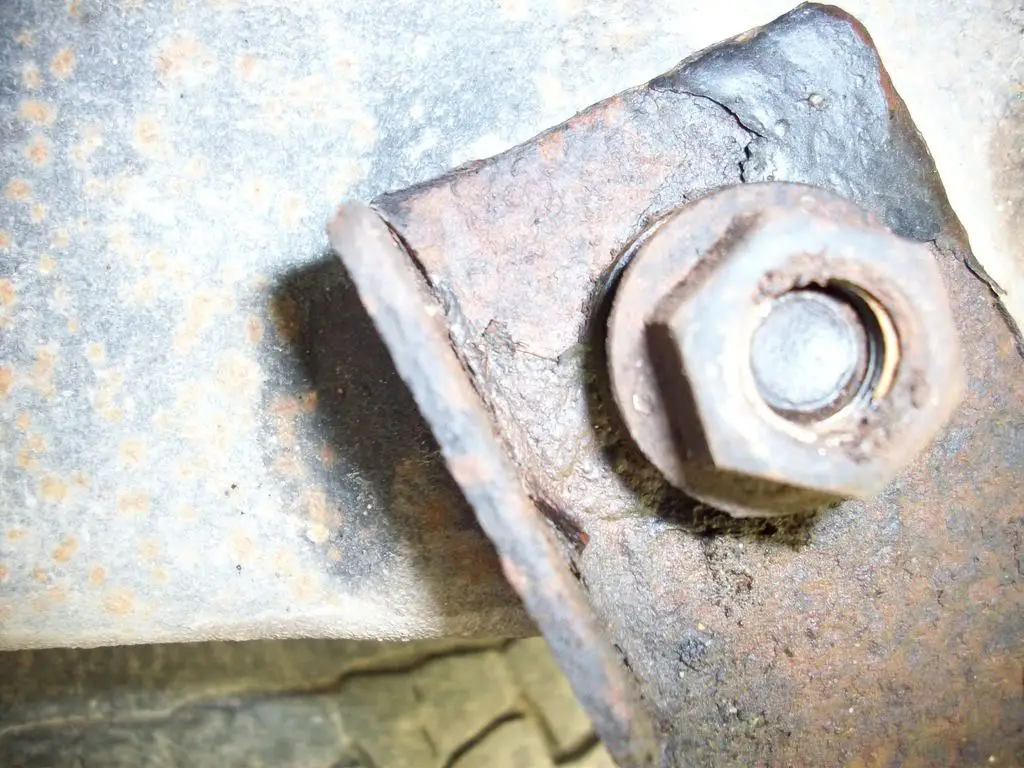

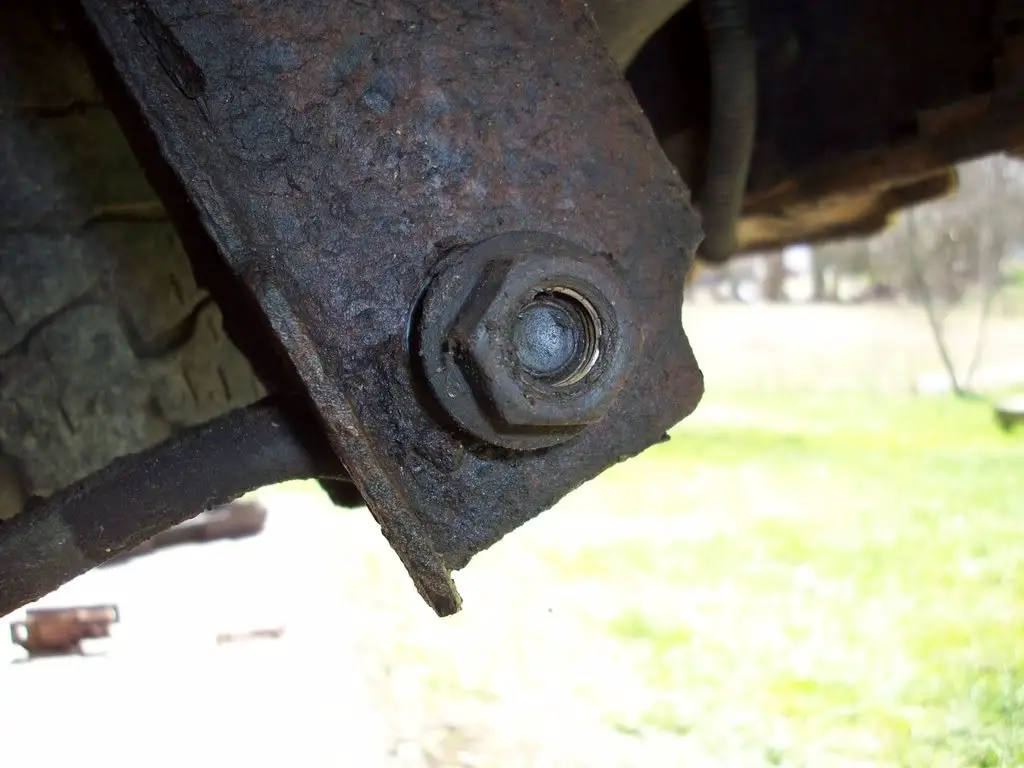

Last week I sprayed down all the bolts and nuts with PB Blaster and went out this morning and soaked them down again. After jacking the truck up, placing jack stands under the frame, and removing the wheels I placed a jack under the U-bolt perch to hold up the rear end.

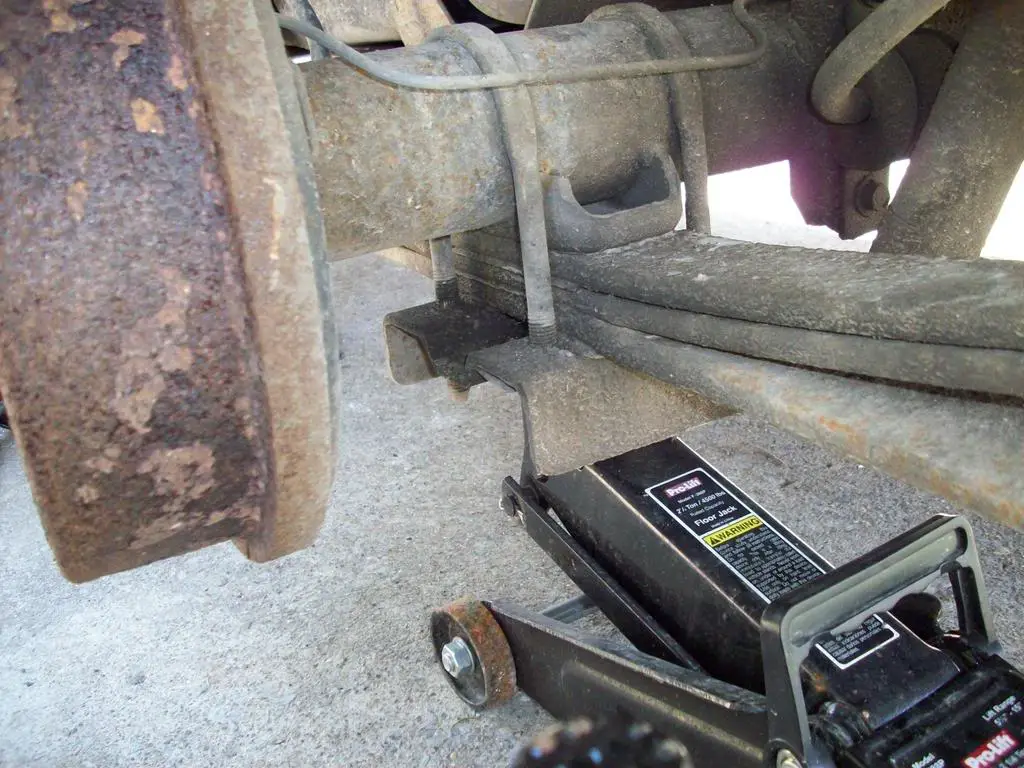

Next I loosened the nuts on the stock shackle bolts but did not remove them so that I could tap them out with a hammer w/out damaging the threads in case I needed the bolts later on.

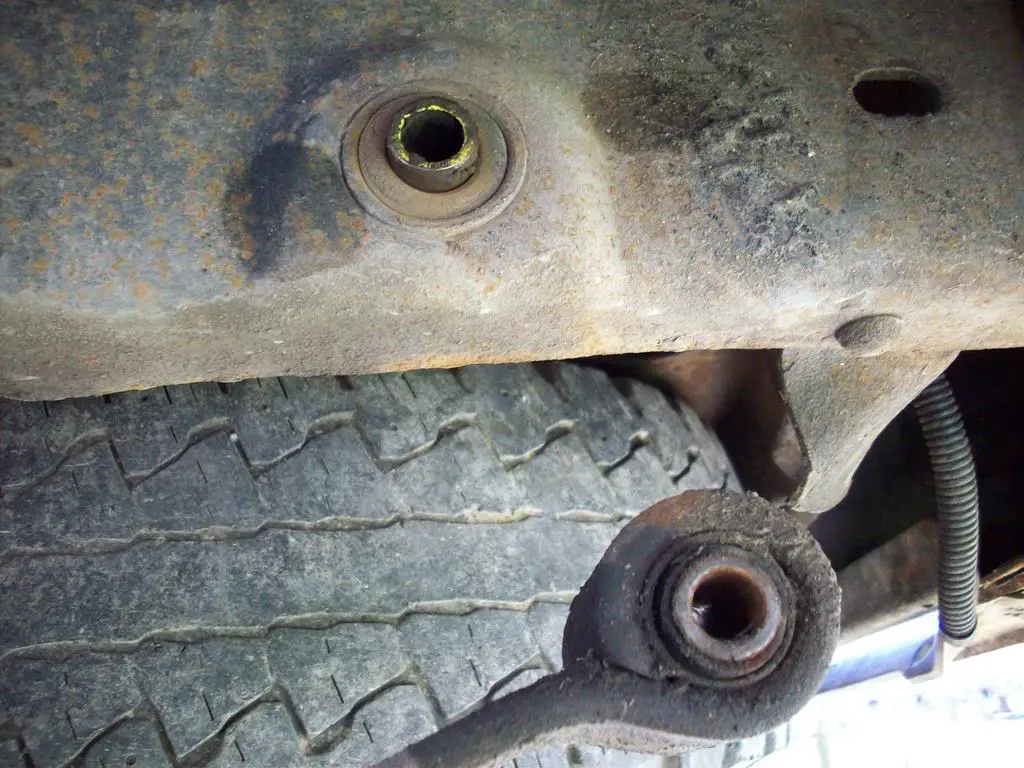

I tapped out the bottom bolt first and then the top. Do not be surprised if the spring jumps up slightly after removing the bottom bolt. Next I victoriously removed the old stock shackle and was left with this.

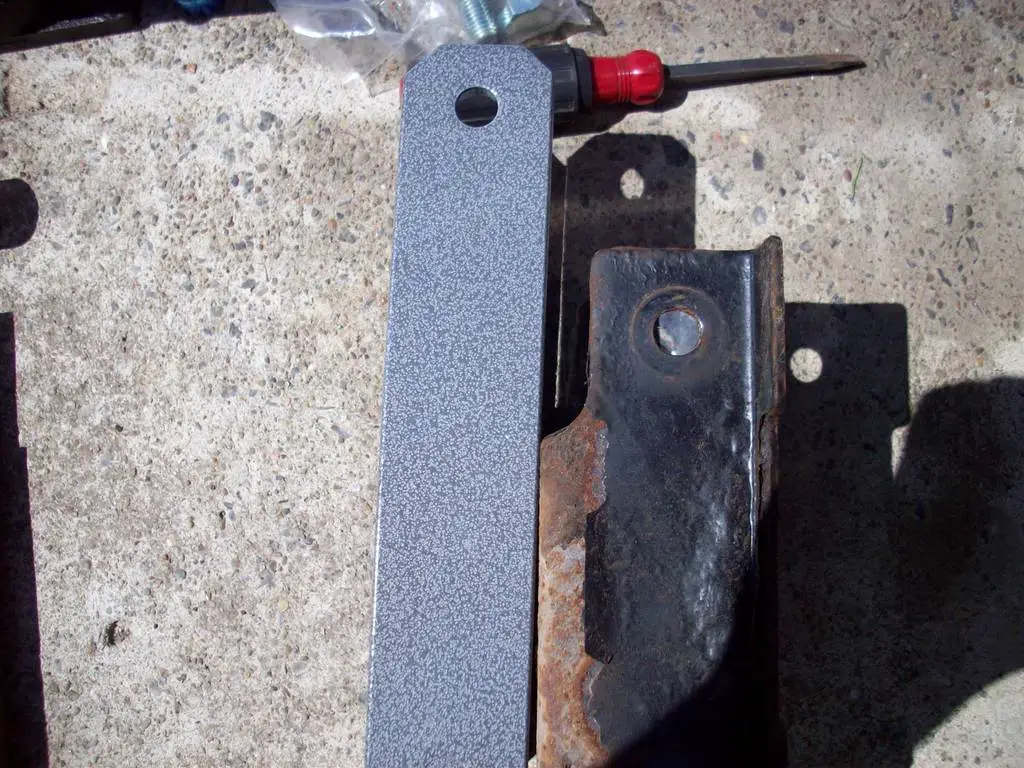

If you lay the old shackle next to a new one you can deffinetly see a difference in construction, strength and length.

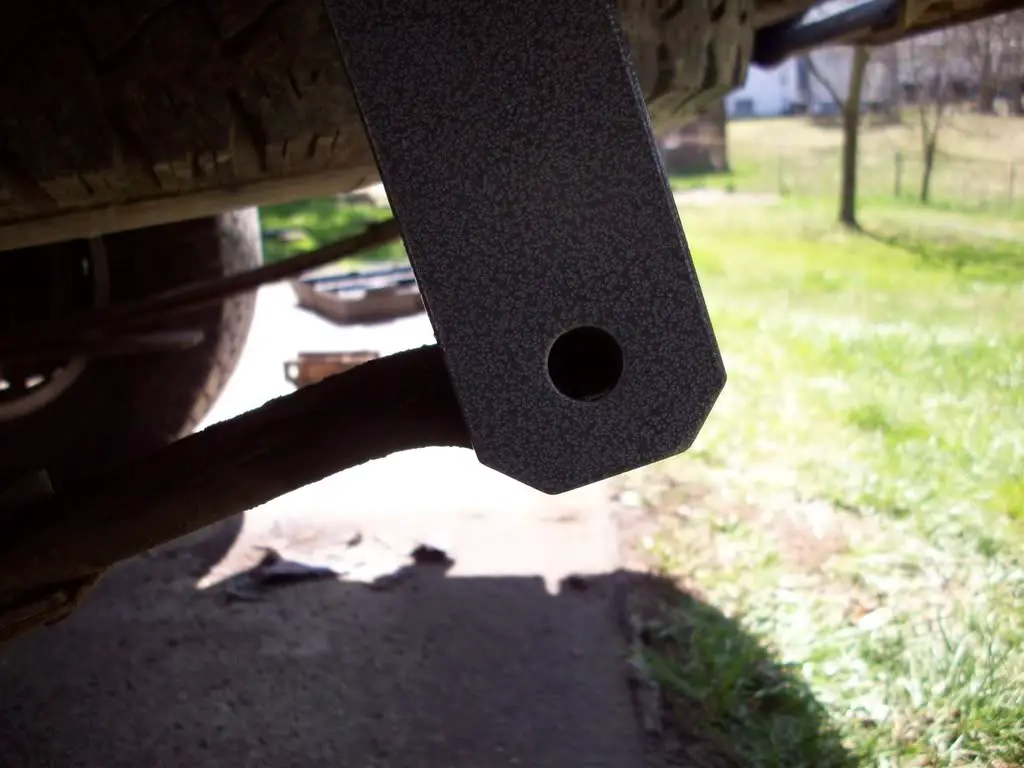

I attached the the upper part of the shackle first snugging the bolt and nut but not tightening it to allow for movement when aligning the bottom bolt hole and the spring.

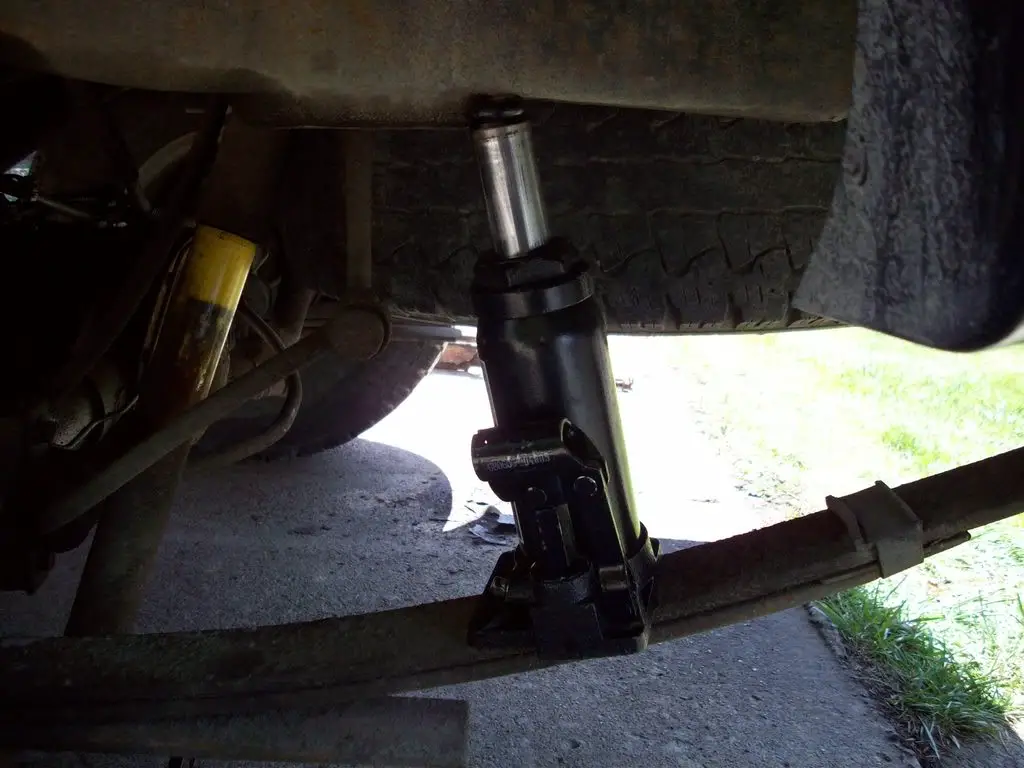

A bottle jack placed between the frame and the leaf pack makes it easy to align the spring and the shackle to fasten the bottom bolt and nut.



After snugging the bottom bolt I went back and tightened the both the top and bottom. The instructions say to tighten to 35-45 ft lbs but not overtighten to the point that the sides of the shackle buckle or bow inward. You want to keep the sides parallel for the best strength and longer life of the shackle.

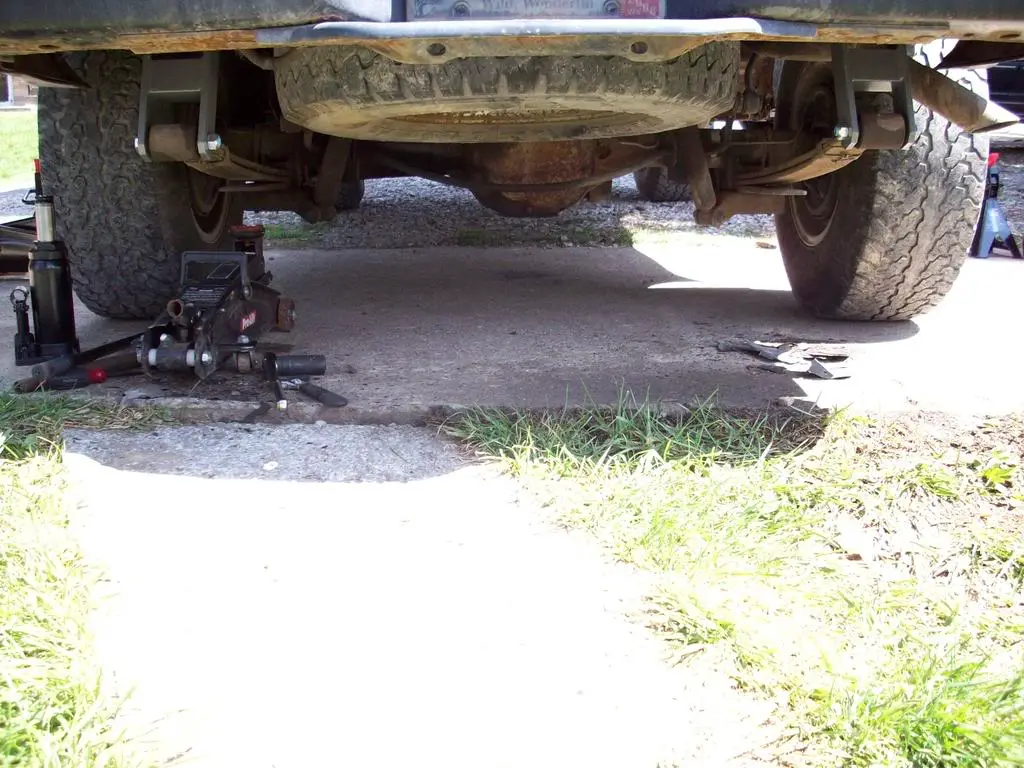

Here are a couple pictures of the finished product. Overall the time it took to install the shackles with basic hand tools was 30 mins. My dad was close by watching in case I did something unsafe. Use the buddy system.





This is my first write up with pictures, hope it is helpful if you are planning on installing the warrior shackles or any shackle for that matter. Before beginning this morning I called Rough Country and ordered front ext. coils that should be here in the next couple days. If all goes well and the rain stays away I will try to have a write up on those also.
I did the exact same lift, with the same shackles just last night, and my 97' ex is still at stock height, the shackle end of the leaf spring is almost arching upward, when the entire leaf SHOULD be arching downward, any info would be greatly appreciated, thank you!





turtle83

Member
Joined
May 17, 2010
Messages
63
Reaction score
0
City, State
barksdale AFB LA
Year, Model & Trim Level
98 awd mountanieer
sound like you leaf springs are worn out





Thebl7

New Member
Joined
October 12, 2010
Messages
4
Reaction score
0
City, State
Burlington new jersey
Year, Model & Trim Level
01 sport
what lift does that give you? and how did you get the bolts out so easy?





tjsxplodr

Well-Known Member
Joined
July 26, 2009
Messages
1,147
Reaction score
0
City, State
Idaho
Year, Model & Trim Level
1991 Ford Explorer XLT
has anyone seen any lift shackles longer than the warrior 153's?





tjsxplodr

Well-Known Member
Joined
July 26, 2009
Messages
1,147
Reaction score
0
City, State
Idaho
Year, Model & Trim Level
1991 Ford Explorer XLT
I found some shackles that are 1.5, 2 and 2.5 inches long. Would any of these be beneficial to my lift, esp since I'm pretty sure that my leaf springs are sagging a bit.

Would longer shocks also be beneficial?





pcsullivan91

Member
Joined
December 29, 2007
Messages
56
Reaction score
0
City, State
Huntersville, NC
Year, Model & Trim Level
'01 Explorer Sport Trac
I'm trying to get a warrior shackle lift but leave the front stock for a more aggressive slammed hood look. (and cuz i'm broke :) ). Does anyone have a picture of this?

Also more importantly i'm having trouble locating the Warrior shackles. can anyone point me in the direction of warrior or another good brand?
thanks and merry xmas





stkline81

Member
Joined
December 19, 2009
Messages
96
Reaction score
0
City, State
Clayton, Delaware
Year, Model & Trim Level
97 XLT V6 OHV
Is it going to matter that mine are installed upside down? From what I can see it will make no difference but I was curious what you guys thought.

For those of you looking for them I bought mine on amazon for $80 shipped.





Maniak

Moderator-Stock 91-94
Staff member
Moderator
Elite Explorer
Joined
February 9, 1999
Messages
12,116
Reaction score
102
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
IIRC the cross bar on the WAR-153 is in the middle. If it is, no it won't matter. IF it isn't, you need to make sure that it isn't going to hit the frame when the suspension is at full travel.

~Mark







Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




stkline81

Member
Joined
December 19, 2009
Messages
96
Reaction score
0
City, State
Clayton, Delaware
Year, Model & Trim Level
97 XLT V6 OHV
Yeah, it is definitely offset but not by much. From what I can see, on my explorer anyway, there will be no contact made with the frame. If anything, the shackle will hit the hitch first.
