94 Crawler's sas thread #1

Ok the plan is to go to d44/ 9 inch. This will give me a base to work from for further mods including 3/4 ton front hubs and breaks and a full floating 9". Eventualy the 609/ true Hi9 front I'm daydreaming of. But we must walk befor flight.

So here is the plan. Since I have the d44 and it is a 79 Bronco with cast in wedges, I will be staying with radius arms (extended and thinking of using Johnny Joints rather than hymes). 5.5 wild horses rock crawler springs. 1 ton chevy tre's. Posibly hydro assist. Of corse 4.56 gears and depending on what is in this 9" I'm suposed to look at, choice of locker to come.

I will pull the 35 this weekend and get started .

Here are some pics.






eek :eek:



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
Progress

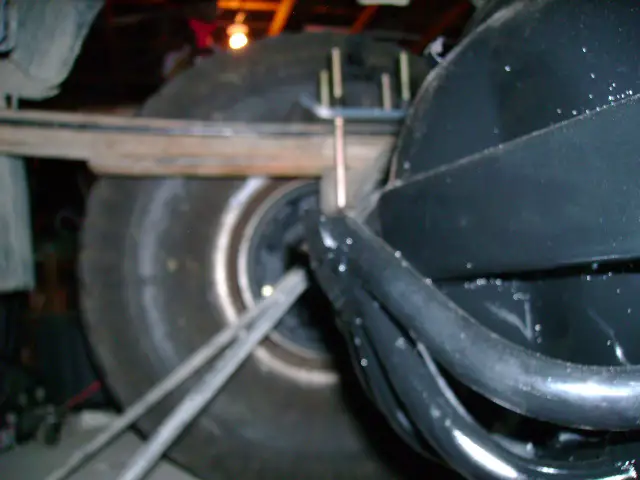

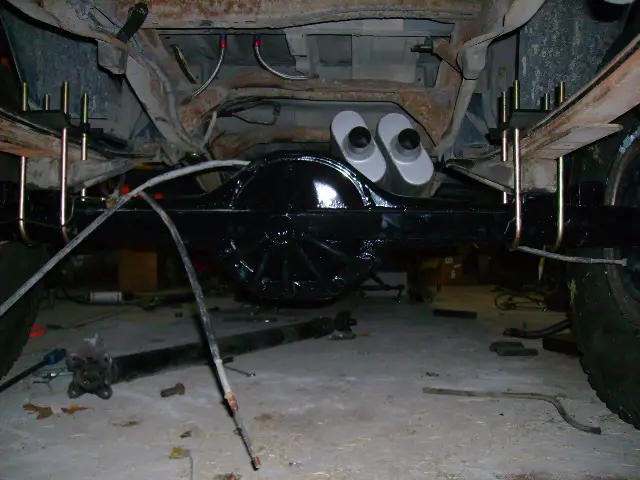

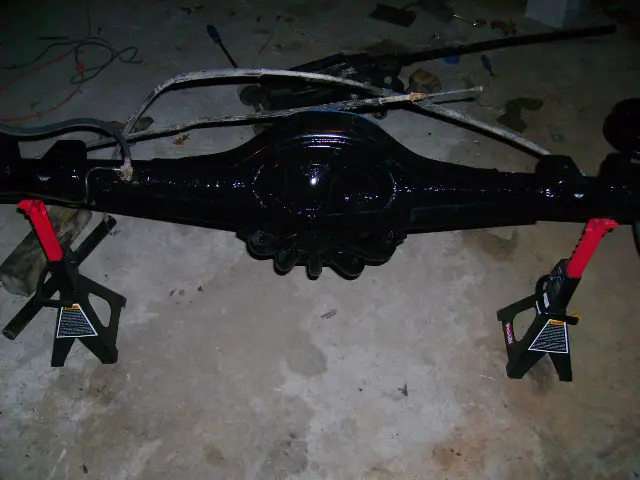

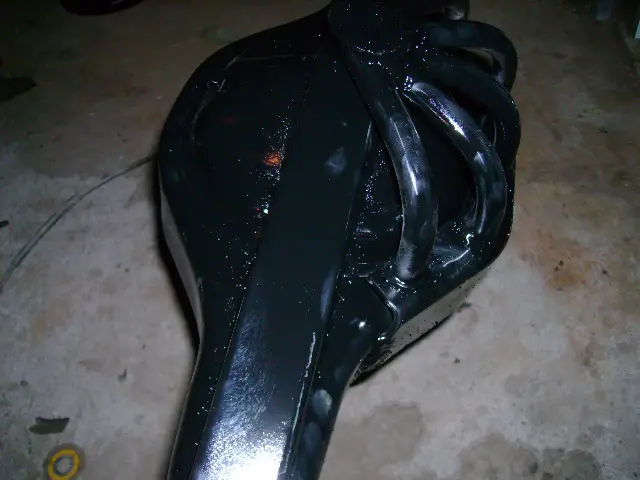

I got the 9" built and under the truck. No thanks to the HF sand blaster last weekend and at liest a dozen trips to town today and ultimatly i still got the wrong brake line for the right side.:fire::fire:. To d&*^ many 3/16 line choices :rolleyes:. I have the tires mounted to stock f-150 aluminum wheels and maby I picked up 1-2" of tire sticking out on either side. I checked the aussie locker It locks and unlocks as described:thumbsup:.

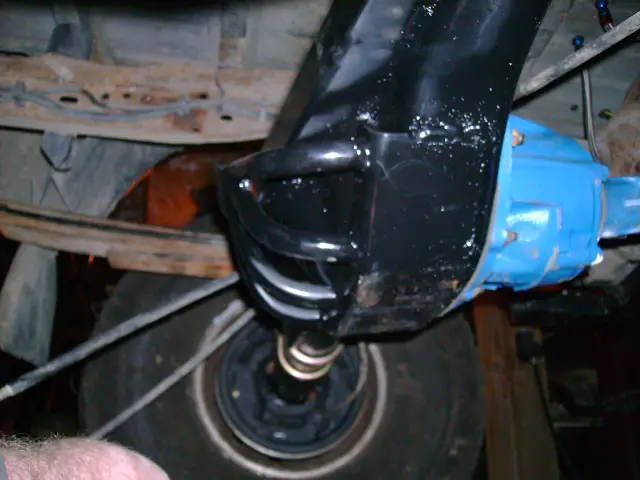

Some idea of the clearence now that the spider is installed.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
Ok question time. Dose anyone have any 90 ish F-150 aluminum wheels (stock) they are willing to part with? Bullet hole style (I need one for my spare). And I asked this in a nother thead but I will ask again. What methouds are those of you who are wristing your radius arms using to weld the mild steel to the forged arm? Pre heat post heat?





Kirby N.

Elite Explorer
Joined
February 6, 2001
Messages
2,300
Reaction score
105
City, State
Colorado Springs, CO
Year, Model & Trim Level
1991 Ranger
I actually didn't build mine so I can't say how mine were built. I did go over some of the main welds with some 7018 rod and I checked all the welds for cracks from different cooling rates.

From what I understand, the issue is with cooling. When you preheat cast then it will cool and contract at a more near rate to the mild steel. I have also heard of insulating the piece during cooling so that they both cool slowly. I made some extended Arms for a buddy and I did not preheat his either. There was a ton of welding on those, and nothing cracked, but they were hot for an extensive amount of time because of the entensive welding on them. When I hav welded center sections to axle tubes I have seen and heard the welds crack upon cooling. I usually just do 2 passes and that fixes it.

The best design I have seen for wristed arms is a guy drilled an extra hole through the main arm and the extension pieces for a dummy pin. Then he inserted a grade 8 bolt and welded it in, and ground it flush for insurance basically.





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,771
Reaction score
24
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
x2 what KirbyN said -- post heat is very important. When I shaved the 14bolt and MIG-ed it, I kept the torch on the cast side for like 5 mins afterwards and then slowly moved the torch spot away from the weld area over a 25 min of torch on and torch off periods.





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
Thanks guys. I'm not actuly wristing it. At this point I think I would have been better off to wrist the axle. There is a lot of fab stuff I need including a torch and plazma cutter, and Tig welder, and well you get the idea.

I had been doing some research on building a forge. If I can source the parts localy I can probably build one cheap out of a steel 5 gallon can. That should let it cool slowly. Other ideas I had was fire up enough charcoal to cover it and let it cool like that. Any other suggestions?





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,687
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
The stock radius arms arent cast like an axle centersection, they are forged. Post heat is not as crucial with forged steel.





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
The stock radius arms arent cast like an axle centersection, they are forged. Post heat is not as crucial with forged steel.

But they still need pre heat right. And maby some fire retardent insulation to slow the cooling. I will also bolt it as a precaution. Arent the outer c's forged also?





Kirby N.

Elite Explorer
Joined
February 6, 2001
Messages
2,300
Reaction score
105
City, State
Colorado Springs, CO
Year, Model & Trim Level
1991 Ranger
The stock radius arms arent cast like an axle centersection, they are forged. Post heat is not as crucial with forged steel.

Thanks for chiming in. I too would be interested in the proper proceedure (not that I have already done a few!!)





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,687
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
I have welded all over stock arms in various ways over the years... never pre-heated nor post-heated. Ive also never had a weld break on them. By all means pre/post heat if it adds peace of mind.

FWIW i asked a guy at our local do it all machine shop about this years ago and his advice was "forged steel welds just like any other mild steel- clean it white with yer grinder and git after it". :)





Kirby N.

Elite Explorer
Joined
February 6, 2001
Messages
2,300
Reaction score
105
City, State
Colorado Springs, CO
Year, Model & Trim Level
1991 Ranger
Hmm, I guess I am better than I thought, thats what I did! :scratch:

I will echo that it welds just like mild steel. I have a steel wire wheel on my grinder and I have been using that like crazy lately. Before and after every weld. It cleans off slag completely in nothing flat and prepares the metal quickly and completely. Handy tool:thumbsup:





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
Thanks James and Kirby I'll just weld them then with a good cleaning. More updates soon.





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab

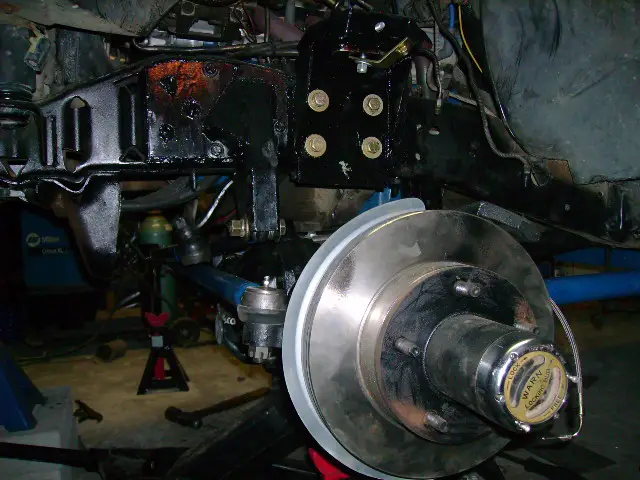

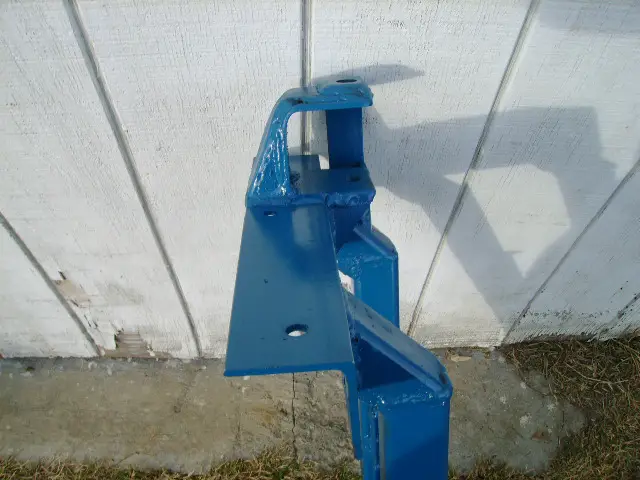

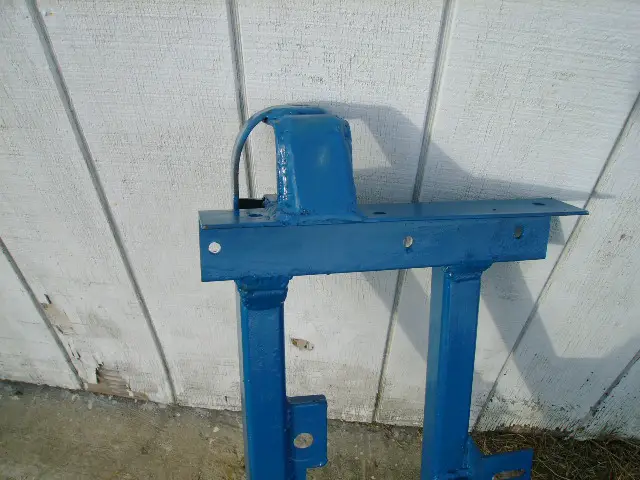

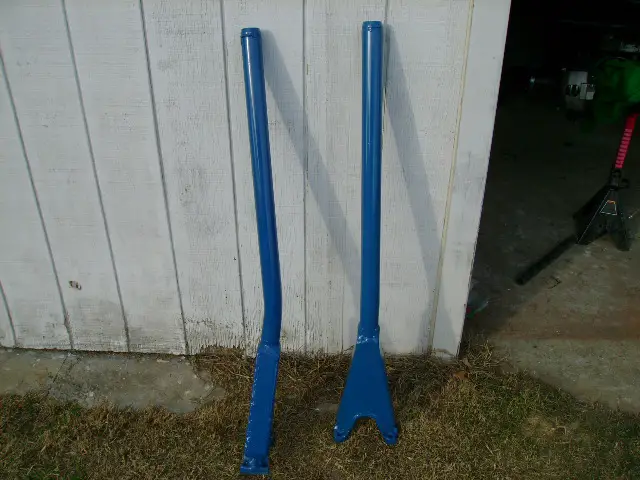

Ok first here are some pics. A little progress, I got the radius arms built and the crossmember finished. The front end is in the truck mostly. I m still missing the right spindle and the break lines need to be hooked up. I need to flex it to find out shock location and build shock mounts.
