94 Crawler's sas thread #1

Ok the plan is to go to d44/ 9 inch. This will give me a base to work from for further mods including 3/4 ton front hubs and breaks and a full floating 9". Eventualy the 609/ true Hi9 front I'm daydreaming of. But we must walk befor flight.

So here is the plan. Since I have the d44 and it is a 79 Bronco with cast in wedges, I will be staying with radius arms (extended and thinking of using Johnny Joints rather than hymes). 5.5 wild horses rock crawler springs. 1 ton chevy tre's. Posibly hydro assist. Of corse 4.56 gears and depending on what is in this 9" I'm suposed to look at, choice of locker to come.

I will pull the 35 this weekend and get started .

Here are some pics.






eek :eek:



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
I dont have the real "Johnny Joints" (which are I think Currie Enterprise's registered name for them). I have Rubicon Express Super Flex's and they still look pretty good.

Sorry IZ I was going off of my memory of your thread I will be doing some more reasearch on that type of joint.

That front diff is looking great, you going to reuse that gear oil?

I scooped some out and saved it just for that purpose.:) Thanks for the complement Danny. My design for the radius arms is still in the design faze I will probably incorperate them into my existing trans x-member. I have a little more weight so maby the ride will be ok.

Although it creats a whole new problem when it comes to my bank account.

Yes no doubt. But in the future there will be c/os along with a 609, oh yes there will be.

Thanks guys for all the feed back I'll keep the pics comming.

By the way where did you guys get spring buckets from ( besides the pick and pull)?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab

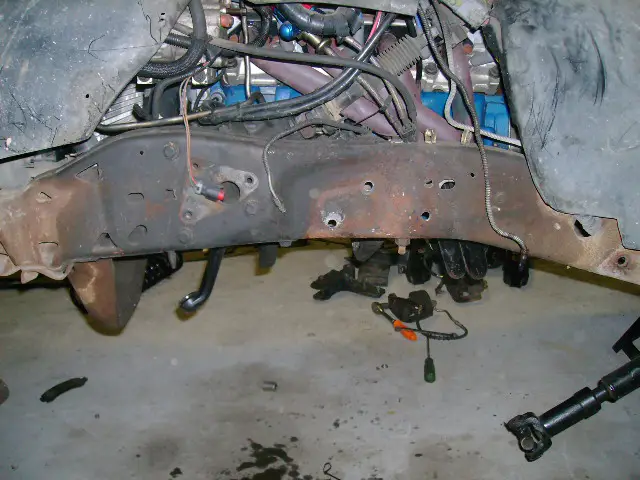

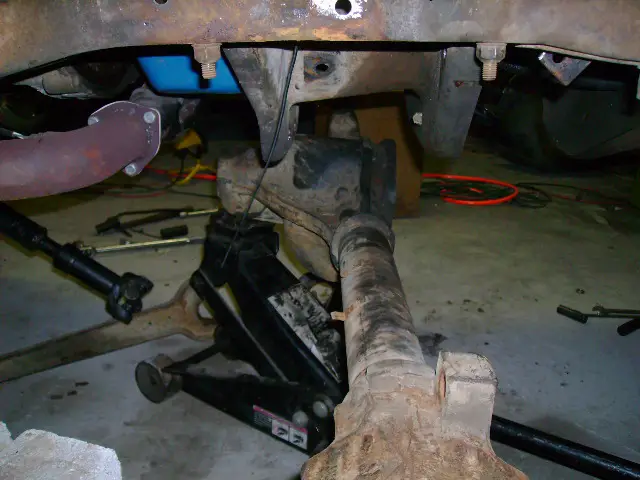

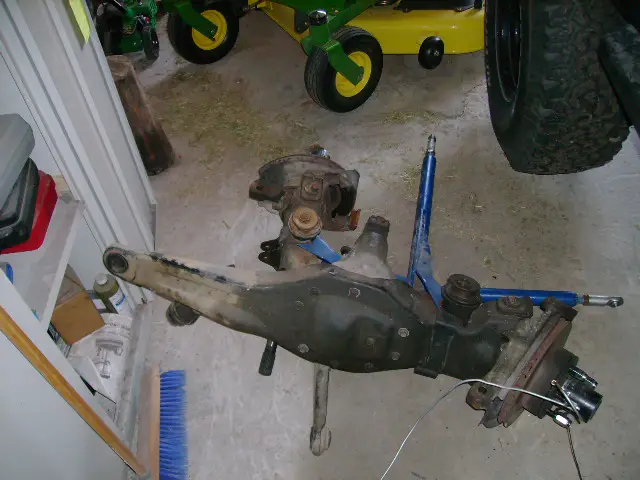

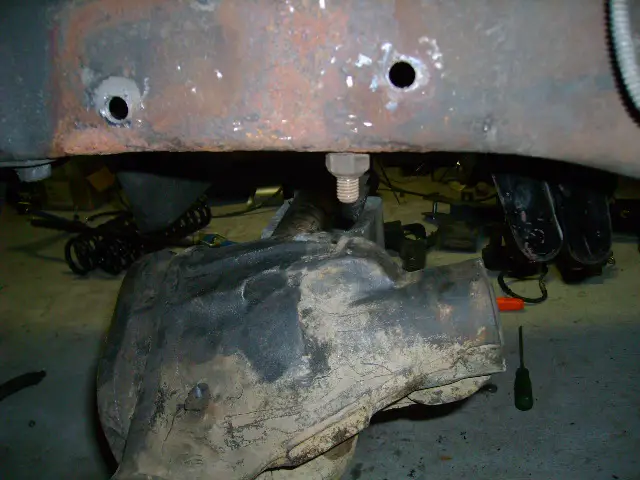

here are some pics. I need to find some good stuff pics The pinion is going to be realy close to my headers this is unexpected because of the axle width diference. I' m going to order some more parts hopefully my wedges will come in soon and I can make some more progress [/ATTACH][/ATTACH]
If anyone is interested my old lift and axles are for sale.


Attachments

  • DSC02070.JPG
    134.1 KB · Views: 600
  • DSC02071.JPG
    133.6 KB · Views: 584
  • DSC02076.JPG
    137.2 KB · Views: 478




94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab

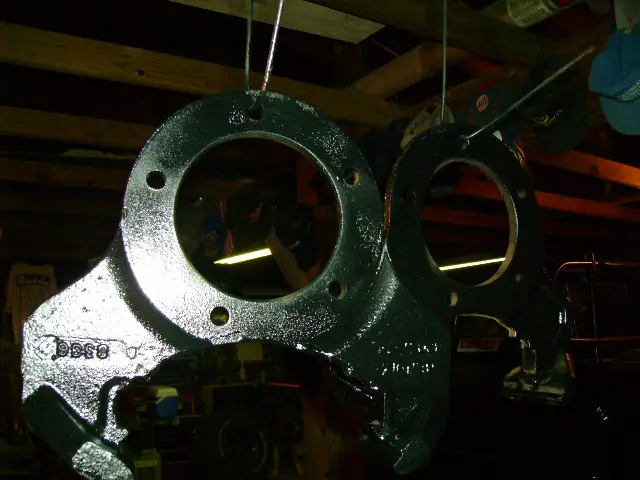

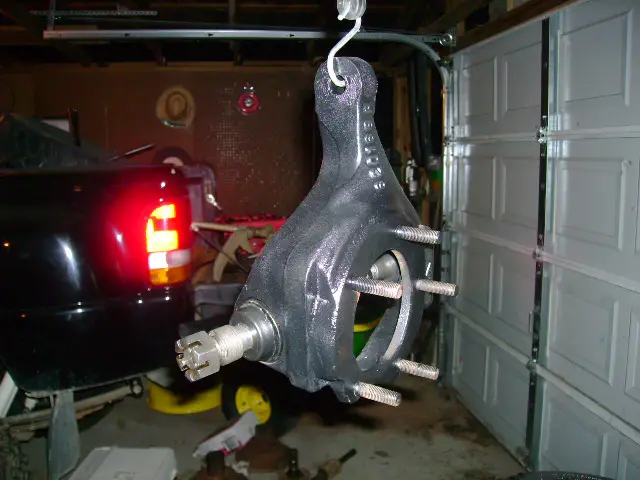

I did not get much done yesterday. I cleanes and painted the outer c's and the break caliper brackets, and installed ball joints. I did however get some parts ordered most likely enough to get the axle mounted under the truck.

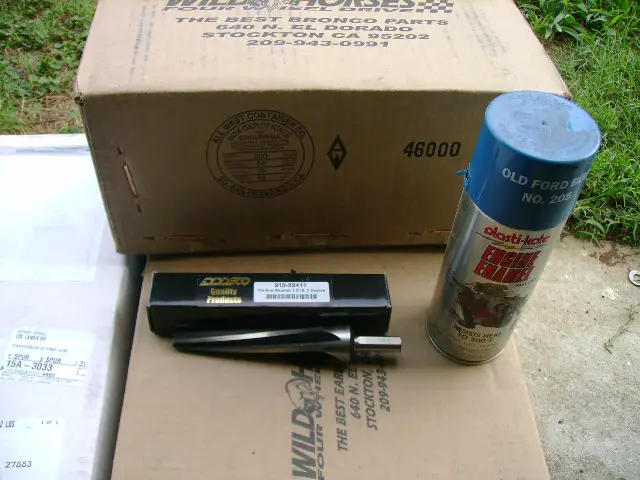

Here is what I have coming.

5.5 Wild Horses Rock crawler coils and 7 degree wedges fromwildhorses4x4.com

New coil towers and retainers from broncograveyard.com

A 7 degree ball joint reamer fromspeedwaymotors.com

2 3.0" Ultra duty ballistic joints with 1.25"-12tpi studs, steering linkage with 1 ton chevy tre's and 1.5"od .250" wall dom, some 1.5" od .250 wall dom for the trackbar and 2" .250 wall dom for the radius arm extensions, and 2 3/4"-16 tube adapters 2 1.25"-12 tube adapters. Fromballisticfabrication.com

I have a couple of questions.

1 How high are you all mounting your coil buckets? A measurment from the bottem of the frame or however you did it.

2 How far forward did youall go? I am currently figuring on 3" from 125" to 128"

3 Dose anyone have pics of the pig at full stuff? I think I'm going to have problems with headder clerance.












FROADER

Staff member
Moderator
Elite Explorer
Joined
January 28, 2000
Messages
19,969
Reaction score
168
City, State
Huntington Beach, CA
Year, Model & Trim Level
1991 Eddie
1. Most of us with the 5.5 WH springs have a coil height of 18" with the truck sitting at ride height. That's also an explorer with a 4.0. I'm not sure how a ranger with a 5.0 compares in weight.

2. Everyone has done different numbers when it comes to moving the axle forward. Off the top of my head:
Mine - 0"
Stic-o - 3"
IZwack - 4"
section525 - ~2"
rockranger - ~3"
DB_1 - ~1" (having the same truck as you he runs 37s too.)
So that all depends on what you need to do for clearance really.

3. I'll look through some of my pics, I'm sure I have some of a few of these trucks.





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
Thanks FROADER I was looking back at my pics with the ttb and i have enough weight to compress Skyjacker soft rides to the max. From what I have read the 302 Is 100 lbs heavier than a 2.3, but mine has gt-40Y heads (aluminum). How dose that stack up to a 4.0? I dont know. I think I have decided to move mine at liest 3 inches posibly 4 and if i have to use 5.0 ex headers I will. I am not turning back. I do know now that a high pinion 609 is not going to fit, it is good I hadent spent that money.



Keep in mind this is with extended arms with hymes. Take the springs out and the hub will hit the floor. So it is a good flexy set up with longer / softer springs or coil overs this thing would have flexed as much as you wanted.





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab

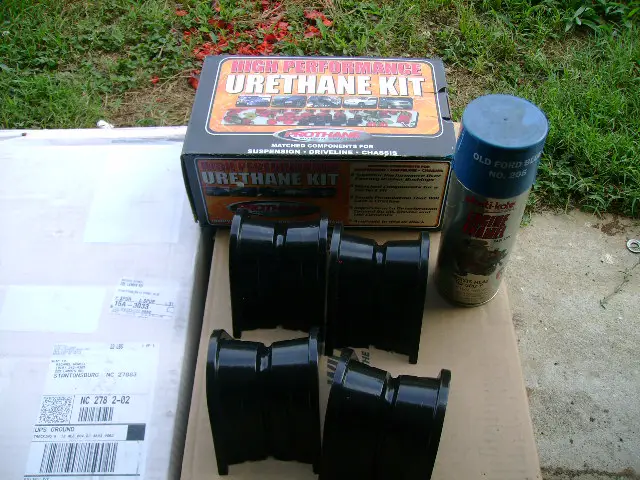

Look what came in the mail today.


7* reamer for knuckles and pittman arm.

7* caster corection bushings

From Jeff's bronco graveyard? Duff EB coil towers:eek::eek:





94 Crawler

Active Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab

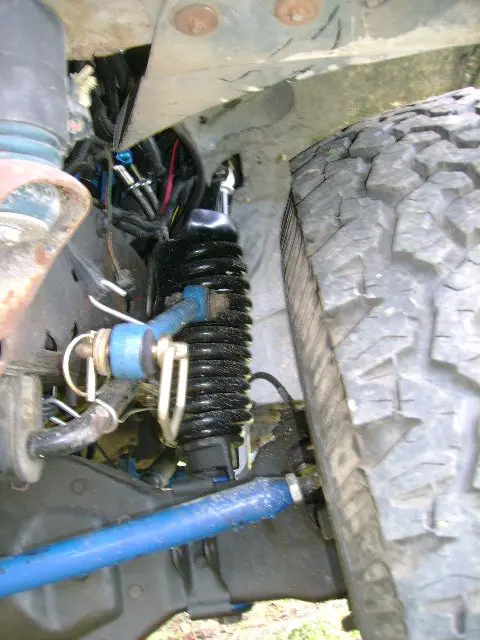

Also.

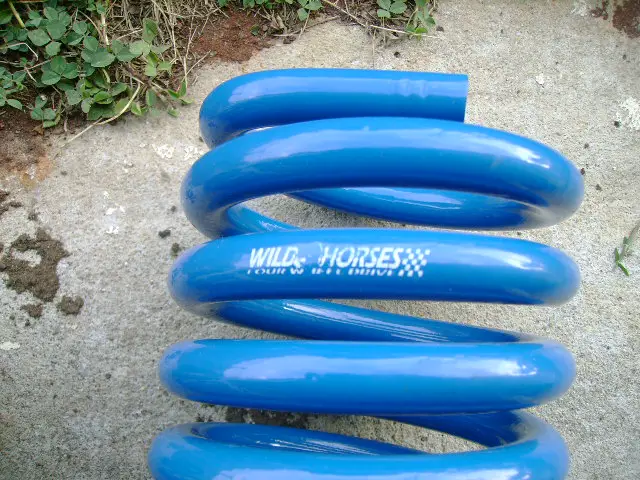

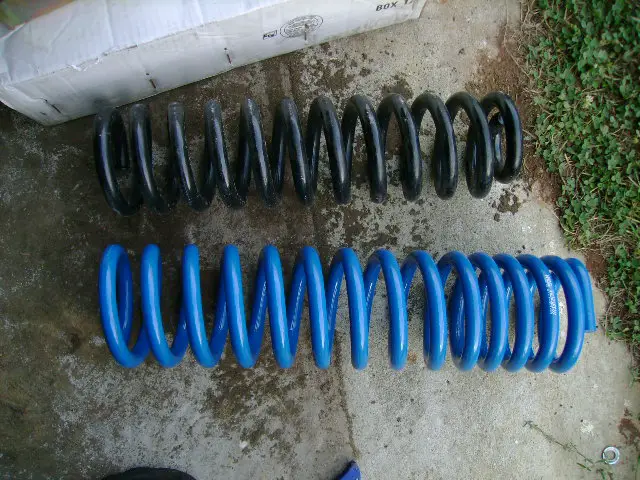

6" Sjyjacker softride vs 5.5 Wild Horses rock crawler

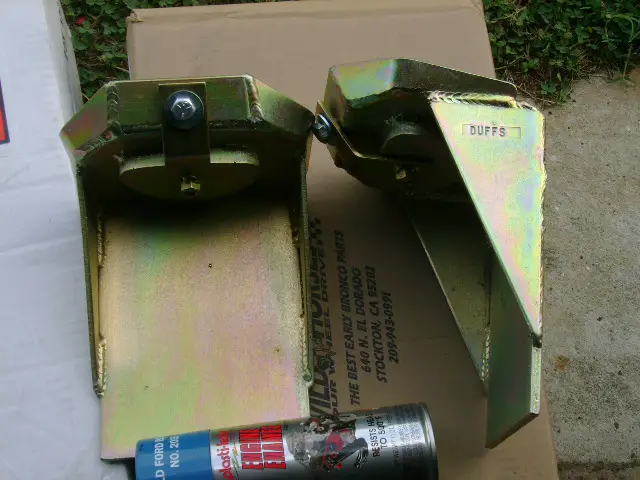

close up of the duff bracket
