Poison Spyder Stinger on '01 Sport

1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

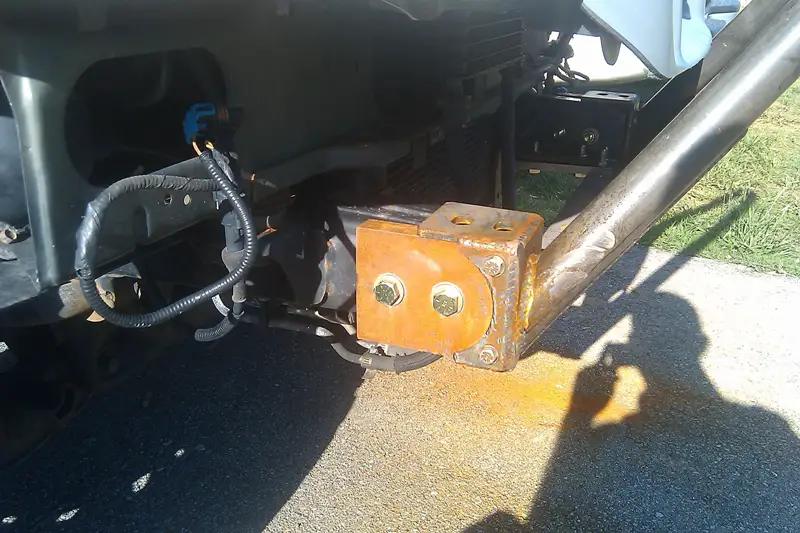

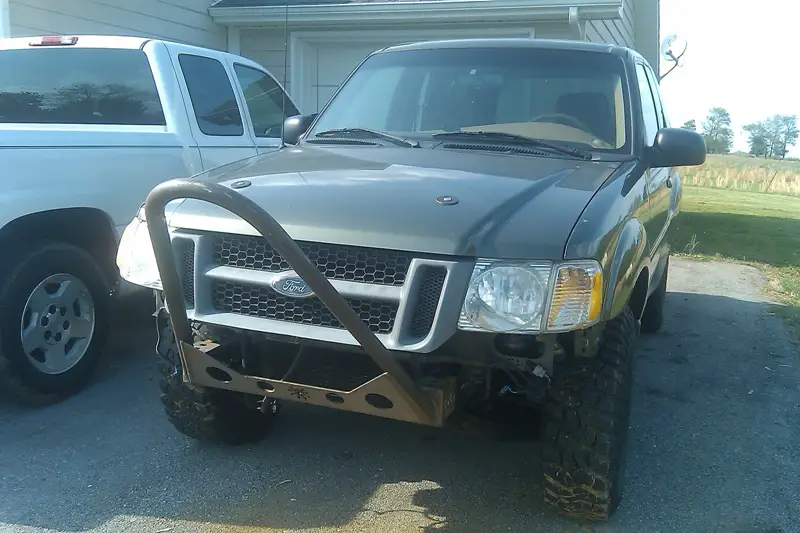

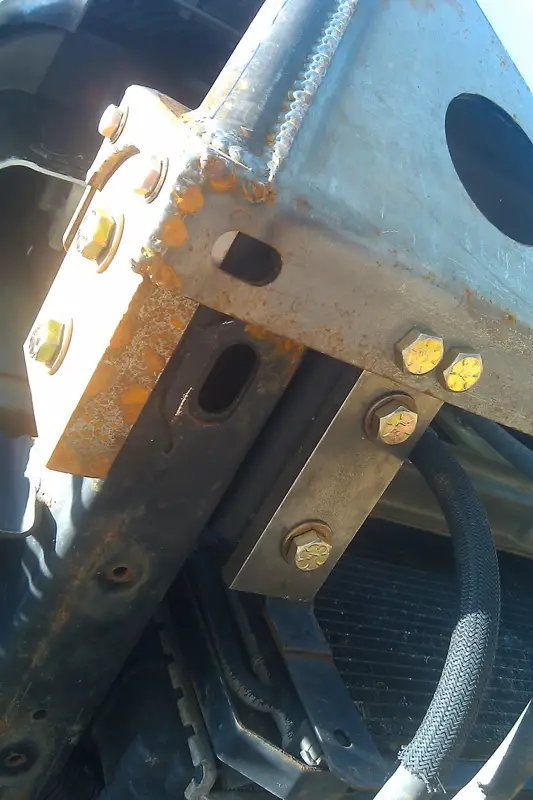

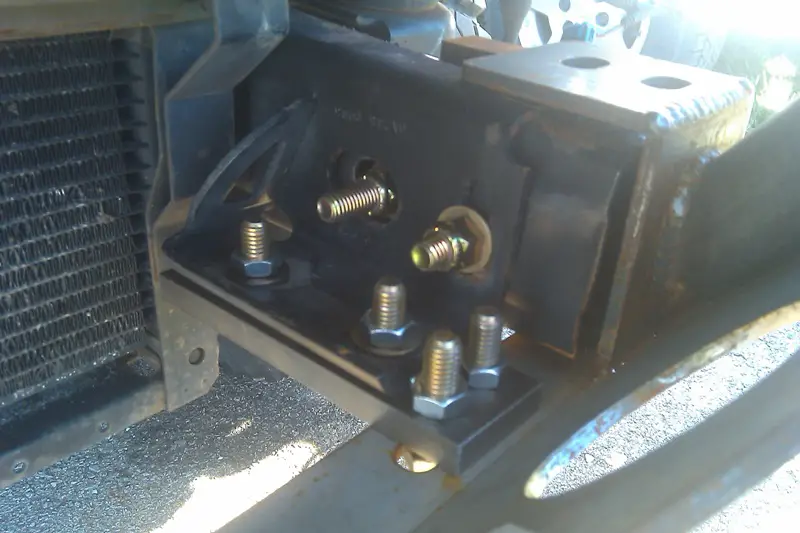

So, the tranny in my Exploder went out recently so I decided to dive in and start doing some mods. First on the list was a new front bumper. I opted to start with the Poison Spyder Comp Stinger built for the Jeep TJ. It wasn't an exact match (as you can see in the pictures below) so some brackets were fabbed up and now it is rock solid.


Attachments

  • IMAG0076.jpg
    169.8 KB · Views: 2,712
  • IMAG0081.jpg
    190 KB · Views: 2,311
  • IMAG0082.jpg
    137.4 KB · Views: 2,315
  • IMAG0083.jpg
    157.2 KB · Views: 2,351


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




lynchy wa

Down Under Beer Explorer
Elite Explorer
Joined
September 30, 2009
Messages
5,162
Reaction score
13
City, State
Albany, Western Australia
Year, Model & Trim Level
2004 XLT V8
Excellent fab job:thumbsup:





1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

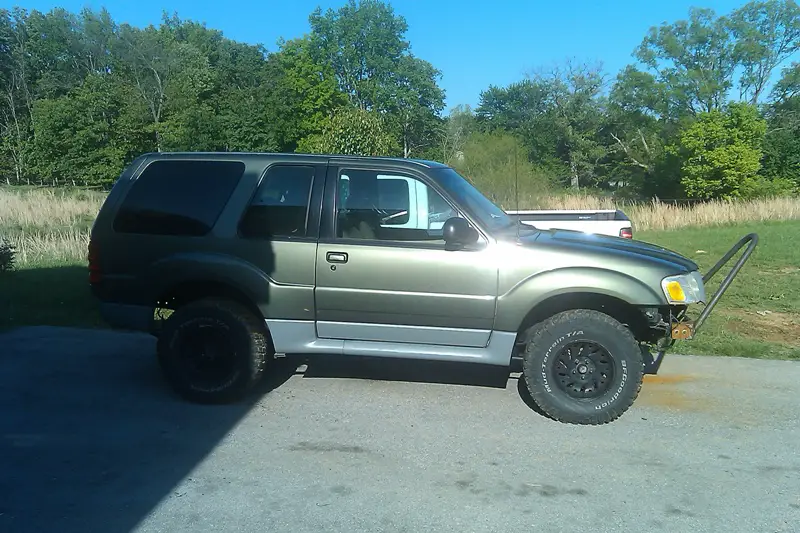

Some more.


Attachments

  • IMAG0084.jpg
    173.6 KB · Views: 2,285
  • IMAG0086.jpg
    209.6 KB · Views: 2,357
  • IMAG0085.jpg
    158.4 KB · Views: 2,301




lynchy wa

Down Under Beer Explorer
Elite Explorer
Joined
September 30, 2009
Messages
5,162
Reaction score
13
City, State
Albany, Western Australia
Year, Model & Trim Level
2004 XLT V8
Was that cut with a water jet?





1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

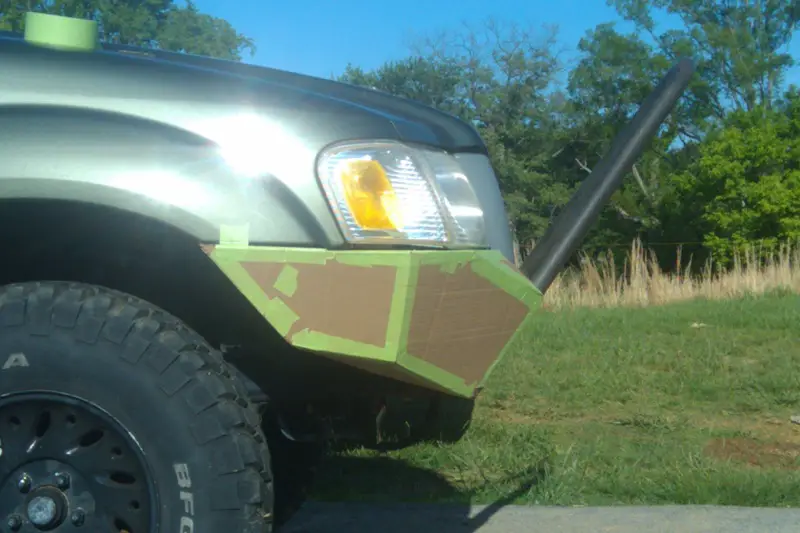

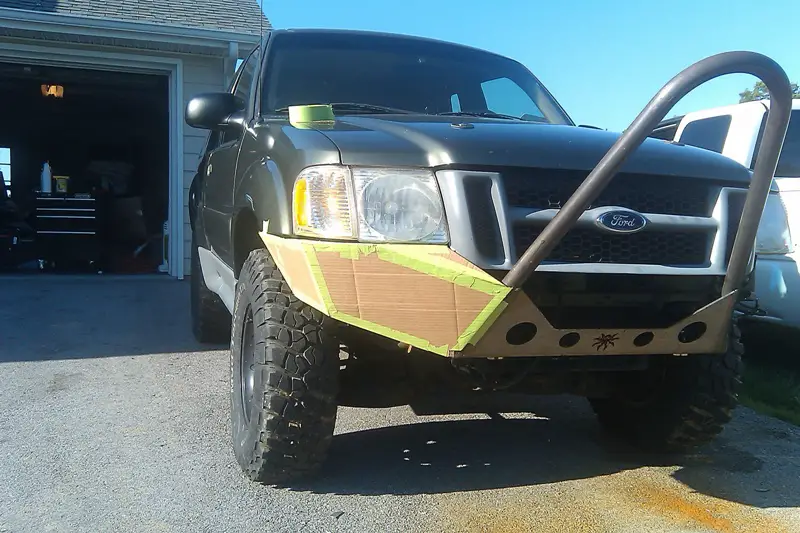

Since I just moved to my new place once I get my welder set up I am going to finish weld most of the joints for insurance but still leave it able to be removed. I'm also going to box it in for a more finished look and again more insurance. You can never be too sure. ;)


Attachments

  • IMAG0087.jpg
    182.4 KB · Views: 2,273
  • IMAG0088.jpg
    149.3 KB · Views: 2,244




1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

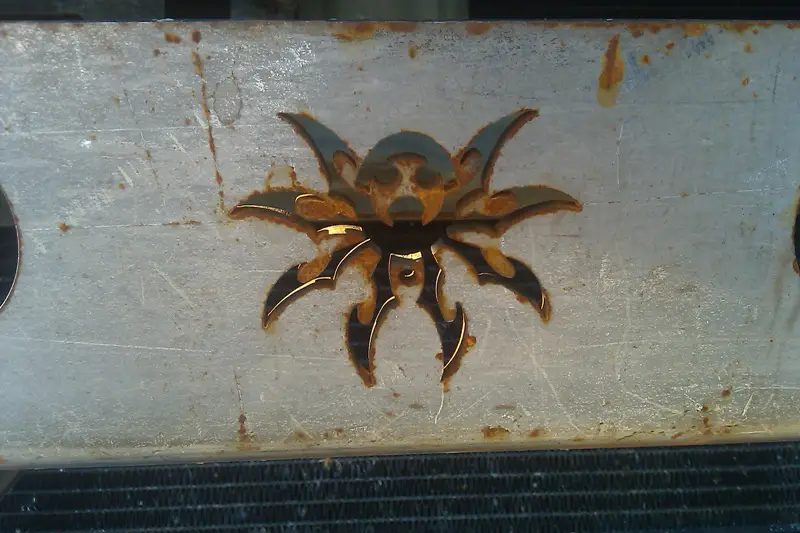

The stinger is laser cut from 3/16" steel but was purchased from PoisonSpyder.com already welded and comes bare metal.





lynchy wa

Down Under Beer Explorer
Elite Explorer
Joined
September 30, 2009
Messages
5,162
Reaction score
13
City, State
Albany, Western Australia
Year, Model & Trim Level
2004 XLT V8
Cool, I haven't seen much laser cutting. She look's sweet as mate:thumbsup:





willindsay

Explorer Addict
Joined
May 22, 2010
Messages
1,046
Reaction score
5
Location
Sevierville
City, State
Sevierville,TN
Year, Model & Trim Level
94 Limited
So, the tranny in my Exploder went out recently so I decided to dive in and start doing some mods. First on the list was a new front bumper. I opted to start with the Poison Spyder Comp Stinger built for the Jeep TJ. It wasn't an exact match (as you can see in the pictures below) so some brackets were fabbed up and now it is rock solid.

Curious why you're moddin when the tranny went? Or did you already fix that?





1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport
Curious why you're moddin when the tranny went? Or did you already fix that?

Too be completely honest I have been wanting to for a while and the transmission failing was all the justification my fiance needed to be ok with me really getting crazy with it.

The plan is to one day swap the entire power train for something v-8 ish. My current thoughts are a 3v 4.6 v8, but that could very possibly change by time i actually save up the $$ to do that.





1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

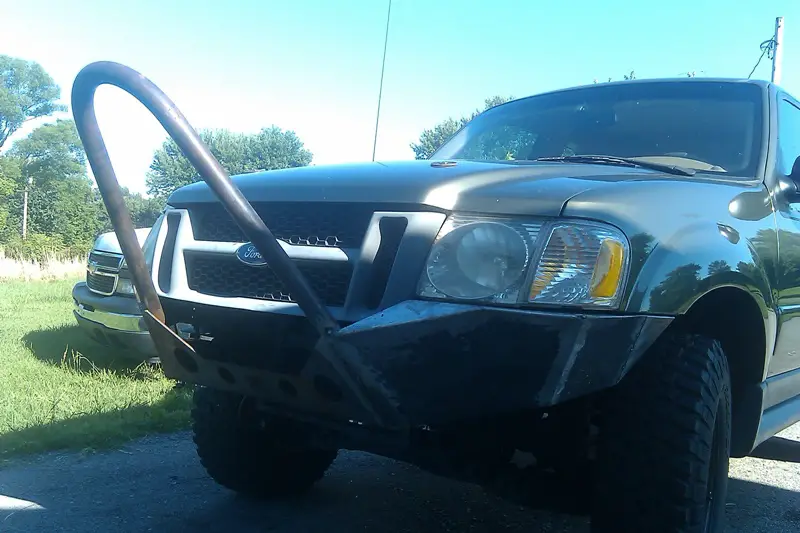

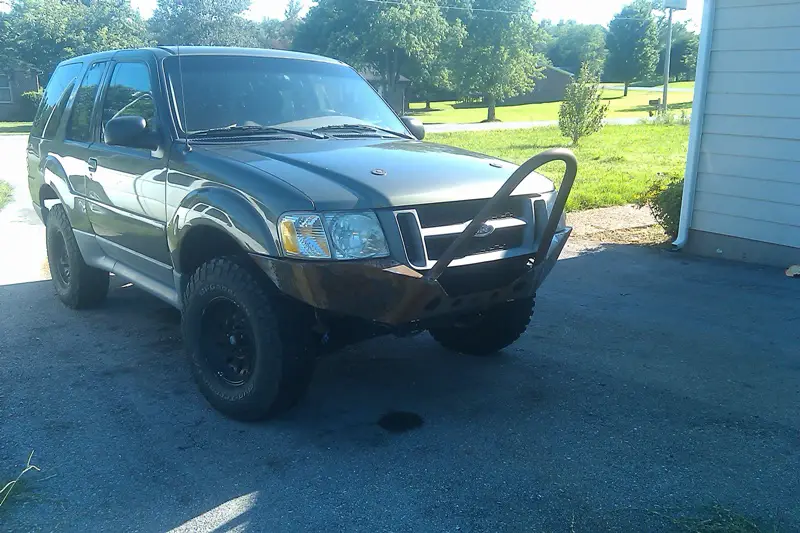

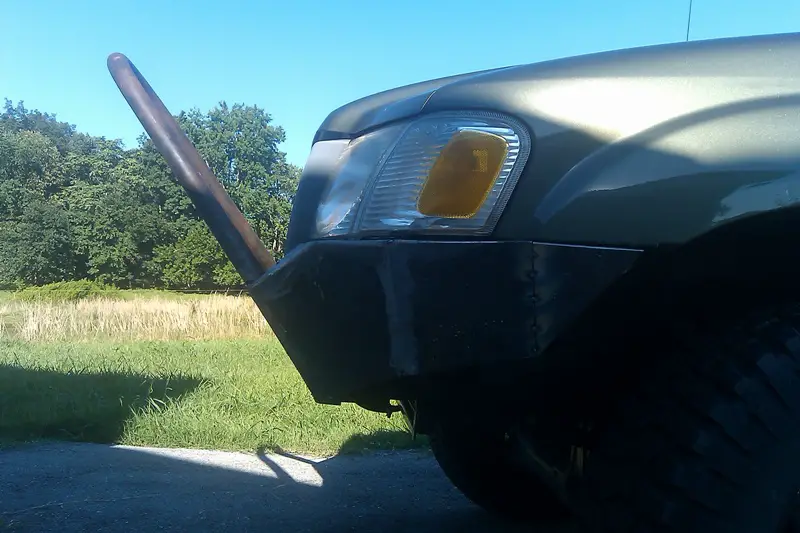

Here is what I've gotten done so far. I'd like to be able to finish it up and have it painted this weekend.


Attachments

  • IMAG0096.jpg
    154.7 KB · Views: 2,314
  • IMAG0095.jpg
    198.1 KB · Views: 2,174
  • IMAG0094.jpg
    153 KB · Views: 2,181




Slowlyvverot

Well-Known Member
Joined
August 27, 2009
Messages
794
Reaction score
3
City, State
Greensboro, NC
Year, Model & Trim Level
93 ExElTee
awesome job on finishing that thing. I have been wondering if this exact bumper would fit on my 93. Dunno how missed this thread!

what's the distance between your frame horns? i wonder if our frames are the same dimensions?





RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,118
Reaction score
367
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Are you thinking about adding some support tube going to the hoop?





1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport
I will grab some dimensions for you tonight when I get off work.

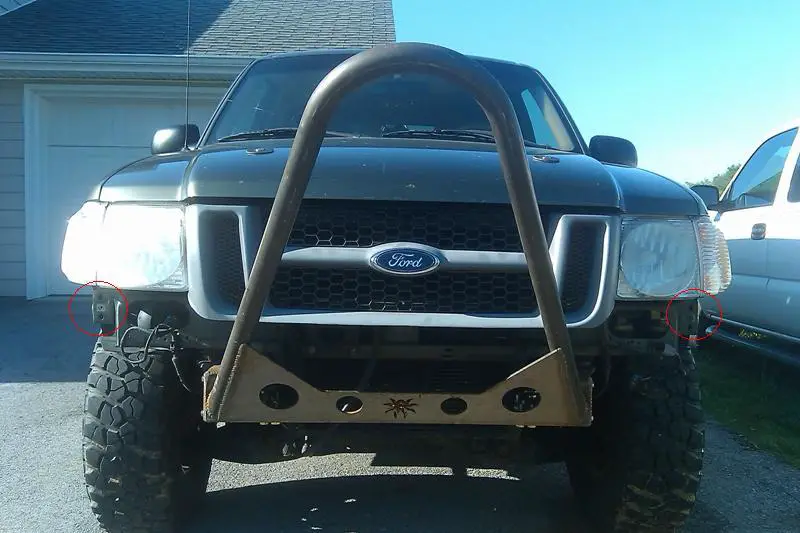

I'm not planning on supporting the hoop at this moment. I have brackets on the back side of the bumper that tie into these points where the factory bumper tied into. That's the plan right now. It's really sturdy but we will see how things go.


Attachments

  • IMAG0085__.JPG
    68.9 KB · Views: 3,226




1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

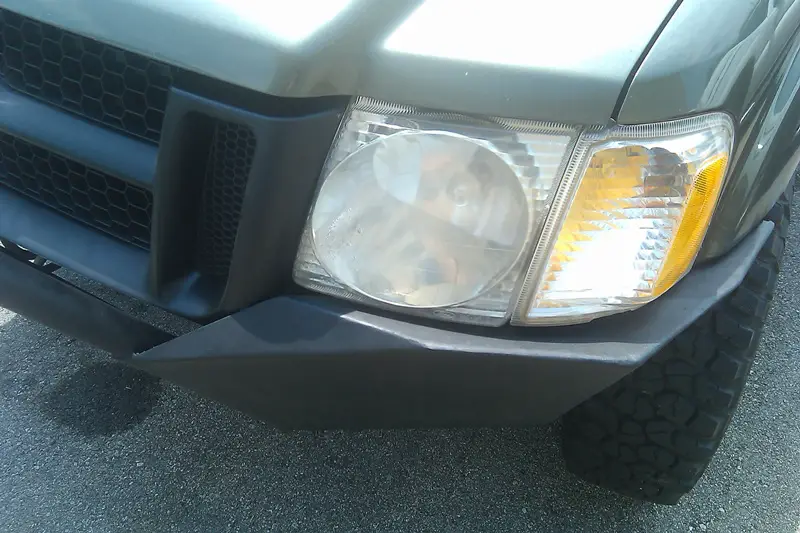

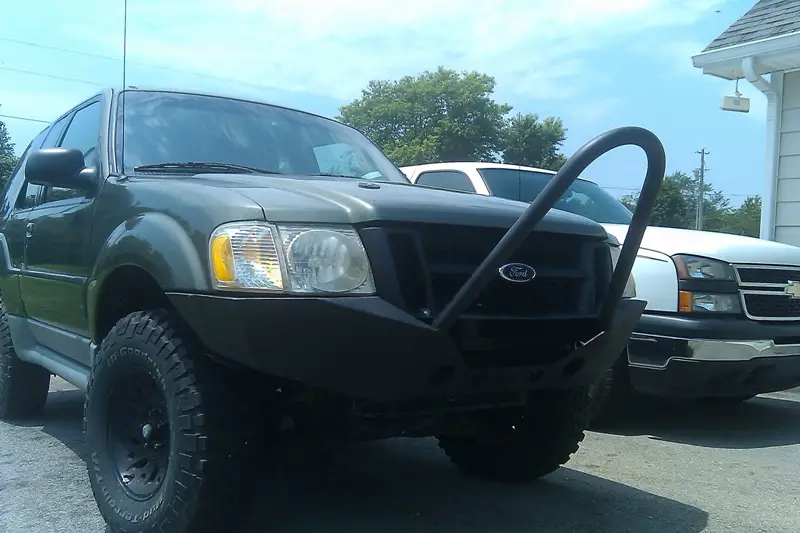

Alright here it is. Fully welded and painted.

The dimension of the frame rail is roughly 31-3/8" outside to outside.

I had to fabricate 2-1" spacers to make the jeep portion of the bumper fit the frame.

I included a picture of the front grill that I painted to match the bumper also.


Attachments

  • IMAG0101.jpg
    117.5 KB · Views: 2,050
  • IMAG0099.jpg

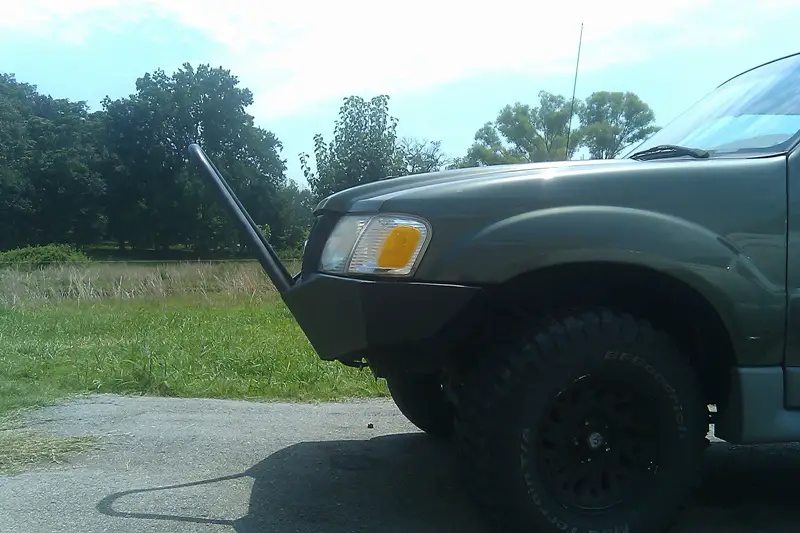

    155.9 KB · Views: 2,174
  • IMAG0100.jpg
    165.4 KB · Views: 2,097
  • IMAG0097.jpg
    149.1 KB · Views: 2,157












ZiggityZac

Member
Joined
April 22, 2010
Messages
21
Reaction score
0
City, State
Newark, De
Year, Model & Trim Level
2001 Sport

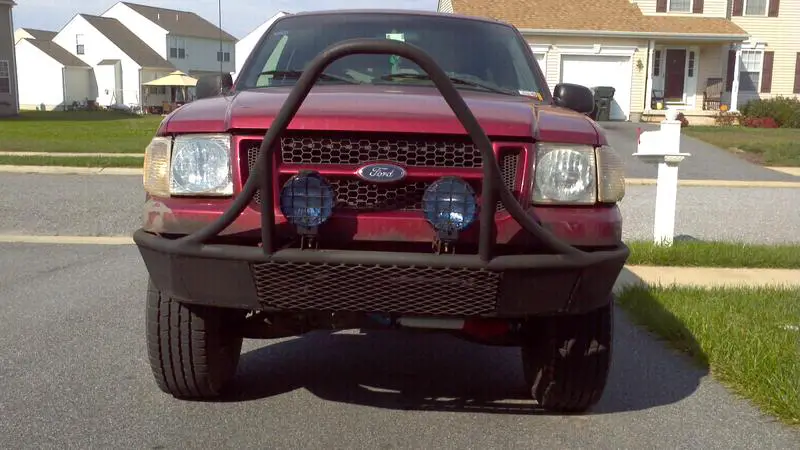

Nice dude .. heres mine i did.. looks prettt sweet.


Attachments

  • ForumRunner_20111201_174132.jpg
    63.1 KB · Views: 2,994




Backwoods "X"

Well-Known Member
Joined
June 20, 2011
Messages
220
Reaction score
1
City, State
Mt. Sterling, Ky
Year, Model & Trim Level
94 XLT
Hmmmmmmmm................. Honey, go AWAY for about 2-3 weeks will ya? (Please???)





1-MEAN-X

Elite Explorer
Joined
May 13, 2009
Messages
163
Reaction score
1
City, State
Tennessee
Year, Model & Trim Level
'01 Explorer Sport

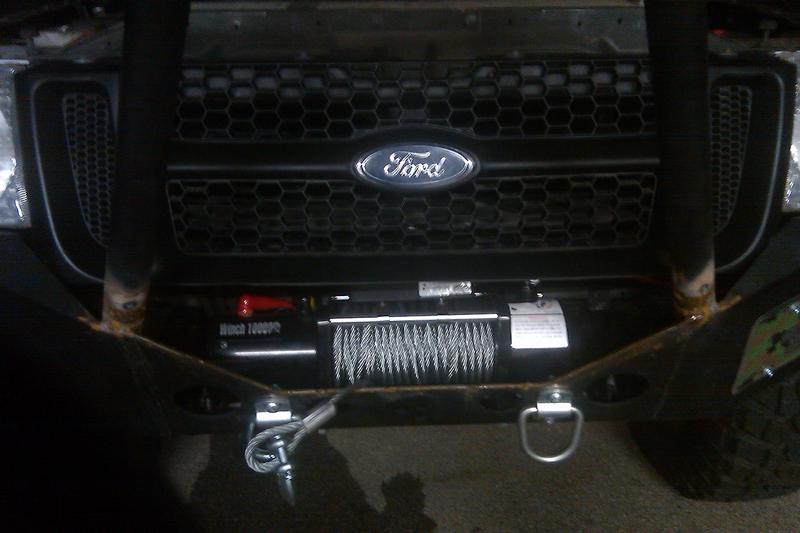

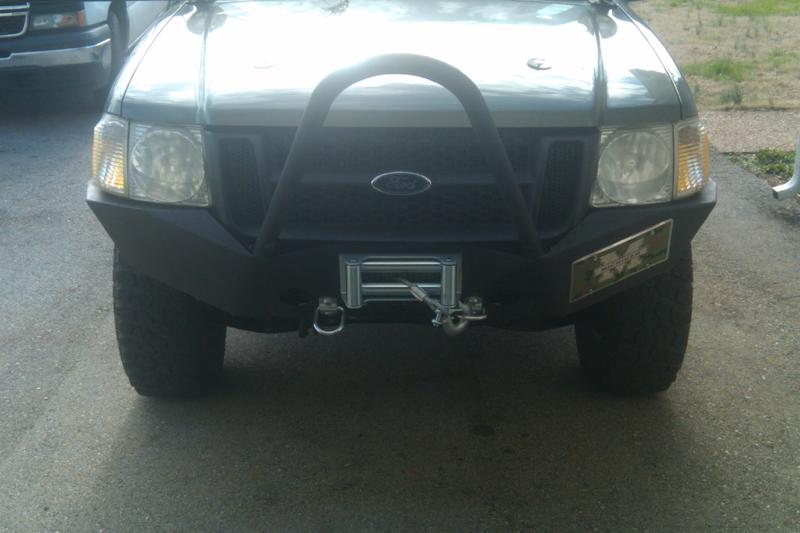

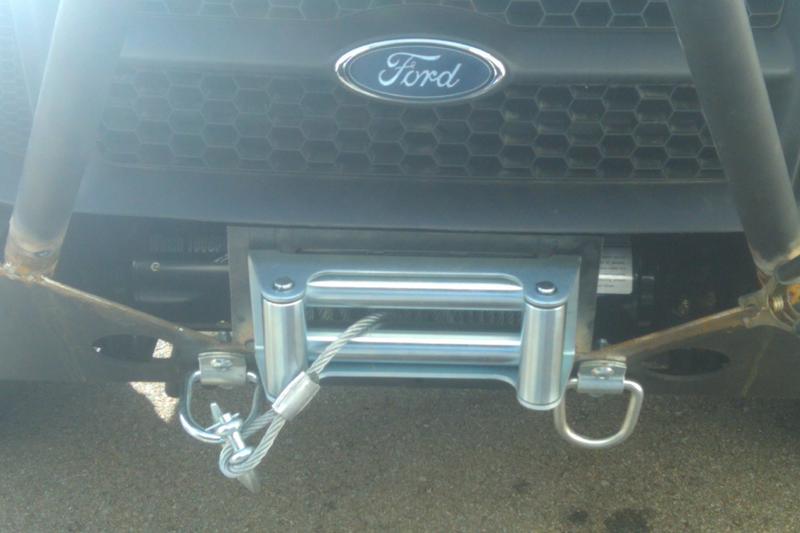

Here is an updated picture with the winch installed and painted. The stinger is also removable in case the cops give me any grief.
