jamest's "RE-SAS"

... or SAS pt.II, or SAS redeux, or axle remix thread. :p:

As some of you know, ive recently got a 94 sport that is the typical fullwidth HP44 with coils/arms, fullwidth 9" type swap. Its currently on radial 36" Iroks.

Right now im lowering it down 4" and extending the wheelbase a couple of inches. It wheels great but its just too tall for what i want to do. Ive got some Bilstein 7100's in the mail and my general idea is to make this more of a dual sport type rig that can get it on the rocks and also be able to blast some fire roads and play on the sandbars here in the summer.

Currently the truck has 4" blocks under the back and a "W" shaped set of hybrid 4 door packs. Im going to take the blocks out, throw on a freshened set of low mile 4door leaves with the overload removed, run anti-wrap pertches with the holes redrilled to move the rear back on the springs 2".

Pic below is why you DONT run shock boots. This was an Arizona rig and never really saw any mud after sureshot40sw bought it-


Attachments

  • sas1.jpg
    75.8 KB · Views: 4,500


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,735
Reaction score
26
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Lowering the bracket off the axle isnt an option... its still gotta do rocks without hanging up.
Yeah I just noticed that there is a leaf spring preventing you from shooting as close to the tire as possible.

But have you looked at mounting them outboard of the chassis (assuming there is enough room between the tire and the chassis for flex)?

Also, I dunno whether or not the Beilsteins are revalvable but if you mount them at an angle (which I know you said you're not going to do but I just wanted to get this out on the table), you might be able to play with the valve stack to compensate for the added angle (you'd probably end up doing this anyway if the aim is to run fast through the desert). Revalving for the angle will lead to slightly greater heat when you're cycling the thing at high rates (but the shocks wont cycle as far since they are angled) -- but you've got reservoirs (bling) to compensate for the hot hot hot (how you feeling, hot hot hot)
.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Dannie- thank yuou, your a live saver... i owe u a beer... going by tape measure i dont see how that is possible but ill recheck tom.

Truck is done other than shock mounts. State trooper budy of mine came over and drove me around town in it wiht no shocks on it. Front or rear. Throttle + brake + throttle + brake = pimp ass hydro simulation that brings in all the b!tches. :p:

sorry 4 crappy pic Start on the shock mounts tommorrrrow.


Attachments

  • sas9.jpg
    155.7 KB · Views: 1,306




james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Neighbors callin we got a block party im done see yall in the mornging!





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Also, I dunno whether or not the Beilsteins are revalvable

7100's are revalvable, I was talking to Winter about shocks once and he said that the Bilstein racing shocks (7100's included) are a little difficult to revalve but can be done.

I have a set of 12" 7100's I still need to install in the rear of my truck.

Looking good thus far James:thumbsup:





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
About to get started on shockmounts here in a min... just a few notes from yesterday..

1- Ballpit full of luck and falling backwards into it- from the before measurements i took the front was shifted 2" to the drivers side. After lowering it down 4" it now sits dead nuts center. I didnt have to do a darn thing to the trackbar.

2- Caster was 0 degrees from the start. Havent measured yet to see what it is now but IIRC i need to be around 4-6 degrees. Somebody correct me if im wrong. Either way, it will be better now than it was.

3- Wheelbase is now 108". Anyone know what it is for the Sport stock? The front was already a tad forward... now its about 1.5" more than it was.





Dannyboy

Other Make & Models Mod
Elite Explorer
Moderator Emeritus
Joined
February 16, 2001
Messages
5,438
Reaction score
11
City, State
43°48′48″N 91°13′59″W
Year, Model & Trim Level
91 4 do'
Dannie- thank yuou, your a live saver... i owe u a beer... going by tape measure i dont see how that is possible but ill recheck tom.

I know steve had issues with making those things fit but eventually he made it work. I can't fathom how you wouldn't stuff a tire into it, but i've always ran stock width axles and scrubbed my inner fender wells.

Also, I didn't know how to state this before, but when you lay your shocks at an angle you definitely can get longer travel from a shorter shock but you also loose a lot of the dampening effect. My truck was really bouncy in the rear even with 4 shocks but I kinda found a solution that got this under control:D









james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Thanks JT! :)

Danny- im about to start on the rear in a minute. I think im going to rig up a temp mount and run the 9" PC's at a 45 degree angle straight towards the rear. This will get it roadworthy and give me some room to build through the floor hoops as time allows... without having it undrivable.

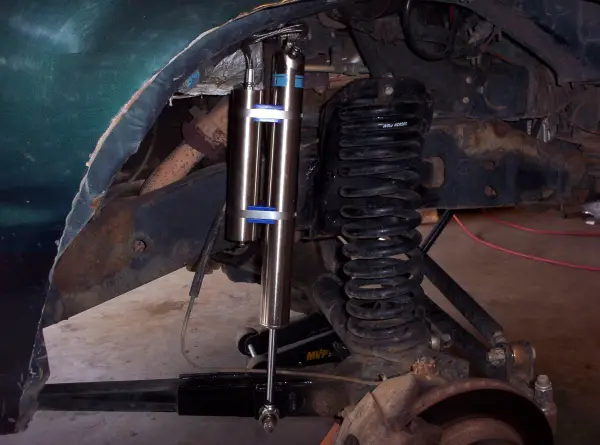

Front shocks are on... set with 5" uptravel/ 9" down. I used the existing upper mounts and built a stud plate and welded it to the lower part of the radius arm. Everything clears lock to lock. Ill bumpstop it later... just eyeballing it im going to have to get pretty radical with some mounts. :rolleyes:

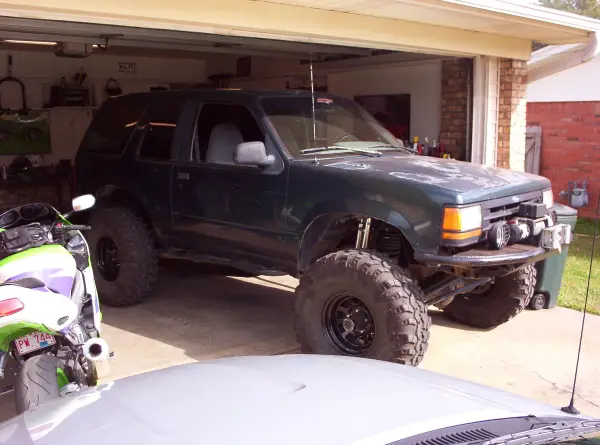

Second pic is a little better one of it on the ground.


Attachments

  • sas10.jpg
    129.1 KB · Views: 1,215
  • sas11.jpg
    128.1 KB · Views: 1,227




Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,959
Reaction score
648
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT
might I direct you to Stic-o's fullwidth 44/9" swap that has outer frame rail shocks. also his truck hauls balls in the washes.


These were my original shocks and wheels I started off with after the SAS. 16" BBCS's and 15x8 with 4 1/2"BS. I now have 14" Fox's with a 17x8 with 4" BS. we have moved the bottom mount around a bit too. I actually bent one of my orginal BBCS running this combo though:( That's why I went back down to 14" shocks. What I would like to do is go through the fenderwell and make a mount over the frame, that ties into the cage.


you can actually see here with the 35's and BBCS when I rubbed all the paint off the shock!:eek:




Here you can see the current setup. I have maxed out on articulation:( I think I use to get more with factory mounted shocks and 33's. However, you must note, I have no sway bars on the truck at all, and this rides like a caddy on the highway at 65mph, with 37" MTR's;)



I think the leafs would think my articulation is fine though :p:









Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,959
Reaction score
648
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT
so steve, are your shocks your limiting strap :eek:

what is this thing "limiting straps" you speak of? :p:



Yeah have been thinking about putting some on for awhile now:rolleyes:





SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,397
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
Happy Birthday James!







Jeff - :navajo:





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,735
Reaction score
26
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Yeah happy birthday Jamezzzzz!!!!





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Its done.

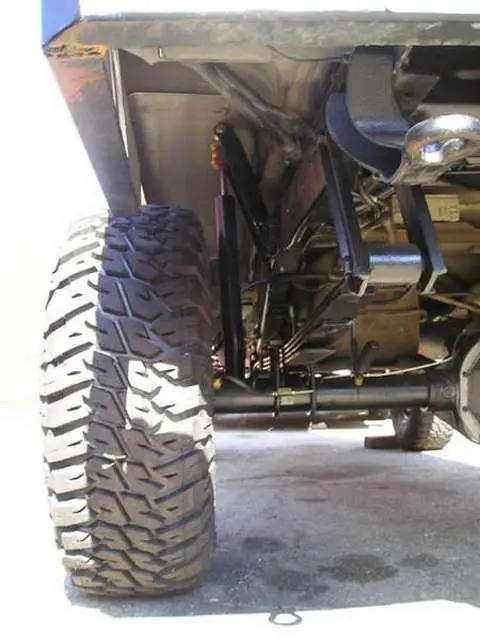

The rear shocks are now at a 50 degree angle straight off the back of the rear end, outside the framerails. No way i could go forward, or "A" across the back of the housing. The upper mounts are actually welded on to the bumper support bar. :D Ill try to get pics later.

Driving it- holy mother of God good shocks are worth the money. I havent had a chance to get into some rough stuff yet, but the 25mph speedbump test was awesome. Hold speed at 20mph and then punch it right before the bump and the front tires just soak it all up like it was an expansion joint. Now i need some for the rear. :p: Since the rear is moved back on the leaf pins 2", its closer to the center of the spring than factory so i should in theory get more travel out of them.

I also need to do some fender opening reshaping... hopefully ill work on this in the next few weeks.





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,801
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Looking forward to the pics! :cool: Happy b-day too! I'm sending you a <3 package on Saturday.





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport

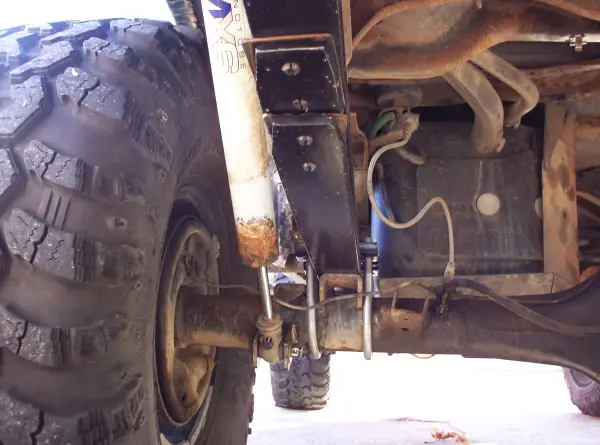

First pic is the lower rear shockmount. Shock angle is 50 degrees straight back. Going by the tape i could run an 11-12" shock back there, raise the upper mount and get close to 60 degrees without having to go through the floor. Dont know what to do at this point.


Attachments

  • sas12.jpg
    132.3 KB · Views: 1,157




james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,680
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport

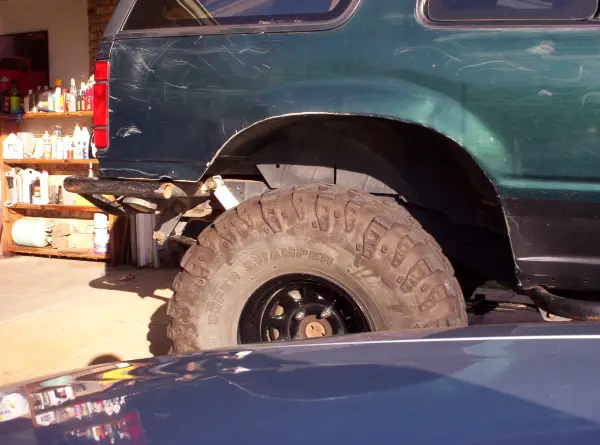

Here's a side shot. Upper mount is just a cut down piece of 2" .250 wall sqaure tube i had laying around. There is tube running from the bumper corner to the frame that its welded to.

This also shows how much work i need to do cutting some more fender. :p:


Attachments

  • sas13.jpg
    133.3 KB · Views: 1,158




IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,735
Reaction score
26
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
That turned out pretty good James -- the angle is pretty close to the stock angle (+90 degrees rotated).
