RJ's B2 Build

I started building my second RBV, a Bronco ii.

This thread is to post about and document the work done to the car, so it can help others that are building a b2 or ranger based vehicle. This is actually my second build thread about this rig, the first one was accidentally deleted.

I picked up this 1990 bronco ii in august of 2016. It's an automatic, 4x4, Eddie Bauer edition, that was already spray painted green when I bought it. But it had what I wanted, cruise control, factory a/c, electric Windows and locks, (although none that stuff worked, it was there for the fixin') and it was a fair price for a b2 with decent interior..... Almost none of the other ones on Craigslist had a good interior, or they wanted way too much money.



So why build another 4x4 when i already have a built up explorer/Navajo?
Well this one just has a different vision for it. I don't plan for this one to be big and crazy and an all out dedicated trail rig. At least not for a few years. I want this car to be capable off road, but retain as much road manners as possible. Almost more like an overlanding vehicle. I want to be able to drive it long distances, use it for camping and mountain biking, and for four wheeling, but not something that needs a trailer.

So I want to keep the lift to a minimum, keep things relatively simple. Put some 33's, trim the fenders, some lockers, and just keep fine tuning everything as I go along.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.








Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II












R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II






roscoe 0202

Well-Known Member
Joined
February 3, 2014
Messages
340
Reaction score
76
City, State
salt lake city utah
Year, Model & Trim Level
1999 explorer sport
good luck with chemo i'm there too no fun.
roscoe







R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
Speaking of no fun, my day did not go as planned.

I took the Eaton Detroit locker out of my other rig, planning to put it in the b2, and found its half way broken. Most of the bolts on the end are broken off, and found the heads of some of them in the diff. :eek:










rpenner54

Moderator Emeritus
Moderator Emeritus
Joined
February 8, 1999
Messages
3,791
Reaction score
22
City, State
Wichita KS
Year, Model & Trim Level
98 Merc
Very nice! I will have to check those out. Are the bolts/screws included with them?







R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
Very nice! I will have to check those out. Are the bolts/screws included with them?

Yes they are. They're just self tapping screws. It also comes with welting, but I didn't use it. The wild horses flares are similar to the bushwacker cut out flares for broncos, but the wild horses flares are supposed to be really durable.







Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
14,077
Reaction score
1,076
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 X '19 Rngr
So now the Navajo needs a new gear set too?:confused:







R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
So now the Navajo needs a new gear set too?:confused:

The gears are fine. I'm hoping to fix the carrier and that everything will be good. I dropped the locker off at a diff shop to see if they can fix it.







R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
Replaced the leaky shock today. I don't have the budget for anything fancy, but I was able to find this rancho rs5000 on sale on Amazon for $14.





With the shocks on, fenders trimmed, and bump stops on I plan to test it out this Saturday in Azusa canyon (hopefully won't hydrolock it) and make sure everything's working together right. I still need to reposition the lower shock mount a little. The shock is sitting in it at a weird angle.







R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
Took the little bronco out to test it and check how everything is working out in the dirt before the truckhaven trip.

Had a lot of fun, everything is working great on the truck. It's still open diffs for right now. Hopefully get that locker fixed soon. The shocks are too soft for my liking, and there's a loud banging noise from under the car on certain bumps. Can't for the life of me figure it out. It might the shackles hitting against the hangers. Not sure.

Only thing I ran into today was popping the drivers side coil spring out. But we easily jacked up the car and got it back in position. Other than that, everything is working good.














R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
Finally fished out the bolts from my locker. Had it over at my gear shop and he checked it out to make sure it was all in good shape before I started to work on it. He said everything was good other than the broken bolts. So with a punch, a hammer, drill bits, butane torch (for the lock Tite) and some bolt extractors I got all four out. Then started the install and it took way longer than I planned for. I thought it would bolt right in with the old shim setup. Nope. Had to re-shim it and set the carrier preload and backlash. But it's all together now. Ready for truckhaven this weekend.








R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
Had a really good weekend out in truckhaven. The bronco did really well both on the trails and on the drive there and back.

Had plenty of traction with the rear locker, the short overhangs and small wheelbase kept me from scraping on anything. And nothing broke. That's a good trip.










R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II

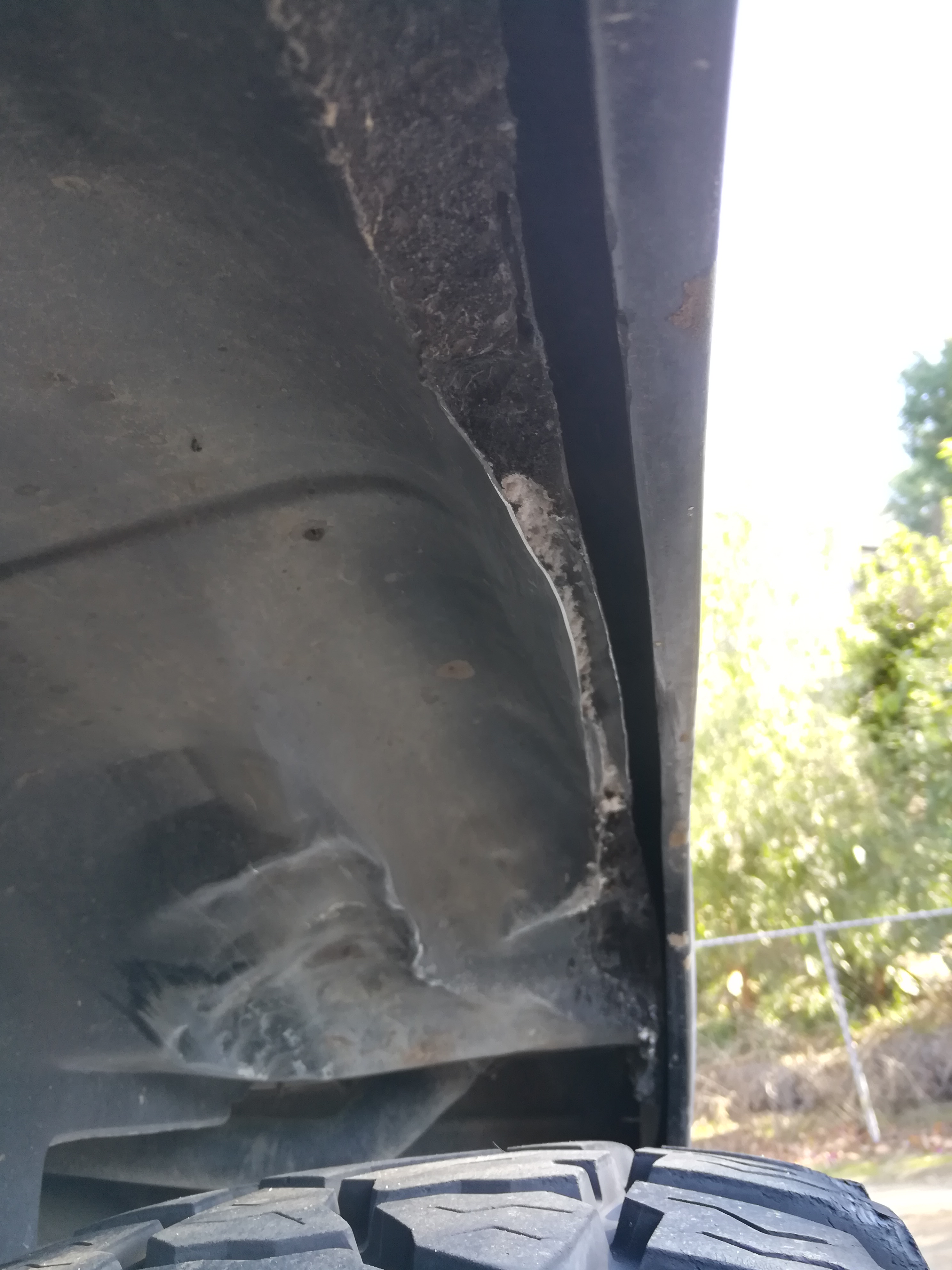

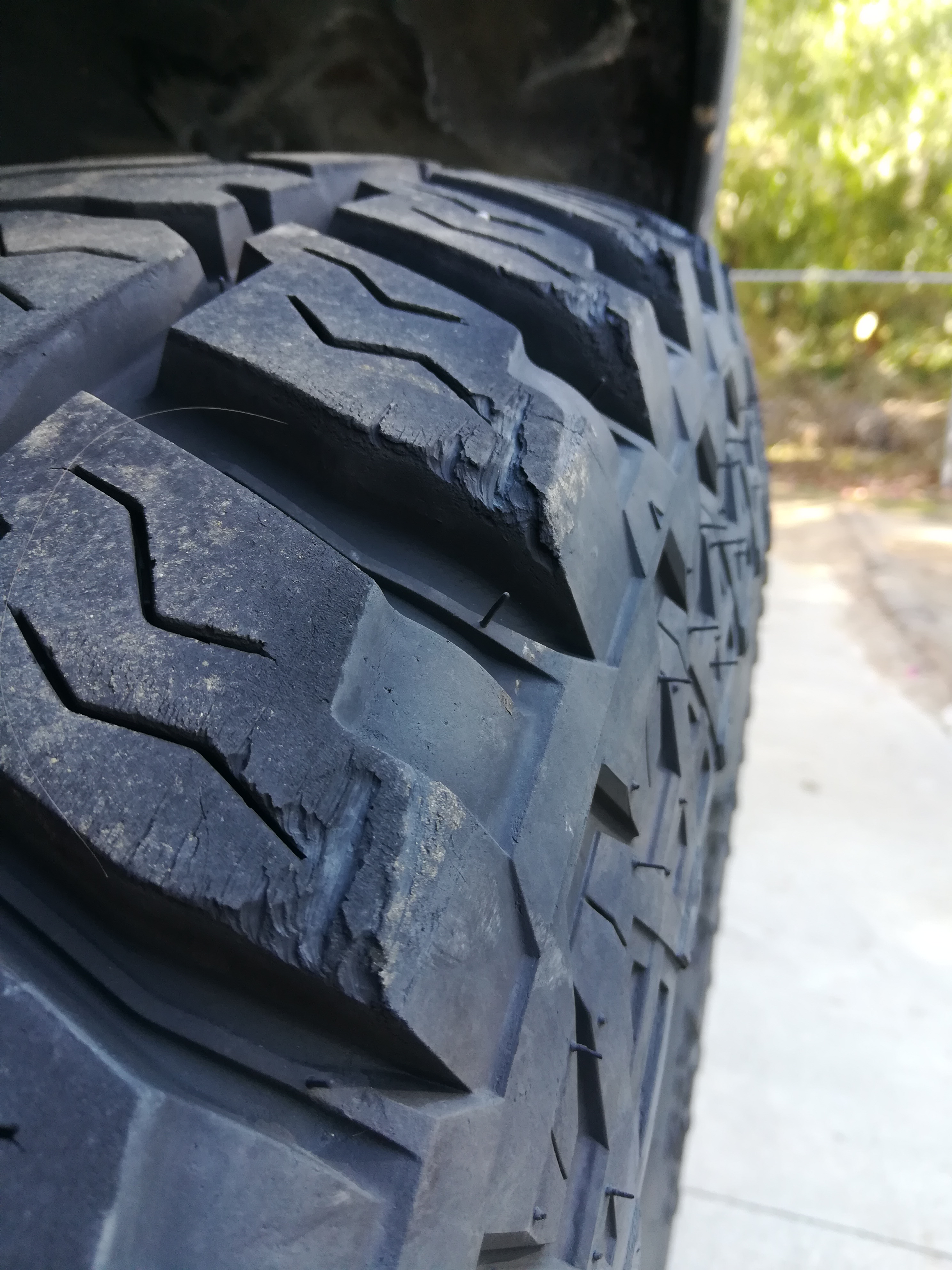

There's a small list of things I still need to get done one the bronco, but one thing that showed up during this trip is that I need to do something about my cut fenders, because when the suspension flexes and stuff the tire, the outer edge of my tire is being chewed up.





And one of the best mods you can do...








stephen93Eddie

Well-Known Member
Joined
December 8, 2016
Messages
113
Reaction score
32
City, State
Hamilton MT
Year, Model & Trim Level
1994 Ford explorer sport






R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II






R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II

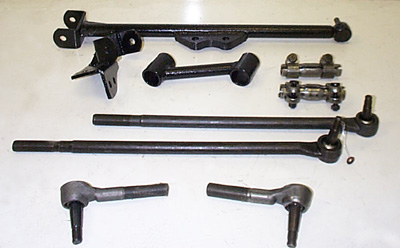

I picked up an unused super lift superrunner steering kit from another member on here. I want to make it work on my setup, but from the measurements I took, I probably need an inch or two more lift to get the geometry right. Which is fine with me. I just don't want to go over 4" of lift. Right now my steering isn't too bad with only 2" of lift and a drop pitman.










R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
221
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
The shocks on my car were not to my taste. The car was to bouncy. Fortunately when I was talking to a friend about it, he said he had some rancho 9000's I could have if they fit. And they did!

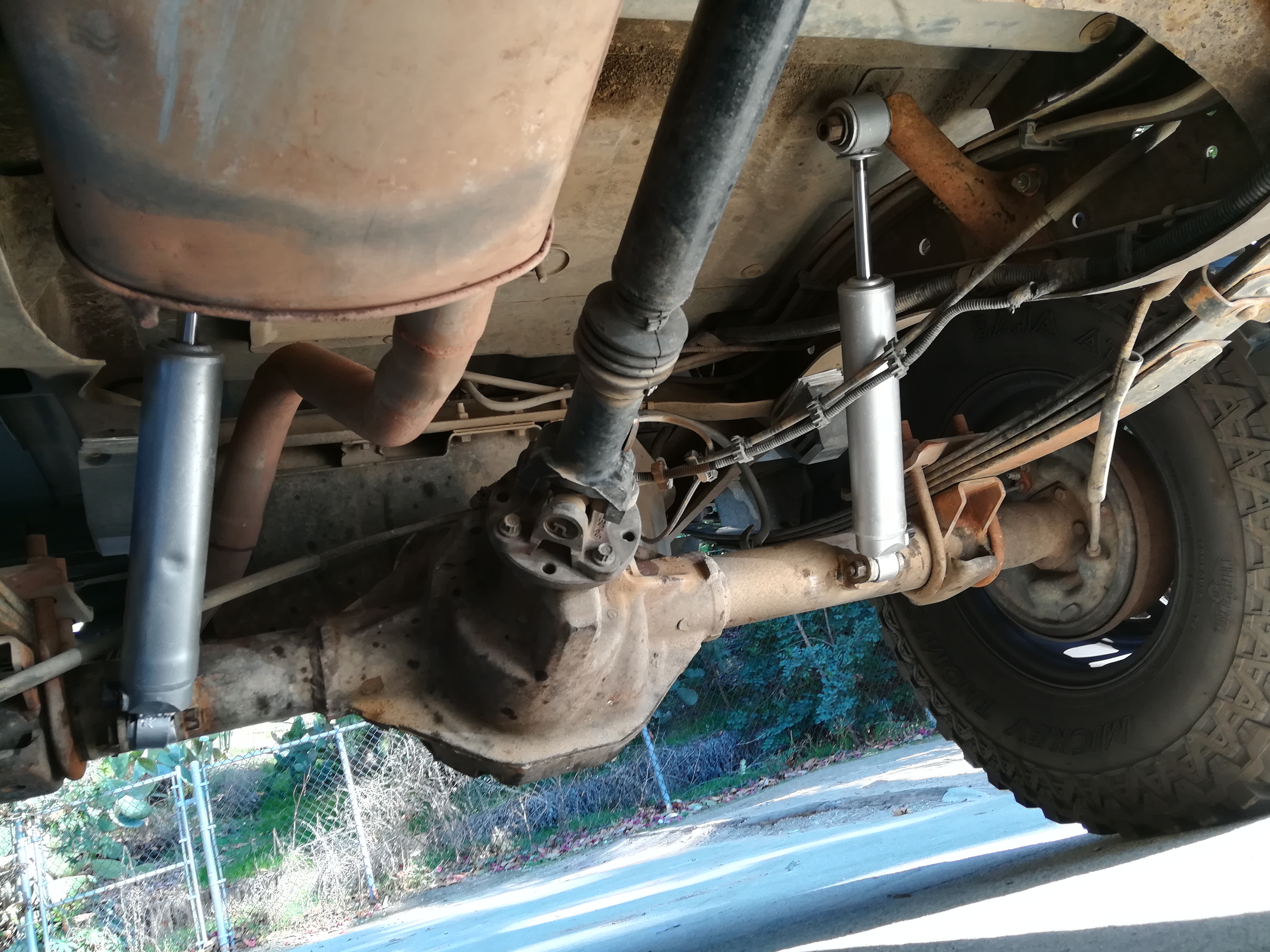

That helped control the front, but the rear was still very "springy". So keeping with the penny pincher theme of this build, I had some super old rancho adjustable shocks in my garage that were stem mount on one side. So somewhere between genius and insanity I converted them to an eye to eye mounted shock. With some cutting and welding.
