1991 explorer build

1991 explorer 4x4 build

Hi my name is Mike and I have been watching this site for a while and now that I have started my explorer project I figured I would post it here.

I started out with a stock 91 explorer 4.0 auto 4x4. I picked it up in good running condition for $1000. Since this is not my DD I am taking my time making it a little more offroad worthy.

My plans for this explorer are to use it as a weekend camping vehicle that will see mostly desert trails and mountain roads. With that in mind I am more focused on durability than rock crawl capability. I already have a large amount of parts sitting in the garage and am starting to build this thing. Any ideas or problems you see with what I am doing let me know.I am going to work at putting pictures up and parts list.

Parts list for now

Front suspension
-skyjacker drop brackets for beams
-deaver superflex coils from f150 #csh57
-extended radius arms using stock arm and 2"x1/4" dom tube. bushings not hiems
-extended brake lines
-d35 with 4.56
- upgraded u-joints and c-clip eliminator
-manual hubs
-Fox 2.0x10" shocks
-upgraded swaybar
-Dual piston calipers from 96 ranger

Rear Suspension
-l/s 8.8 with 4.56
-stock leaf springs with SOA
-Fox 2.0x12" shocks
-disk brakes from 97 explorer

Engine
-stock and will probably stay that way

Trans
-M5OD
-manual transfer case with home built shifter and linkage

Wheels/tires
-5 d window steel wheels
- 4 new bfg km2 33/10.50/r15
- 1 used bfg at 33/10.50/r15

Steering
-stonecrusher style steering with chevy tre's



First picture is when i pulled it into the garage. We stripped the front suspension off. since im using coils from an early F150 (deaver superflex 4 in lift) i cut the coil buckets off as well. I have skyjacker drop brackets, have built my own radius arms using the stock arms, I am working on mounting coil buckets from an early bronco.


Attachments

  • before.jpg
    99.3 KB · Views: 2,088
  • springs.jpg
    90.6 KB · Views: 1,794
  • frame cut.jpg
    frame cut.jpg
    99 KB · Views: 1,789
  • dr frame plate.jpg
    dr frame plate.jpg
    98.7 KB · Views: 1,835



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer
I started the front bumper this weekend. It is similar to the rear bumper design. All 3/16 plate except 1/4 for frame bracket and winch mount plate.


Attachments

  • 2012-03-31 15.21.45.jpg
    2012-03-31 15.21.45.jpg
    90.7 KB · Views: 605
  • 2012-03-31 15.42.51.jpg
    2012-03-31 15.42.51.jpg
    96.7 KB · Views: 644
  • 2012-03-31 15.43.28.jpg
    2012-03-31 15.43.28.jpg
    91.2 KB · Views: 639



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





wood1

Explorer Addict
Joined
May 3, 2007
Messages
2,920
Reaction score
5
City, State
North of Edmonton
Year, Model & Trim Level
'93 XLT, Cayman Green RIP
I like it!







mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer

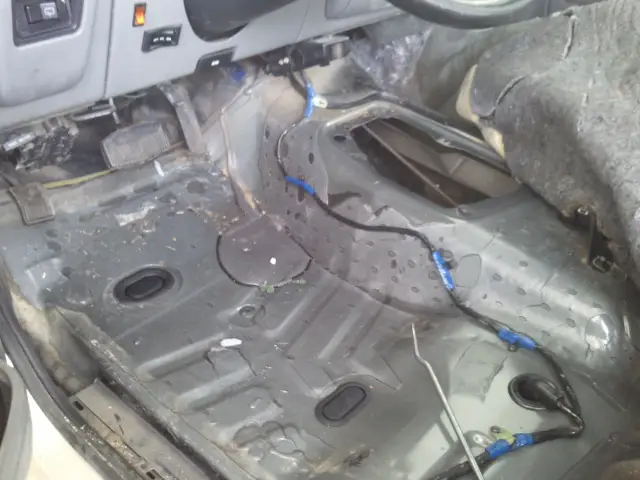

I have had the truck down at my work for almost 2 weeks now. I did the manual trans and manual t-case swap. That was easy. Everything bolts right up and no fab work required. While it was in the shop i got alot of the maintainance stuff done. I ended up going alot further than i needed and wanted too but i guess its worth it for peace of mind when on long trips. This thing runs like a new truck now and I love the manual trans. I replaced the A/C system and converted it to r134 and put a cd player in it so its comfortable to ride around in. Still working on the front bumper. All that I need to do is grind it and paint it so that should be on soon.
Anyone have ideas for a boot for the t-case shifter. I was thinking of going to the junkyard and looking around to see what i can find.


Attachments

  • 2012-04-12 16.35.15.jpg
    2012-04-12 16.35.15.jpg
    93.8 KB · Views: 587
  • 2012-04-12 16.34.56.jpg
    2012-04-12 16.34.56.jpg
    97.1 KB · Views: 569
  • 2012-04-04 09.57.42.jpg
    2012-04-04 09.57.42.jpg
    101.3 KB · Views: 582






mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer

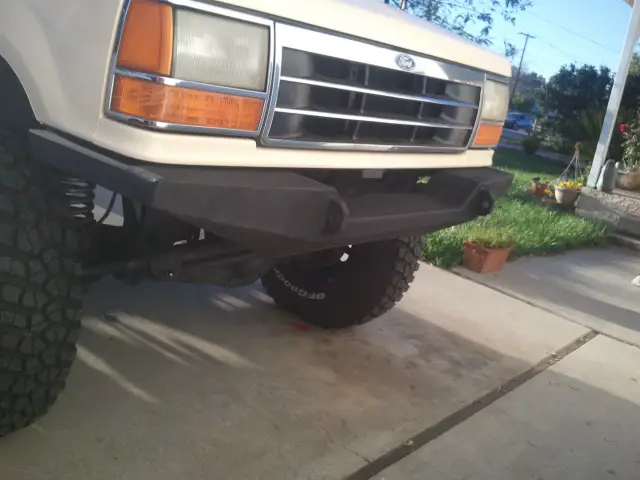

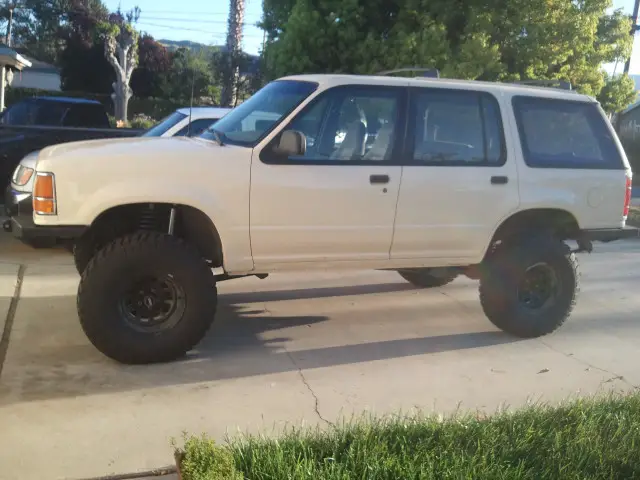

Got the front bumper mounted. I am going to leave it like this until i get a winch then maybe add a stinger bar onto it.


Attachments

  • 2012-04-20 07.11.58.jpg
    2012-04-20 07.11.58.jpg
    101.8 KB · Views: 587
  • 2012-04-20 07.12.23.jpg
    2012-04-20 07.12.23.jpg
    97.5 KB · Views: 601






wood1

Explorer Addict
Joined
May 3, 2007
Messages
2,920
Reaction score
5
City, State
North of Edmonton
Year, Model & Trim Level
'93 XLT, Cayman Green RIP
I really like that bumper. Looks great. You are going to have to invest in some rocker guards/sliders to keep the body looking nice.







asull85

The Storm Chaser
Joined
April 29, 2010
Messages
358
Reaction score
32
City, State
Agawam, MA
Year, Model & Trim Level
2016 Interceptor Utility
Callsign
WX4FUN
Your Ex looks amazing. Great job!







mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer

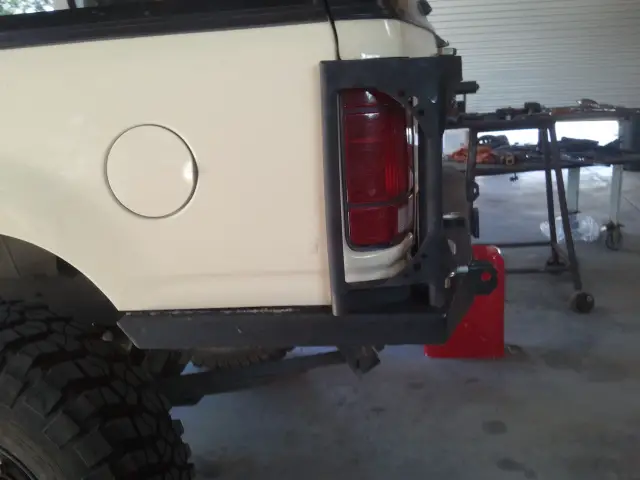

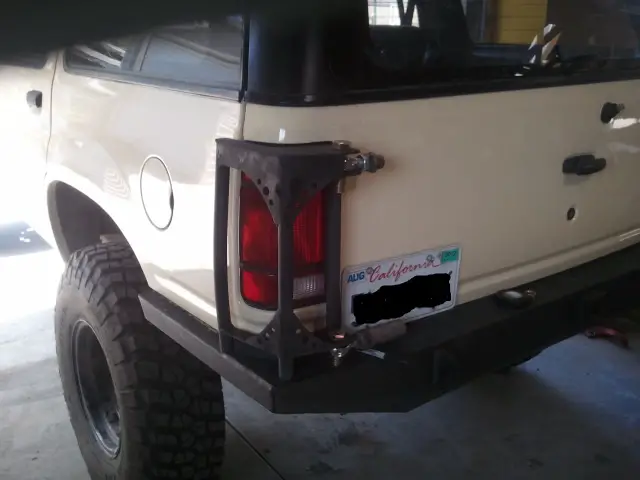

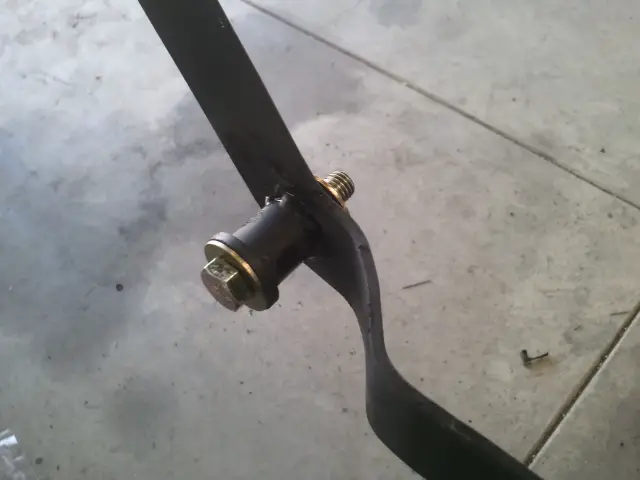

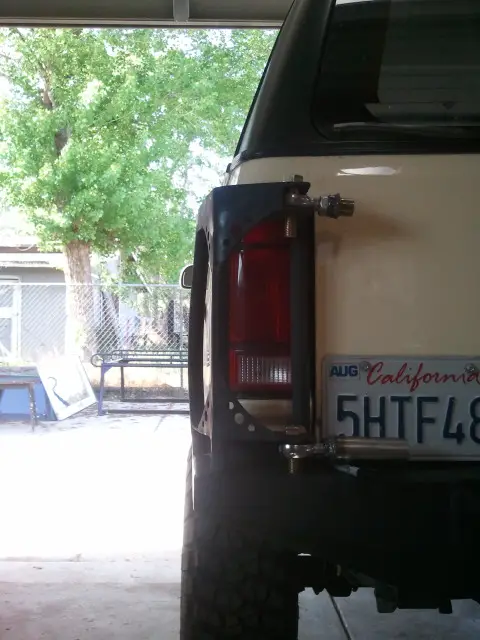

Built a rubber bushing for my manual t case shifter. It works real good and has cut the noise way down. I also started on a rear tire carrier using heims as the hinge point. I may not be pretty but it will function just fine. I was going to use a spindle style hinge but I couldn't shake this idea from my head so i figured I would give it a try. I still have a ways to go on this to finish but I will post pics of what I have so far


Attachments

  • 2012-04-28 15.33.39.jpg
    2012-04-28 15.33.39.jpg
    95.1 KB · Views: 557
  • 2012-04-28 16.07.40.jpg
    2012-04-28 16.07.40.jpg
    94.4 KB · Views: 537
  • 2012-04-28 16.07.19.jpg
    2012-04-28 16.07.19.jpg
    71.6 KB · Views: 517
  • 2012-04-28 16.08.17.jpg
    2012-04-28 16.08.17.jpg
    108.6 KB · Views: 528






mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer

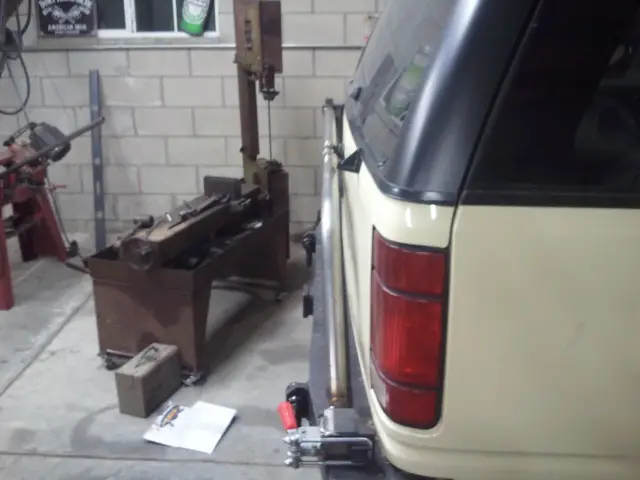

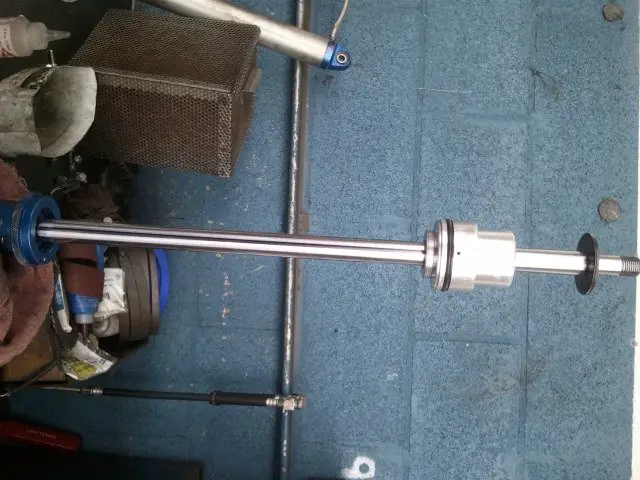

I rebuilt/valved the rear fox shocks this week. When i bought them they were valved for a fullsize truck. I also did some more work to the tire swinger. The latch and stop on the passenger side turned out very nice and holds the swinger solid with no movment at all. I am now in hurry up mode for this thing. I leave for a Moab trip in 5 days. I need to just get it working for now so i can make the trip.


Attachments

  • 2012-05-03 09.37.10.jpg
    2012-05-03 09.37.10.jpg
    76.3 KB · Views: 530
  • 2012-05-03 21.11.12.jpg
    2012-05-03 21.11.12.jpg
    73.4 KB · Views: 520
  • 2012-05-03 21.11.33.jpg
    2012-05-03 21.11.33.jpg
    88.9 KB · Views: 541






mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer

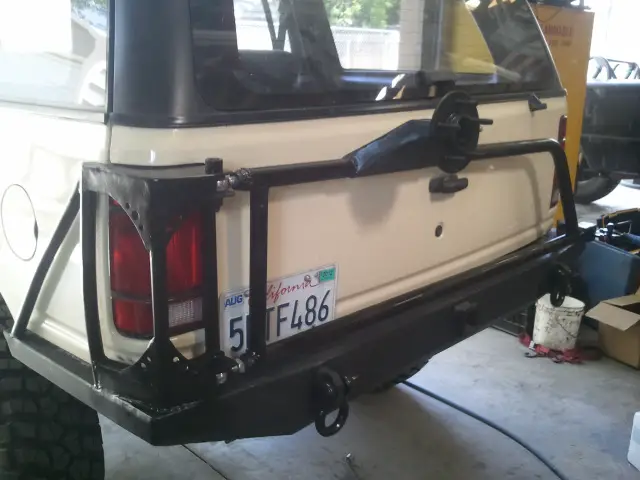

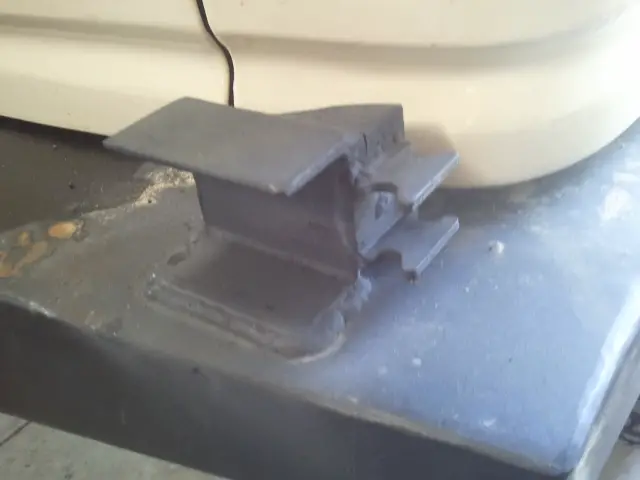

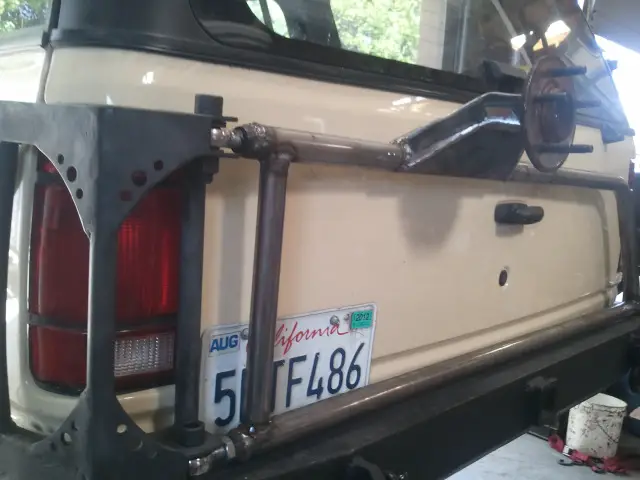

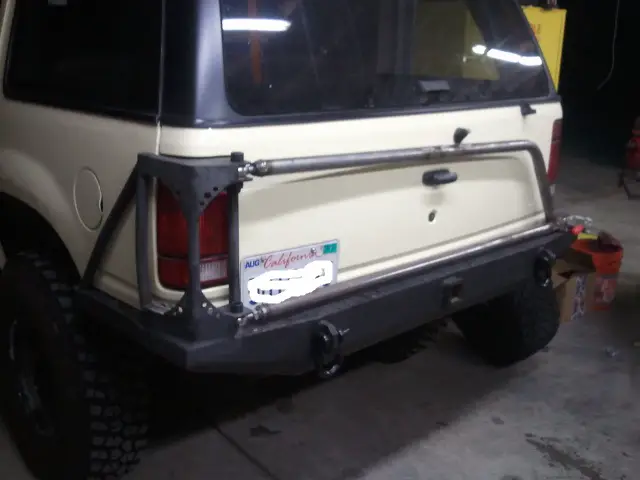

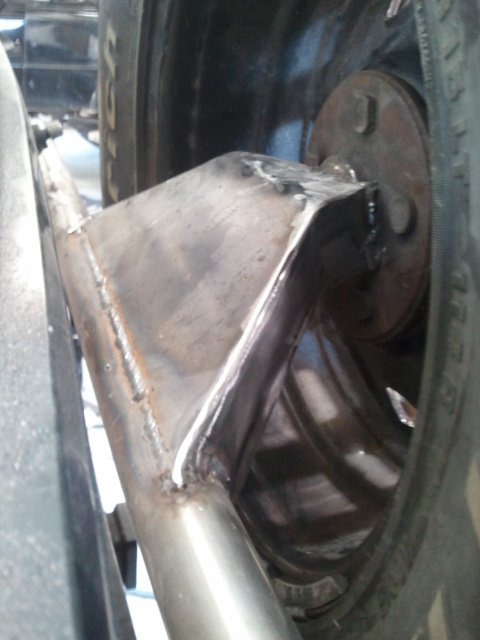

Finished the tire carrier for now. I will mount a fuel can, shovel, and highlift when i get back from Moab. I spent all day on the tire swinger and finishing a lot of loose ends with the truck. Of course when i tried to start it to move it would not start. The ground cable on the battery is not connecting well. I'll need to fix that Monday night


Attachments

  • 2012-05-05 13.12.52.jpg
    2012-05-05 13.12.52.jpg
    93.6 KB · Views: 534
  • 2012-05-05 13.12.26.jpg
    2012-05-05 13.12.26.jpg
    101.9 KB · Views: 531
  • 2012-05-05 12.24.01.jpg
    2012-05-05 12.24.01.jpg
    98.1 KB · Views: 519
  • 2012-05-05 11.49.09.jpg
    2012-05-05 11.49.09.jpg
    44.2 KB · Views: 524






wood1

Explorer Addict
Joined
May 3, 2007
Messages
2,920
Reaction score
5
City, State
North of Edmonton
Year, Model & Trim Level
'93 XLT, Cayman Green RIP
Nice work, you should sell a few.







mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer
Nice work, you should sell a few.

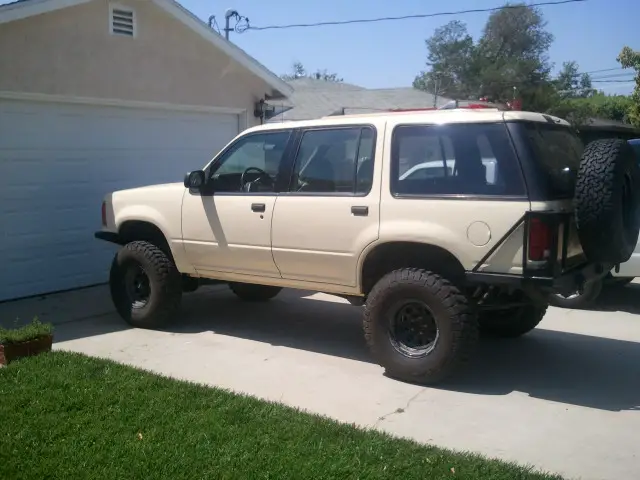

It would be way too time consuming to make something like this for a profit. Took probably 10 hours to make the tire swing and mount. Next time around a have a few more ideas to make it look a little better. It is really strong. The only thing that has any give when hanging off the swinger is the bumper


Attachments

  • 2012-05-06 14.29.49.jpg
    2012-05-06 14.29.49.jpg
    96.9 KB · Views: 510
  • 2012-05-06 14.29.35.jpg
    2012-05-06 14.29.35.jpg
    41.8 KB · Views: 506
  • 2012-05-06 14.29.18.jpg
    2012-05-06 14.29.18.jpg
    48.3 KB · Views: 509






mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer
Followed the advise i found on this website http://www.explorerforum.com/forums/showthread.php?t=250186&highlight=battery+cable (thanks tbars4) and replaced both battery cable with Napa cables. Everything connected right up without a problem. Spent the rest of the night packing the explorer. Leaving tomorrow for Colorado and then spending all next week in Moab. Any advise for trails in Moab area. Fins and things, Elephant hill, Dome plateau, lathrop canyon. what do you guys think? I will be going with a 84 j5 with limited slip and 32's and 03 ranger with lots of suspension and 35's and torsen diff.would love to do White rim trail but i need to be at the campground in Moab every night













Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,353
Reaction score
85
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..:scratch:..How did I miss this thread?

...I need to get some time and read up on this build..:biggthump







Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
34,452
Reaction score
2,717
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Hope to see your rig out at Truck Haven some time. Looks great!













mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer

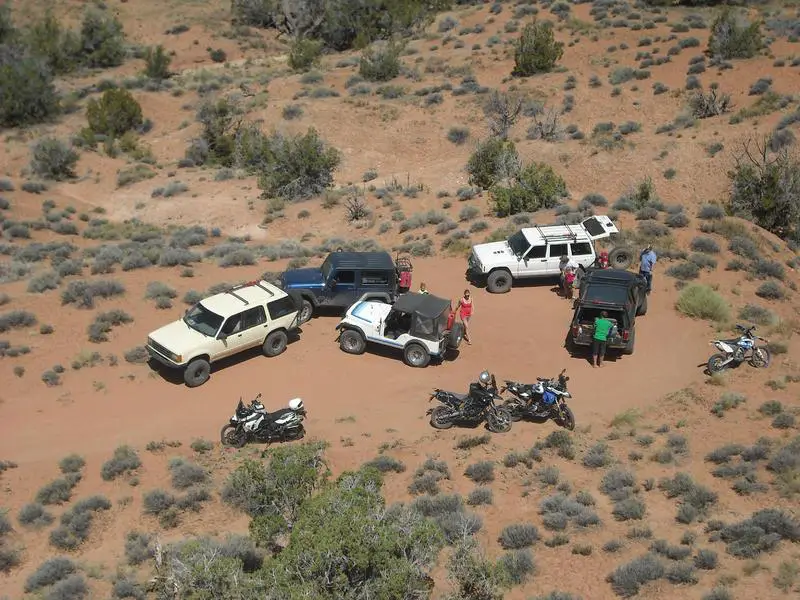

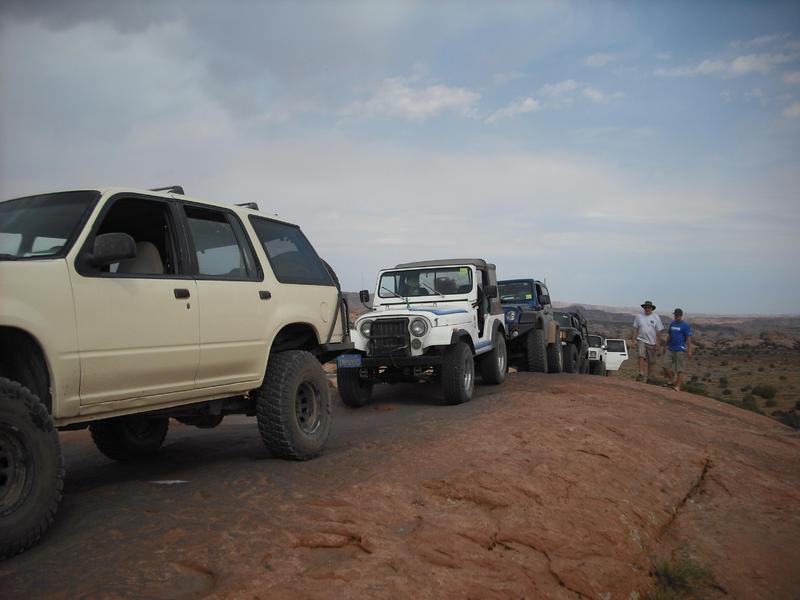

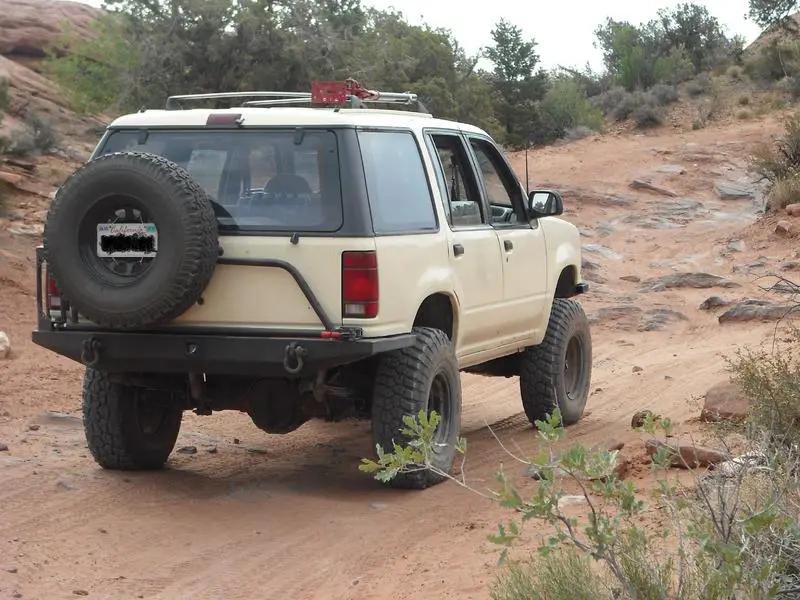

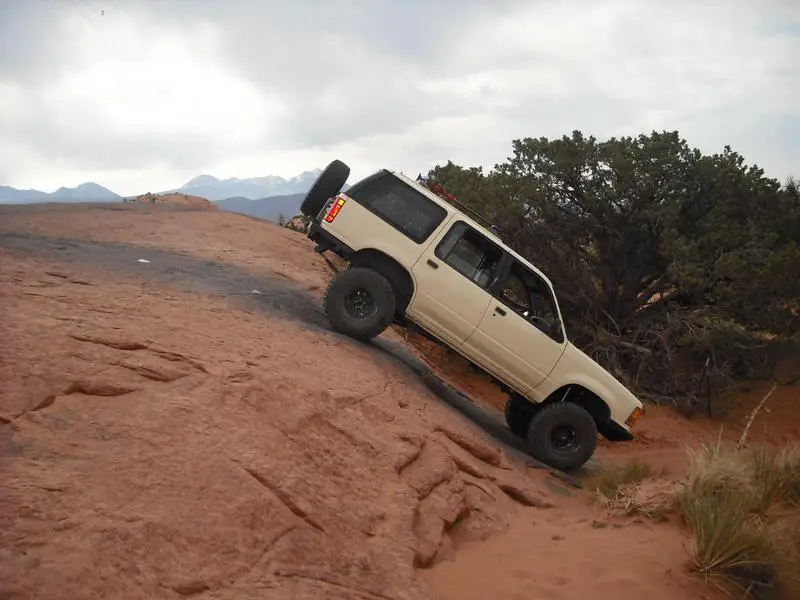

Just got back last night from a vacation in the explorer. Went all the way to Loveland CO for a wedding and then stopped in Moab on the way home for a week. I put just under 3000 miles on the explorer with only minor issues. Moab area was a blast. We did Potash canyon trail,part of White Rim,Lathrop Canyon,Longs canyon,Gemini bridges,Dome plateau,Onion Creek,and my favorite Fins and Things


Attachments

  • DSCF0238.jpg
    89.4 KB · Views: 476
  • DSCF0240.jpg
    43.6 KB · Views: 485
  • DSCF0243.jpg
    61.1 KB · Views: 492
  • DSCF0318.jpg
    98.7 KB · Views: 472






Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,353
Reaction score
85
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..Truck looks great in that environment..:biggthump

..What were the issues you had and do you happen to know your mpg's hwy and offroad during the trip?







mj1989gt

Elite Explorer
Joined
September 7, 2011
Messages
109
Reaction score
5
City, State
Yucaipa Ca
Year, Model & Trim Level
1991 explorer
Passenger rear doorlatch failed so door won't open and passenger front window wont roll up or down. The fuel pressure regulator seeps when cold. Other than that I had no problems.I ran the a/c for hours when moving at speeds under 20 and never got even close to overheating. For MPG I got a best of 20.3 on highway going with wind to my back. I usually got 17-18 on all other tanks
