Stic-o's 2nd gen. radius arm/coil SAS

Well it's Finaly Time to Start this thread.

Intro
In April of 2006 I will be doing a Solid Axle Swap on my '99 Explorer XL. Through the entire prosess I will be takink pics and updateing when there is is new info. I've pretty much always known I was going to do a SAS in my truck all along. For this reason, I have never but a dime into my front axle. I just never saw the point if I was going to rip it out.

The Plan

I plan to run a High Pinion Dana 44 full width in the front. I will be using Early Bronco Coils, posiablly 5.5" lift coils. I am still unsure of what I will be using for Radius arms, as we are still in the works. I would like to do a 3 link in the front but I don't think it's possiable with the cast wedges. I will be running 5.13 gears and plan to use anywhere from a 35" tire to a 37" tire, depending what I find. In the rear, I will be going to a 86-96 full width 8.8 off a Bronco/F-150. This will give me the ability to keep my speedometer, as well as reuseing my current locker, BTF Cover, and Disc Brakes. This will also give me a 5x5.5 pattern, and width almost dead on with the front. I would also like to move the rear leaf springs to the outside of the frame with the FW 8.8 to get rid of the spring hangers under the back doors that we all get caught on.

There alot of things still unsure, and I will figure it out as I go. Unfortally only small things will be done, until late March. Lack of funds will keep me from doing much until then. The axle will be set to go in the truck in April sometime though. Now let get to the goods. Pictures :D


The Meat

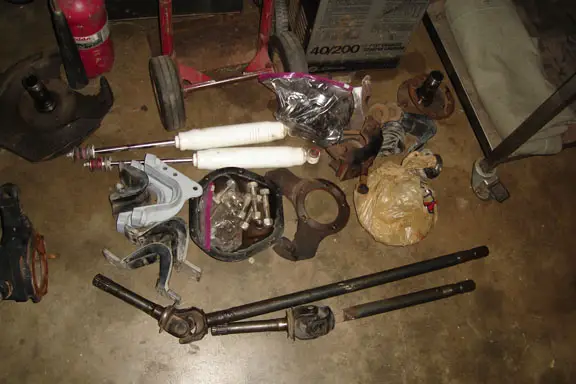

A side dish of parts





I can't wait for dessert :p



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,296
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"
Come on April 2006. keep us posted on your ideas and thoughts. Those little things that you can do before April all go along with the territory. My big fund month is Aug 2006 seems it will never get here. Good Luck





JoshC

Only rolled it once honey
Joined
May 1, 2000
Messages
4,352
Reaction score
2
City, State
Culloden, WV
Year, Model & Trim Level
97 4d OHV
Very cool. I'm anxious to see the build up. That 44 looks like it's in pretty good shape too.

I like your idea of moving the rear hangers out from under the frame, that's the difference in the explorer and rangers.





CodePoet

Well-Known Member
Joined
July 11, 2002
Messages
2,426
Reaction score
1
City, State
Indianapolis, Indiana
Year, Model & Trim Level
1993 XLT
Looks like the axle is in good shape. Much better than mine which is needing to be totally stripped and repainted/rebuilt. Same with my 9".

Looks like your ra's are already extended and setup for heims...very cool. Look forward to the build up, i should be doing mine around the same time :D





Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,919
Reaction score
626
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT
FROADER said:
Sweet Stic-o. So is this going to be an off-road only vehicle after the swaps then?

Well offically the truck is still not even paid off :rolleyes: so after the swap she may see the street for another year after the swap, but the plan is to get her off the street. I need to find some Eddie Bauer flares though. That should cover most of the tires...I hope :( I also plan to move the Gas tank this year. My plan is to take a S-15 Jimmy/S-10 Blazer tank and put it behind the axle. We'll see if I can get it to work :rolleyes:

Thanks everone I can't wait till April too :bounce:





CodePoet

Well-Known Member
Joined
July 11, 2002
Messages
2,426
Reaction score
1
City, State
Indianapolis, Indiana
Year, Model & Trim Level
1993 XLT
Why not get a 10-20 gallon fuel cell and mount it in the cargo area? Jegs sells everything you'd need to set it up, and relatively decent price. I'm probably going to do that with mine eventually. Just an idea, i'm sure that it would be alittle work getting the gauge and everything to work but i bet you could do it without too much trouble.





bmxking5

Well-Known Member
Joined
May 2, 2004
Messages
4,791
Reaction score
3
City, State
Monroe, GA
Year, Model & Trim Level
'93 Sport & '96 XLT
I like the idea of moving the leaf springs out side of the frame. Seems like it would help out a lot w/ clearance. I was considering that for a while, but now I'm considering a different setup for mine. ;)





Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,919
Reaction score
626
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT
CodePoet said:
Why not get a 10-20 gallon fuel cell and mount it in the cargo area? Jegs sells everything you'd need to set it up, and relatively decent price. I'm probably going to do that with mine eventually. Just an idea, i'm sure that it would be alittle work getting the gauge and everything to work but i bet you could do it without too much trouble.

Fuel Cell's are not legal in california :(





CodePoet

Well-Known Member
Joined
July 11, 2002
Messages
2,426
Reaction score
1
City, State
Indianapolis, Indiana
Year, Model & Trim Level
1993 XLT
ahhh ok...too bad. I'm not worried bout "laws" in my build lol...i'm building a trailor queen though :D





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
JoshC said:
Very cool. I'm anxious to see the build up. That 44 looks like it's in pretty good shape too.

I like your idea of moving the rear hangers out from under the frame, that's the difference in the explorer and rangers.

Gotta love the So Cal desert as far as rust is concerned :cool: That axle was kept on the side of my house for about a year and except for the occasional sand storm, it stayed in good condition.
Steve, I forgot to tell you I threw out the RA mounts I made...they were useless anyways. I do have the original mounts that came with the arms but those are useless to you as well. So your off to a good start now :thumbsup:





Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,919
Reaction score
626
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT
DB_1 said:
Gotta love the So Cal desert as far as rust is concerned :cool: That axle was kept on the side of my house for about a year and except for the occasional sand storm, it stayed in good condition.
Steve, I forgot to tell you I threw out the RA mounts I made...they were useless anyways. I do have the original mounts that came with the arms but those are useless to you as well. So your off to a good start now :thumbsup:

It's alright I'd just build new ones anyway :rolleyes: I'm still not sure if I'm going to uese the arms or not yet. I still have to repair your hack job to use them :p I was thinking on sleaving where you cut after I weld it up. Then for maybe modifying the spring retairs I have to work with the arms. Not sure yet. I gotta start making a detailed parts list. :rolleyes: Not sure if I will use those axle shaft's maybe keep them for spares, and just get new ones.





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
The original threaded rod is underneath the sleeve job I did so if you can get the sleeves off as I started to do then you can run the original brackets.





breel

Member
Joined
March 22, 2005
Messages
80
Reaction score
0
City, State
(yuppie hell)Peachtrre City GA
Year, Model & Trim Level
94 ranger 4.0
Check with CAGE, maybe they will sell just the radius mounts setup for their heims. Just a thought. I decided to start my swap this weekend,being the trans is now dead, lucky I have a fresh C4 sitting with the axle. Might want to look at a BII tank swap. I know this is the cheap route when 3-linking a ranger rear.





Positive Vibes

Elite Explorer
Joined
June 18, 2001
Messages
3,953
Reaction score
1
City, State
Santa Cruz, Ca
Year, Model & Trim Level
'94 XLT
Signing up.



















Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,605
Reaction score
2,255
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Most guys I know with 5.13 cant do over 60 MPH in 2wd without rapping out their OHV 4.0L, or so I have been told. To me this would get old REAL quick.

Am I off base here?
